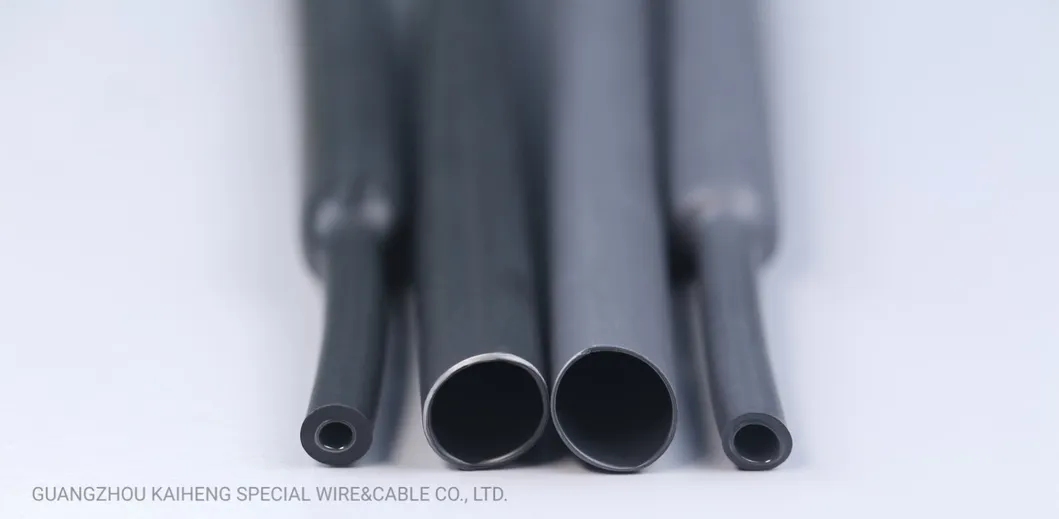

High Ration Cable Heat Shrink Tube Sleeve Tubing
Product DescriptionDW(3:1 4:1)Dual wall, high-shrink-ratio, adhesive-lined flexible polyolefin tubingDW (3:1 4:1) is a flexible, flame-retardant, dual wall, high-shrink-ratio, irradiated heat-shrinkable tubing manufactured by co-extrusion of polyolefin and hot-melt adhesive. Inner is hot-melt adhesi......
Send Inquiry
Product Description
Product DescriptionDW(3:1 4:1)

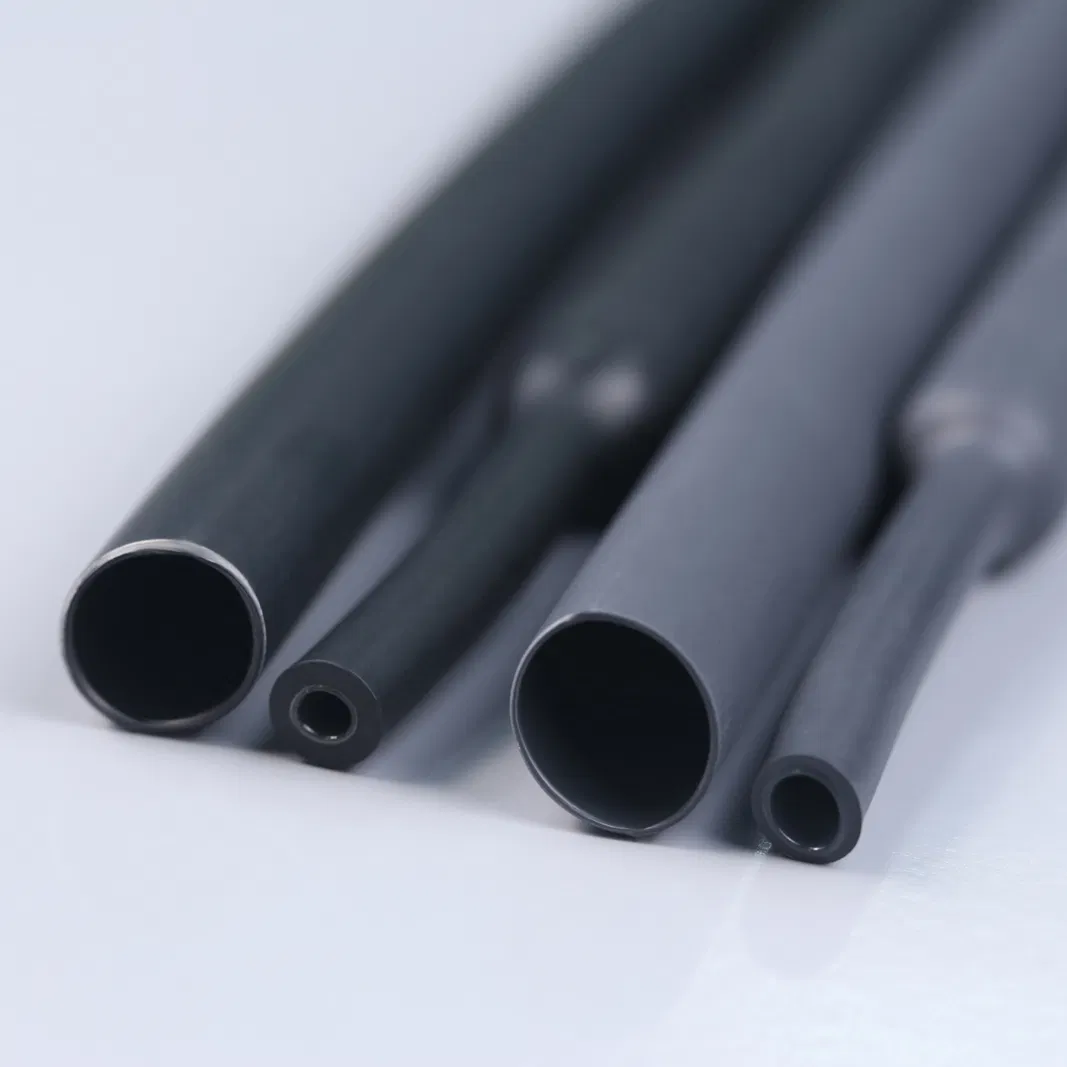

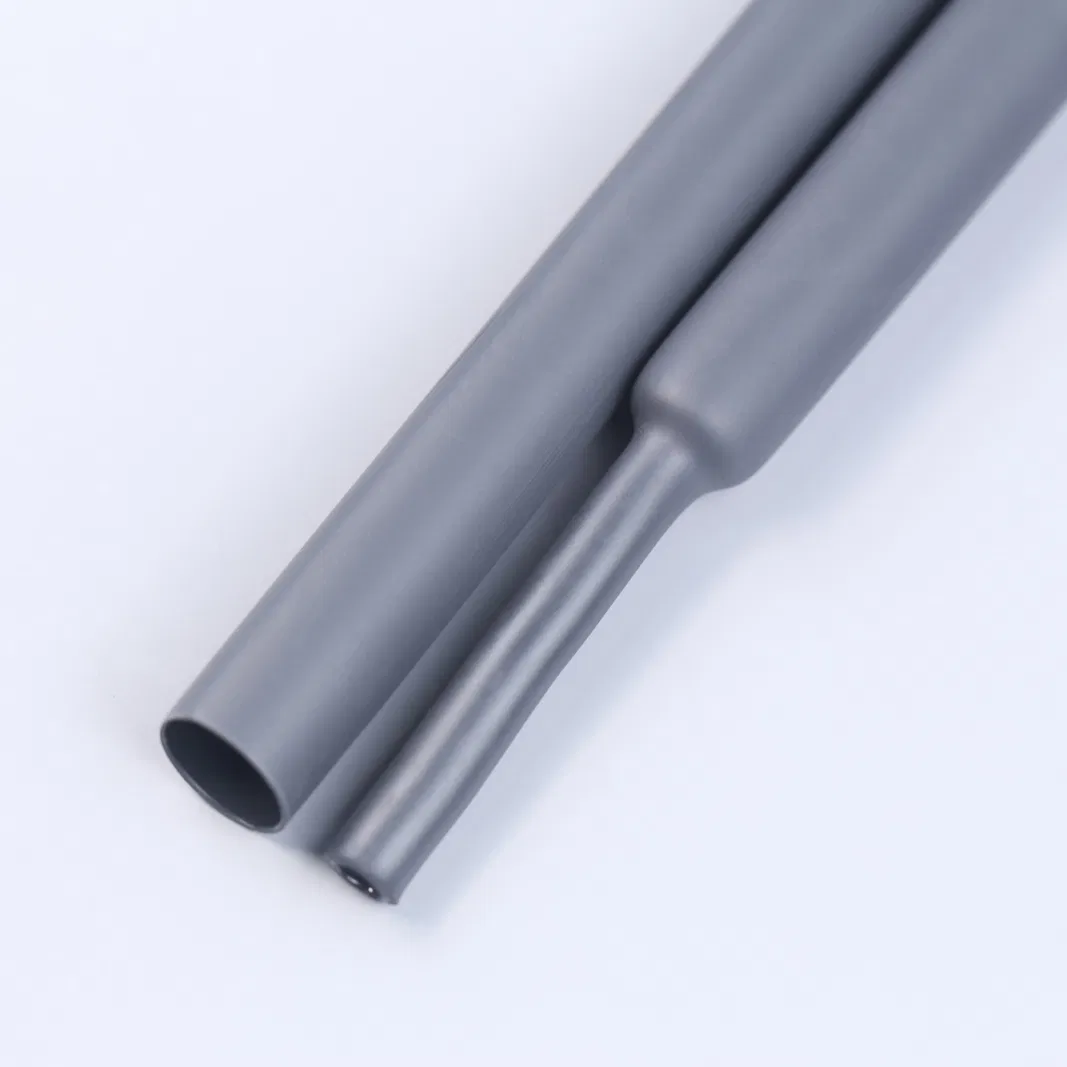

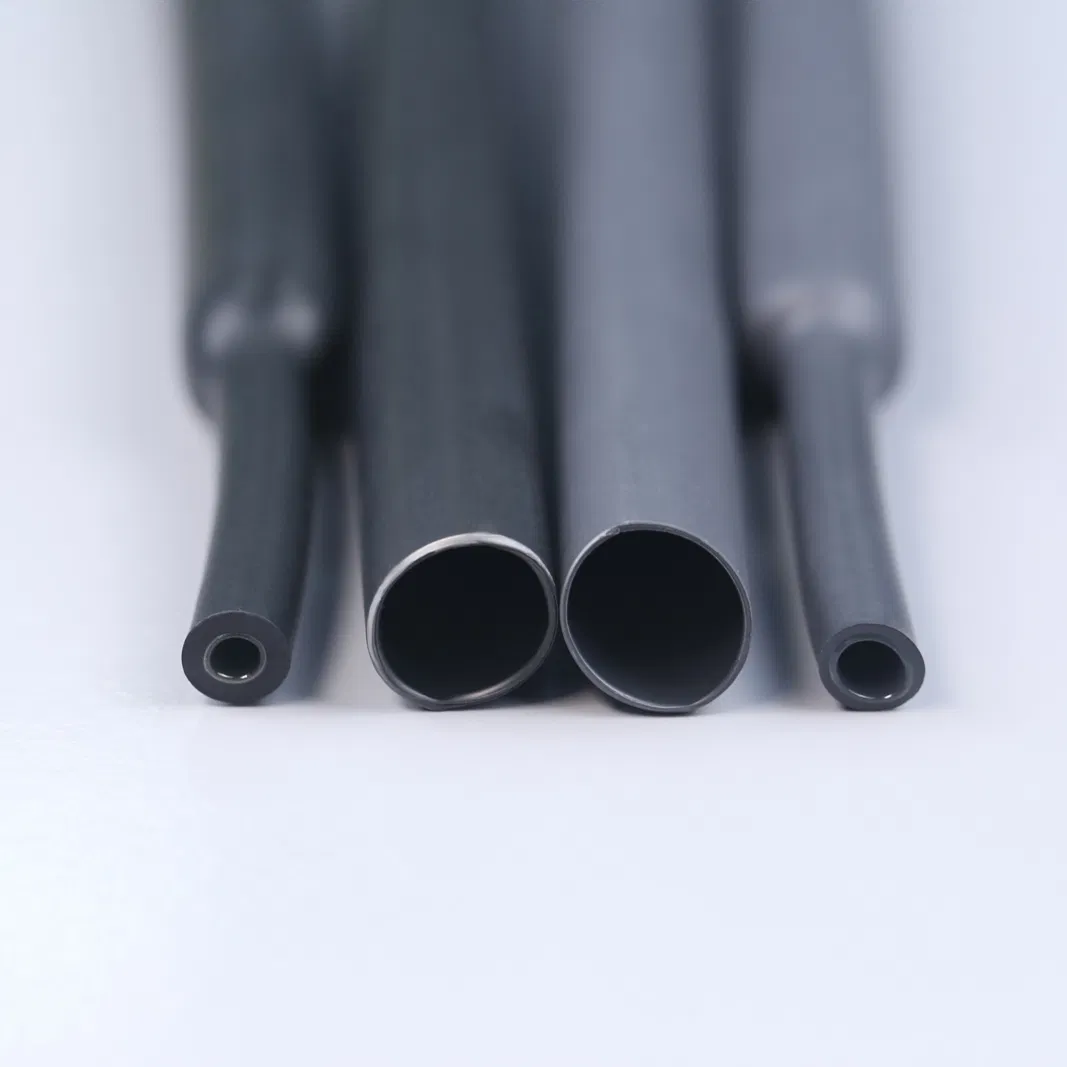

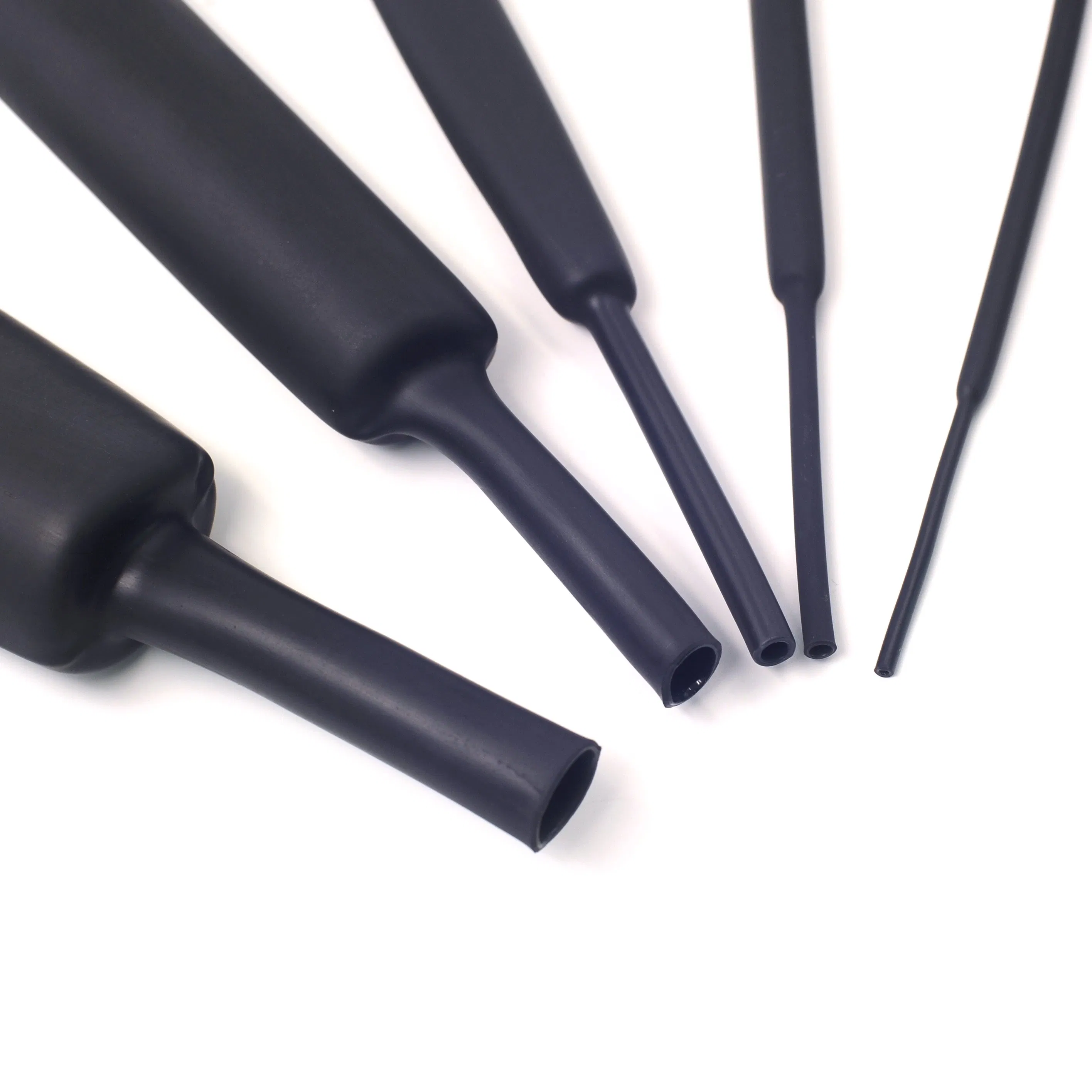

Dual wall, high-shrink-ratio, adhesive-lined flexible polyolefin tubing
DW (3:1 4:1) is a flexible, flame-retardant, dual wall, high-shrink-ratio, irradiated heat-shrinkable tubing manufactured by co-extrusion of polyolefin and hot-melt adhesive. Inner is hot-melt adhesive with good stickness and outer is flexible, irradiated cross-linked polyolefin. It is widely used to environmentally seal and protect interconnections, joints and components from fluids, moisture and corrosion. High shrink ratio allows for connector-to-cable sealing and makes it possible to repair most damaged cable jackets without removing connectors.
| Specification values | ||||
| Property | Requirement | Test method | Typical value | |
Physical: | Tensile strength | 9.0MPa min. | ASTM D 638 | ≥12MPa |
| Elongation | 200% min. | ASTM D 638 | ≥400% | |
| Heat shock | No cracking, dripping or flowing of outer wall | ASTM D 2671 | Pass | |
| Low temperature flexibility | No cracking | ASTM D 2671 | Pass | |
| Aging 158ºC,168hrs | ||||
| Tensile strength after aging | 70% of original min. | ASTM D 638 | ≥90% | |
| Elongation after aging | 100% min. | ASTM D 638 | ≥300% | |
Electrical: | Dielectric voltage withstand | 2500V, 60sec no breakdown | Pass | |
| Volume resistivity | 1014Ω•cm min. | ASTM D 876 | ≥1014Ω•cm | |
Chemical: | Copper corrosion 158ºC,168hrs | No corrosion | ASTM D 2671 | Pass |
| Flammability | ALL TUBING FLAME TEST | UL224 | Pass | |
•Shrink ratio:4:1.
•Environmentally seals and protects components, joints and interconnections from fluids, moisture and corrosion.
•Good mechanical, electrical and chemical properties.
•Adhesive has good stickness and bonds to a wide variety of plastics, rubbers and metals.
•Conform to RoHS and Sony-ss00259 environmental directive.
Operating Temperature Range
•Operating temperature range: -55ºC~110ºC
•Minimum shrink temperature: 80ºC
•Minimum full recovery temperature: 110ºC
Specifications/Standards
UL224 125ºC 600V
AMS-DTL-23053/4 class3
| Product sizes | ||||||
| Size | As supplied(mm) | After recovery(mm) | Standard length | |||
| (inch/mm) | Inside diameter (min.) | Wall thickness (nominal) | Inside diameter | Wall thickness* (nominal) | Adhesive wall thickness (nominal) | m/length,m/spool |
| Shrink Radio 3:1 | ||||||
| 1/8 (3/1) | 3.0 | 0.35 | 1.0 | 1.00±0.28 | 0.50 | 1.2/200 |
| 3/16 (4.8/1.6) | 4.8 | 0.35 | 1.6 | 1.00±0.28 | 0.50 | 1.2/100 |
| 1/4 (6/2) | 6.0 | 0.4 | 2.0 | 1.00±0.28 | 0.50 | 1.2/100 |
| 3/8 (9/3) | 9.0 | 0.5 | 3.0 | 1.40±0.28 | 0.60 | 1.2 |
| 1/2 (12/4) | 12.0 | 0.6 | 4.0 | 1.78±0.38 | 0.76 | 1.2 |
| 3/4 (18/6) | 18.0 | 0.7 | 6.0 | 2.25±0.55 | 0.76 | 1.2 |
| 1 (24/8) | 24.0 | 0.8 | 8.0 | 2.54±0.55 | 1.02 | 1.2 |
| 1 1/4 (30/10) | 30.0 | 0.8 | 10.0 | 2.54±0.55 | 1.02 | 1.2 |
| 1 1/2 (39/13) | 39.0 | 0.8 | 13.0 | 2.54±0.55 | 1.02 | 1.2 |
| Shrink Radio 4:1 | ||||||
| 4/1 | 4.0 | 0.4 | 1.0 | 1.00±0.28 | 0.50 | 1.2 |
| 6/1.5 | 6.0 | 0.45 | 1.5 | 1.00±0.28 | 0.50 | 1.2 |
| 8/2 | 8.0 | 0.45 | 2.0 | 1.00±0.28 | 0.50 | 1.2 |
| 12/3 | 12.0 | 0.5 | 3.0 | 1.40±0.28 | 0.60 | 1.2 |
| 16/4 | 16.0 | 0.6 | 4.0 | 1.78±0.38 | 0.76 | 1.2 |
| 24/6 | 24.0 | 0.7 | 6.0 | 2.25±0.55 | 0.76 | 1.2 |
| 32/8 | 32.0 | 0.8 | 8.0 | 2.54±0.55 | 1.02 | 1.2 |
| 52/13 | 50.0 | 0.8 | 13.0 | 2.54±0.55 | 1.02 | 1.2 |
FAQQ1. What is your terms of packing?
A: Generally, we pack our goods in KOSOO standard paper rolls and cartons. If you have special request,we could do the OEM packing for you.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q4. How about your delivery time?
A: Generally, it will take 20-30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
