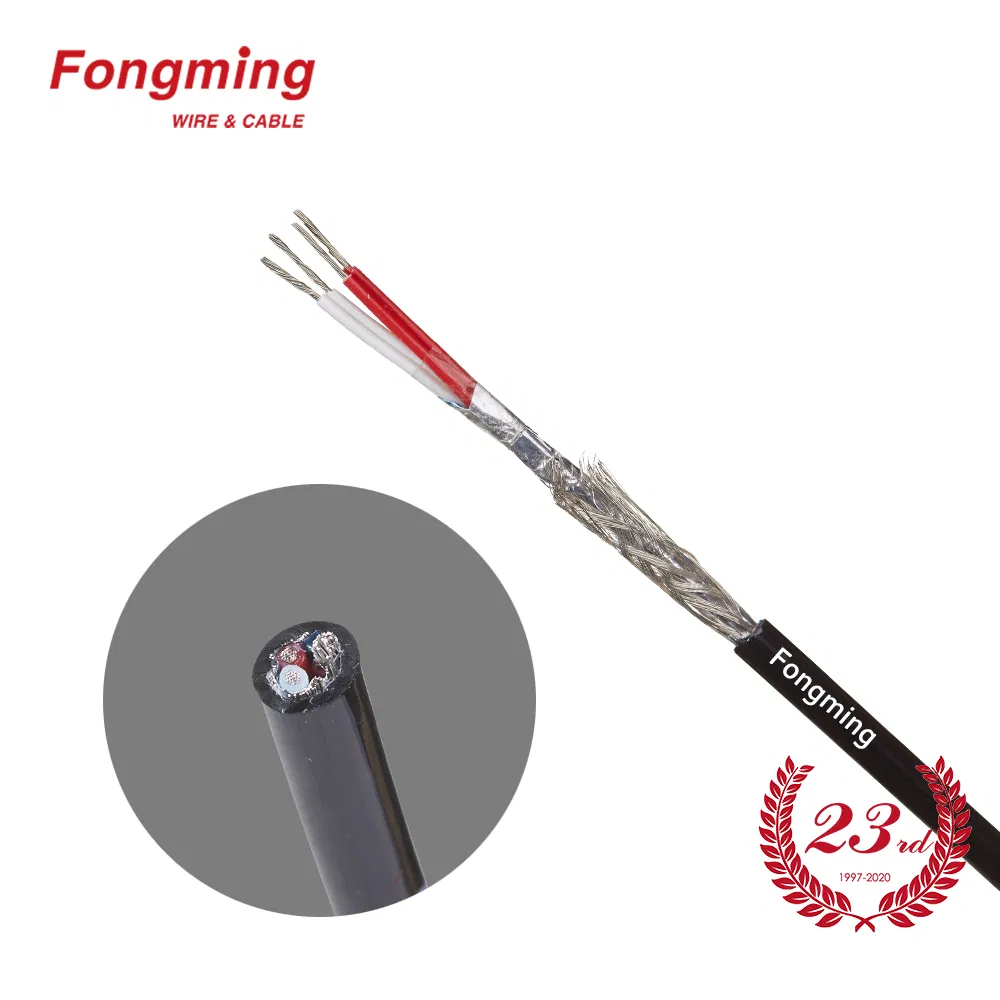

High Temperature Fiberglass Insulated Multi Cable

Product Description

Product Description

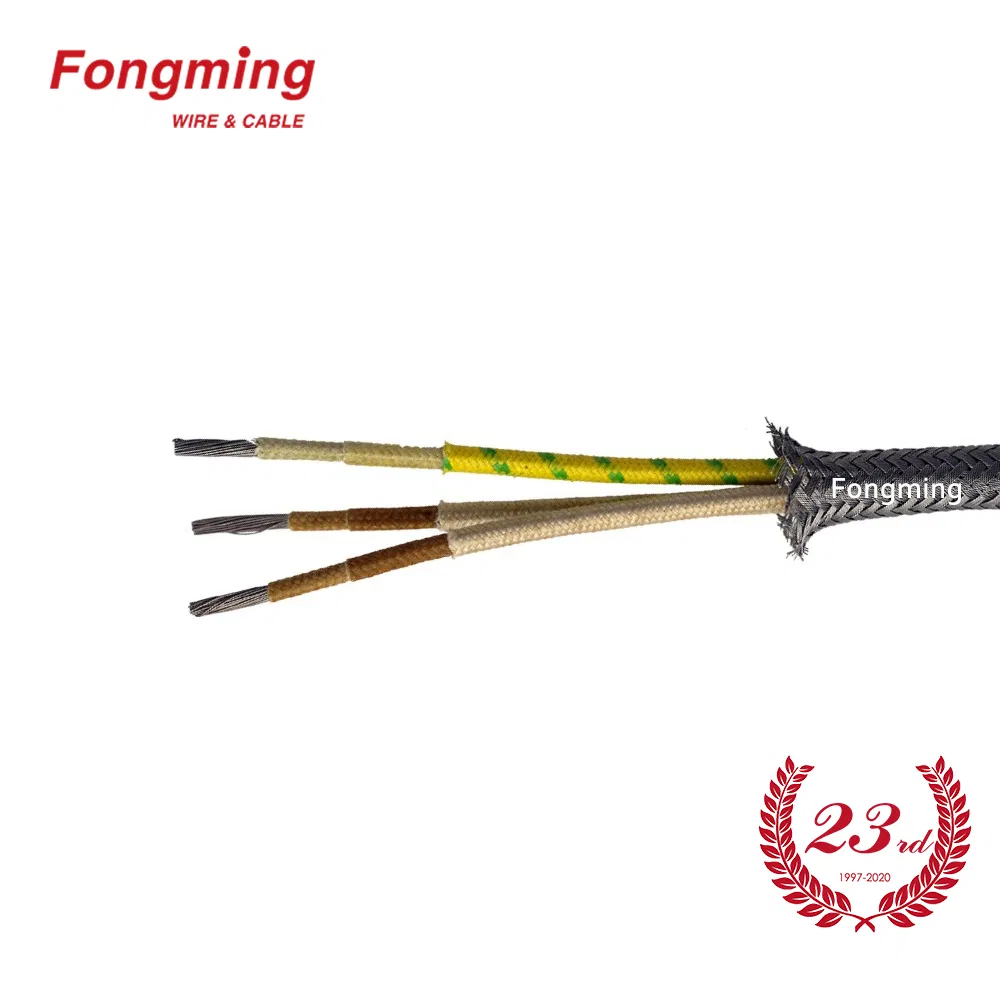

Fiberglass Wrapping Braiding Heat Resistance Cable

Description
Name: Fiberglass Wrapping Braiding Heat Resistance Cable
Model: CGG04-P
Size: 2*26~5*14AWG

Feature
Ratings Voltage: 300V
Rated Temperature: 350C

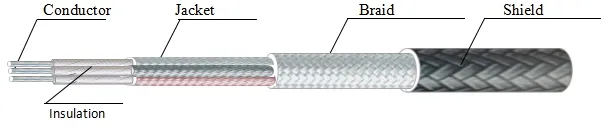

Structure
Conductor: Pure Nickel
Insulation: Fiberglass Wrapping with Silicone Resin Coating
Jacket: Fiberglass Braid with Silicone Resin Coating
Cabling&Braid:Fiberglass Braid

High Temperature Fiberglass Insulated Multi Cable

Cores	Size AWG	Conductor Structure	Diameter (mm)	Serve Thickness (mm)	Diameter (mm)	Braid Thickness (mm)	Diameter (mm)	Jacket Thickness (mm)	Diameter (mm)	Shield Thickness (mm)	OD (mm)
2	26	7/0.16	0.48	0.26	1.00	0.2	1.4	0.2	3.2	0.2	3.4±0.3
3								0.2	3.4	0.2	3.6±0.3
4								0.2	3.8	0.2	4.0±0.3
5								0.2	4.2	0.2	4.4±0.3
2	24	7/0.2	0.60	0.26	1.12	0.2	1.5	0.2	3.4	0.2	3.6±0.3
3								0.2	3.6	0.2	3.8±0.3
4								0.2	4.0	0.2	4.2±0.3
5								0.2	4.5	0.2	4.7±0.3
2	22	7/0.25	0.75	0.26	1.27	0.2	1.7	0.2	3.8	0.2	4.0±0.3
3								0.2	4.1	0.2	4.3±0.3
4								0.2	4.5	0.2	4.7±0.3
5								0.2	5.0	0.2	5.2±0.3
2	20	11/0.25	0.96	0.26	1.48	0.2	1.9	0.2	4.2	0.2	4.4±0.3
3								0.2	4.5	0.2	4.7±0.3
4								0.2	5.0	0.2	5.2±0.3
5								0.2	5.5	0.2	5.7±0.3
2	18	17/0.25	1.19	0.26	1.71	0.2	2.1	0.2	4.6	0.2	4.8±0.3
3								0.2	4.9	0.2	5.1±0.3
4								0.2	5.5	0.2	5.7±0.3
5								0.2	6.1	0.2	6.3±0.3
2	16	27/0.25	1.50	0.26	2.02	0.2	2.4	0.2	5.2	0.2	5.4±0.3
3								0.2	5.6	0.2	5.8±0.3
4								0.2	6.2	0.2	6.2±0.3
5								0.2	6.9	0.2	7.1±0.3
2	14	42/0.25	1.87	0.26	2.39	0.2	2.8	0.2	6.0	0.2	6.2±0.3
3								0.2	6.4	0.2	6.6±0.3
4								0.2	7.2	0.2	7.4±0.5
5								0.2	8.0	0.2	8.2±0.5

Certifications

High Temperature Fiberglass Insulated Multi Cable

Company Information

High Temperature Fiberglass Insulated Multi Cable

Packaging&Shipping

Our Services

1. OEM service available based on official & legal authorization.

2. Strict quality control system.

3. Timely deliverly.

4. Excellent quality with affordable price.

5. Strong technical support.

6. Mobile on 24 hours for any question.

FAQ

1. Why is the price so low?
You are ordering directly from the factory.

2. Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.

3. Can I get some samples?
Yes, we are honored to offer you samples.

4. Can you make the products with my design?

Yes. customization is welcome .
