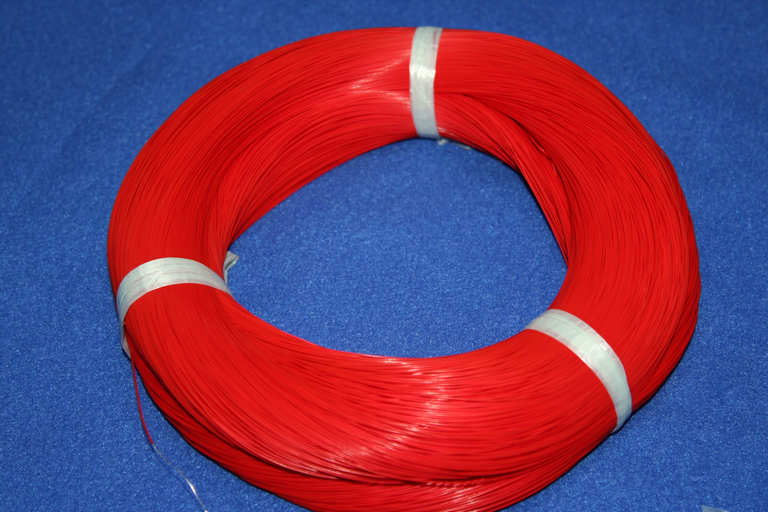

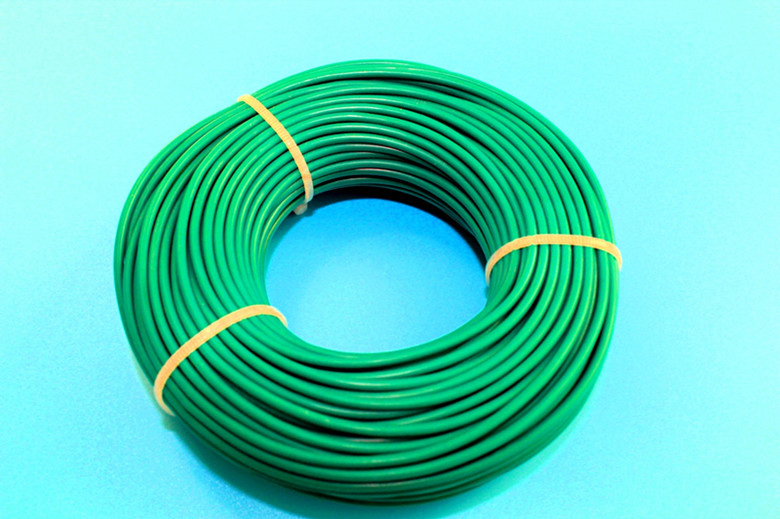

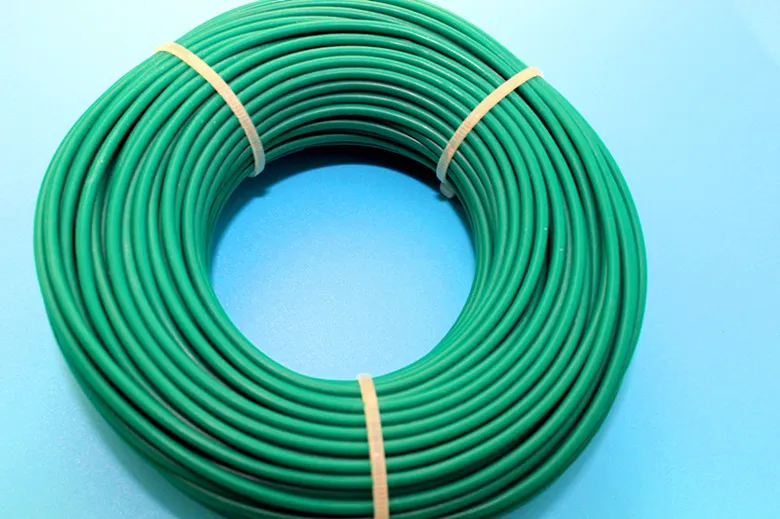

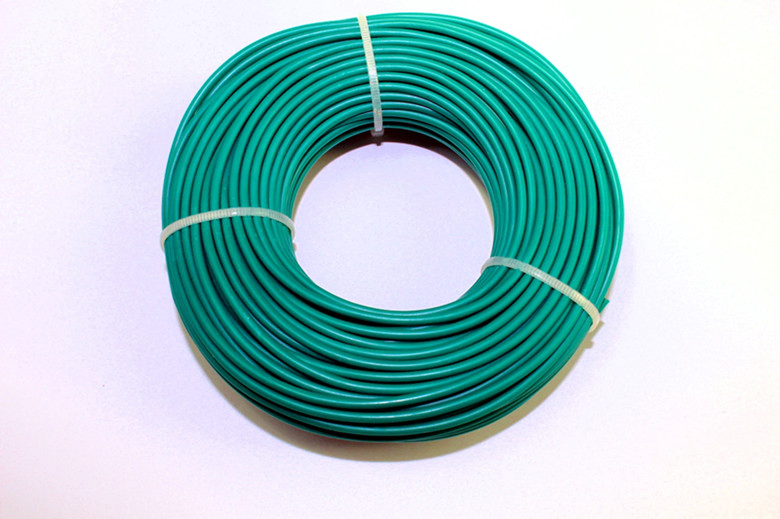

Insulated PVC Cable 20AWG with UL1015
Insulated PVC Cable (UL1015)--20AWGNominal Voltage: 600VRated Temperature: 105º CConductor: Tinned copper&bare copperInsulator: PVCO. D. Tolerance: ± 0.10mmColor: Black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow. EctCon. Of conductor.: 21/0.18Thickness ......
Send Inquiry
Product Description
Insulated PVC Cable (UL1015)--20AWG
Nominal Voltage: 600V
Rated Temperature: 105º C
Conductor: Tinned copper&bare copper
Insulator: PVC
O. D. Tolerance: ± 0.10mm
Color: Black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow. Ect
Con. Of conductor.: 21/0.18
Thickness of insulator: 0.79MM
Over diameter: 2.55MM
Packing: 610M/COIL
Max. Con. Resistance at 20º C: 10.5ohm/kft/20º C
Nominal Voltage: 600V
Rated Temperature: 105º C
Conductor: Tinned copper&bare copper
Insulator: PVC
O. D. Tolerance: ± 0.10mm
Color: Black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow. Ect
Con. Of conductor.: 21/0.18
Thickness of insulator: 0.79MM
Over diameter: 2.55MM
Packing: 610M/COIL
Max. Con. Resistance at 20º C: 10.5ohm/kft/20º C
