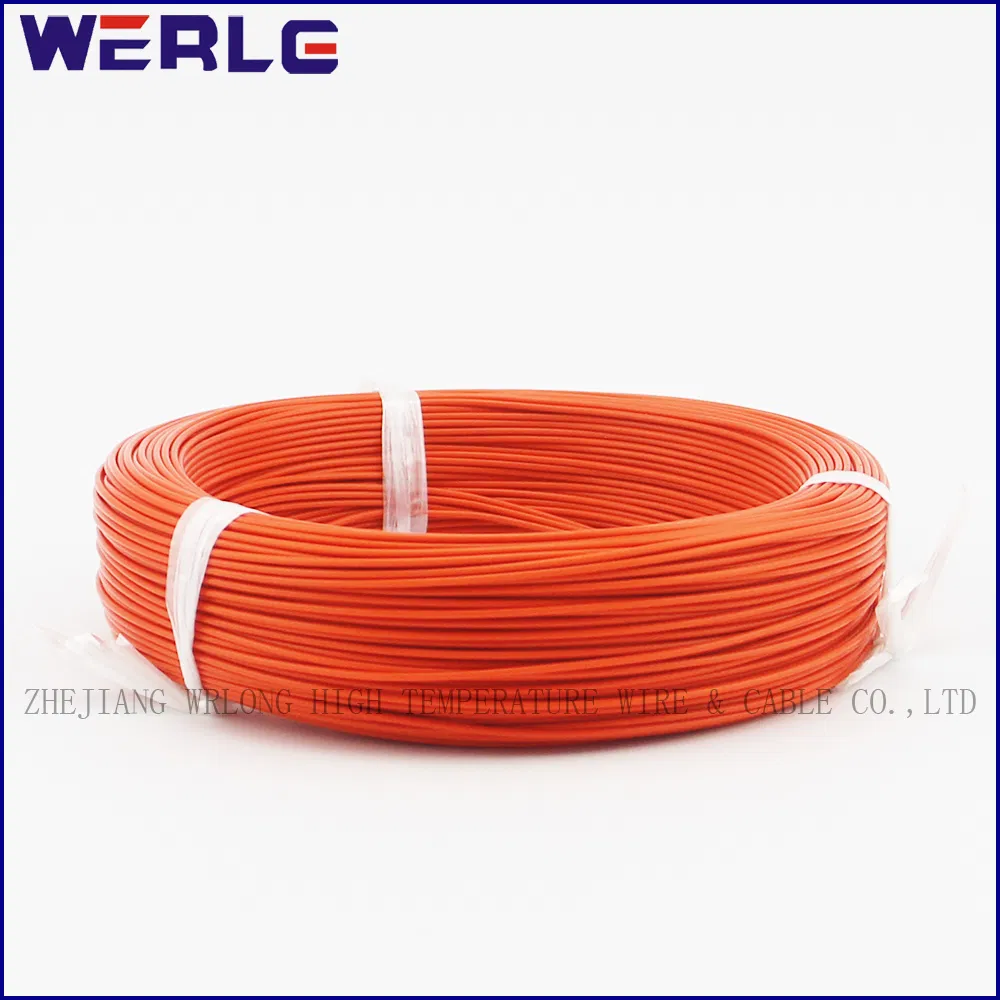

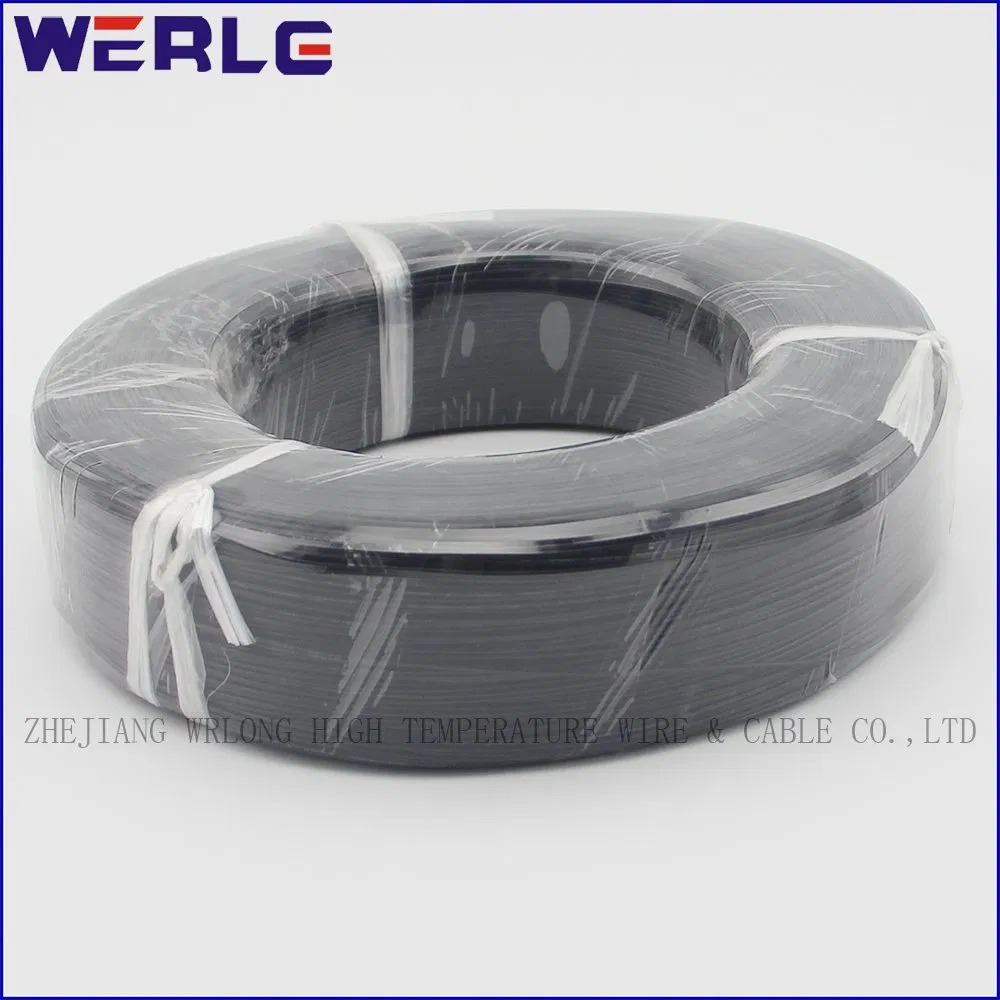

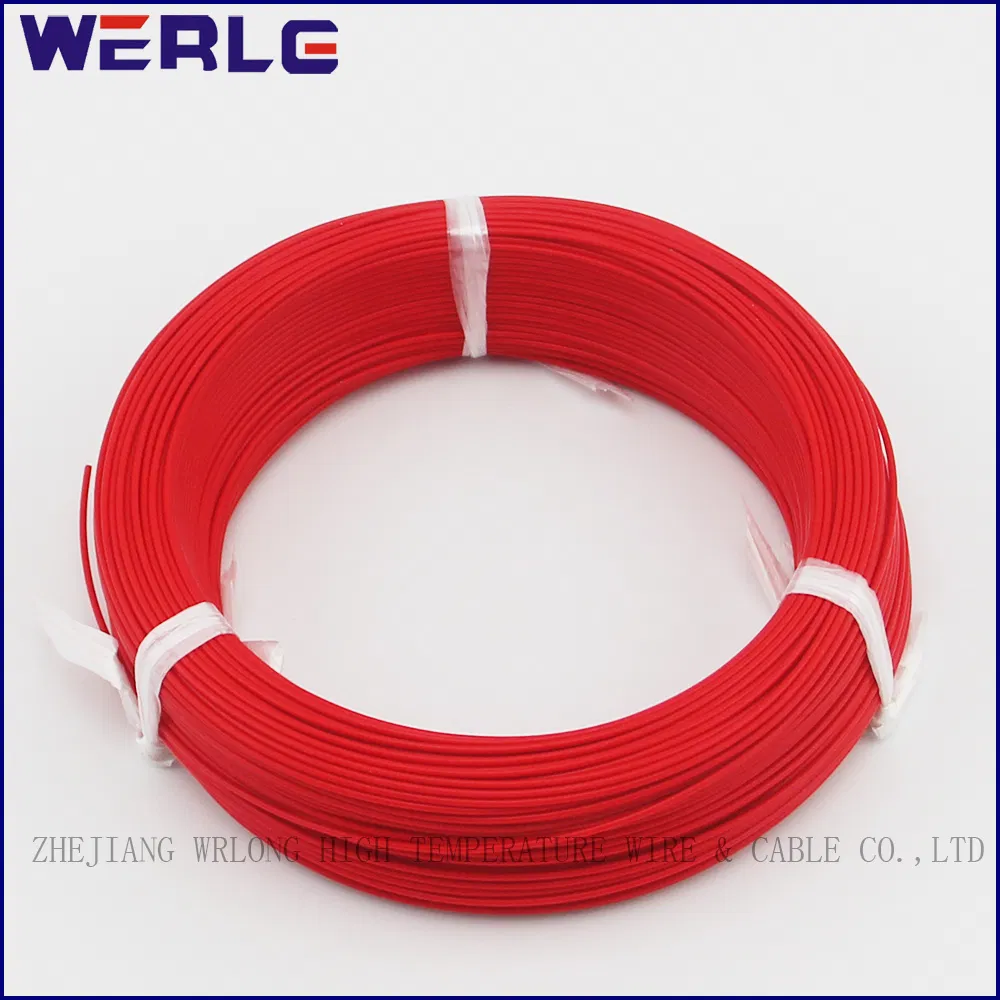

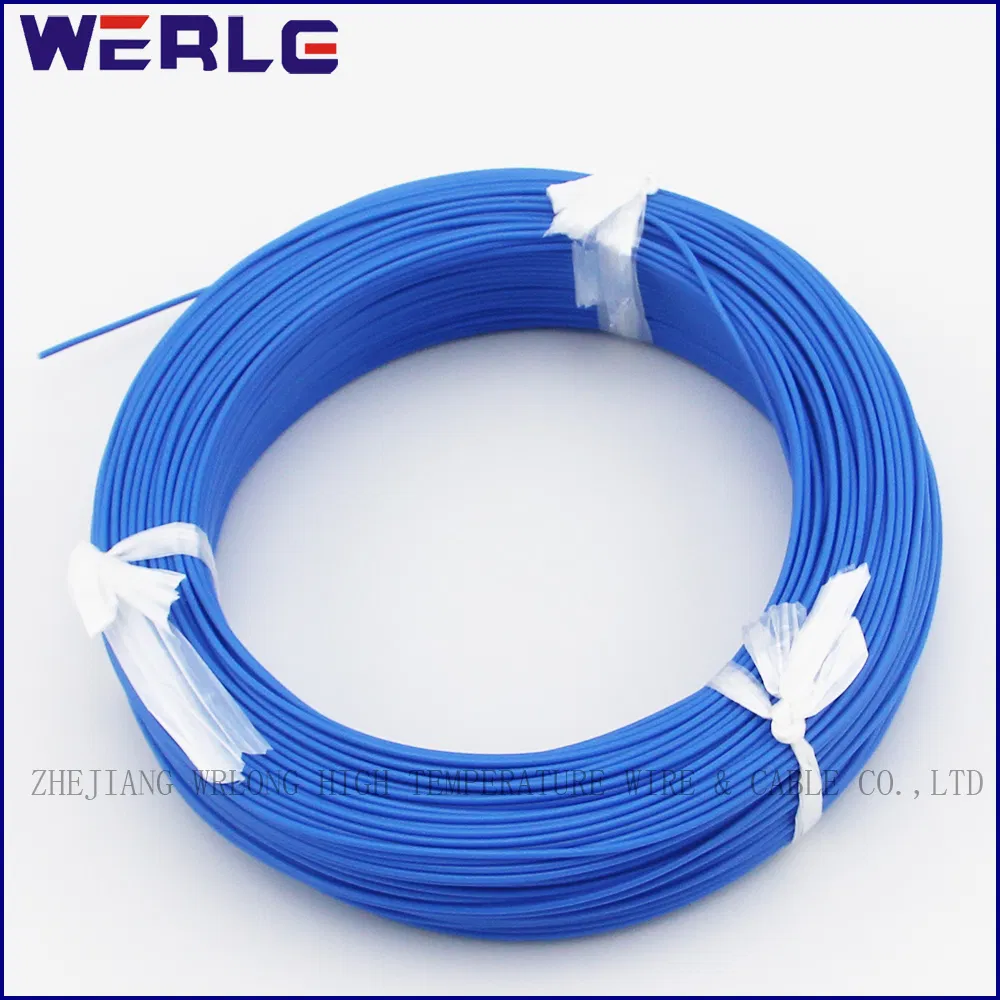

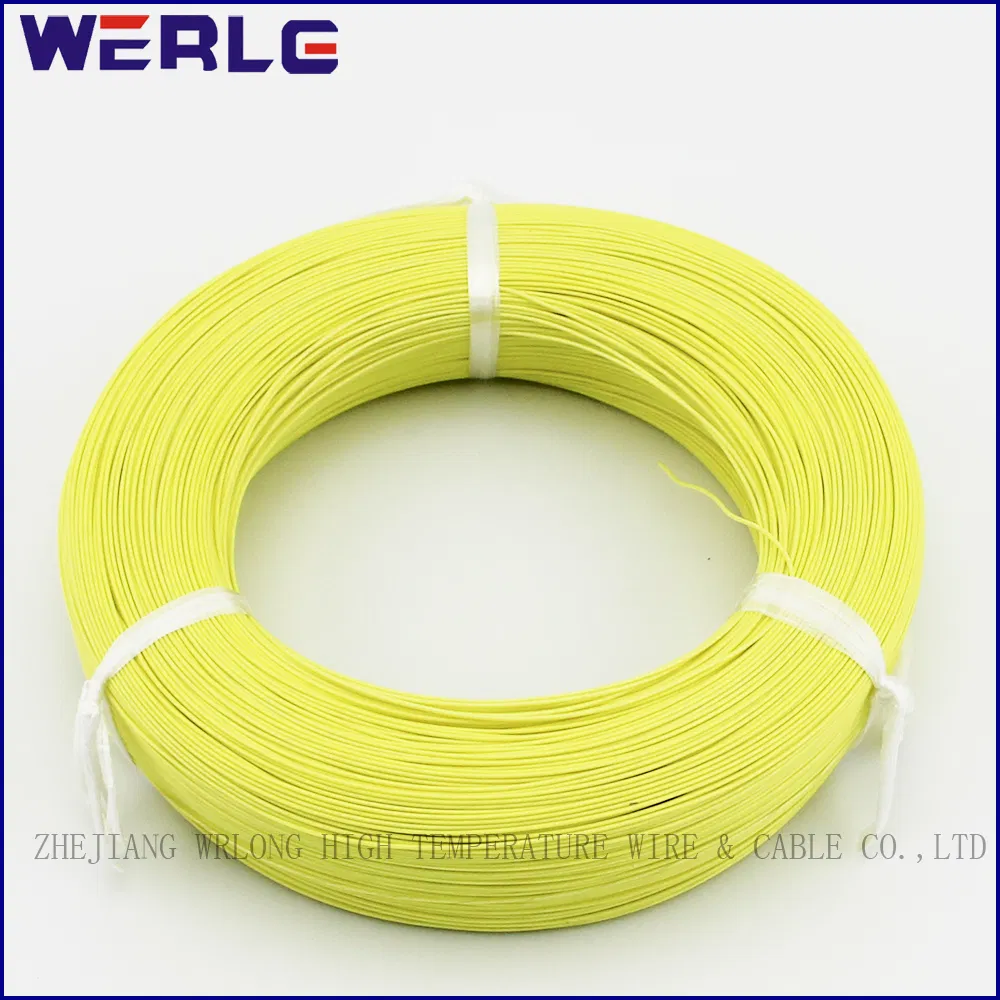

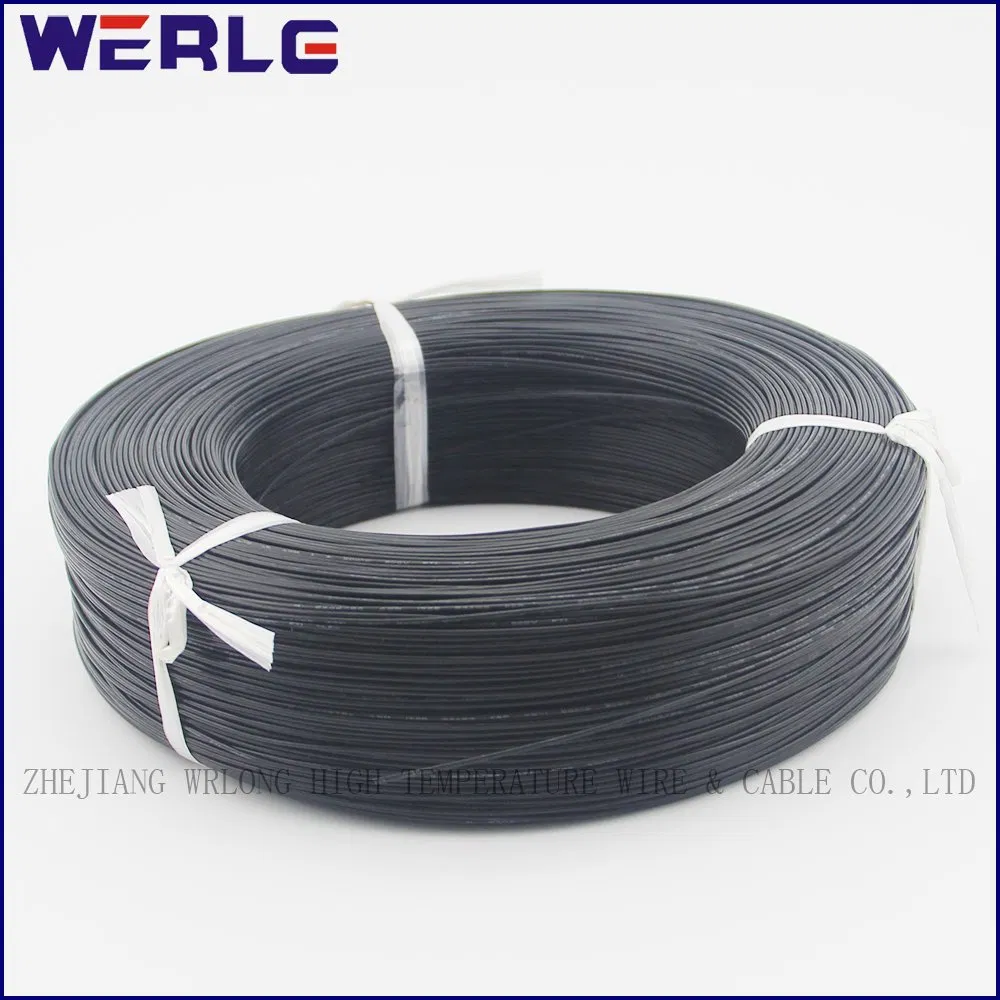

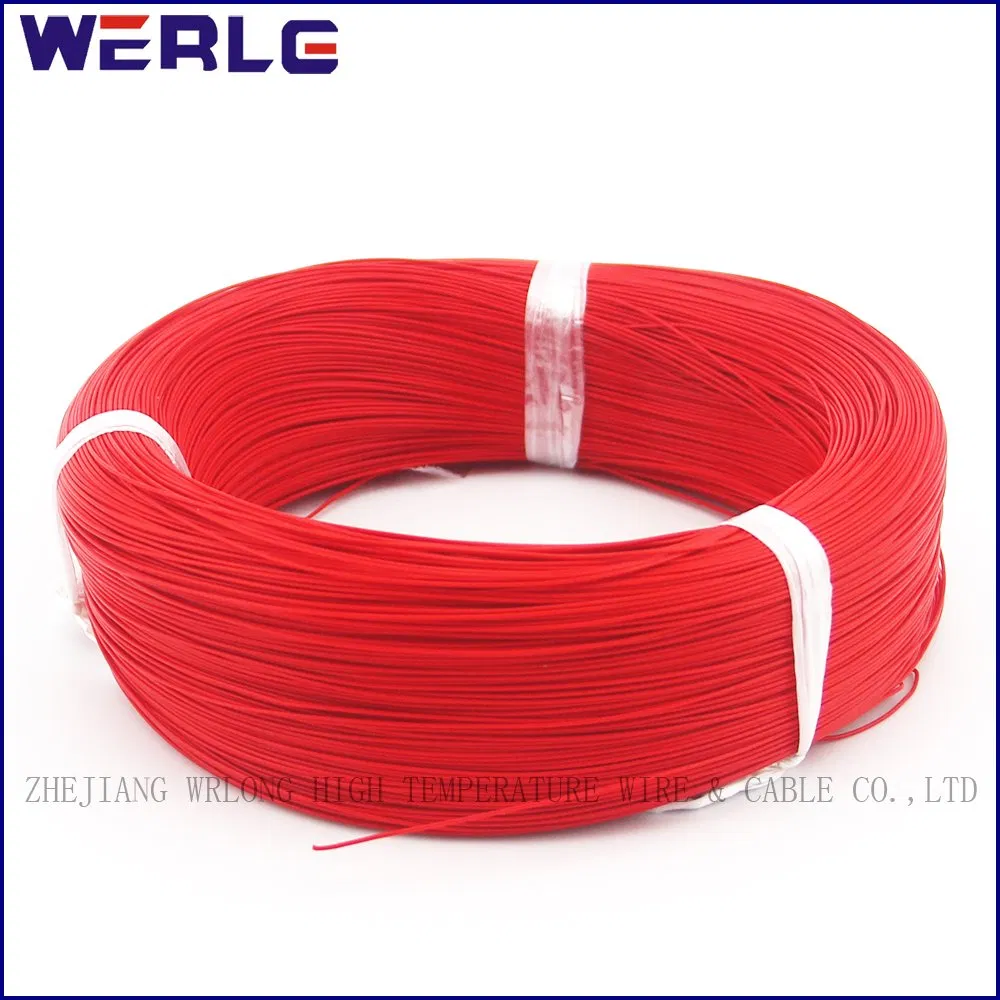

Insulated Tinned Copper Thermostability Wire

Product Description

Insulated tinned copper Thermostability Wire

RoHS, CCC
GB/T19001, ISO9001
Rated temperature: 200oC
AC rated voltage: 300V-600V
Conductor: Solid or stranded wire (0.014~95mm2 ) of tin-plated, silver or bare copper.
Insulator: FEP(F46)

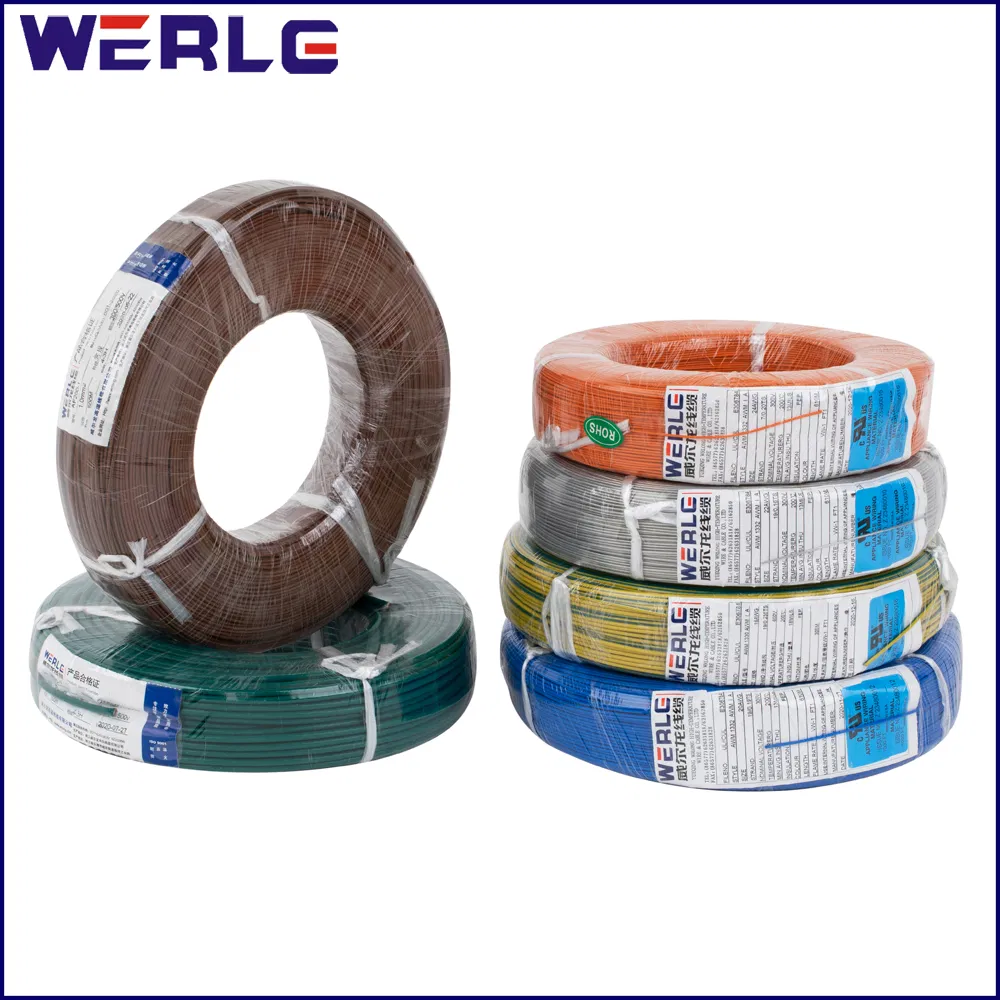

Color: Red\blue\white \ yellow \green\brown\black\grey \transparent
It is corrosion-resistant and almost impossibly soluble in any organic solvent and it is oil-resistant, less high-frequency loss, moisture-proof and has big insulation resistance. Also, it is incombustible, non-aging and durable.
The length of delivery should not be less than 8 meters and the quantity of short delivery should not be more than the quantity of 20% of all delivery.
Use Range
It is used in air-conditioner, microwave oven, electric products, lighting sets, electric

Conductor		Over Diamter mm	Packing mt/coils
Nominal section mm2	Conductor Construction No./mm	Over Diamter mm	Packing mt/coils
0.12	7/0.15	0.79	500
0.20	7/0.20	0.97	500
0.30	7/0.23	1.10	500
0.35	19/0.15	1.15	500
0.50	19/0.18	1.32	500
0.75	19/0.23	1.59	200
1.00	19/0.26	1.78	200
1.20	19/0.28	1.88	200
1.35	19/0.30	2.00	200
1.50	19/0.32	2.08	200
2.00	19/0.37	2.34	200
2.50	19/0.41	2.55	200
3.00	19/0.45	2.81	100
4.00	37/0.37	3.13	100
6.00	37/0.45	3.72	100
10.00	84/0.39	5.80	100
16.00	126/0.39	7.00	100
20.00	126/0.40	8.00	100
25.00	196/0.40	8.80	100
