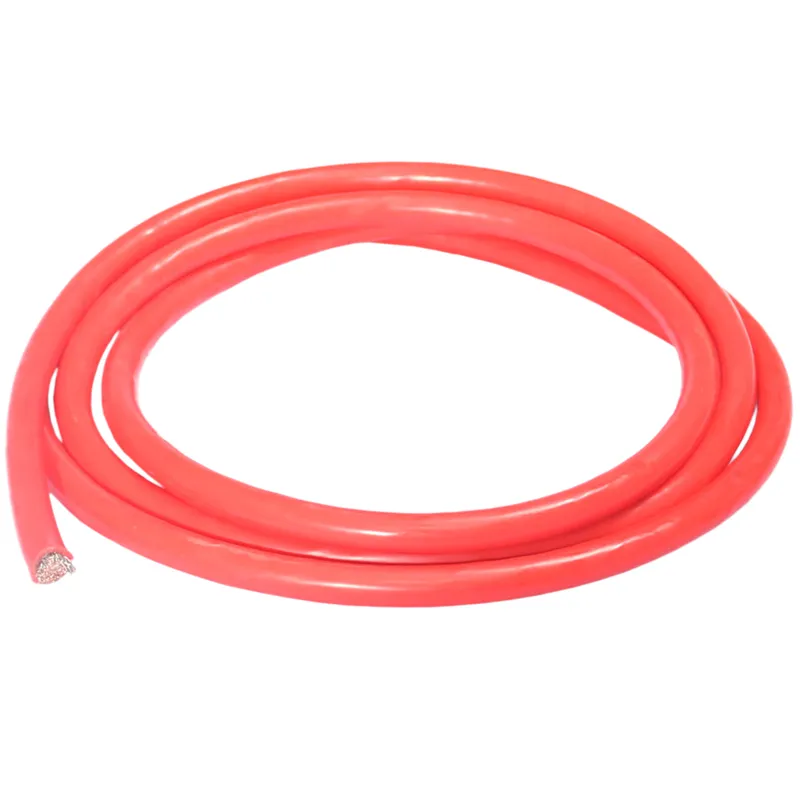

Large Square Extra Soft Silicone Wire 2AWG with Dw10
Large square Extra soft silicone wire 2AWGNominal Voltage: 300V OR 600VTemperature Range: -60º C to 200º CConductor: Tinned, Nickeled, siliver plated, gold plated copper, bare copperTesting Voltage: 2000VInsulator: Silicone rubberO. D. Tolerance: ± 0.10mmColor: Black-bro......
Send Inquiry
Product Description
Large square Extra soft silicone wire 2AWG
Nominal Voltage: 300V OR 600V
Temperature Range: -60º C to 200º C
Conductor: Tinned, Nickeled, siliver plated, gold plated copper, bare copper
Testing Voltage: 2000V
Insulator: Silicone rubber
O. D. Tolerance: ± 0.10mm
Color: Black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow. Ect
Nominal Voltage: 300V OR 600V
Temperature Range: -60º C to 200º C
Conductor: Tinned, Nickeled, siliver plated, gold plated copper, bare copper
Testing Voltage: 2000V
Insulator: Silicone rubber
O. D. Tolerance: ± 0.10mm
Color: Black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow. Ect
| AWG | con.of conductor. | Diameter | Thickness of insulator | over diameter | Packing | ||
| NO/mm | mm | mm | mm | mt/coils | |||
| 7# | 2110/0.08 | 4.24 | 1.23 | 6.7 | 100 | ||
| 6# | 2646/0.08 | 4.75 | 1.37 | 7.5 | 100 | ||
| 5# | 3350/0.08 | 5.34 | 1.83 | 9.0 | 100 | ||
| 4# | 4230/0.08 | 6.05 | 2.22 | 10.5 | 100 | ||
| 3# | 3400/0.08 | 6.73 | 2.48 | 11.7 | 100 | ||
| 2# | 4282/0.08 | 7.57 | 2.95 | 13.5 | 100 | ||
