Liyy PVC Copper Wire Data Signal Cable

Product Description

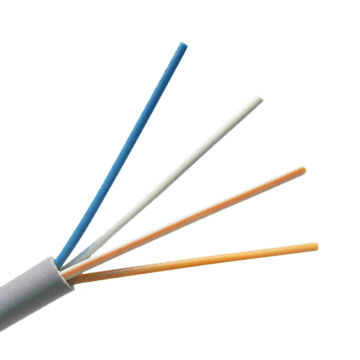

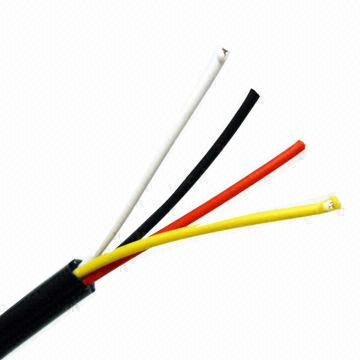

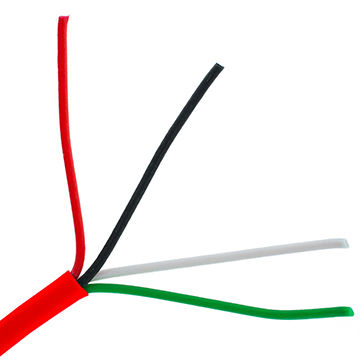

LIYY PVC copper wire data signal cable

★ Flexing temperature:70ºC
★ Working voltage: 300/500V
★ Reference standard: VDE 0245, VDE 0812
★ Stranded bare copper conductor
★ PVC insulation , comply with ROHS environmental standard
★ Uniform insulation thickness to ensure easy stripping and cutting
★ used as control and signal cables in the electronics of computers systems, electronic control equipment, office machines and measurement devices in the tool making and machine industries.recommended when a small outer diameter is required.

Conductor		Nominal Overall Diameter mm	copper	cable
AWG	No. of Cores x Nominal Cross Sectional Area # x mm²	Nominal Overall Diameter mm	copper	cable
AWG	No. of Cores x Nominal Cross Sectional Area # x mm²	mm	kg/km	kg/km
26(18/38)	2*0.14	3.2	2.7	13.0
26(18/38)	3*0.14	3.2	4.0	16.0
26(18/38)	4*0.14	3.5	5.4	19.0
26(18/38)	5*0.14	4.0	6.7	22.0
26(18/38)	6*0.14	4.3	8.1	25.0
26(18/38)	7*0.14	4.3	9.4	28.0
26(18/38)	8*0.14	4.6	10.7	35.0
26(18/38)	10*0.14	5.3	13.4	41.0
26(18/38)	12*0.14	5.6	16.1	48.0
