Product Description

Manufacturer All Aluminium Alloy Conductor-AAAC Conductor with BS EN50183

1.Application

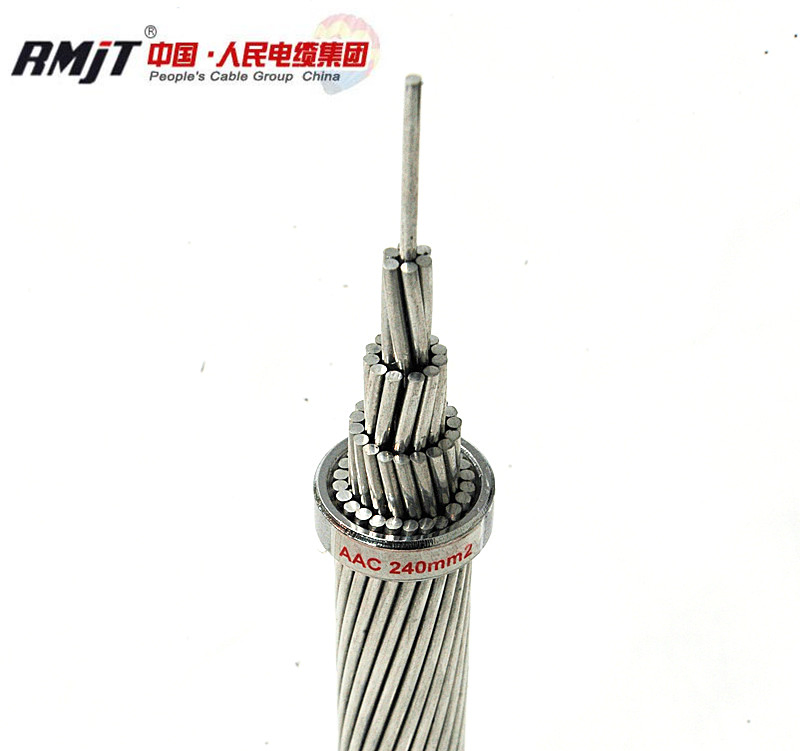

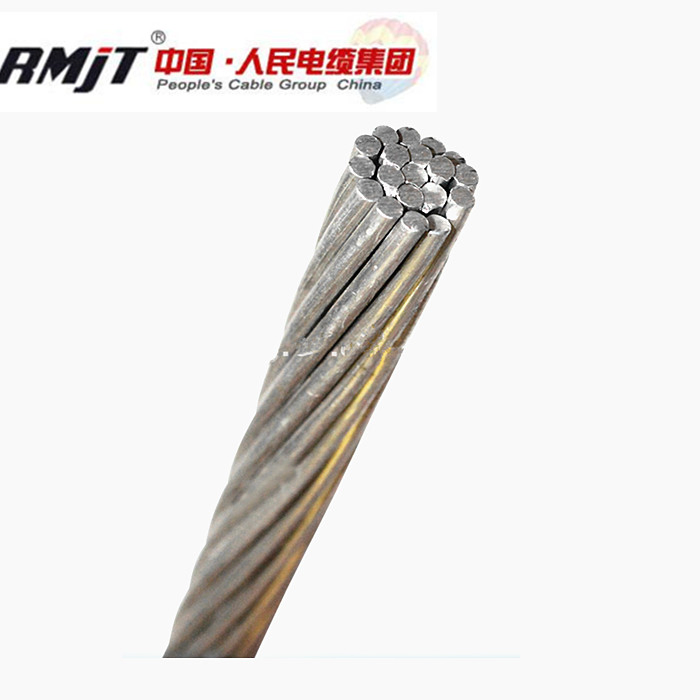

The AAAC is used for overhead power transmission lines , especially the electric power augmentation of old transmission lines. We specialized in the research and application of AAAC for almost ten years. When replacing the aluminium conductor steel reinforced , the AAAC can save 5-8% of the construction cost. This AAAC covers aluminium alloy (hard solution, heat-treated, cold worked, and artifically aged) round wires for electrical purposes to be used as component wires of aluminium alloy conductor and aluminium alloy conductor steel reinforced.

2.Standard:
ASTM B399,BS EN50183 ,BS 3242,DIM 48201,IEC 61089

3.Specification
All Aluminum Alloy Conductors ASTM B 399

Area		Stranding	Approx. Dia.	Weight	Nominal Breaking Load	D.C. Resistance at 20ºC	Standard Length
Nominal	Actual	Stranding	Approx. Dia.	Weight	Nominal Breaking Load	D.C. Resistance at 20ºC	Standard Length
AWG or MCM	mm2	mm	mm	kg/km	kN	ohm/km	m±5%
6	13.30	7/1.554	4.67	37	4.22	2.5199	3500
4	21.15	1/1.961	5.89	58	6.71	1.5824	3000
2	33.63	7/2.474	7.42	93	10.68	0.9942	2500
1/0	53.48	7/3.119	9.36	148	16.97	0.6256	2000
2/0	67.42	7/3.503	10.51	186	20.52	0.4959	3500
3/0	85.03	7/3.932	11.80	234	25.86	0.3936	3000
4/0	107.23	7/4.417	13.26	296	32.63	0.3119	2000
250	126.66	19/2.913	14.57	349	38.93	0.2642	2000
300	152.10	19/63.193	15.97	419	46.77	0.2199	3000
350	177.35	19/3.447	17.24	489	52.25	0.1887	3000
400	202.71	19/3.686	18.43	559	59.74	0.1650	2500
450	228.00	19/3.909	19.55	629	67.19	0.1467	2000
500	253.35	19/4.120	20.60	698	74.64	0.1321	2000
550	278.60	37/3.096	21.67	768	83.80	0.1202	2000
600	303.80	37/3.233	22.63	838	91.38	0.1102	2000
650	329.25	37/3.366	23.56	908	97.94	0.1016	2000
700	354.55	37/3.493	24.45	978	102.20	0.0944	3500
750	380.20	37/3.617	25.32	1049	109.60	0.0880	3000
800	405.15	37/3.734	26.14	1117	116.80	0.0826	3000
900	456.16	37/3.962	27.73	1258	131.50	0.0733	3000
1000	506.71	37/4.176	26.23	1300	146.10	0.0660	2500

4.Packing

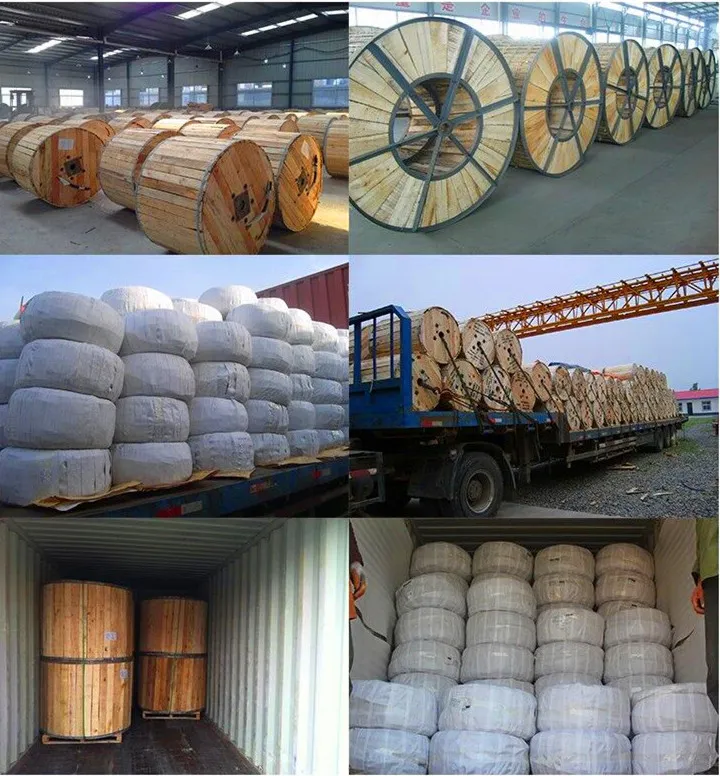

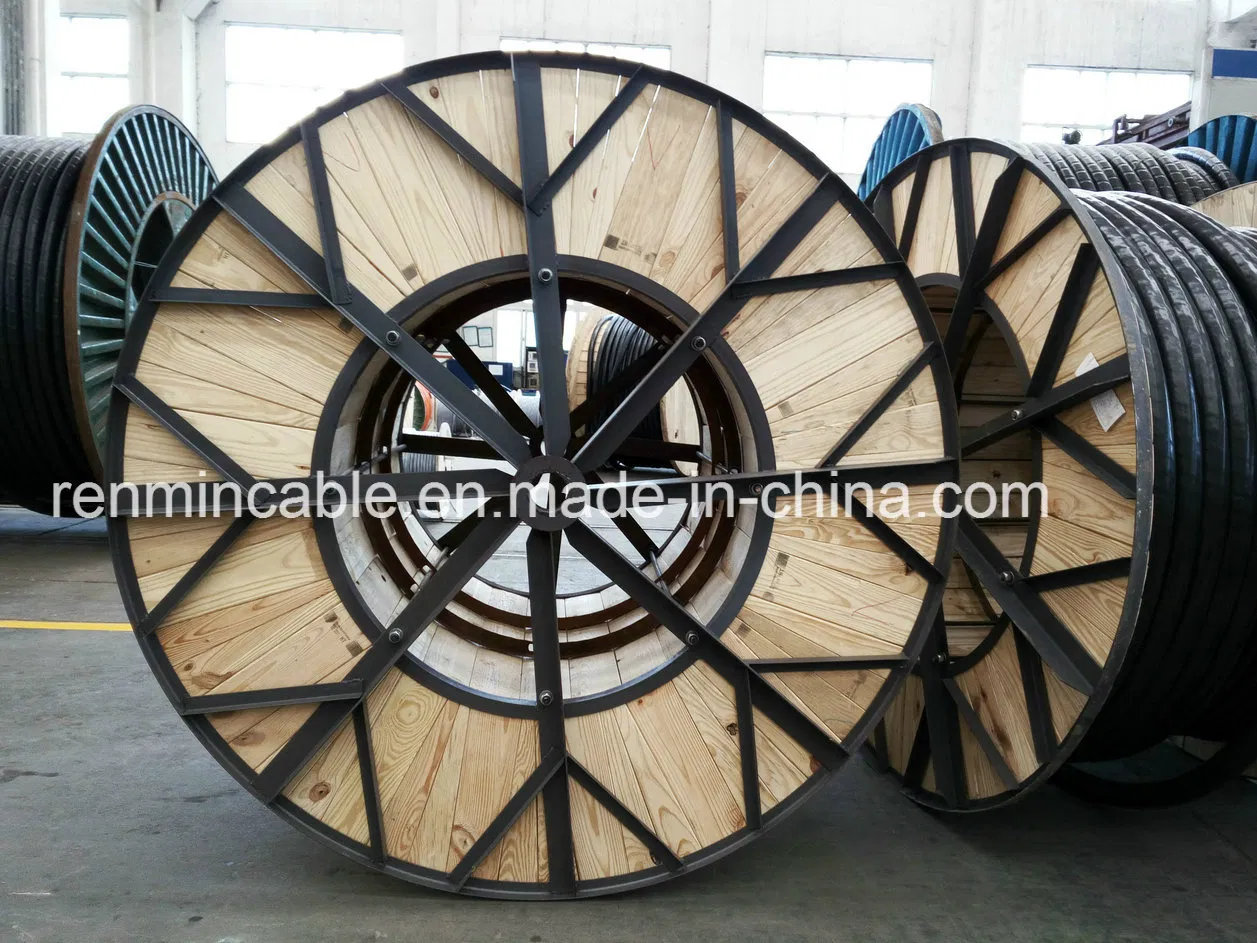

Packing in wooden drums,steel wooden drums or as customer's requirement.
Manufacturer All Aluminium Alloy Conductor-AAAC Conductor with BS EN50183

5.Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
Manufacturer All Aluminium Alloy Conductor-AAAC Conductor with BS EN50183

6.Production process:

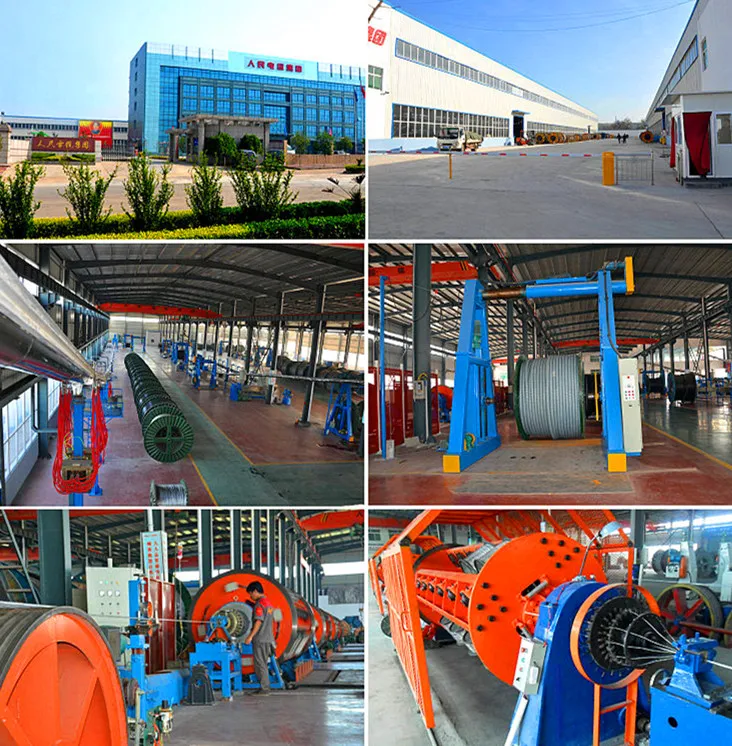

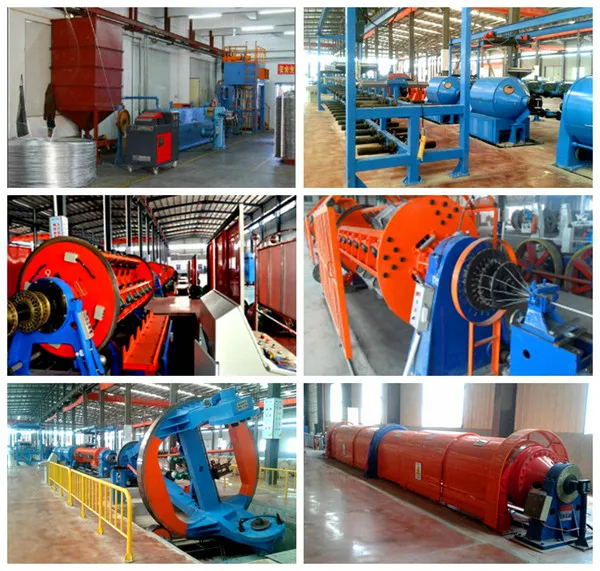

AAAC conductor producing process is drawing stranding and cabling,our factory possess 2 subsidiaries,Zhulin factory is professional bare conductor workshop with 20 production line.
Manufacturer All Aluminium Alloy Conductor-AAAC Conductor with BS EN50183

7.Certificate
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
Manufacturer All Aluminium Alloy Conductor-AAAC Conductor with BS EN50183

8.About us:
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
