Product Description

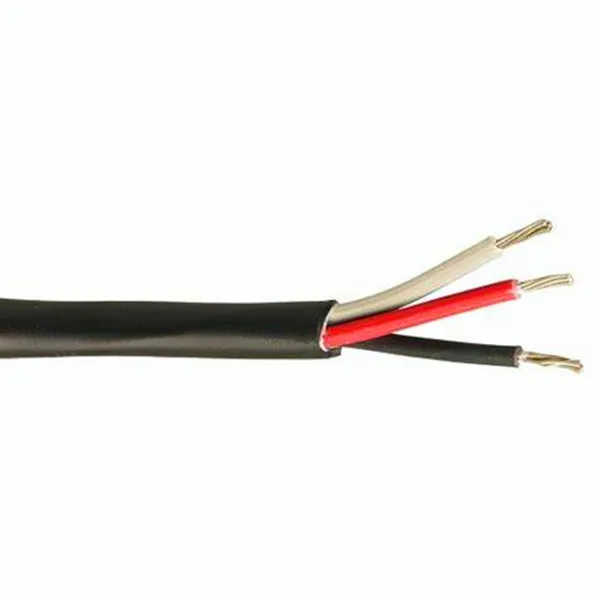

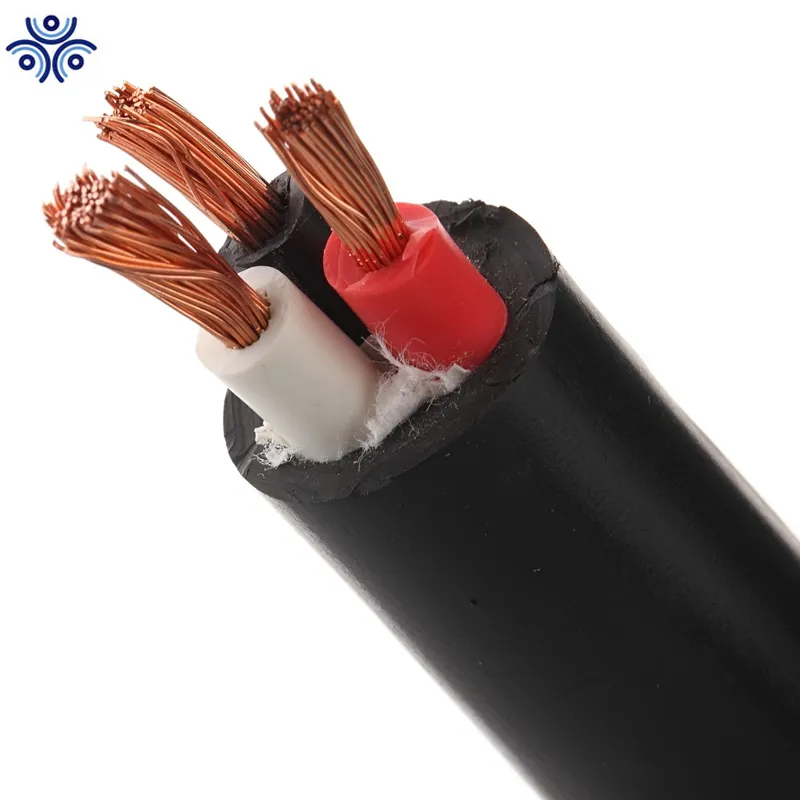

Multi core cable TC-ER Power and Control Tray Cable with Tinned Copper Conductor
Product descripation
Application:
In free air, raceways or direct burial
In wet or dry locations
Permitted for use in Class I, Division 2 industrial hazardous locations per NEC
Permitted for Exposed Run (ER) use in accordance with NEC
Standard
UL 1277

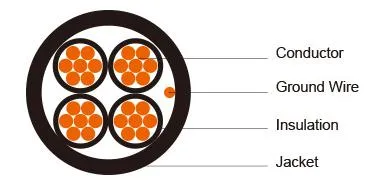

Cable Construction
Conductor: 14 AWG thru 750 kcmil bare, annealed copper per ASTM B3 Class B stranding per ASTM B8
Insulation: Flame-retardant Cross-linked Polyethylene (XLPE) Color-coded per ICEA Method 4; individual conductors colored black with conductor number surface printed in contrasting ink
Ground: Uninsulated bare annealed copper per ASTM B3 Class B stranding per ASTM B8
Jacket: Lead-free, flame-retardant, sunlight-resistant Polyvinyl Chloride (PVC)
| number of Cond. | Cond. Size (AWG) | Cond. Strand. | Insulation Thickness | Min. Avg. Jacket Thickness | NOMINAL CABLE O.D. | |||
| Ground Wire Size (AWG) | IN | MM | IN | MM | IN | |||
| 14 AWG - 750 kcmil MULTI-CONDUCTORS | ||||||||
| 3 | 14 | 7/.0242 | 14 | 0.03 | 0.76 | 0.045 | 1.14 | 0.39 |
| 3 | 12 | 7/.0305 | 12 | 0.03 | 0.76 | 0.045 | 1.14 | 0.435 |
| 3 | 10 | 7/.0385 | 10 | 0.03 | 0.76 | 0.06 | 1.52 | 0.485 |
| 3 | 8 | 7/.0486 | 10 | 0.045 | 1.14 | 0.06 | 1.52 | 0.64 |
| 4 | 8 | 7/.0486 | 10 | 0.045 | 1.14 | 0.06 | 1.52 | 0.705 |
| 3 | 6 | 7/.0612 | 8 | 0.045 | 1.14 | 0.06 | 1.52 | 0.72 |
| 4 | 6 | 7/.0612 | 8 | 0.045 | 1.14 | 0.06 | 1.52 | 0.79 |
| 3 | 4 | 7/.0772 | 8 | 0.045 | 1.14 | 0.08 | 2.03 | 0.875 |
| 4 | 4 | 7/.0772 | 8 | 0.045 | 1.14 | 0.08 | 2.03 | 0.95 |
| 3 | 2 | 7/.0974 | 6 | 0.045 | 1.14 | 0.08 | 2.03 | 1 |
| 4 | 2 | 7/.0974 | 6 | 0.045 | 1.14 | 0.08 | 2.03 | 1.095 |
| 3 | 1 | 19/.0664 | 6 | 0.055 | 1.4 | 0.08 | 2.03 | 1.12 |
| 4 | 1 | 19/.0664 | 6 | 0.055 | 1.4 | 0.08 | 2.03 | 1.235 |
| 3 | 1/0 | 19/.0745 | 6 | 0.055 | 1.4 | 0.08 | 2.03 | 1.215 |
| 4 | 1/0 | 19/.0745 | 6 | 0.055 | 1.4 | 0.08 | 2.03 | 1.34 |
| 3 | 2/0 | 19/.0837 | 6 | 0.055 | 1.4 | 0.08 | 2.03 | 1.31 |
| 4 | 2/0 | 19/.0837 | 6 | 0.055 | 1.4 | 0.08 | 2.03 | 1.45 |
| 3 | 3/0 | 19/.0940 | 4 | 0.055 | 1.4 | 0.08 | 2.03 | 1.42 |
| 4 | 3/0 | 19/.0940 | 4 | 0.055 | 1.4 | 0.08 | 2.03 | 1.57 |
| 3 | 4/0 | 19/.1055 | 4 | 0.055 | 1.4 | 0.08 | 2.03 | 1.54 |
| 4 | 4/0 | 19/.1055 | 4 | 0.055 | 1.4 | 0.11 | 2.79 | 1.765 |
| 3 | 250 | 37/.0822 | 4 | 0.065 | 1.65 | 0.11 | 2.79 | 1.75 |
| 4 | 250 | 37/.0822 | 4 | 0.065 | 1.65 | 0.11 | 2.79 | 1.93 |
| 3 | 350 | 37/.0973 | 3 | 0.065 | 1.65 | 0.11 | 2.79 | 1.97 |
| 4 | 350 | 37/.0973 | 3 | 0.065 | 1.65 | 0.11 | 2.79 | 2.18 |
| 3 | 500 | 37/.1162 | 2 | 0.065 | 1.65 | 0.11 | 2.79 | 2.25 |
| 4 | 500 | 37/.1162 | 2 | 0.065 | 1.65 | 0.11 | 2.79 | 2.475 |
| 3 | 750 | 61/.1109 | 1 | 0.08 | 2.03 | 0.14 | 3.56 | 2.81 |
| 4 | 750 | 61/.1109 | 1 | 0.08 | 2.03 | 0.14 | 3.56 | 3.115 |
