PFA Coated Rtd Cable with Shield
Product DescriptionPFA Coated RTD Cable with ShieldDescriptionName: PFA Coated RTD Cable with ShieldModel: RTD-A-PASize: 3*26-3*14AWGStructureConductor: Tinned CopperInsulation: Extruded PFAColor: Color:2 Red,1 WhiteShield: Stainless Steel WireJacket: Extruded PFAColor: Red Size(mm)ConductorStructur......
Send Inquiry
Product Description
PFA Coated RTD Cable with Shield
Description
Name: PFA Coated RTD Cable with Shield
Model: RTD-A-PA
Size: 3*26-3*14AWG

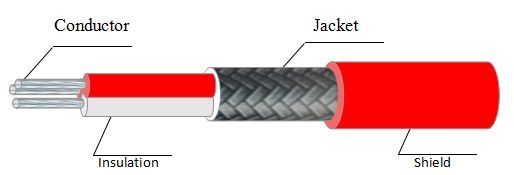

Structure
Conductor: Tinned Copper
Insulation: Extruded PFA
Color: Color:2 Red,1 White
Shield: Stainless Steel Wire
Jacket: Extruded PFA
Color: Red
| Size (mm) | Conductor Structure P&N (mm) | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Shield Thickness (mm) | Diameter (mm) | Jacket Thickness (mm) | O.D. (mm) |
| 3*26 | 7/0.16 | 0.48 | 0.2 | 0.9 | 0.2 | 2.1 | 0.5 | 3.1±0.2 |
| 3*24 | 7/0.2 | 0.6 | 0.2 | 1.0 | 0.2 | 2.4 | 0.5 | 3.4±0.2 |
| 3*22 | 7/0.254 | 0.76 | 0.2 | 1.2 | 0.2 | 2.8 | 0.5 | 3.8±0.2 |
| 3*20 | 7/0.32 | 0.96 | 0.2 | 1.4 | 0.2 | 3.2 | 0.5 | 4.2±0.2 |
| 3*18 | 7/0.39 | 1.17 | 0.25 | 1.7 | 0.2 | 3.9 | 0.5 | 4.9±0.3 |
| 3*16 | 19/0.3 | 1.5 | 0.25 | 2.0 | 0.2 | 4.5 | 0.5 | 5.5±0.3 |
| 3*14 | 19/0.37 | 1.85 | 0.25 | 2.4 | 0.2 | 5.4 | 0.5 | 6.4±0.3 |
Certifications

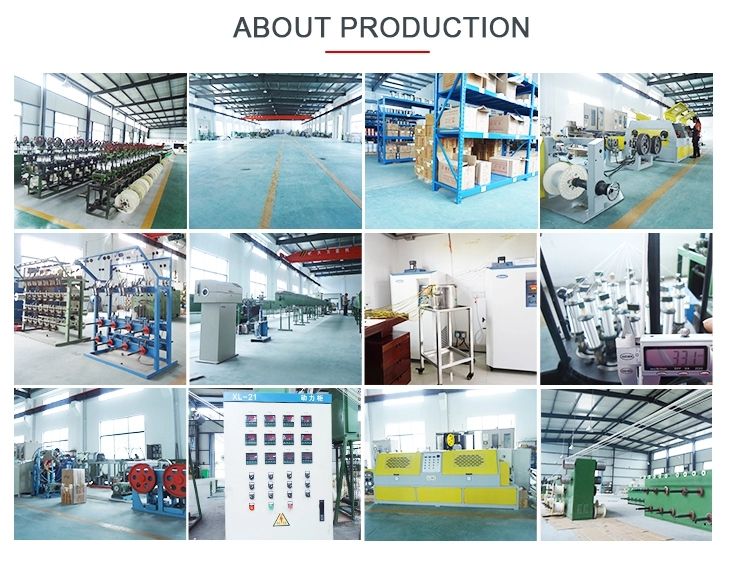

Company Information
Packaging&Shipping
Our Services
1. OEM service available based on official & legal authorization.
2. Strict quality control system.
3. Timely deliverly.
4. Excellent quality with affordable price.
5. Strong technical support.
6. Mobile on 24 hours for any question.
FAQ
1. Why is the price so low?
You are ordering directly from the factory.
2. Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.
3. Can I get some samples?
Yes, we are honored to offer you samples.
4. Can you make the products with my design?
Yes. customization is welcome .
