Product Description

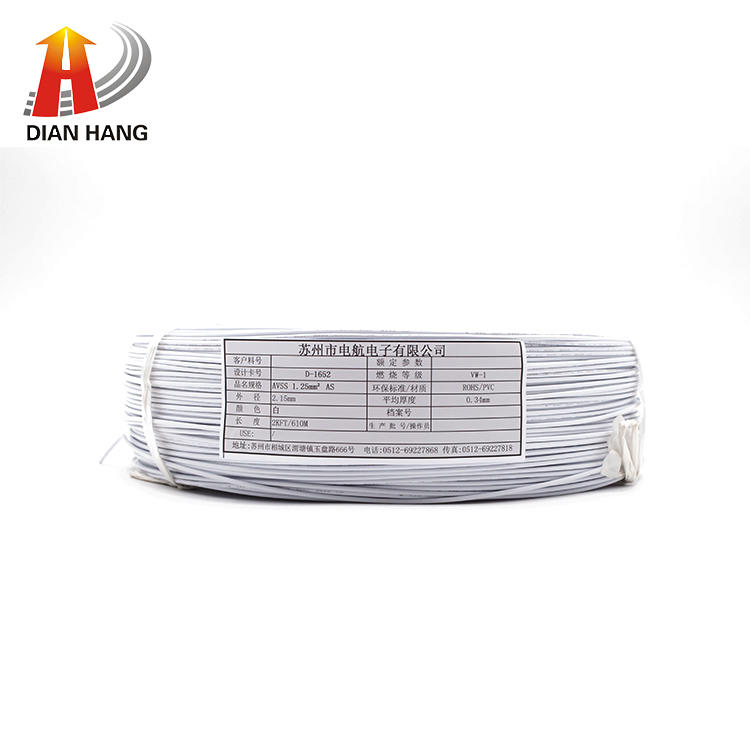

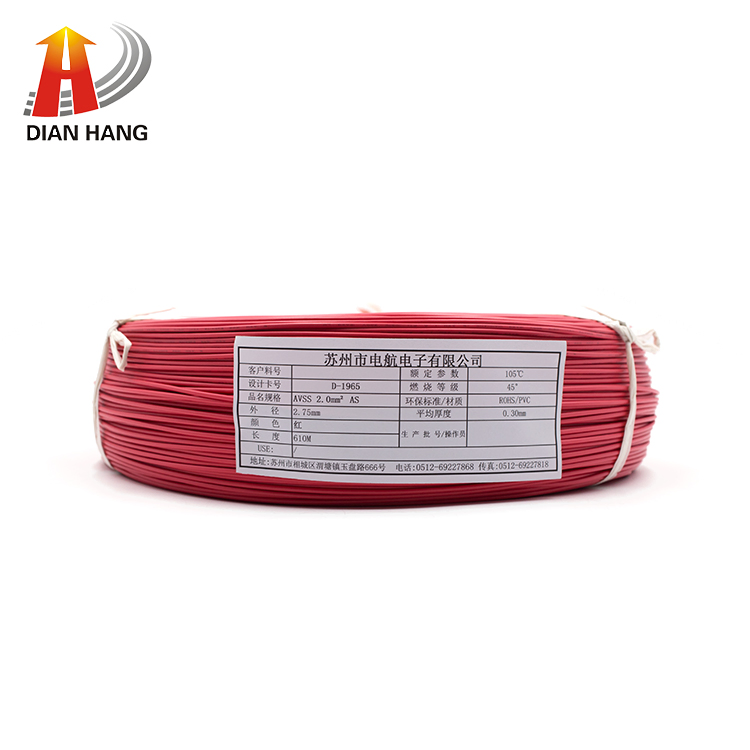

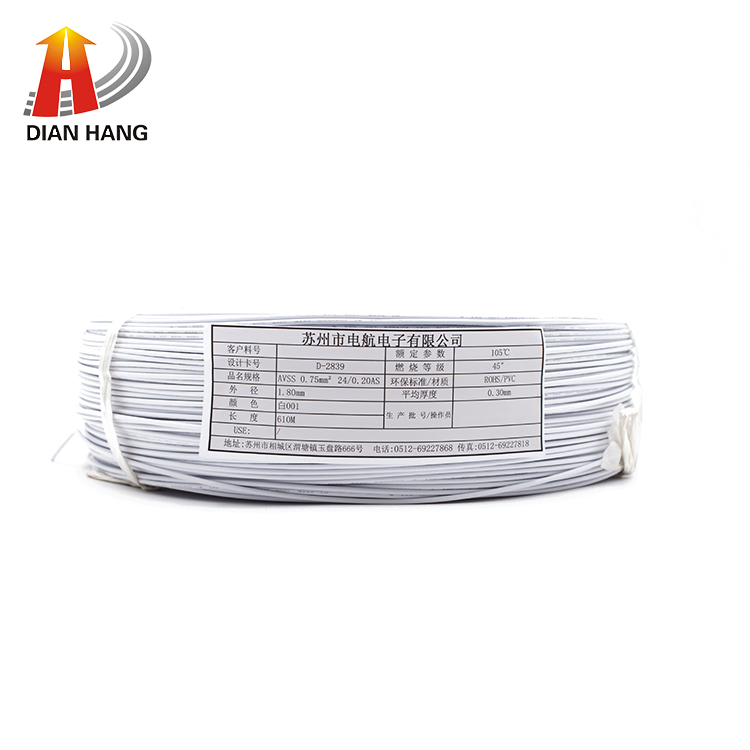

China manufacture bulk supply AVSS JASO D611 Standard Electric Vehicle Wire
Rated temperature:80ºC
Reference standard:JASOD 611/1994
Solid or stranded, tinned or bare copper conductor 0.3-5mm2
PVC insulation, comply with ROHS, REACH environmental standard
Passes JASOD 611/1994 flame test
Uniform insulation thickness to ensure easy stripping and cutting
Application:Used for internal wiring of automobiles
Product Type | Conductor | Insulation | Max.cond. Resistance | (Dielectric Strength) | |||
AVSS | mm2 | Construction (No./mm) | OD (mm) | Thickness (mm) | OD (mm) | (Ω/Km,20ºC,Dc)
| (Vac,1min)
|
0.3f | 19/0.16 | 0.80 | 0.33 | 1.45 | 48.8 | 1000 | |
0.3 | 7/0.26 | 0.78 | 0.34 | 1.45 | 50.2 | 1000 | |
0.5f | 19/0.19 | 0.96 | 0.35 | 1.65 | 34.6 | 1000 | |
| 0.5 | 7/0.32 | 0.95 | 0.35 | 1.65 | 32.7 | 1000 | |
| 0.75f | 19/0.23 | 1.16 | 0.35 | 1.85 | 23.6 | 1000 | |
0.85
| 19/0.24 | 1.21 | 0.32 | 1.85 | 21.7 | 1000 | |
7/0.40 | 1.20 | 0.33 | 1.85 | 20.8 | 1000 | ||
1.25f | 37/0.21 | 1.47 | 0.34 | 2.15 | 14.6 | 1000 | |
| 1.25 | 19/0.29 | 1.46 | 0.35 | 2.15 | 14.9 | 1000 | |
| 2f | 37/0.26 | 1.83 | 0.41 | 2.65 | 9.50 | 1000 |
2 | 19/0.37 | 1.85 | 0.45 | 2.75 | 9.00 | 1000 | |
