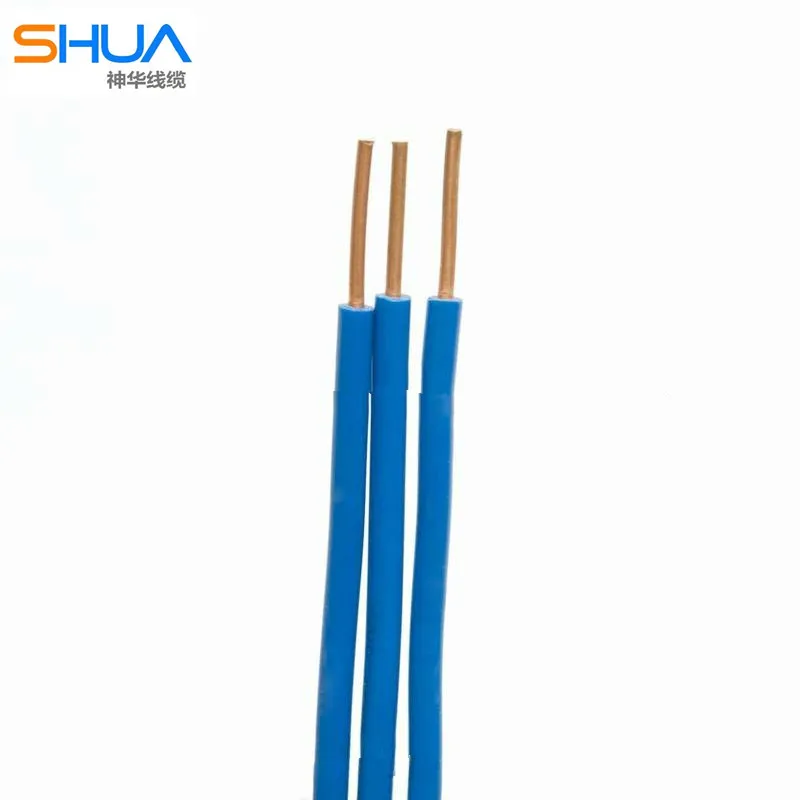

China PVC Insulated Copper Conductor Thw Cable Electric Wire

Product Description

Detailed Product Description
1, Manufacturer&Factory
2, Standard: UL83
3, Factory Price with Good Quality
4, Specializing in the export of American market

THW /TW Cable
Specification:
Operating Voltage 600 V.
Standards: UL83
Building wires types THW/TW according to America standards UL 83&UL 1581

Construction:

Conductor: Solid or strand annealed copper or CCA wire
Insulation: Polyvinyl Chloride (PVC 75° C ), flame retardant, Suitable for use in wet or dry locations
Color: Red, yellow, blue, black, brown, green, green/yellow, white &grey

APPLICATION: General purpose building wiring for lighting and power - residential, commercial, industrial buildings in accordance with the National Electrical Code, maximum conductor temperature of 75° C in wet or dry locations, for circuits not exceeding 600 volts.

Item Spec.	AWG SIZE	No./Diameter of conductor (mm)	Insulation thickness (mm)	Max.outer diameter (mm)	Ref .Weight(km/kg)
THW-16B	16	7/0.49	0.76	2.8	19
THW-14B	14	7/0.62	0.76	3.4	29
THW-12B	12	7/0.78	0.76	3.9	42
THW-10B	10	7/0.98	0.76	4.5	62
THW-8B	8	7/1.23	1.14	6	103
THW-6B	6	7/1.56	1.52	7.8	169
THW-4B	4	7/1.96	1.52	9	249
THW-3B	3	7/2.20	1.52	9.7	306
THW-2B	2	7/2.47	1.52	10.5	376
THW-1B	1	19/1.68	2.03	12.5	487
THW-1/0B	1/0	19/1.89	2.03	13.6	600
THW-2/0B	2/0	19/2.12	2.03	14.7	739
THW-3/0B	3/0	19/2.38	2.03	16	912
THW-4/0B	4/0	19/2.67	2.03	17.5	1130
THW-16A	16	1/1.29	0.76	2.9	19
THW-14A	14	1/1.63	0.76	3.2	27
THW-12A	12	1/2.05	0.76	3.6	39
THW-10A	10	1/2.59	0.76	4.1	59
THW-8A	8	1/3.26	1.14	5.6	98
