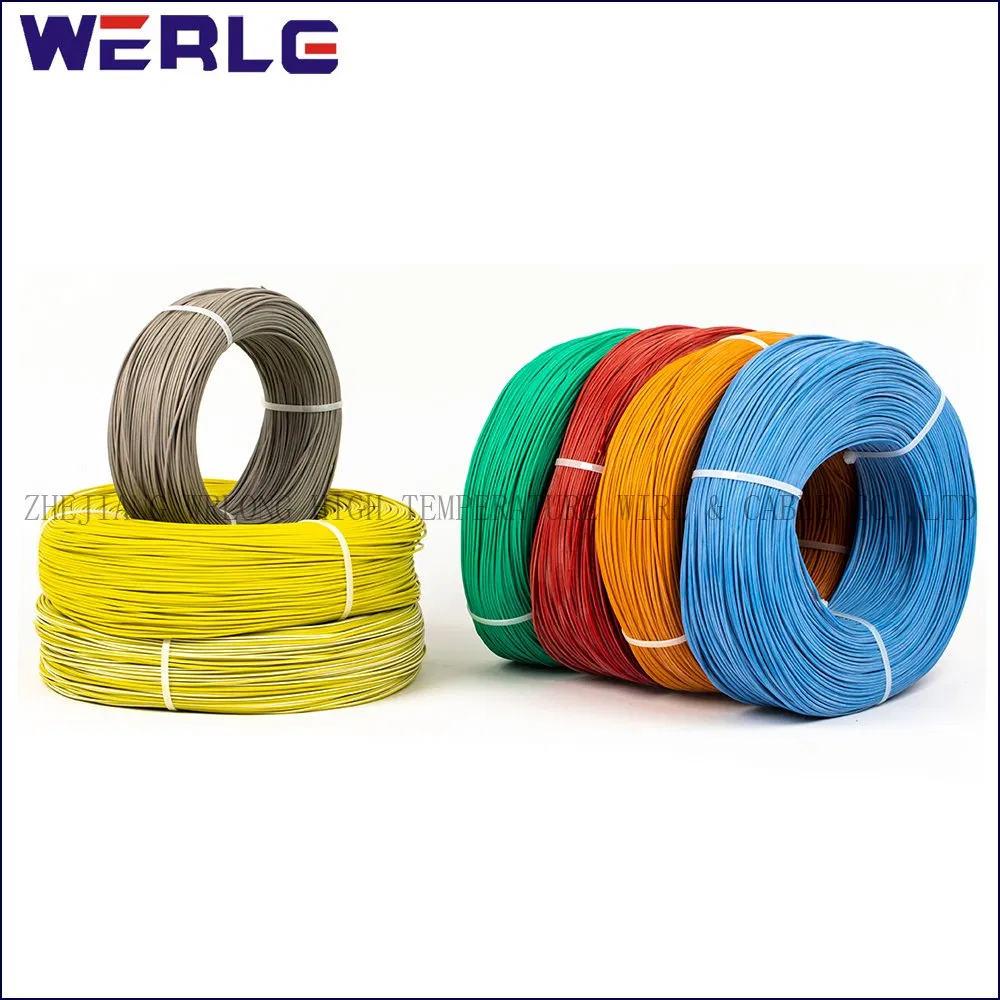

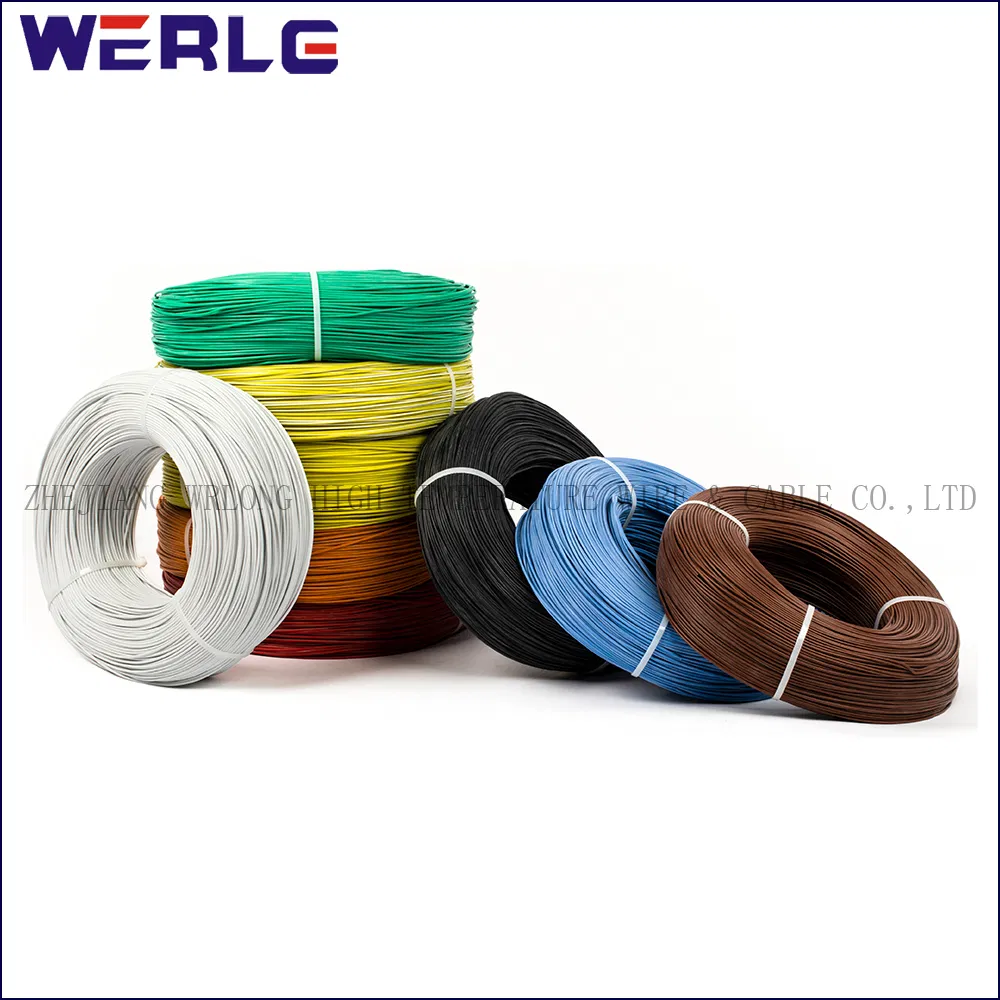

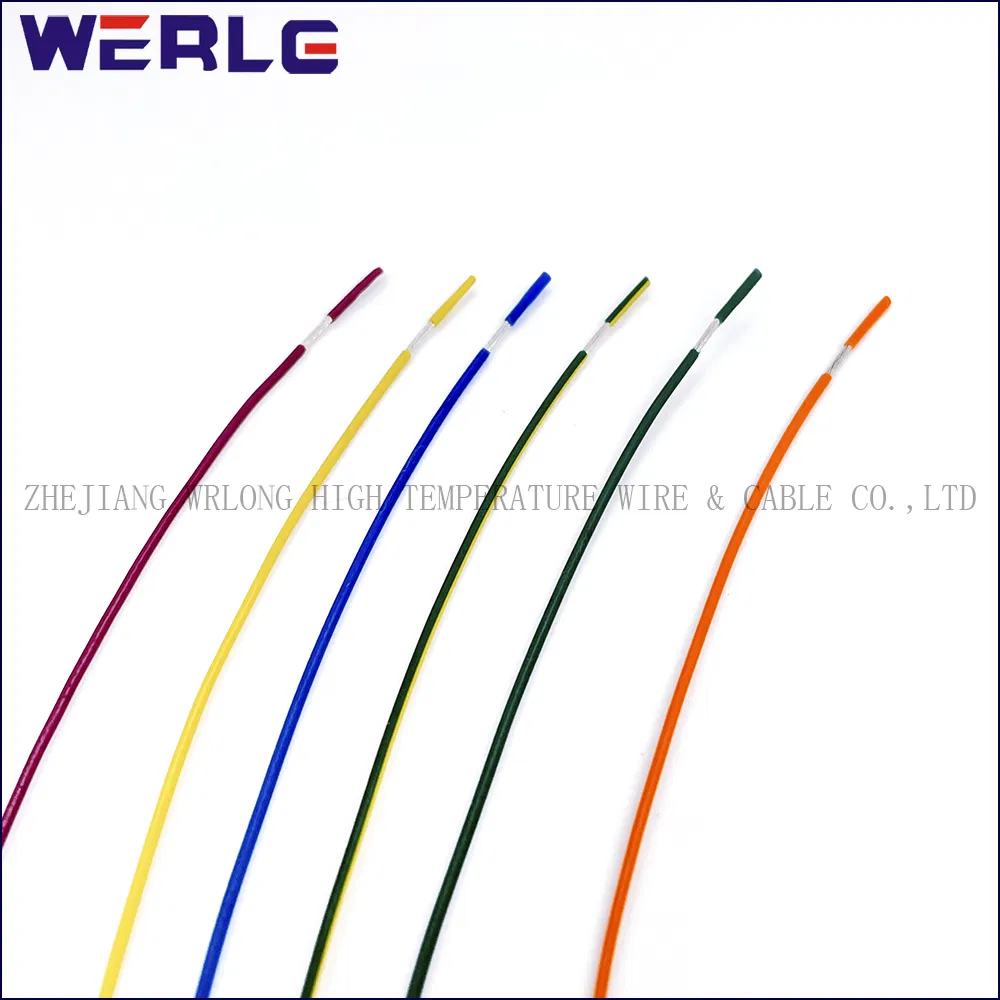

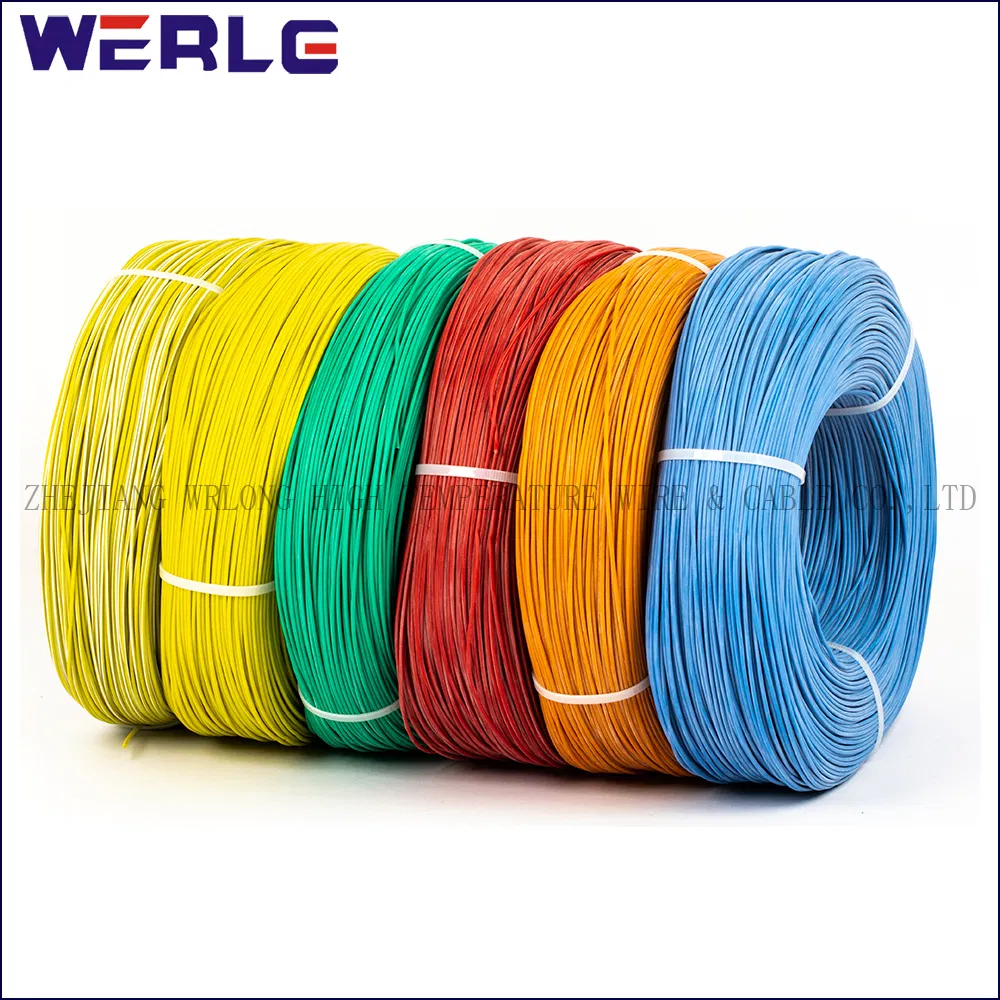

PVC UL1015 28AWG 600V 105c Blue Insulated Tinned Copper Versatile Electric Wire
PVC UL1015 28AWG 600V 105C Blue Insulated Tinned Copper Versatile Electric WireRated voltage: 600V, Rated temperature: 80° CTinned or bare, strand or solid copper conductor, 30AWG minColor-coded PVC insulationUniform insulation thickness of wire to ensure easy stripping and cuttingResistant ......
Send Inquiry
Product Description
PVC UL1015 28AWG 600V 105C Blue Insulated Tinned Copper Versatile Electric Wire
Rated voltage: 600V, Rated temperature: 80° C
Tinned or bare, strand or solid copper conductor, 30AWG min
Color-coded PVC insulation
Uniform insulation thickness of wire to ensure easy stripping and cutting
Resistant to acid, alkali, oil, moisture and fungi, comforming RoHS
Rated voltage: 600V, Rated temperature: 80° C
Tinned or bare, strand or solid copper conductor, 30AWG min
Color-coded PVC insulation
Uniform insulation thickness of wire to ensure easy stripping and cutting
Resistant to acid, alkali, oil, moisture and fungi, comforming RoHS
| AWG | CONDUCTOR | INSULATOR | ||
| construction (nxmm) | conductor diameter (mm) | thickness (mm) | over diameter (mm) | |
| 30 | 7x0.1 | 0.3 | 0.76 | 1.82 |
| 28 | 7x0.127 | 0.38 | 1.9 | |
| 26 | 7x0.16 | 0.48 | 2 | |
| 24 | 11x0.16 | 0.61 | 2.13 | |
| 22 | 17x0.16 | 0.76 | 2.28 | |
| 20 | 26x0.16 | 0.94 | 2.46 | |
| 18 | 41x0.16 | 1.18 | 2.7 | |
| 16 | 26x0.254 | 1.49 | 3.01 | |
| 14 | 41x0.254 | 1.86 | 3.38 | |
| 12 | 65x0.254 | 2.35 | 3.87 | |
| 10 | 66x0.32 | 3 | 4.52 | |
