China Southern America Popular ? Thhn ? Thwn ? Tw ? Thw Cable

Product Description

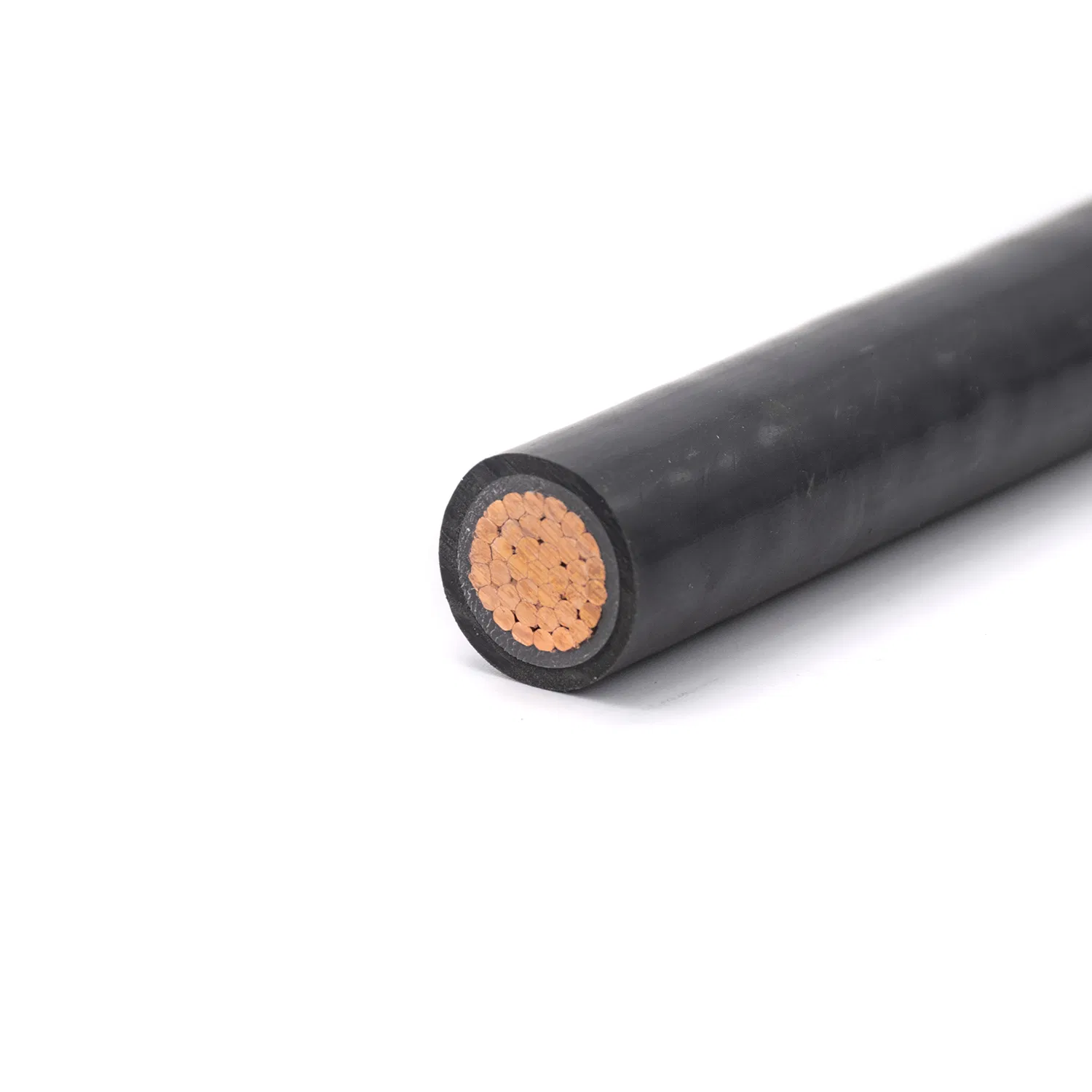

THHN THWN TW THW CABLE
Applications:
THHN building wire is meant for use as general purpose wiring for installation in conduit or other recognized raceway. THHN may also be used for machine tool, appliance and control circuit wiring.
Type THW PVC Insulated Wire can be used for many different commercial and industrial applications. These cables may be installed in wet or dry locations, indoors or outdoors, in raceways, underground ducts, aerial or direct buried.

Standard

The wire is designed as IEC, ASTM, BS and other standard or client's spcific standard.

UL 83 UL 1581

AWG/MCM	mm2	Conductor			Insulation						Shealth			Total Weight
		Single Wire		OD.	PVC						Nylon
		No.	Dia.	OD.	thick			min	min	OD.	Thick mils	mm	OD.
			mm	mm	mil	mm	mm	mil	mm	mm	mil	mm	mm	kg/km
16	1.31	1	1.29	1.29	15	0.38	0.51	14	0.36	2.05	4	0.1	2.25	16.73
14	2.08	1	1.626	1.626	15	0.38	0.51	14	0.36	2.386	4	0.1	2.586	24.53
12	3.29	1	2.048	2.048	15	0.38	0.51	14	0.36	2.808	4	0.1	3.008	36.61
10	5.26	1	2.589	2.589	20	0.51	0.64	19	0.48	3.609	4	0.1	3.809	58
16	1.67	7	0.551	1.653	15	0.38	0.51	14	0.36	2.413	4	0.1	2.613	21.5
14	2.08	7	0.615	1.845	15	0.38	0.51	14	0.36	2.605	4	0.1	2.805	25.84
12	3.30	7	0.775	2.325	15	0.38	0.51	14	0.36	3.085	4	0.1	3.285	38.51
10	5.26	7	0.978	2.934	20	0.51	0.64	19	0.48	3.954	4	0.1	4.154	60.82
9	6.63	7	1.098	3.294	20	0.51	0.64	19	0.48	4.314	5	0.13	4.574	75.34
8	8.32	7	1.23	3.69	30	0.76	0.9	28	0.71	5.21	5	0.13	5.47	98.69
7	10.47	7	1.38	4.14	30	0.76	0.9	28	0.71	5.66	5	0.13	5.92	120.76
6	13.21	7	1.55	4.65	30	0.76	0.9	28	0.71	6.17	5	0.13	6.43	148.58
5	16.65	7	1.74	5.22	30	0.76	0.9	28	0.71	6.74	6	0.15	7.04	183.78
4	21.12	7	1.96	5.88	40	1.02	1.1	35	0.89	7.92	6	0.15	8.22	235.76
2	33.54	7	2.47	7.41	40	1.02	1.1	35	0.89	9.45	6	0.15	9.75	359.83
16	1.23	19	0.287	1.435	15	0.38	0.51	14	0.36	2.195	4	0.1	2.395	16.72
14	2.04	19	0.37	1.85	15	0.38	0.51	14	0.36	2.61	4	0.1	2.81	25.35
12	3.30	19	0.47	2.35	15	0.38	0.51	14	0.36	3.11	4	0.1	3.31	38.27
10	5.19	19	0.59	2.95	20	0.51	0.64	19	0.48	3.97	4	0.1	4.17	59.86
9	6.50	19	0.66	3.3	20	0.51	0.64	19	0.48	4.32	5	0.13	4.58	73.64
8	8.17	19	0.74	3.7	30	0.76	0.9	28	0.71	5.22	5	0.13	5.48	95.16
7	10.53	19	0.84	4.2	30	0.76	0.9	28	0.71	5.72	5	0.13	5.98	120.74
6	13.19	19	0.94	4.7	30	0.76	0.9	28	0.71	6.22	5	0.13	6.48	145.02
5	16.45	19	1.05	5.25	30	0.76	0.9	28	0.71	6.77	6	0.15	7.07	180.78
4	21.13	19	1.19	5.74	40	1.02	1.1	35	0.89	7.78	6	0.15	8.08	229.38
3	26.40	19	1.33	6.45	40	1.02	1.1	35	0.89	8.49	6	0.15	8.79	280.88
2	33.58	19	1.5	7.26	40	1.02	1.1	35	0.89	9.3	6	0.15	9.6	350.23
1	42.12	19	1.68	8.15	50	1.27	1.38	45	1.14	10.69	7	0.18	11.05	447.22
1/0	53.30	19	1.89	9.14	50	1.27	1.38	45	1.14	11.68	7	0.18	12.04	555.15
2/0	67.07	19	2.12	10.3	50	1.27	1.38	45	1.14	12.84	7	0.18	13.2	687.52
3/0	84.53	19	2.38	11.6	50	1.27	1.38	45	1.14	14.14	7	0.18	14.5	854.27
4/0	107.18	19	2.68	13	50	1.27	1.38	45	1.14	15.54	7	0.18	15.9	1068.65
250	125.72	37	2.08	14.2	60	1.52	1.67	55	1.4	17.24	8	0.2	17.64	1272.29
300	151.06	37	2.28	15.5	60	1.52	1.67	55	1.4	18.54	8	0.2	18.94	1512.81
350	177.29	37	2.47	16.8	60	1.52	1.67	55	1.4	19.84	8	0.2	20.24	1761.4
400	202.53	37	2.64	17.9	60	1.52	1.67	55	1.4	20.94	8	0.2	21.34	1999.42
500	252.89	37	2.95	19.7	60	1.52	1.67	55	1.4	22.74	8	0.2	23.14	2470.99
600	304.24	61	2.52	22	70	1.78	1.94	65	1.65	25.56	9	0.23	26.02	2998.91
650	328.87	61	2.62	22.9	70	1.78	1.94	65	1.65	26.46	9	0.23	26.92	3231.59
750	378.30	61	2.81	24.6	70	1.78	1.94	65	1.65	28.16	9	0.23	28.62	3697.59
1000	506.04	61	3.25	28.4	70	1.78	1.94	65	1.65	31.96	9	0.23	32.42	4896.32

TW THW

TW THW 600V 60ºC UL 83 UL 1581 Type TW and THW may be used for general purpose wiring for power and lighting, for insulation in air, conduit, duct or other recognized raceways, in wet or dry locations. Maximum voltage rating= 600 V



MAXIMUM CONDUCTOR TEMPERATURE
type	oil	wet	dry
TW	60ºC	60ºC	60ºC
THW	75ºC	75ºC	75ºC
MTW*	60ºC	60ºC	90ºC
* 1AWG AND LARGER ONLY

AWG/MCM	mm2	Conductor	Conductor			Insulation					Total Weight
		Type	Single Wire		OD.	PVC					kg/km
			No.	Dia.		Thick	mm	Thick	min	OD.
			No.	Dia.		mils	mm	Thick	min	OD.
18	0.82	solid	1	1.02	1.02	30	0.76	0.89	0.7	2.54	14.82
16	1.31	solid	1	1.29	1.29	30	0.76	0.89	0.7	2.81	20.27
14	2.09	solid	1	1.63	1.63	30	0.76	0.89	0.7	3.15	28.6
12	3.33	solid	1	2.06	2.06	30	0.76	0.89	0.7	3.58	41.48
10	5.27	solid	1	2.59	2.59	30	0.76	0.89	0.7	4.11	60.93
8	8.35	solid	1	3.26	3.26	45	1.14	1.22	1	5.54	98.99
6	13.33	solid	1	4.12	4.12	60	1.52	1.67	1.4	7.16	162.23
4	21.16	solid	1	5.19	5.19	60	1.52	1.67	1.4	8.23	240.34
18	0.82	B	7	0.386	1.158	30	0.76	0.89	0.7	2.678	15.65
16	1.31	B	7	0.488	1.464	30	0.76	0.89	0.7	2.984	21.43
14	2.08	B	7	0.615	1.845	30	0.76	0.89	0.7	3.365	30.1
12	3.30	B	7	0.775	2.325	30	0.76	0.89	0.7	3.845	43.38
10	5.26	B	7	0.978	2.934	30	0.76	0.89	0.7	4.454	64.02
8	8.32	B	7	1.23	3.69	45	1.14	1.22	1	5.97	103.92
6	13.21	B	7	1.55	4.65	60	1.52	1.67	1.4	7.69	169.62
4	21.12	B	7	1.96	5.88	60	1.52	1.67	1.4	8.92	252.44
2	33.54	B	7	2.47	7.41	60	1.52	1.67	1.4	10.45	379.53
1	42.62	B	19	1.69	8.18	80	2.03	2.11	1.8	12.24	480.75
1/0	53.30	B	19	1.89	9.19	80	2.03	2.11	1.8	13.25	586.71
2/0	67.70	B	19	2.13	10.34	80	2.03	2.11	1.8	14.4	727.52
3/0	85.24	B	19	2.39	11.61	80	2.03	2.11	1.8	15.67	897.84
4/0	107.18	B	19	2.68	13	80	1.52	1.67	1.4	16.44	1097.15
250	126.94	B	37	2.09	14.2	95	2.41	2.56	2.2	19.02	1340.08
300	152.39	B	37	2.29	15.54	95	2.41	2.56	2.2	20.36	1586.07
350	177.29	B	37	2.47	16.79	95	2.41	2.56	2.2	21.61	1825.98
400	202.53	B	37	2.64	17.96	95	2.41	2.56	2.2	22.78	2068.12
500	252.89	B	37	2.95	20.04	95	2.41	2.56	2.2	24.86	2548.31
600	304.24	B	61	2.52	22	110	2.79	2.89	2.5	27.58	3084.92
750	380.99	B	61	2.82	24.64	110	2.79	2.89	2.5	30.22	3816.9
1000	506.04	B	61	3.25	28.4	110	2.79	2.89	2.5	33.98	5002.6

Production Process

Package
Packing in plastic reel, paper reel ,wooden drum,steel wooden drum or as customer's requirement.
