              Srpvc Electronic Wire UL1061 24AWG Tinned Copper Equipment Internal Connection Wire PVC Electrical Wire Copper Power Cable PVC Wire

              Product Description UL 1061 pvc wireRated temperature:105ºCRated voltage:300VReference standard:UL758,UL1581,CSA C22.2No.210.2Solid or stranded, tinned or bare copper conductor 32~16AWGSR-PVC insulation, comply with ROHS, REACH environmental standardPasses UL VW-1, CSA FTI and JQA F-Mark fl......

              Send Inquiry

              Product Description

              Product Description

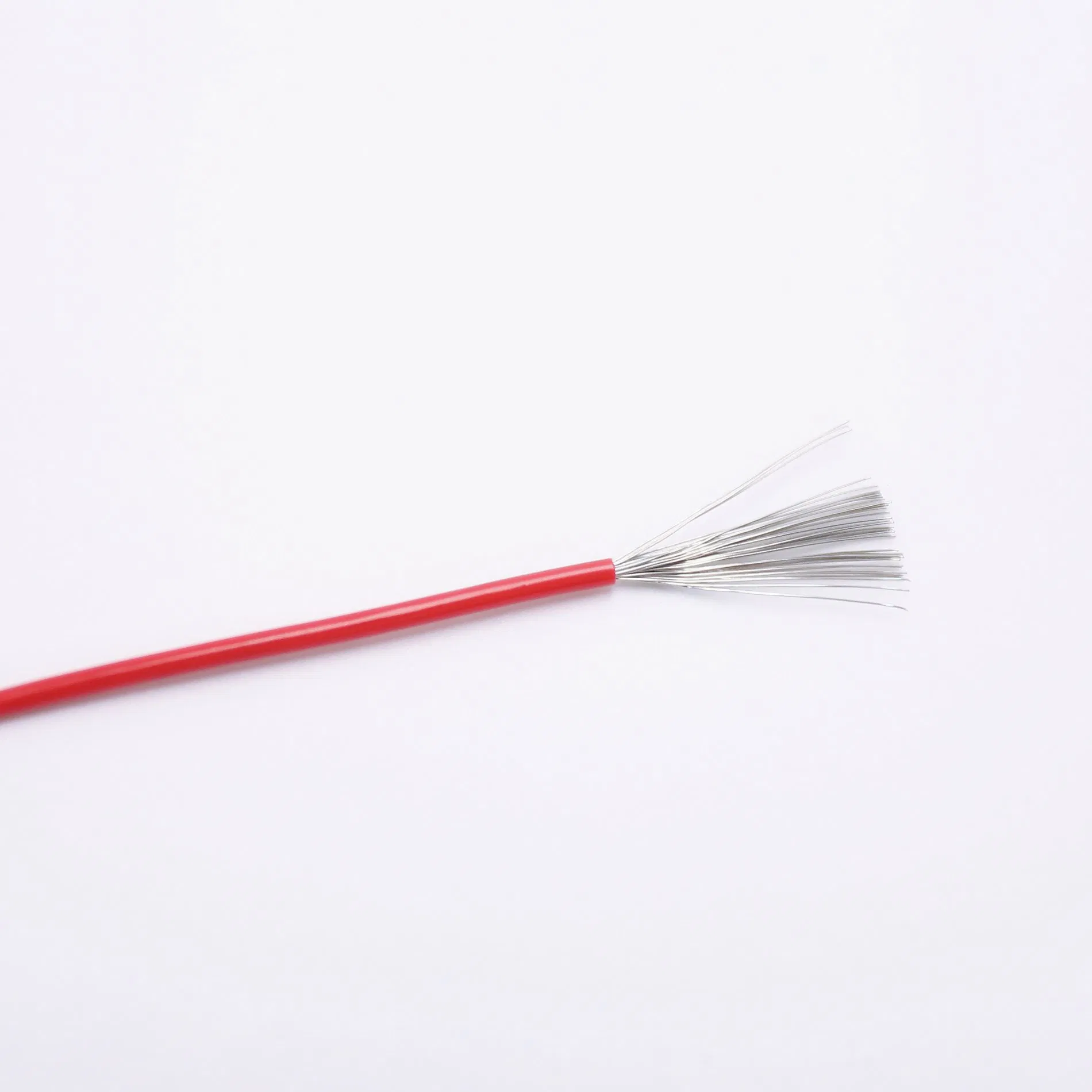

               Srpvc Electronic Wire UL1061 24AWG Tinned Copper Equipment Internal Connection Wire PVC Electrical Wire Copper Power Cable PVC Wire

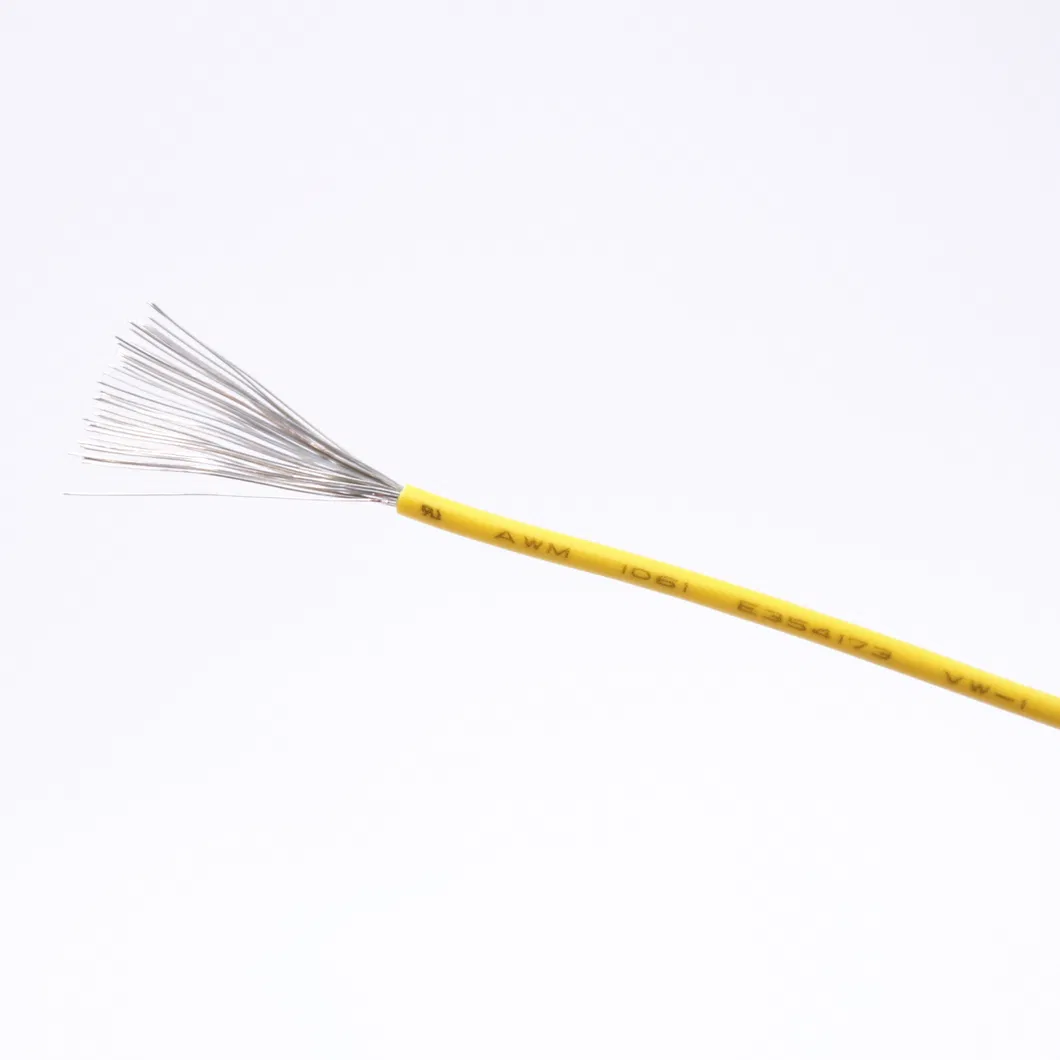

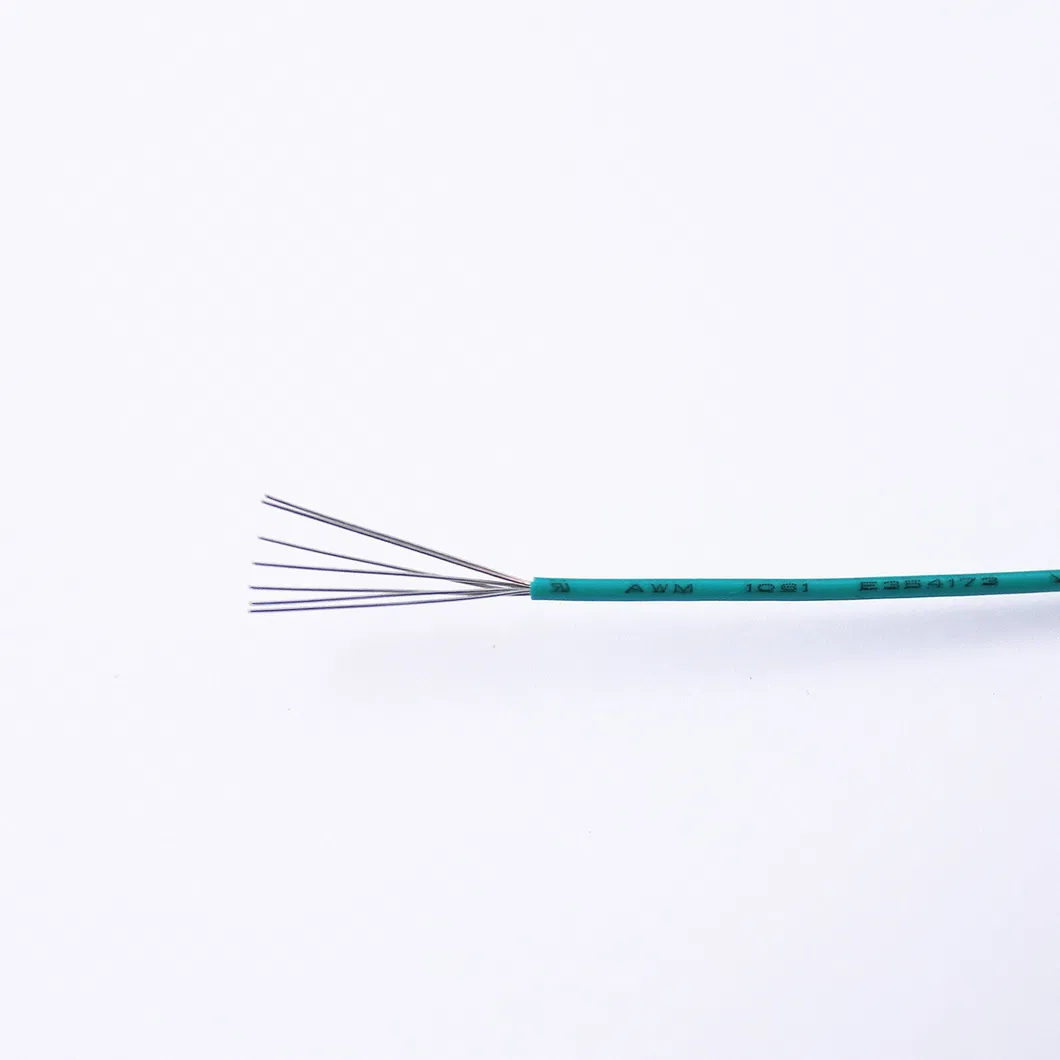

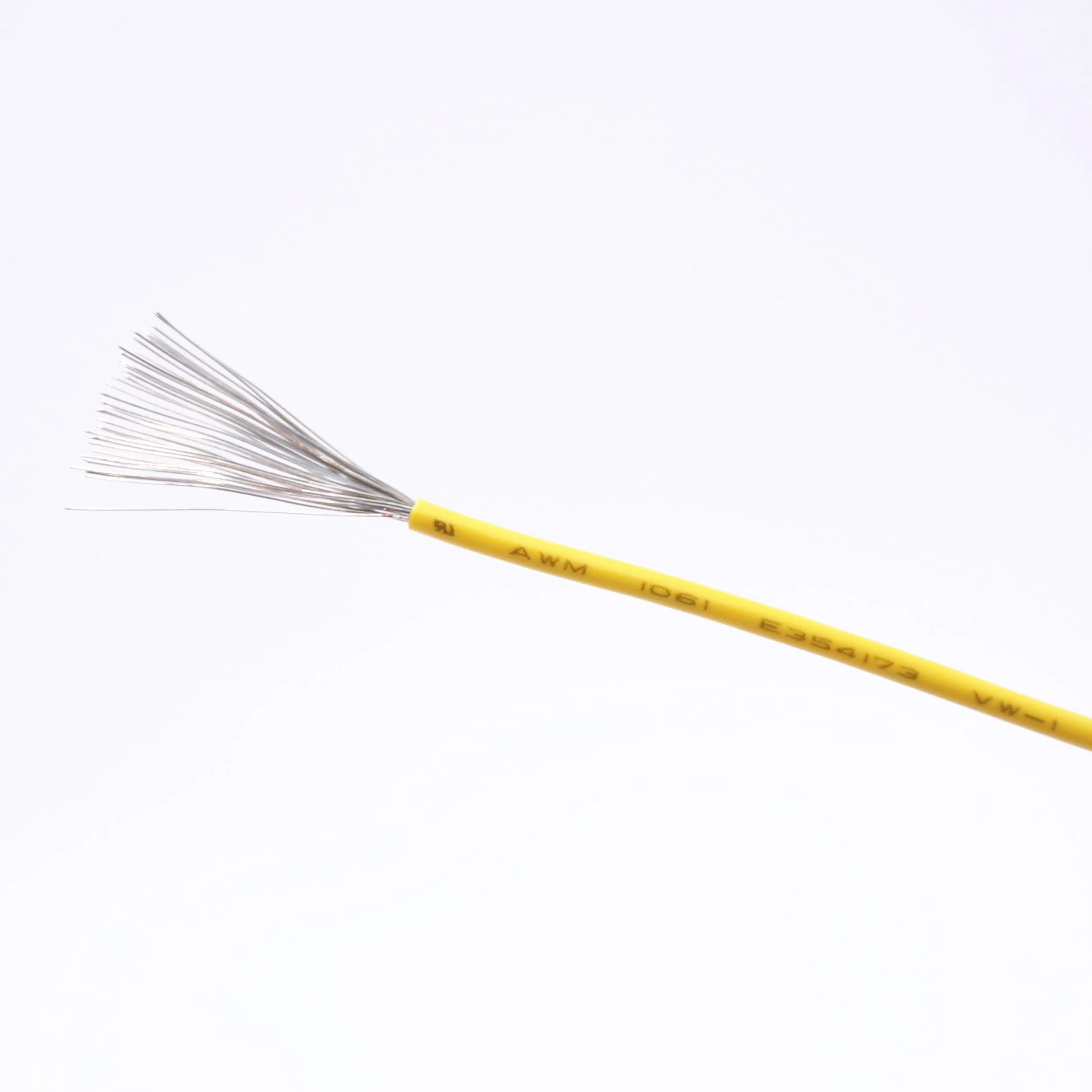

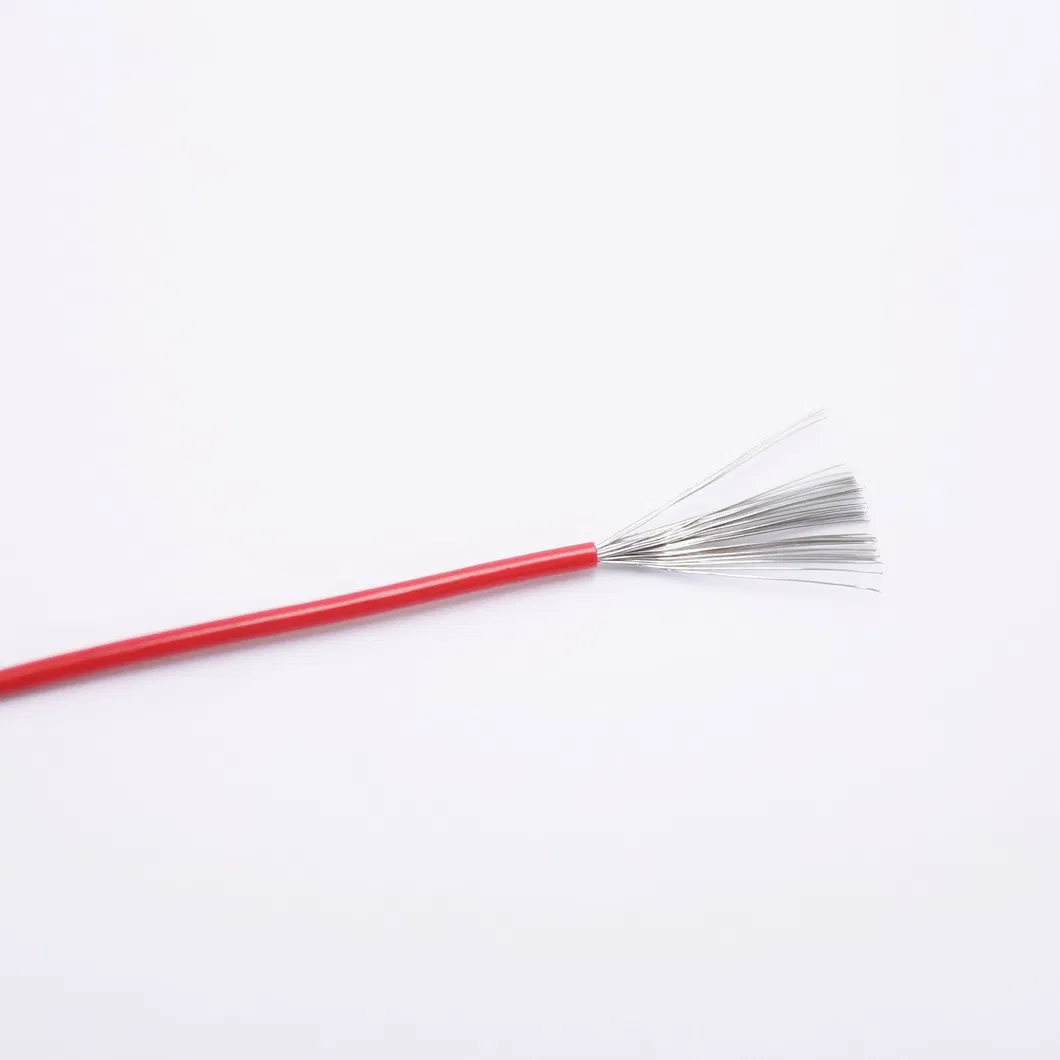

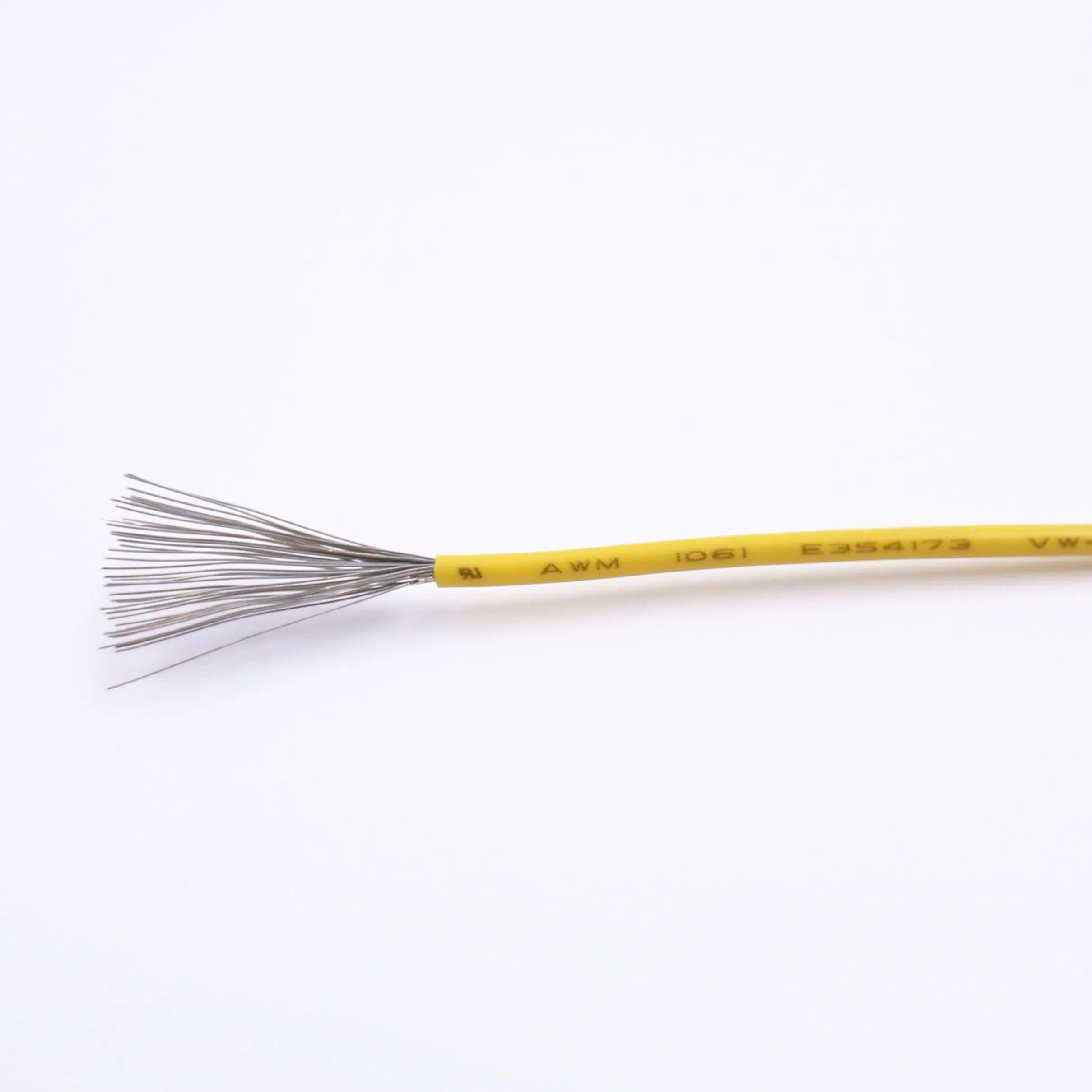

              UL 1061 pvc wire

              Rated temperature:105ºC

              Rated voltage:300V

              Reference standard:UL758,UL1581,CSA C22.2No.210.2

              Solid or stranded, tinned or bare copper conductor 32~16AWG

              SR-PVC insulation, comply with ROHS, REACH environmental standard

              Passes UL VW-1, CSA FTI and JQA F-Mark flame test

              Uniform insulation thickness to ensure easy stripping and cutting

              Application:For general purpose internal wiring of appliance


              UL type

                             Conductor

              Insulation

              Max.cond.

              Resistance

              (Dielectric Strength)









              1061

              AWG

              Construction

                (No./mm)

                  OD

                 (mm)

              Thickness

                  (mm)

                 OD

                (mm)

              (Ω/Km,20ºC,Dc)



              (Vac,1min)



              30

              7/0.10

              0.30

              0.25

              0.80

              381

              2000

              28

              7/0.127

              0.38

              0.26

              0.90

              239

              2000

              26

              7/0.16

              0.48

              0.26

              1.00

              150

              2000

              24

              7/0.20

              0.60

              0.25

              1.10

              94.2

              2000

              22

              7/0.254

              0.76

              0.27

              1.30

              59.4

              2000

              20

              7/0.32

              0.96

              0.27

              1.50

              36.7

              2000

              18

              16/0.254

              1.17

              0.31

              1.80

              23.2

              2000

              16

              26/0.254

              1.49

              0.31

              2.10

              14.6

              2000


              Srpvc Electronic Wire UL1061 24AWG Tinned Copper Equipment Internal Connection Wire PVC Electrical Wire Copper Power Cable PVC WireSrpvc Electronic Wire UL1061 24AWG Tinned Copper Equipment Internal Connection Wire PVC Electrical Wire Copper Power Cable PVC WireSrpvc Electronic Wire UL1061 24AWG Tinned Copper Equipment Internal Connection Wire PVC Electrical Wire Copper Power Cable PVC WireSrpvc Electronic Wire UL1061 24AWG Tinned Copper Equipment Internal Connection Wire PVC Electrical Wire Copper Power Cable PVC WireSrpvc Electronic Wire UL1061 24AWG Tinned Copper Equipment Internal Connection Wire PVC Electrical Wire Copper Power Cable PVC Wire
              Srpvc Electronic Wire UL1061 24AWG Tinned Copper Equipment Internal Connection Wire PVC Electrical Wire Copper Power Cable PVC Wire

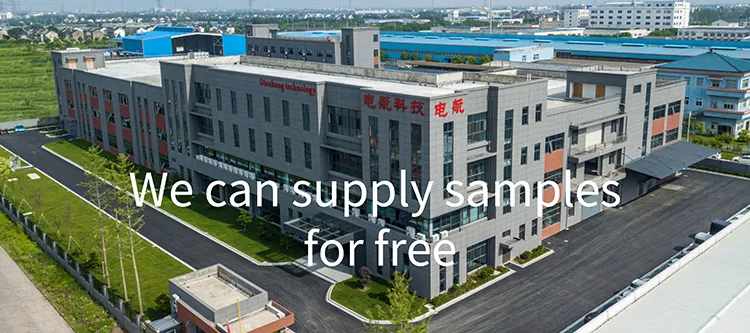

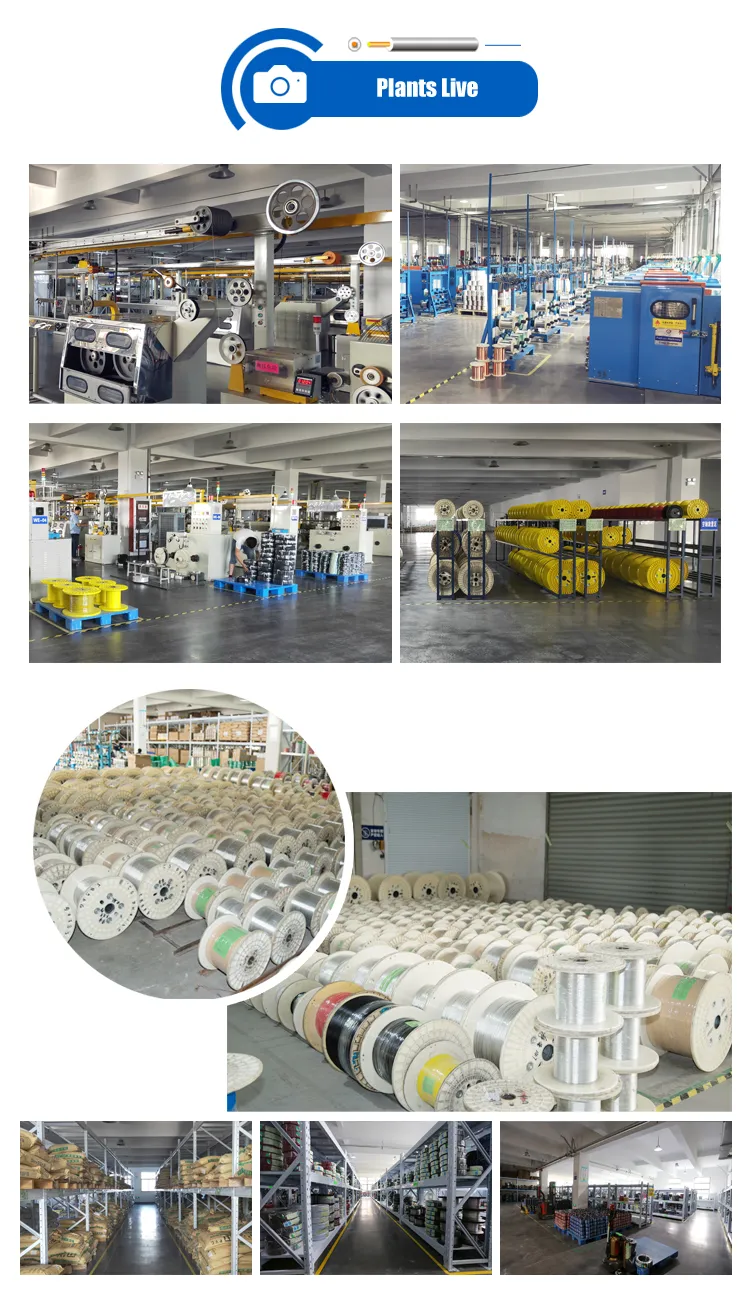

              Company Profile

              Srpvc Electronic Wire UL1061 24AWG Tinned Copper Equipment Internal Connection Wire PVC Electrical Wire Copper Power Cable PVC WireSrpvc Electronic Wire UL1061 24AWG Tinned Copper Equipment Internal Connection Wire PVC Electrical Wire Copper Power Cable PVC Wire

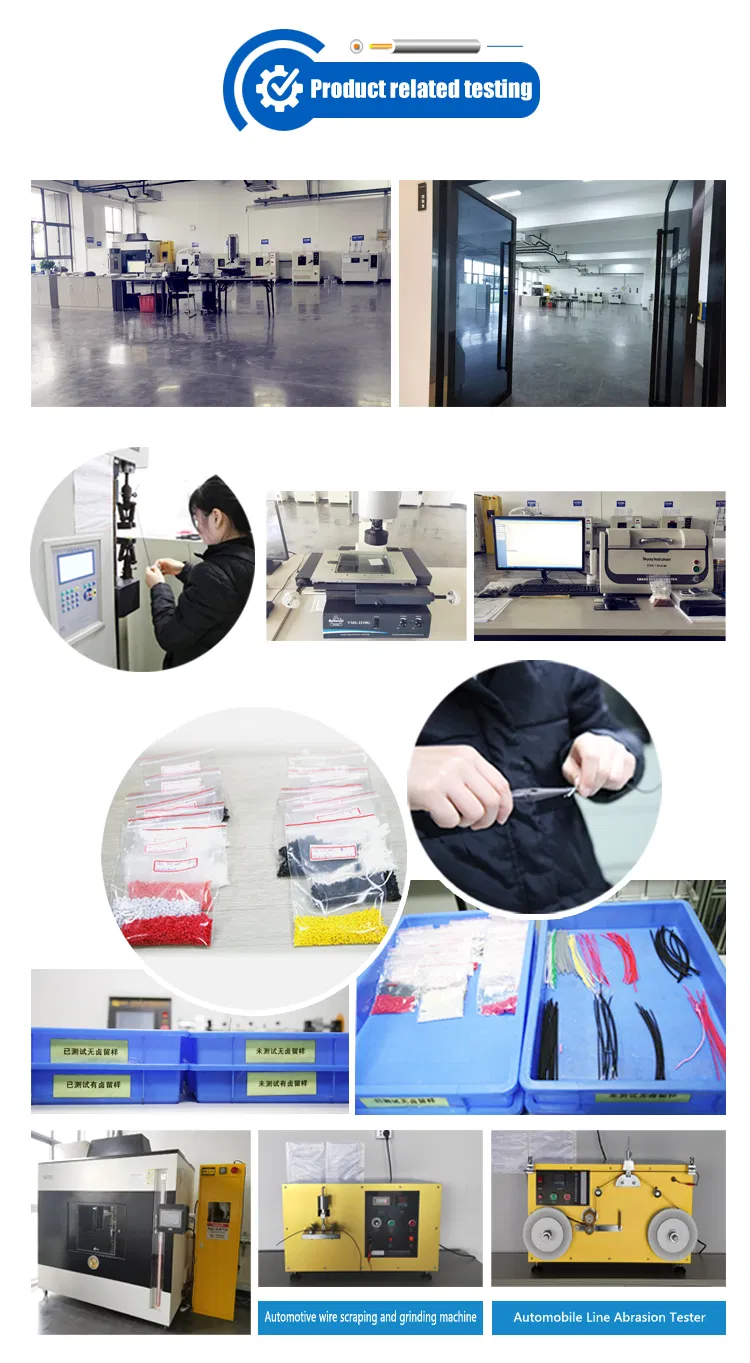

              Certifications



              Srpvc Electronic Wire UL1061 24AWG Tinned Copper Equipment Internal Connection Wire PVC Electrical Wire Copper Power Cable PVC Wire

              Packaging & Shipping



              Srpvc Electronic Wire UL1061 24AWG Tinned Copper Equipment Internal Connection Wire PVC Electrical Wire Copper Power Cable PVC WireSrpvc Electronic Wire UL1061 24AWG Tinned Copper Equipment Internal Connection Wire PVC Electrical Wire Copper Power Cable PVC Wire
