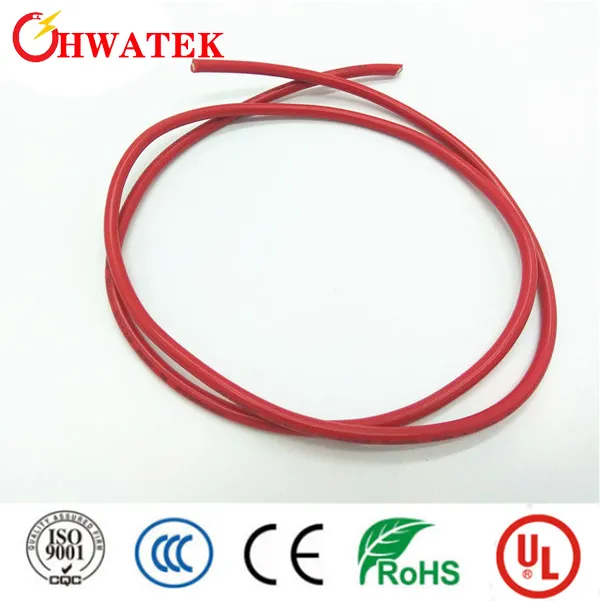

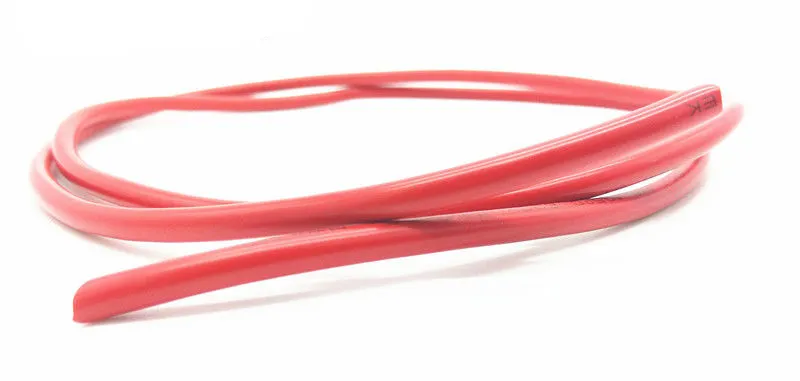

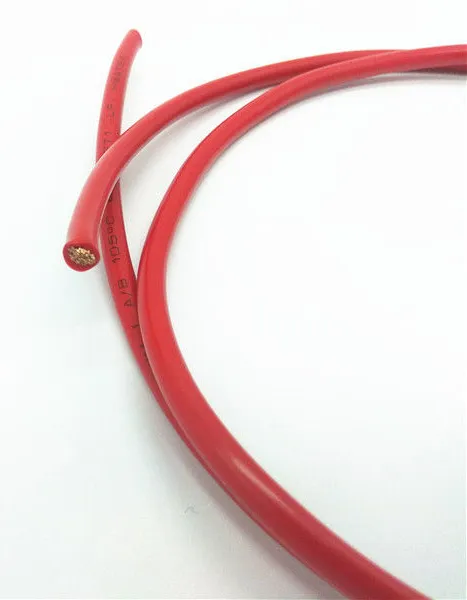

Stranded Conductor 30AWG UL1061 PVC Insulated Wire
ConstructionConductor : Solid or StrandedInsulation: PVC StandardsInternational: UL758 , UL1581, UL2556RoHS,REACH Compliant,Technical data with UL 1061:Rated voltage:300V Rated Temperature:80ºCFlame: VW-1, FT1, FT2Oil resistance: 60 ºC or 80 ºC OilVoltage withstand test:A......
Send Inquiry
Product Description
Construction
Conductor : Solid or Stranded
Insulation: PVC
Standards
International: UL758 , UL1581, UL2556
RoHS,REACH Compliant,
Technical data with UL 1061:
Rated voltage:300V
Rated Temperature:80ºC
Flame: VW-1, FT1, FT2
Oil resistance: 60 ºC or 80 ºC Oil
Voltage withstand test:AC 2.0kV/1min
Printing :E258652 AWM STYLE 1061 AWGXX 80ºC 300V VW-1 ---c AWM I A/B 80ºC 300V FT1 -LF-HWATEK
Note: Where "XX" means AWG No.
Specifications
| Part NO. | Size (AWG) | Tinned copper stranded | Insulation(PVC 105ºC) | ||||
| Construction | Dia. (mm) | Resistance (Ω/km) | Avg. thick.(mm) | Min. thick. (mm) | Outer Dia. (mm) | ||
| HT1600006 | 30 | 7/0.10 | 0.30 | 381 | 0.23 | 0.18 | 0.9±0.05 |
| HT2002233 | 28 | 45/0.05 | 0.38 | 239 | 0.23 | 0.18 | 0.9±0.05 |
| HT2003670 | 26 | 7/0.16 | 0.48 | 150 | 0.23 | 0.18 | 1.0±0.05 |
| HT2003616 | 24 | 7/0.20 | 0.60 | 87.6 | 0.23 | 0.18 | 1.2±0.05 |
| HT1702637 | 22 | 7/0.254 | 0.76 | 59.4 | 0.23 | 0.18 | 1.3±0.05 |
| HT2002680 | 20 | 7/0.32 | 0.97 | 36.7 | 0.23 | 0.18 | 1.5±0.05 |
| HT2003213 | 18 | 34/0.18 | 1.21 | 23.2 | 0.23 | 0.18 | 1.8±0.10 |
| HT1200581 | 16 | 26/0.254 | 1.50 | 14.6 | 0.23 | 0.18 | 2.1±0.10 |
Certificates
UL, CUL, CE

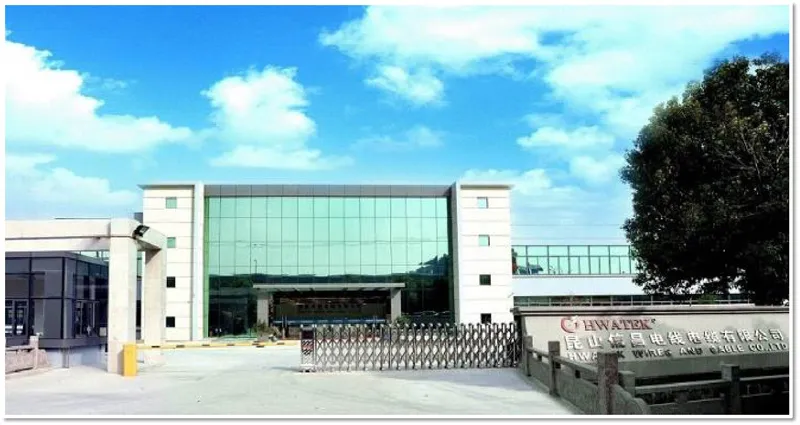

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.

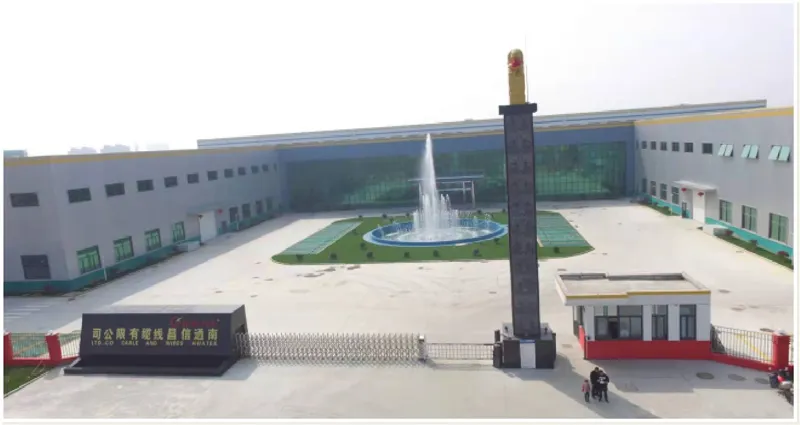

In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Certificates

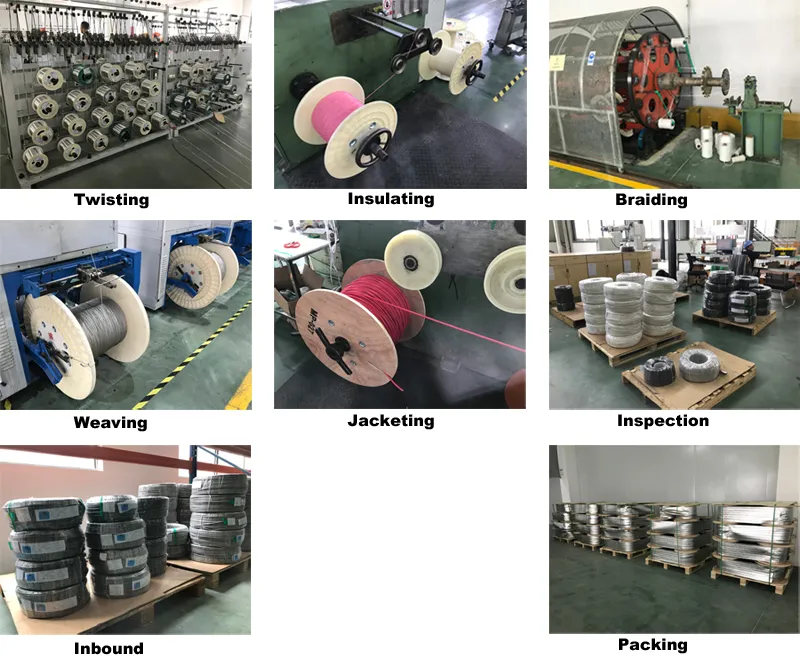

Production Progress
Shipping
FAQ1.Q:What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2.Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3.Q:Can we get samples before ordering?
A:Yes, we are willing to arrange samples for you.
4.Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5.Q. How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
