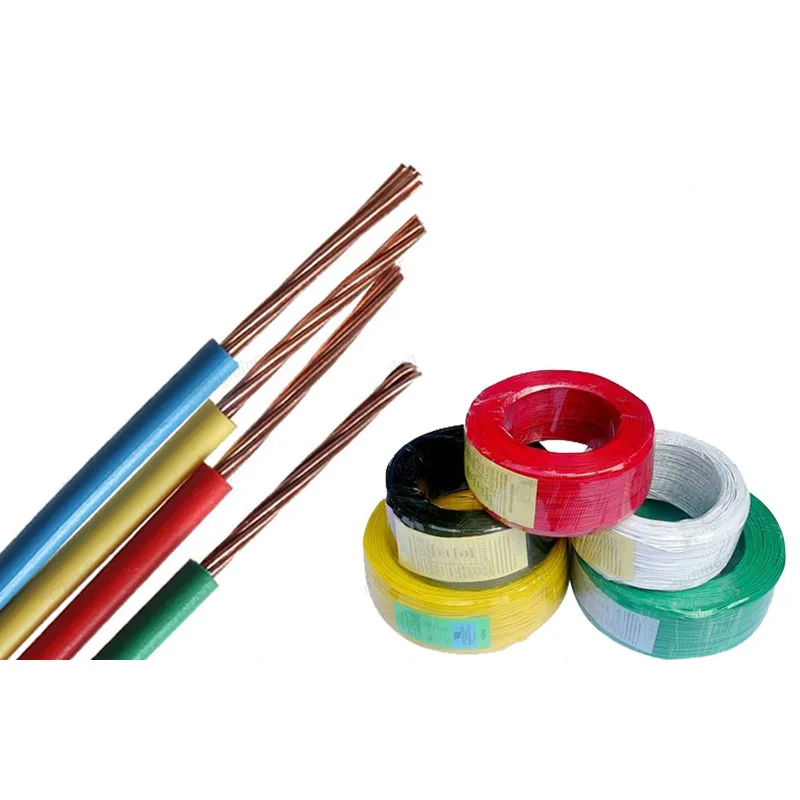

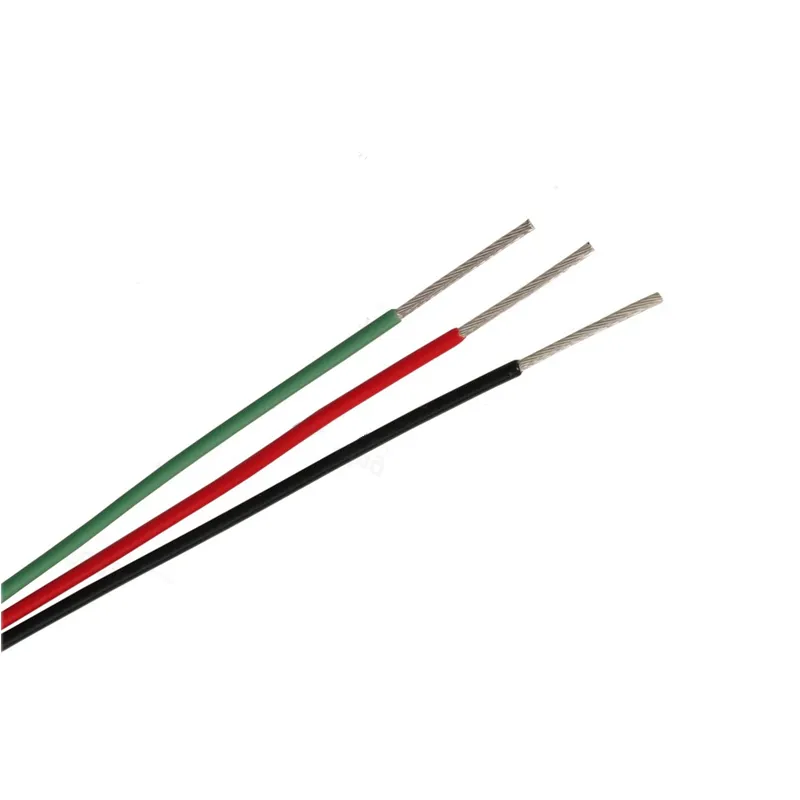

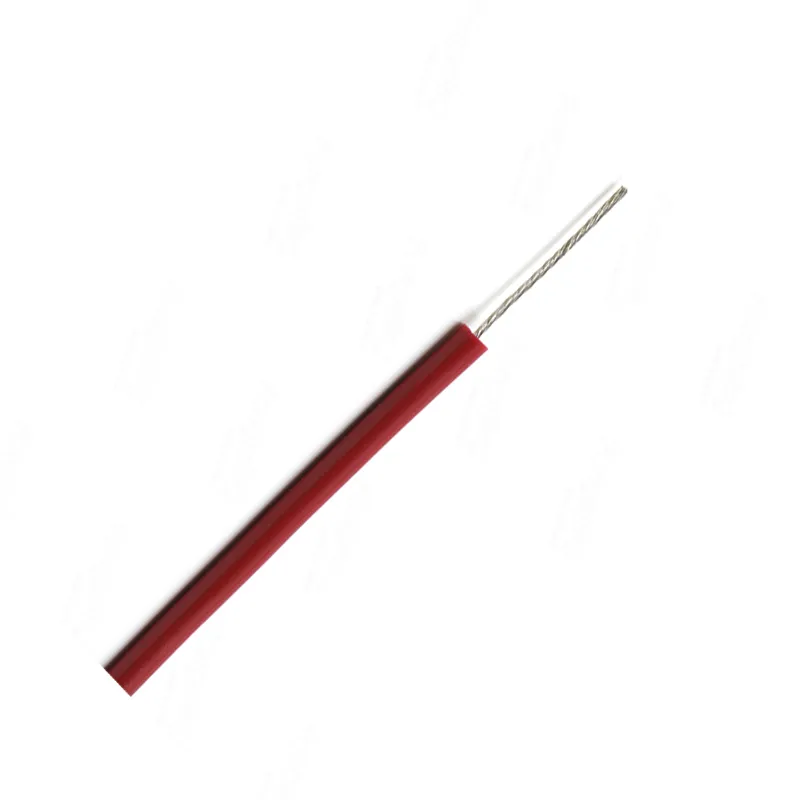

Super Thin PVC Insulated Wire for Compat Wiring Installation
Super thin PVC insulated wire for compat wiring installationModel: UL 1061 Hook-up wireRated Voltage: 300VRated Temperature: 80°CReference standard: UL Subject 758, UL1581 & CSA C22.2 No.210Conductor: solid or stranded, bare or tinned copper30AWG to 16AWGColour-coded lead free SR-PVC ins......
Send Inquiry
Product Description
Super thin PVC insulated wire for compat wiring installation
Q1: Can I get free sample?
A1: We can provide the existing items samples free in freight collected. If there is any special samples requirement, please contact us for more details.
Q2: How could I pay?
A2: We prefer T/T or L/C at sight. If you prefer other payment terms, please contact us freely.
Q3: What is your packing way? Can I have the customized package?
A3: We have the standard export package. For more details about the customized package, please contact us.
Q4: What is the delivery lead time?
A4: It depends on the order quantities. The mass production lead time is about 7-12 days after receipt of the deposit.
Q5: Are you a factory or a trading company?
A5: We are a factory. We provide all kinds of OEM/ODM services for clients around the world.
Q6:Where is your main market?
A6: We export to the North America, Southeast Asia, Europe, Korea, Japan, and other countries.
Our Services
1. Professional QC and QA team to make sure all products qualified before shipping.
2. Competitive price
3 .Standard package to ensure the safe transportation
4. Professional service
WHY CHOOSE US
1. Production
Qualified production, competitive price, professional service.
2. Technology
Professional R& D team
3. Equipment
With completive testing equipment.
4. Quality
UL/ CE/ FCC/ RoHS/ Reach certificate
- Model: UL 1061 Hook-up wire
- Rated Voltage: 300V
- Rated Temperature: 80°C
- Reference standard: UL Subject 758, UL1581 & CSA C22.2 No.210
- Conductor: solid or stranded, bare or tinned copper
- 30AWG to 16AWG
- Colour-coded lead free SR-PVC insulation
- Passes UL VW-1 & CSA FT1 vertical flame test
- Uniform insulation thickness of wire to ensure easy stripping and cutting
- For internal wiring of electronic and electrical equipment, protection is required where mechanical damage is possible
| Conductor | Insulation | Maximum Resistance at 20ºC Ω/km | |||
| AWG | No.of Cond | Dia. | Nom.Thick. | Nom.Dia. | |
| No./mm | mm | mm | mm | ||
| 30 | 7/0.1 | 0.30 | 0.26 | 0.82 | 354.00 |
| 28 | 7/0.127 | 0.38 | 0.26 | 0.90 | 223.00 |
| 26 | 7/0.16 | 0.48 | 0.26 | 1.00 | 139.00 |
| 24 | 11/0.16 | 0.61 | 0.27 | 1.15 | 88.90 |
| 22 | 17/0.16 | 0.76 | 0.26 | 1.28 | 57.50 |
| 20 | 26/0.16 | 0.94 | 0.26 | 1.46 | 34.60 |
| 18 | 41/0.16 | 1.18 | 0.26 | 1.70 | 23.30 |
| 16 | 26/0.254 | 1.49 | 0.26 | 2.02 | 15.10 |
