Single Conductor Electrical Wires THHN THWN THW in AWG Standard

1.Application:
1Type TW THW THHN THWN TFF building wire is intended for general purpose applications as defined by the National Electrical Code (NEC)Type TW THW THHN THWN TFF is permitted for new construction or rewiring for 60volt applications. Applications requiring Type THHN or THWN2, the conductor is appropriate for use in wet or dry locations at temperatures not to exceed 90°C or not to exceed 75°C in oil or coolants. Applications requiring Type MTW conductor is appropriate for use in dry locations at 90°C, or not to exceed 60°C in wet locations or where exposed to oils or coolants. Applications requiring Type AWM conductor is appropriate for use at temperatures to not exceed 105°C in dry locations.
Features:
Nylon outer jacket for easy pulling. VW-1 rated 14 AWG - 8 AWG. All sizes are rated gasoline and oil-resistant II.
Jacket:
A tough, polyamide, Nylon outer covering per UL-1063 and UL-83.
2.Standard:
UL-83, UL-1063, UL-758

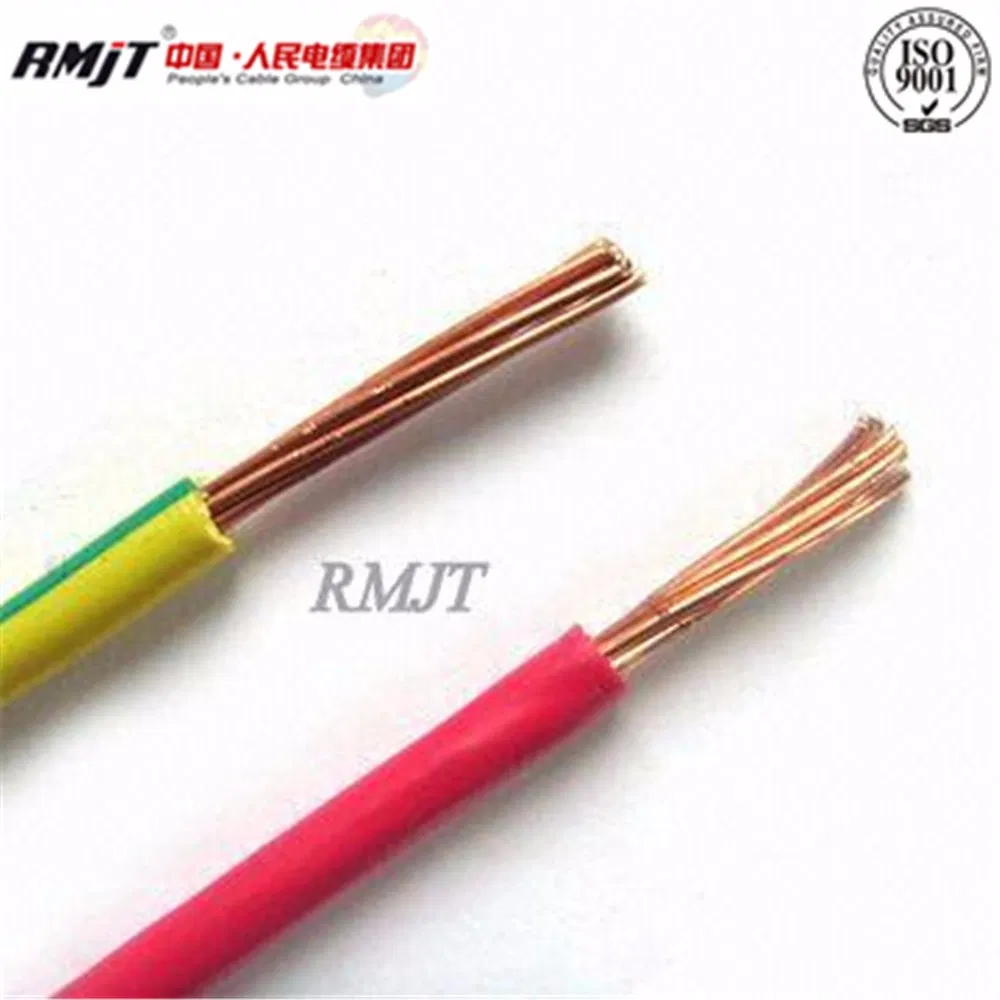

Thhn Thwn Thw AWG Standard Single Conductor Electrical Wires

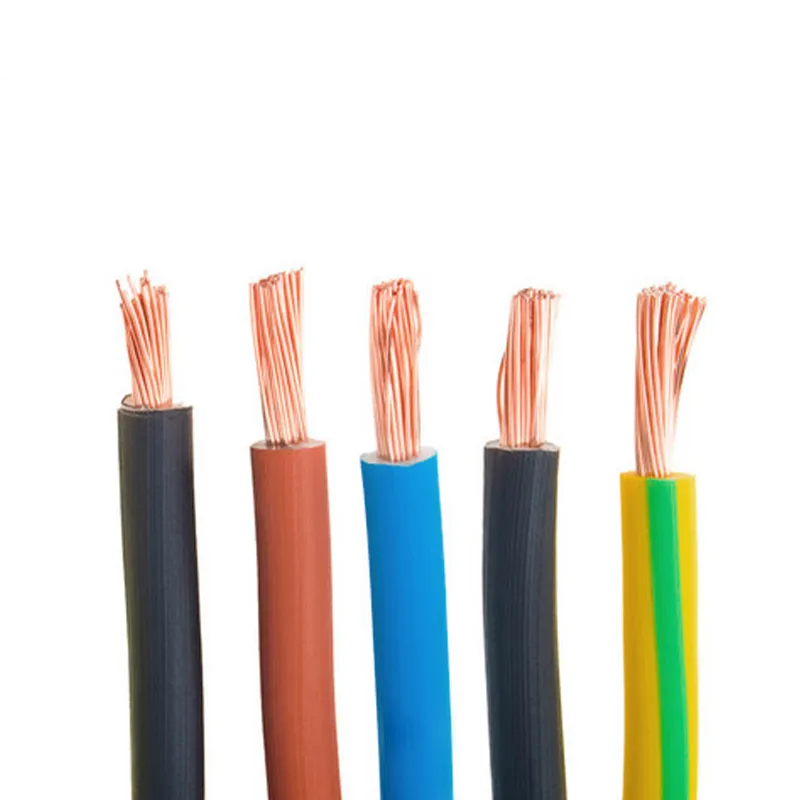

Thhn Thwn Thw AWG Standard Single Conductor Electrical Wires

3.Specification:

UL 83 UL 1581

AWG/MCM	mm2	Conductor			Insulation						Shealth			Total Weight
		Single Wire		OD.	PVC						Nylon
		No.	Dia.	OD.	thick			min	min	OD.	Thick mils	mm	OD.
			mm	mm	mil	mm	mm	mil	mm	mm	mil	mm	mm	kg/km
16	1.31	1	1.29	1.29	15	0.38	0.51	14	0.36	2.05	4	0.1	2.25	16.73
14	2.08	1	1.626	1.626	15	0.38	0.51	14	0.36	2.386	4	0.1	2.586	24.53
12	3.29	1	2.048	2.048	15	0.38	0.51	14	0.36	2.808	4	0.1	3.008	36.61
10	5.26	1	2.589	2.589	20	0.51	0.64	19	0.48	3.609	4	0.1	3.809	58
16	1.67	7	0.551	1.653	15	0.38	0.51	14	0.36	2.413	4	0.1	2.613	21.5
14	2.08	7	0.615	1.845	15	0.38	0.51	14	0.36	2.605	4	0.1	2.805	25.84
12	3.30	7	0.775	2.325	15	0.38	0.51	14	0.36	3.085	4	0.1	3.285	38.51
10	5.26	7	0.978	2.934	20	0.51	0.64	19	0.48	3.954	4	0.1	4.154	60.82
9	6.63	7	1.098	3.294	20	0.51	0.64	19	0.48	4.314	5	0.13	4.574	75.34
8	8.32	7	1.23	3.69	30	0.76	0.9	28	0.71	5.21	5	0.13	5.47	98.69
7	10.47	7	1.38	4.14	30	0.76	0.9	28	0.71	5.66	5	0.13	5.92	120.76
6	13.21	7	1.55	4.65	30	0.76	0.9	28	0.71	6.17	5	0.13	6.43	148.58
5	16.65	7	1.74	5.22	30	0.76	0.9	28	0.71	6.74	6	0.15	7.04	183.78
4	21.12	7	1.96	5.88	40	1.02	1.1	35	0.89	7.92	6	0.15	8.22	235.76
2	33.54	7	2.47	7.41	40	1.02	1.1	35	0.89	9.45	6	0.15	9.75	359.83
16	1.23	19	0.287	1.435	15	0.38	0.51	14	0.36	2.195	4	0.1	2.395	16.72
14	2.04	19	0.37	1.85	15	0.38	0.51	14	0.36	2.61	4	0.1	2.81	25.35
12	3.30	19	0.47	2.35	15	0.38	0.51	14	0.36	3.11	4	0.1	3.31	38.27
10	5.19	19	0.59	2.95	20	0.51	0.64	19	0.48	3.97	4	0.1	4.17	59.86
9	6.50	19	0.66	3.3	20	0.51	0.64	19	0.48	4.32	5	0.13	4.58	73.64
8	8.17	19	0.74	3.7	30	0.76	0.9	28	0.71	5.22	5	0.13	5.48	95.16
7	10.53	19	0.84	4.2	30	0.76	0.9	28	0.71	5.72	5	0.13	5.98	120.74
6	13.19	19	0.94	4.7	30	0.76	0.9	28	0.71	6.22	5	0.13	6.48	145.02
5	16.45	19	1.05	5.25	30	0.76	0.9	28	0.71	6.77	6	0.15	7.07	180.78
4	21.13	19	1.19	5.74	40	1.02	1.1	35	0.89	7.78	6	0.15	8.08	229.38
3	26.40	19	1.33	6.45	40	1.02	1.1	35	0.89	8.49	6	0.15	8.79	280.88
2	33.58	19	1.5	7.26	40	1.02	1.1	35	0.89	9.3	6	0.15	9.6	350.23
1	42.12	19	1.68	8.15	50	1.27	1.38	45	1.14	10.69	7	0.18	11.05	447.22
1/0	53.30	19	1.89	9.14	50	1.27	1.38	45	1.14	11.68	7	0.18	12.04	555.15
2/0	67.07	19	2.12	10.3	50	1.27	1.38	45	1.14	12.84	7	0.18	13.2	687.52
3/0	84.53	19	2.38	11.6	50	1.27	1.38	45	1.14	14.14	7	0.18	14.5	854.27
4/0	107.18	19	2.68	13	50	1.27	1.38	45	1.14	15.54	7	0.18	15.9	1068.65
250	125.72	37	2.08	14.2	60	1.52	1.67	55	1.4	17.24	8	0.2	17.64	1272.29
300	151.06	37	2.28	15.5	60	1.52	1.67	55	1.4	18.54	8	0.2	18.94	1512.81
350	177.29	37	2.47	16.8	60	1.52	1.67	55	1.4	19.84	8	0.2	20.24	1761.4
400	202.53	37	2.64	17.9	60	1.52	1.67	55	1.4	20.94	8	0.2	21.34	1999.42
500	252.89	37	2.95	19.7	60	1.52	1.67	55	1.4	22.74	8	0.2	23.14	2470.99
600	304.24	61	2.52	22	70	1.78	1.94	65	1.65	25.56	9	0.23	26.02	2998.91
650	328.87	61	2.62	22.9	70	1.78	1.94	65	1.65	26.46	9	0.23	26.92	3231.59
750	378.30	61	2.81	24.6	70	1.78	1.94	65	1.65	28.16	9	0.23	28.62	3697.59
1000	506.04	61	3.25	28.4	70	1.78	1.94	65	1.65	31.96	9	0.23	32.42	4896.32

4.Other UL specification:
TW THW

TW THW 600V 60ºC UL 83 UL 1581 Type TW and THW may be used for general purpose wiring for power and lighting, for insulation in air, conduit, duct or other recognized raceways, in wet or dry locations. Maximum voltage rating= 600 V



MAXIMUM CONDUCTOR TEMPERATURE
type	oil	wet	dry
TW	60ºC	60ºC	60ºC
THW	75ºC	75ºC	75ºC
MTW*	60ºC	60ºC	90ºC
* 1AWG AND LARGER ONLY

AWG/MCM	mm2	Conductor	Conductor			Insulation					Total Weight
		Type	Single Wire		OD.	PVC					kg/km
			No.	Dia.		Thick	mm	Thick	min	OD.
			No.	Dia.		mils	mm	Thick	min	OD.
18	0.82	solid	1	1.02	1.02	30	0.76	0.89	0.7	2.54	14.82
16	1.31	solid	1	1.29	1.29	30	0.76	0.89	0.7	2.81	20.27
14	2.09	solid	1	1.63	1.63	30	0.76	0.89	0.7	3.15	28.6
12	3.33	solid	1	2.06	2.06	30	0.76	0.89	0.7	3.58	41.48
10	5.27	solid	1	2.59	2.59	30	0.76	0.89	0.7	4.11	60.93
8	8.35	solid	1	3.26	3.26	45	1.14	1.22	1	5.54	98.99
6	13.33	solid	1	4.12	4.12	60	1.52	1.67	1.4	7.16	162.23
4	21.16	solid	1	5.19	5.19	60	1.52	1.67	1.4	8.23	240.34
18	0.82	B	7	0.386	1.158	30	0.76	0.89	0.7	2.678	15.65
16	1.31	B	7	0.488	1.464	30	0.76	0.89	0.7	2.984	21.43
14	2.08	B	7	0.615	1.845	30	0.76	0.89	0.7	3.365	30.1
12	3.30	B	7	0.775	2.325	30	0.76	0.89	0.7	3.845	43.38
10	5.26	B	7	0.978	2.934	30	0.76	0.89	0.7	4.454	64.02
8	8.32	B	7	1.23	3.69	45	1.14	1.22	1	5.97	103.92
6	13.21	B	7	1.55	4.65	60	1.52	1.67	1.4	7.69	169.62
4	21.12	B	7	1.96	5.88	60	1.52	1.67	1.4	8.92	252.44
2	33.54	B	7	2.47	7.41	60	1.52	1.67	1.4	10.45	379.53
1	42.62	B	19	1.69	8.18	80	2.03	2.11	1.8	12.24	480.75
1/0	53.30	B	19	1.89	9.19	80	2.03	2.11	1.8	13.25	586.71
2/0	67.70	B	19	2.13	10.34	80	2.03	2.11	1.8	14.4	727.52
3/0	85.24	B	19	2.39	11.61	80	2.03	2.11	1.8	15.67	897.84
4/0	107.18	B	19	2.68	13	80	1.52	1.67	1.4	16.44	1097.15
250	126.94	B	37	2.09	14.2	95	2.41	2.56	2.2	19.02	1340.08
300	152.39	B	37	2.29	15.54	95	2.41	2.56	2.2	20.36	1586.07
350	177.29	B	37	2.47	16.79	95	2.41	2.56	2.2	21.61	1825.98
400	202.53	B	37	2.64	17.96	95	2.41	2.56	2.2	22.78	2068.12
500	252.89	B	37	2.95	20.04	95	2.41	2.56	2.2	24.86	2548.31
600	304.24	B	61	2.52	22	110	2.79	2.89	2.5	27.58	3084.92
750	380.99	B	61	2.82	24.64	110	2.79	2.89	2.5	30.22	3816.9
1000	506.04	B	61	3.25	28.4	110	2.79	2.89	2.5	33.98	5002.6

5.Package:
Packing in plastic reel, paper reel ,wooden drum or as customer's requirement.

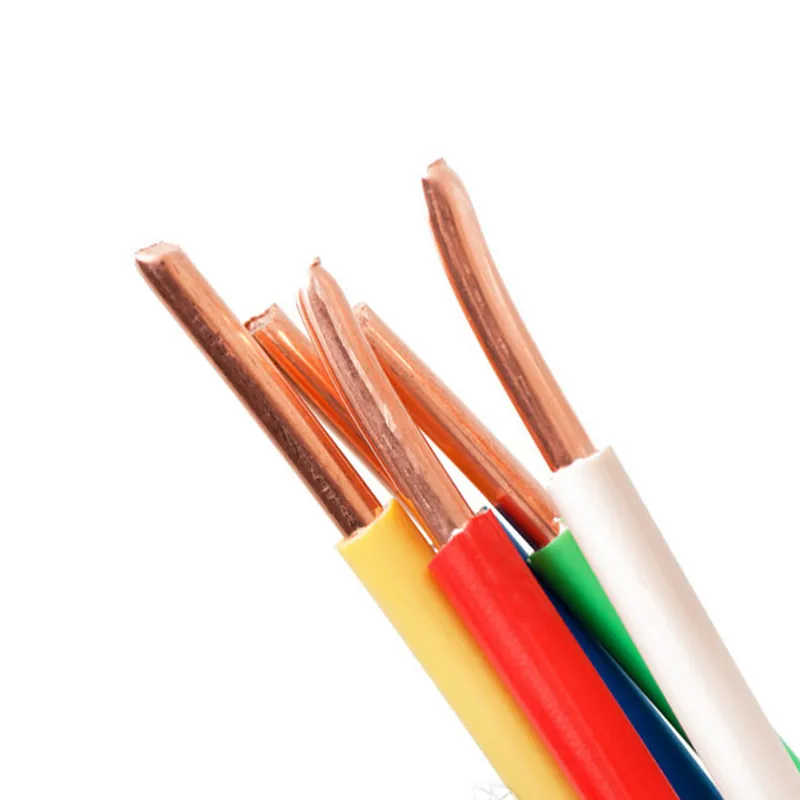

Thhn Thwn Thw AWG Standard Single Conductor Electrical Wires

6.Our factory:

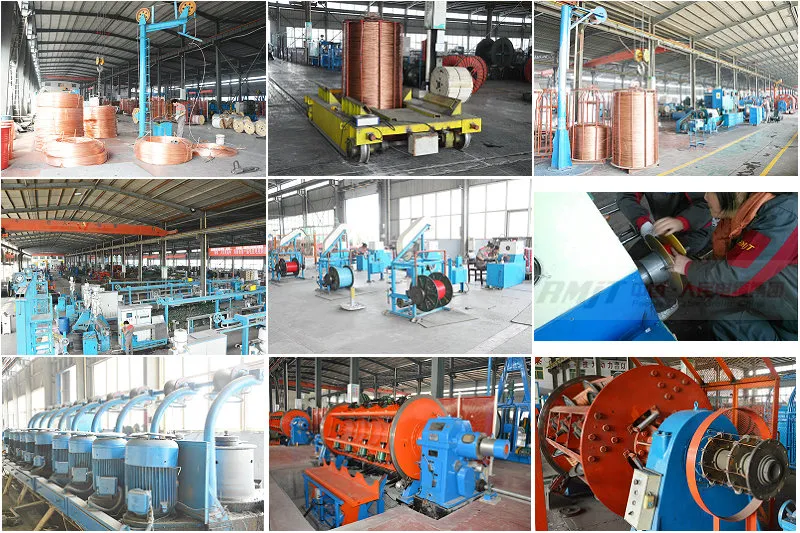

People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
