UL 1277 Standard 12AWG 10AWG 8awgthw/Thhn/Xhhw/Rhh Inner Core Power and Control Tray Cable Tc Cable

TYPE TC TRAY CABLE
CONTROL / INSTRUMENTATION CABLE
VNTC / UL Type TC / TC-ER Rated
600 VOLTS
90°C DRY/75°C WET

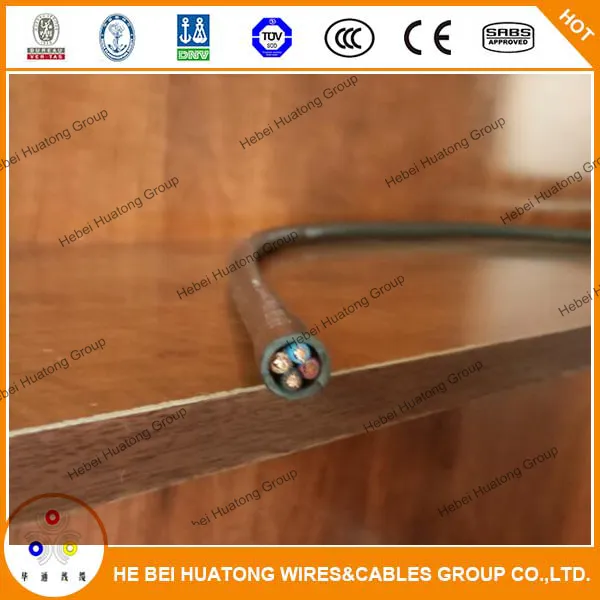

PVC/Nylon Insulation with Overall PVC Jacket

UL 1277 standard 12AWG 10AWG 8AWGTHW/THHN/XHHW/RHH inner core power and control tray cable TC cable

APPLICATIONS:

Type TC Control Cable is for use in industrial power or control circuits where small diameter, flame retardant cables are desired. Primary installations include cable trays, raceways, and outdoor locations where supported by a messenger wire. Conductors may be used at temperatures not to exceed 75°C in wet locations or 90°C in dry locations.

SPECIFICATIONS
Type TC Control Cable meets or exceeds the applicable requirements of the following standards and
specifications:
• ASTM - (All applicable standards)
• UL 1277 Electrical Power and Control Tray Cables
• NFPA 70 (NEC)
• ICEA S-58-679 - Control Cable Conductor Identification Method 1, Table 2

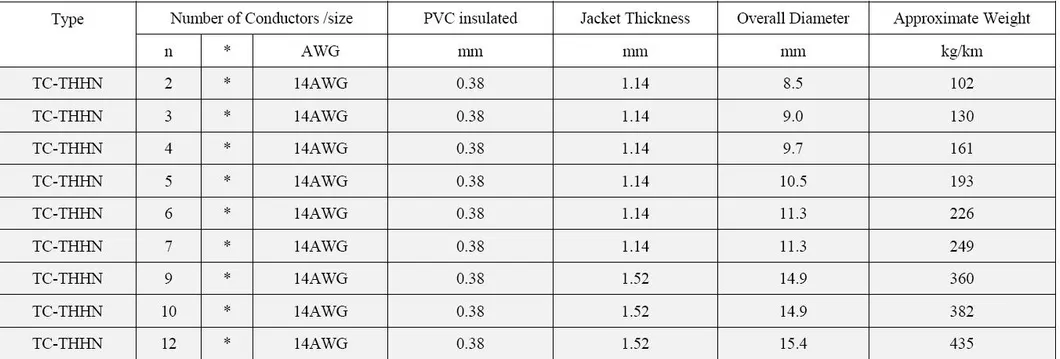

CONSTRUCTION

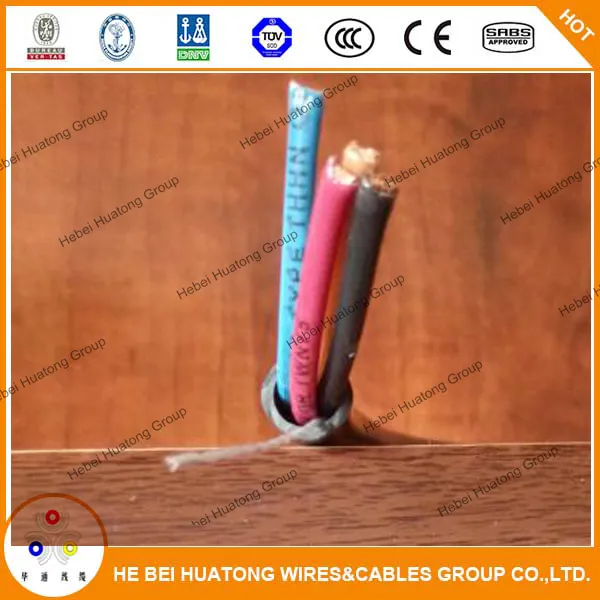

Type TC Control Cable is available in sizes 14 AWG through 10 AWG, with multi conductor constructions of two through 37 conductors. The product uses Type THHN or THWN conductors in sizes 14 AWG through 10 AWG .Individual conductors are bare annealed copper covered with a polyvinyl chloride (PVC) insulation over which a nylon (polyamide) or UL listed equal jacket is applied. The overall jacket consists of a heat, moisture and sunlight resistant PVC. Non-halogen jacket available upon request.



Company insulation:

HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We are OEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.





Packing:

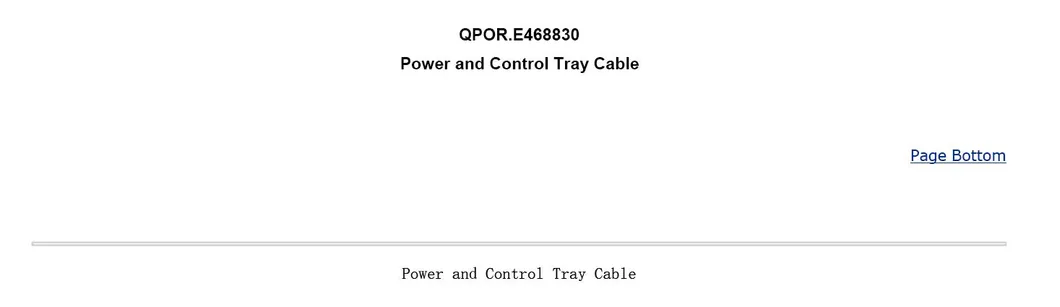

Certification:



Our servies:

1. 24 years production experience and 15 years export experience .

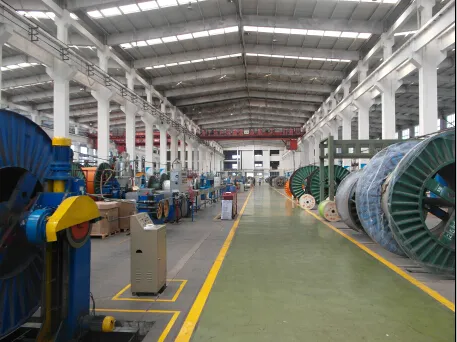

2.high-end  Machinery and equipment for high quality cable .

3.manufacture various of cable :power cable,control cable,abc cable,submersible oil pump cable,rubber cable,elevator cable,electric cable...

4. products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL,DNV:

    system ceryification:ISO9001,ISO14001,OHSAS18001

5.our product sells all over the world and has the good  reputation.

6.professional teamwork service for you actively.

7.quick solution and long time online time waiting for your inquiry.

8.rapid delivery and feedback.

9. Stock available, Free sample

10.We can do that you expect
