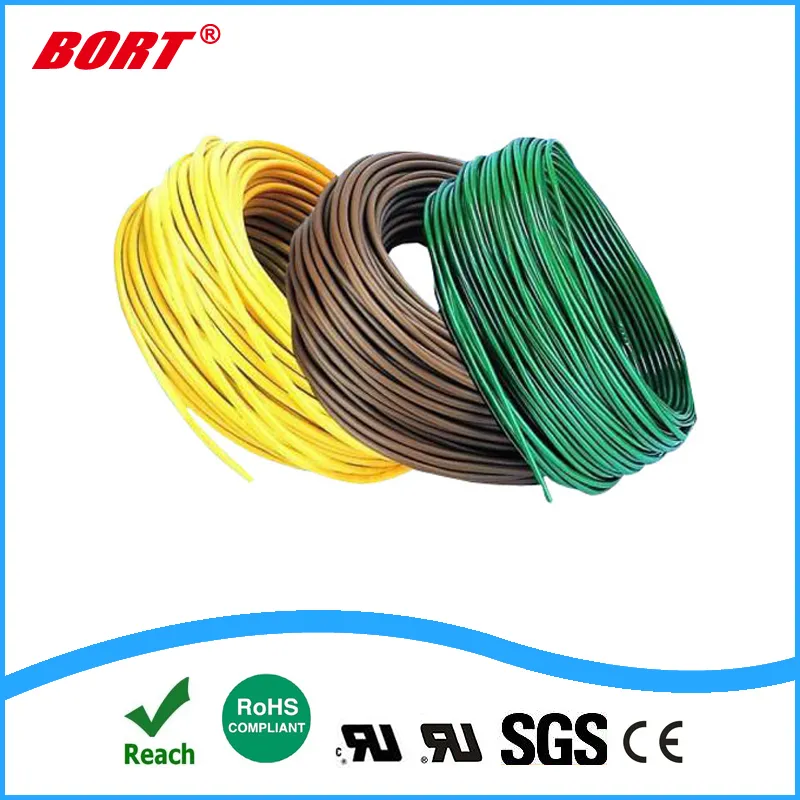

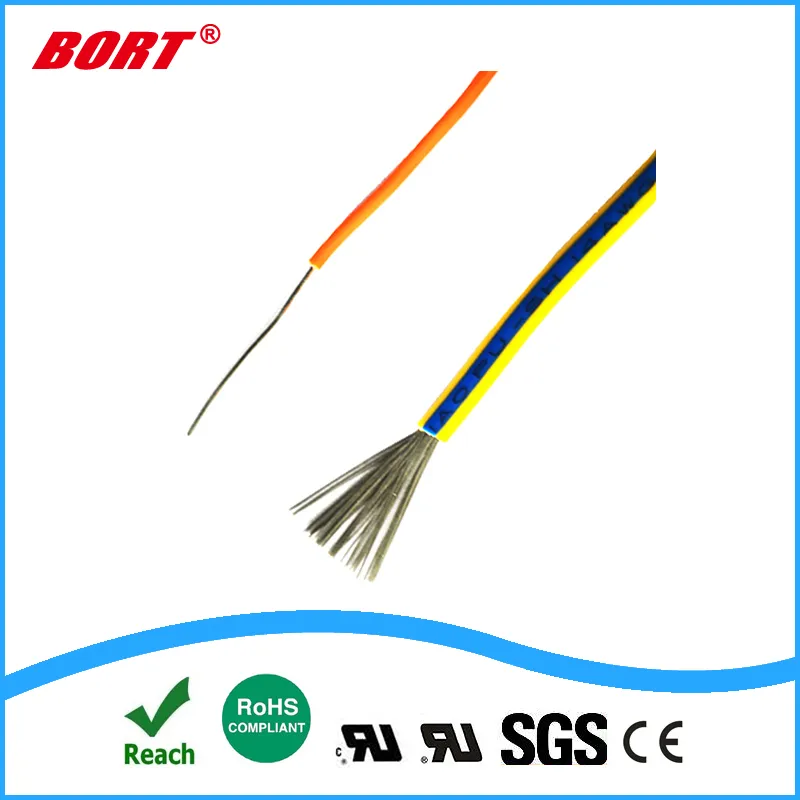

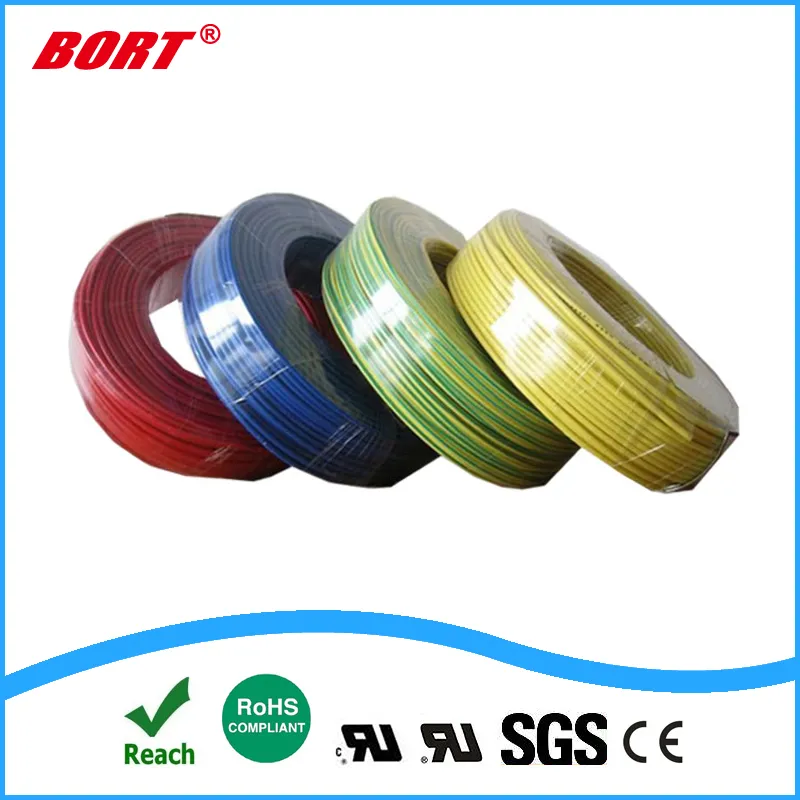

UL 1429 Single Conductor Xlpvc Insulation Wire, Cable
UL 1429 Single Conductor XLPVC Insulation Wire, CableAPPLIANCE WIRING MATERIAL Subj.758 Issued:1967-04-06 Revised:2014-06-16 Style 1429Single Conductor with Extruded Insulation Rating80 deg C, 150 Vac, Horizontal Flame. Conductor32 AWG - 16 AWG, Solid or Stranded. Extruded XLPVC, 9 mils minim......
Send Inquiry
Product Description
UL 1429 Single Conductor XLPVC Insulation Wire, Cable
| APPLIANCE WIRING MATERIAL | |||||
| Subj.758 | Issued:1967-04-06 | ||||
| Revised:2014-06-16 | |||||
| Style 1429 | Single Conductor with Extruded Insulation | ||||
| Rating | 80 deg C, 150 Vac, Horizontal Flame. | ||||
| Conductor | 32 AWG - 16 AWG, Solid or Stranded. | ||||
| Extruded XLPVC, 9 mils minimum average | |||||
| Insulation | thickness, 7 mils minimum thickness at any point. | ||||
| Optional - Extruded Nylon, 2 mils minimum | |||||
| Covering | thickness or lacquered braid. | ||||
| Standard | Appliance Wiring Material UL 758. | ||||
| Marking | General. | ||||
| Internal Wiring of Appliances or Electronic | |||||
| Use | Equipment. Tags may indicate the following: 300 | ||||
| Volts Peak - for Electronic Use Only. | |||||
| UL and the UL Logo are trademarks of UL LLC © 2018 | |||||
