UL 1571 Hook up Wire Copper Conductor Electric Cable
UL 1571 Hook up Wire Copper Conductor Electric Cable Rated temperature:105ºC Rated voltage:600V According to:UL Subject758,UL1581& CSA C22.2 No.210.2 Tinned or bare,stranded or solid copper conductor,30-16 AWG Colour-coded lead free PVC insulation Passes UL VW-1&CSA FT1 vertical fla......
Send Inquiry
Product Description

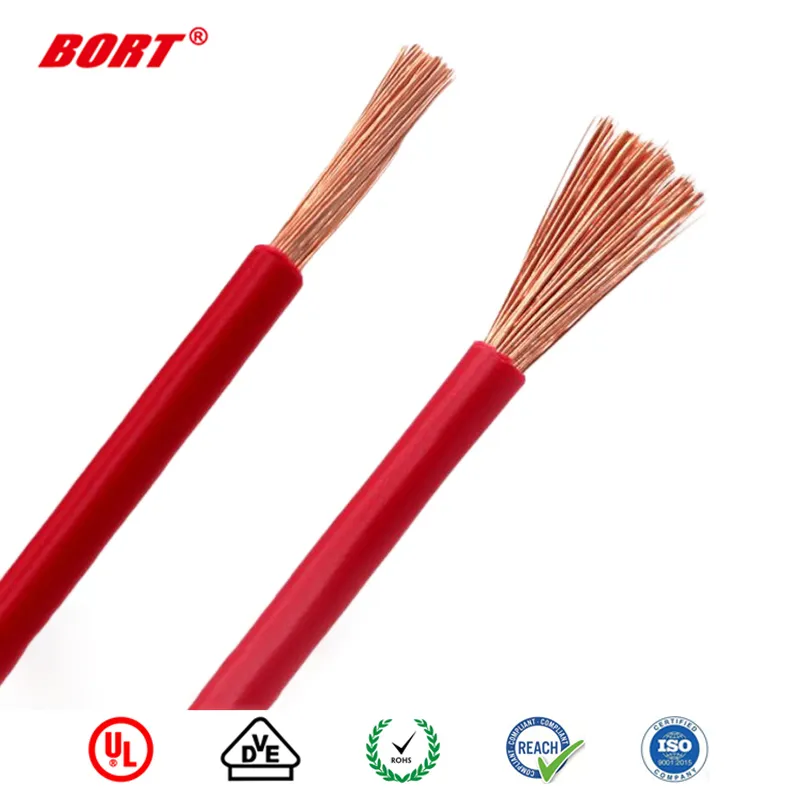

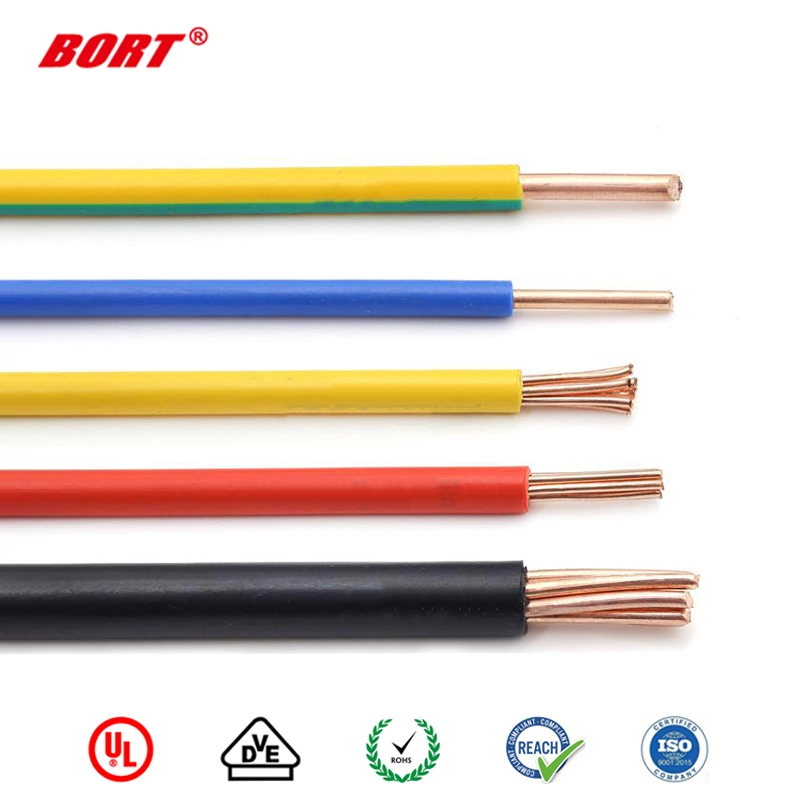

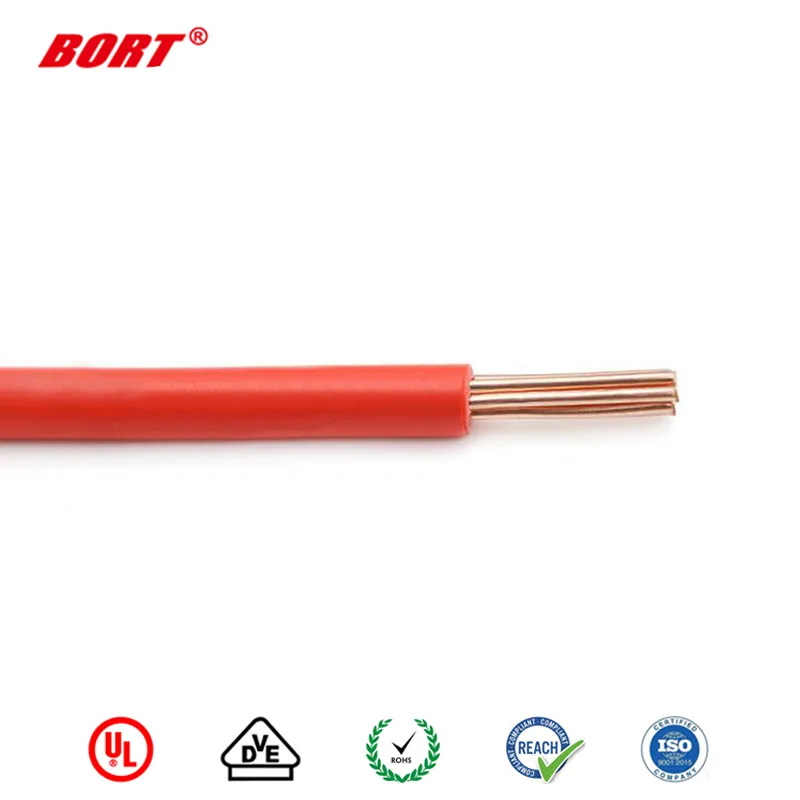

UL 1571 Hook up Wire Copper Conductor Electric Cable
★ Rated temperature:105ºC
★ Rated voltage:600V
★ According to:UL Subject758,UL1581& CSA C22.2 No.210.2
★ Tinned or bare,stranded or solid copper conductor,30-16 AWG
★ Colour-coded lead free PVC insulation
★ Passes UL VW-1&CSA FT1 vertical flame test
★ Uniform insulation thickness of wire to ensure easy stripping and cutting
★ For internal wiring of electronic and electrical equipment
FAQ
Q1: Can I get a free sample?
A1: We can provide the existing items samples free in freight collected. If there is any special samples requirement, please contact us for more details.
Q2: How could I pay?
A2: We prefer T/T or L/C at sight. If you prefer other payment terms, please contact us freely.
Q3: What is your packing way? Can I have the customized package?
A3: We have the standard export package. For more details about the customized package, please contact us.
Q4: What is the delivery lead time?
A4: It depends on the order quantities. The mass production lead time is about 7-12 days after receipt of the deposit.
Q5: Are you a factory or a trading company?
A5: We are a factory. We provide all kinds of OEM/ODM services for clients around the world.
Q6: Where is your main market?
A6: We export to the North America, Southeast Asia, Europe, Korea, Japan, and other countries.
Our Services
1. Professional QC and QA team to make sure all products qualified before shipping.
2. Competitive price
3 .Standard package to ensure the safe transportation.
4. Professional service
Why choose us?
1. Production
Qualified production, competitive price, professional service.
2. Technology
Professional R& D team
3. Equipment
With completive testing equipment.
4. Quality
UL/ CE/ FCC/ RoHS/ Reach certificate
★ Rated temperature:105ºC
★ Rated voltage:600V
★ According to:UL Subject758,UL1581& CSA C22.2 No.210.2
★ Tinned or bare,stranded or solid copper conductor,30-16 AWG
★ Colour-coded lead free PVC insulation
★ Passes UL VW-1&CSA FT1 vertical flame test
★ Uniform insulation thickness of wire to ensure easy stripping and cutting
★ For internal wiring of electronic and electrical equipment
| Conductor | Finished product | Maximum Resistance at 20ºC | |||
| AWG | No.of Cond | Insulation Nom.Thick. | Insulation Nom. Thick. | Jacket Nom. Dia. | |
| mm | mm | mm | mm | Ω/mm | |
| 36 | 7/0.05 | 0.45 | _ | _ | 1490 |
| 34 | 7/0.065 | 0.50 | _ | _ | 908 |
| 32 | 7/0.08 | 0.70 | _ | _ | 597 |
| 30 | 7/0.1 | 0.90 | 0.35 | 354.0 | |
| 30 | 7/0.1 | 0.70 | _ | _ | 354.0 |
| 28 | 7/0.127 | 0.90 | 0.35 | 1.80 | 223.0 |
| 28 | 7/0.127 | 0.90 | _ | _ | 223.0 |
| 26 | 7/0.16 | 1.00 | _ | _ | 139.0 |
| 24 | 7/0.2 | 1.10 | _ | _ | 88.9 |
| 22 | 7/0.16 | 1.40 | 0.58 | 2.8 | 57.5 |
| 22 | 17/0.16 | 1.25 | _ | _ | 57.5 |
| 20 | 26/0.16 | 1.80 | 0.56 | 3.1 | 34.6 |
| 18 | 65/0.127 | 1.78 | 0.59 | 3.2 | 23.3 |
| 16 | 54/0.18 | 2.15 | 0.61 | 3.6 | 15.1 |
FAQ
Q1: Can I get a free sample?
A1: We can provide the existing items samples free in freight collected. If there is any special samples requirement, please contact us for more details.
Q2: How could I pay?
A2: We prefer T/T or L/C at sight. If you prefer other payment terms, please contact us freely.
Q3: What is your packing way? Can I have the customized package?
A3: We have the standard export package. For more details about the customized package, please contact us.
Q4: What is the delivery lead time?
A4: It depends on the order quantities. The mass production lead time is about 7-12 days after receipt of the deposit.
Q5: Are you a factory or a trading company?
A5: We are a factory. We provide all kinds of OEM/ODM services for clients around the world.
Q6: Where is your main market?
A6: We export to the North America, Southeast Asia, Europe, Korea, Japan, and other countries.
Our Services
1. Professional QC and QA team to make sure all products qualified before shipping.
2. Competitive price
3 .Standard package to ensure the safe transportation.
4. Professional service
Why choose us?
1. Production
Qualified production, competitive price, professional service.
2. Technology
Professional R& D team
3. Equipment
With completive testing equipment.
4. Quality
UL/ CE/ FCC/ RoHS/ Reach certificate
