China UL 1591 AWG 16 FEP Teflon Insulated RoHS Wire

Product Description

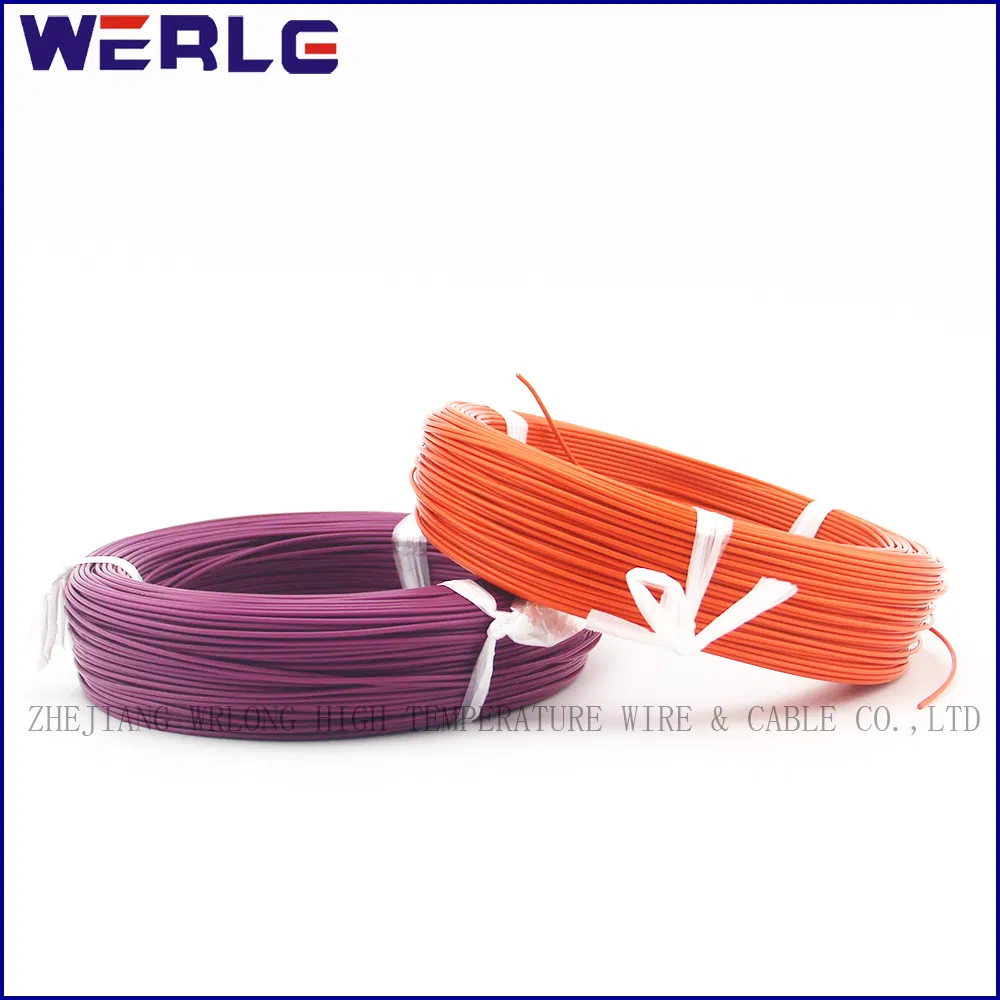

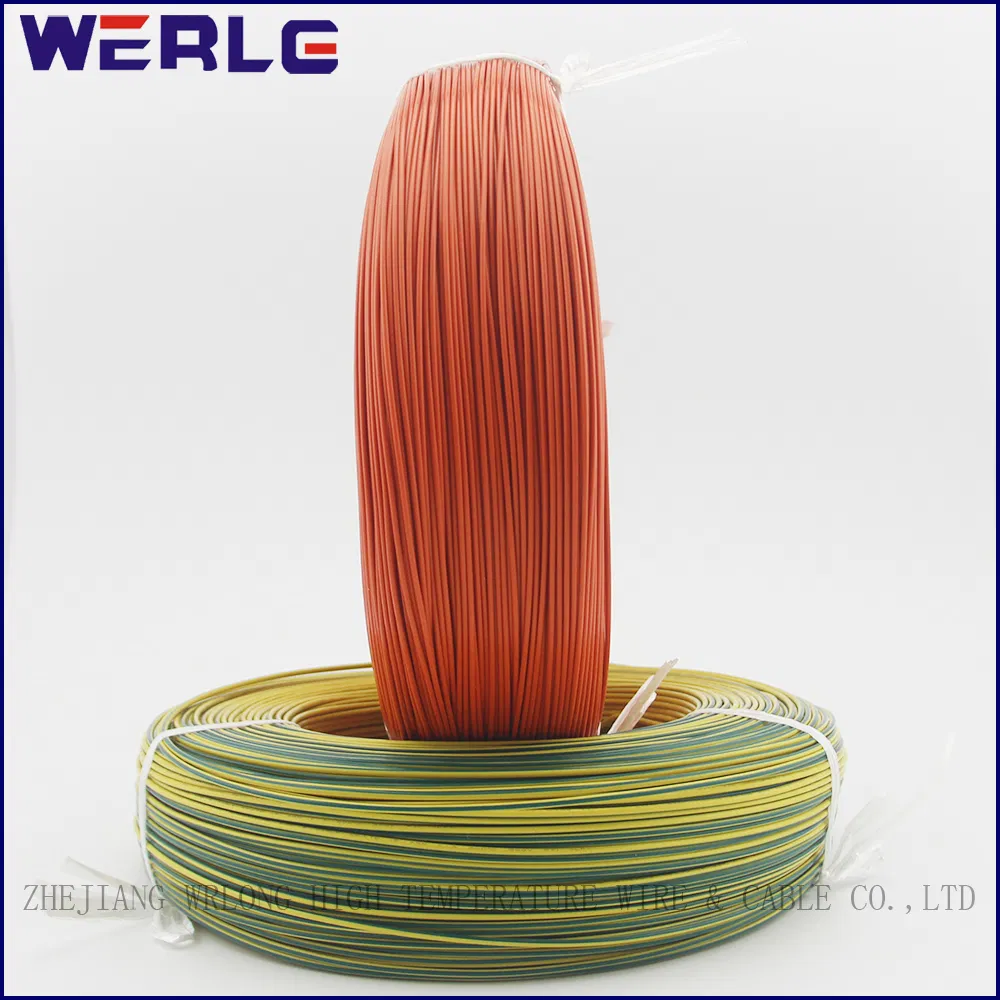

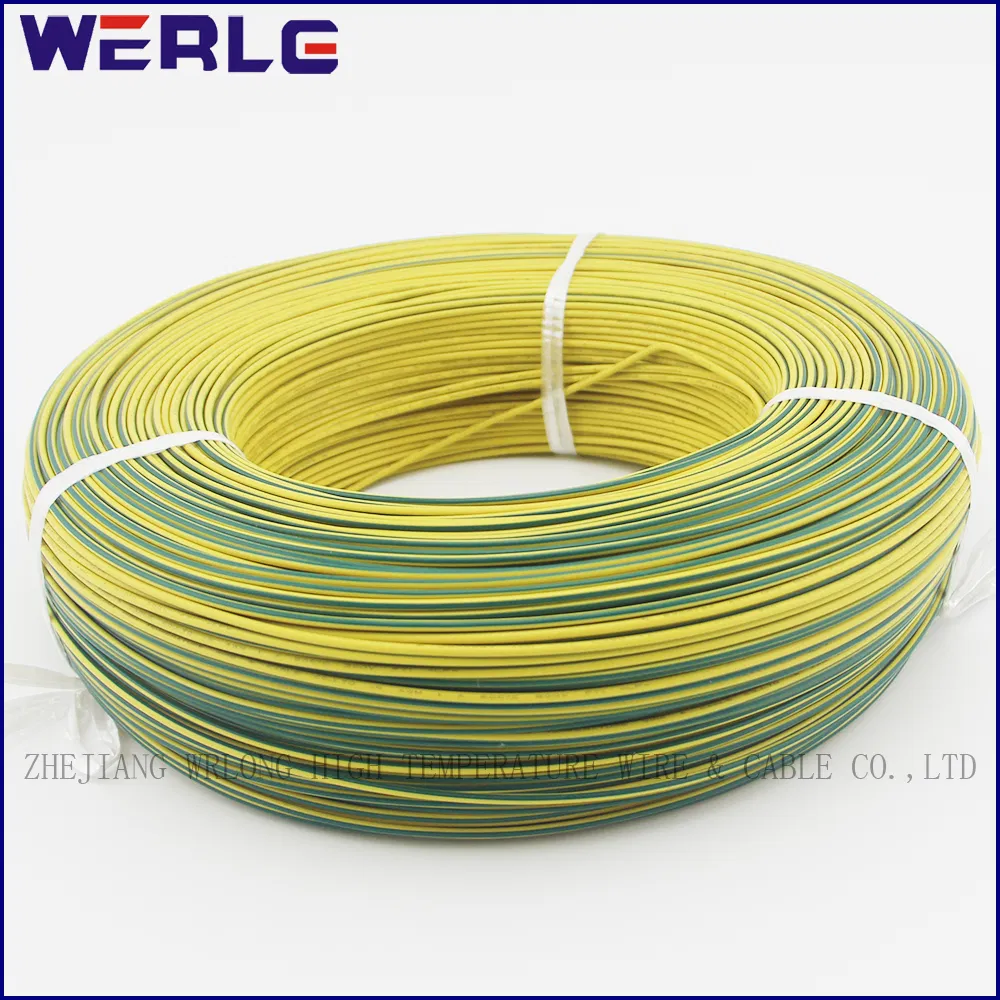

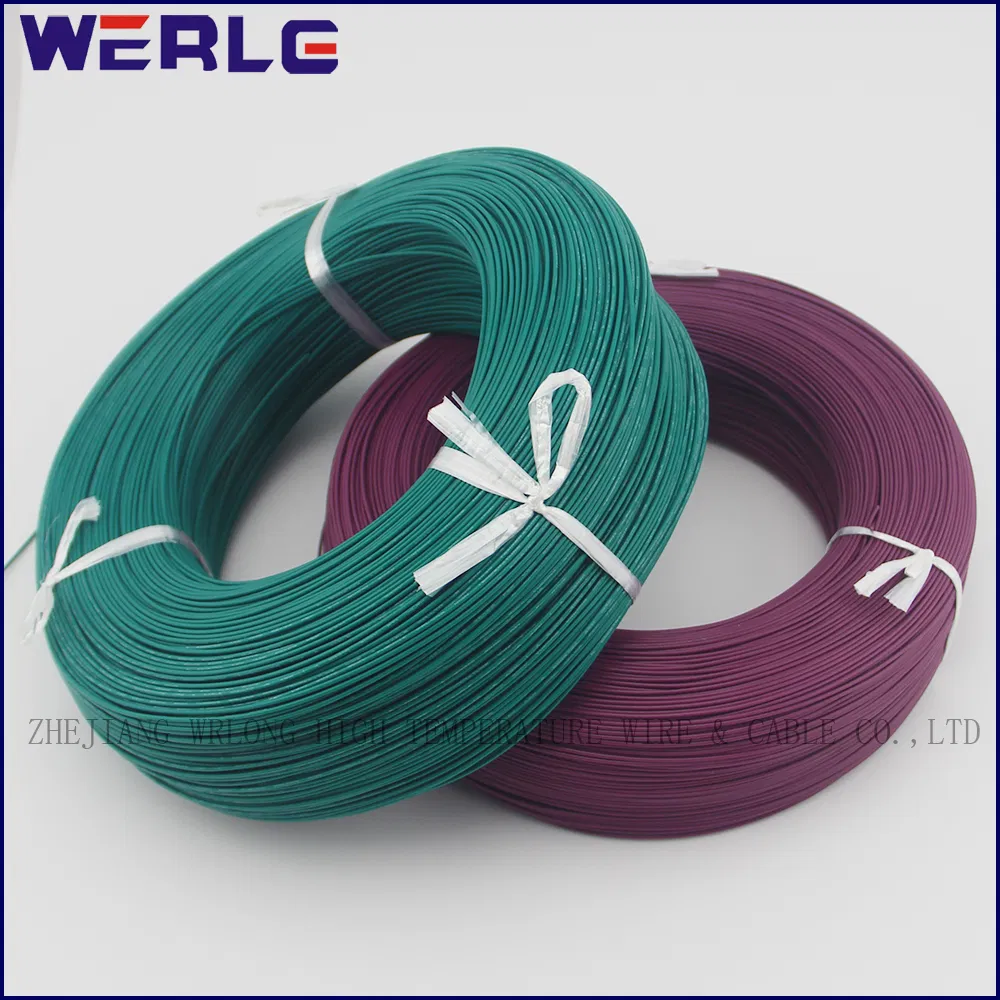

UL 1591 AWG 16 FEP Teflon Insulated RoHS Wire

TECHNICAL DATA
Nominal Voltage:300V
Temperature Range:-100ºC~+150ºC
Conductor:Tinned Copper, silver-plated Copper or Nickel-plated Copper
Insulator:FEP TEFLON
O.D.Tolerance:±0.03mm
Testing Volta:2000V
Colour: white, blue, red, black, brown, orange, purple, gray, yellow, green, transparent, yellow-green, etc
CHARACTERISTIC
High temperature resistance, low temperature resistance, anti-acid, anti-oil, antisepsis and moistureproof, UL 758, RoHs compliance.
APPLICATION
Apply to household appliance, illumination & lighting & headlamp, electric machines, temperature sensor, military series, metallurgy chemical series, motor cars & ships electrical installation.

UL1591	Conductor		Over Diamter ±0.03mm	Insulator			Technical Data		Packing (m/roll)
Size	Conductor Construction No./mm	Diameter mm	Over Diamter ±0.03mm	Material	Average Thickness mm	Colour	Temperature Range(ºC)	Nominal voltage	Packing (m/roll)
30	7/0.1	0.3	1.12	FEP teflon	0.407	red,yellow, blue,green, black,white, purple,brown, orange, yellow-green, transparent	-100ºC~+150ºC	300V	610
30	1/0.254		1.07	FEP teflon	0.408				610
28	7/0.12	0.36	1.18	FEP teflon	0.407				610
28	1/0.32		1.14	FEP teflon	0.41				610
26	7/0.16	0.48	1.3	FEP teflon	0.406				610
26	1/0.4		1.22	FEP teflon	0.41				610
24	7/0.2	0.6	1.42	FEP teflon	0.404				610
24	19/0.12	0.6	1.42	FEP teflon	0.408				610
22	7/0.25	0.75	1.57	FEP teflon	0.403				610
22	19/0.15	0.75	1.57	FEP teflon	0.407				610
20	7/0.31	0.93	1.75	FEP teflon	0.401				610
20	19/0.19	0.95	1.77	FEP teflon	0.407				610
18	7/0.39	1.17	1.99	FEP teflon	0.399				610
18	19/0.235	1.18	2	FEP teflon	0.408				610
16	7/0.5	1.5	2.32	FEP teflon	0.396				305
16	19/0.3	1.5	2.32	FEP teflon	0.405				305
14	19/0.37	1.85	2.67	FEP teflon	0.404				305
12	19/0.48	2.4	3.22	FEP teflon	0.402				305
10	37/0.43	3.01	3.83	FEP teflon	0.404				305
