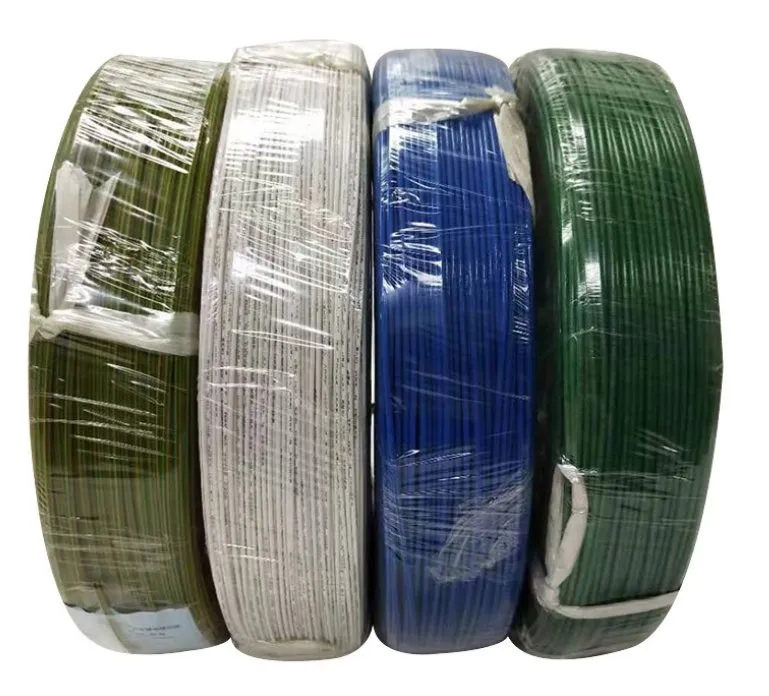

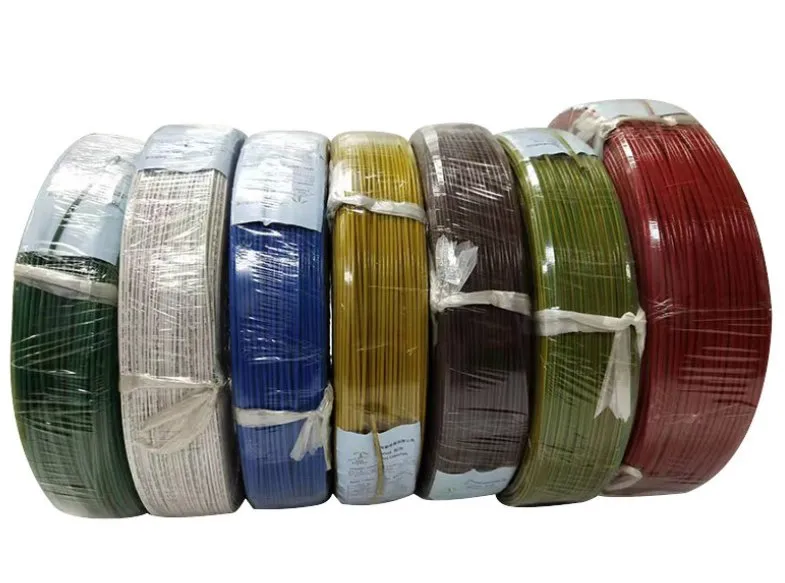

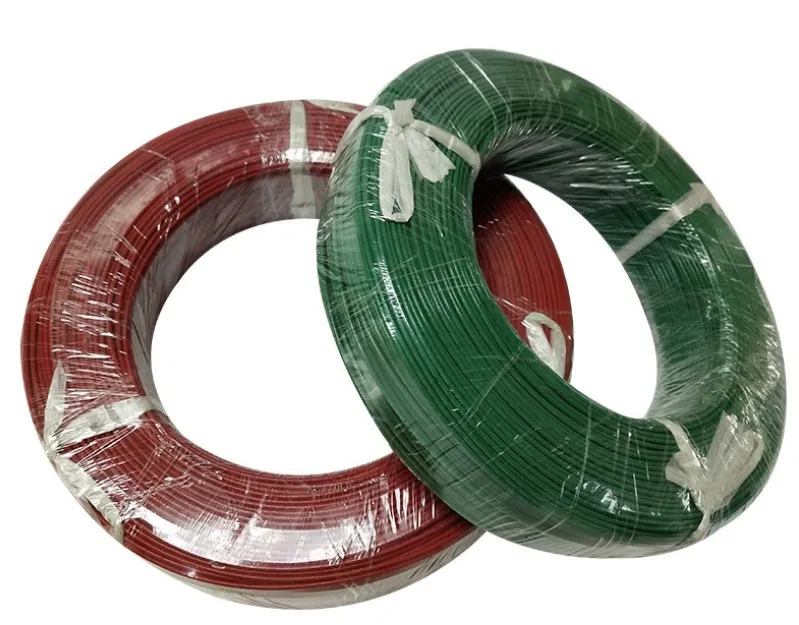

UL 1887 Standard RoHS Compliance 150c 600V Fluoroplastic FEP Wire Cables

Product Description

UL 10126 Standard RoHS Compliance 150C 200C 600V fluoroplastic ETFE wire cable

Charcteristic:
High temperature resistance,low temperature resistance anti-acid,anti-oil,antisepsis and moisture,UL758&UL1581,ROHS compliance,passed VW-1.

Application:
Apply to various household appliances,Lighting illumination & lighting,electrical equipments,temperature sensors

Conductor			Insulation		Electrical Characteristic		packing
AWG	Conductor construction NO×Φmm	Diameter mm	Insulation Thickness mm	Over Diameter mm	Realst.max Cuc.c 20ºC ohm/km	Permissiblle ampacity 20ºC-AMR	mt/coils
30	1×0.254	0.25	0.15	0.55	376.96	1.27	610
28	1×0.32	0.32	0.18	0.67	237.25	2.02	610
26	7×0.16	0.48	0.23	0.92	148.94	3.22	305
26	19×0.10	0.50	0.23	0.96	148.94	3.22	305
24	7×0.203	0.61	0.23	1.07	93.25	5.15	305
24	19×0.12	0.60	0.23	1.06	93.25	5.15	305
22	7×0.254	0.76	0.23	1.22	55.00	8.73	305
22	19×0.16	0.80	0.23	1.26	55.00	8.73	305
20	7×0.32	0.94	0.23	1.40	34.60	13.87	305
20	19×0.19	0.96	0.23	1.42	34.60	13.87	305
18	7×0.39	1.17	0.23	1.63	21.80	22.02	305
18	19×0.235	1.18	0.23	1.64	21.80	22.02	305
16	7×0.50	1.50	0.23	1.96	13.50	35.04	305
16	19×0.30	1.51	0.23	1.97	13.50	35.04	305
14	19×0.37	1.86	0.30	2.46	8.62	55.68	305
12	19×0.47	2.35	0.30	2.95	5.43	88.40	305
10	37×0.43	3.1	0.30	3.70	3.41	140.76	305

Our products can meet UL, VDE, CCC, PSE ,CE certificate requirement and the products are accord with ROHS and REACH Halogen free standard.
Our factory could meet ISO9001:2008 management systems standard. There are 10 production lines in high quality, precise, automation which supporting daily capacity 300,000km cables at least.
