Product Description

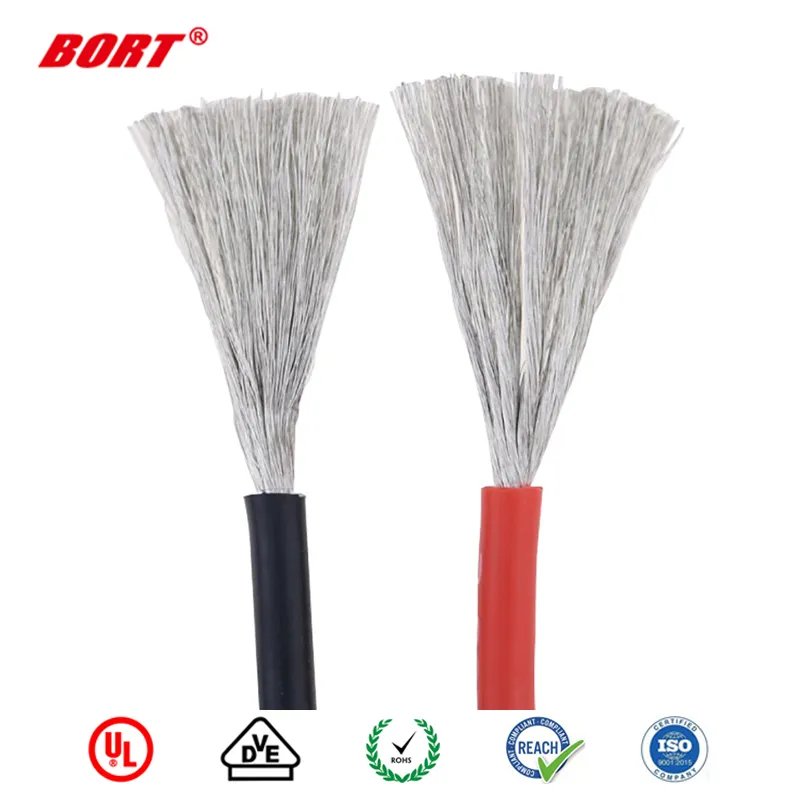

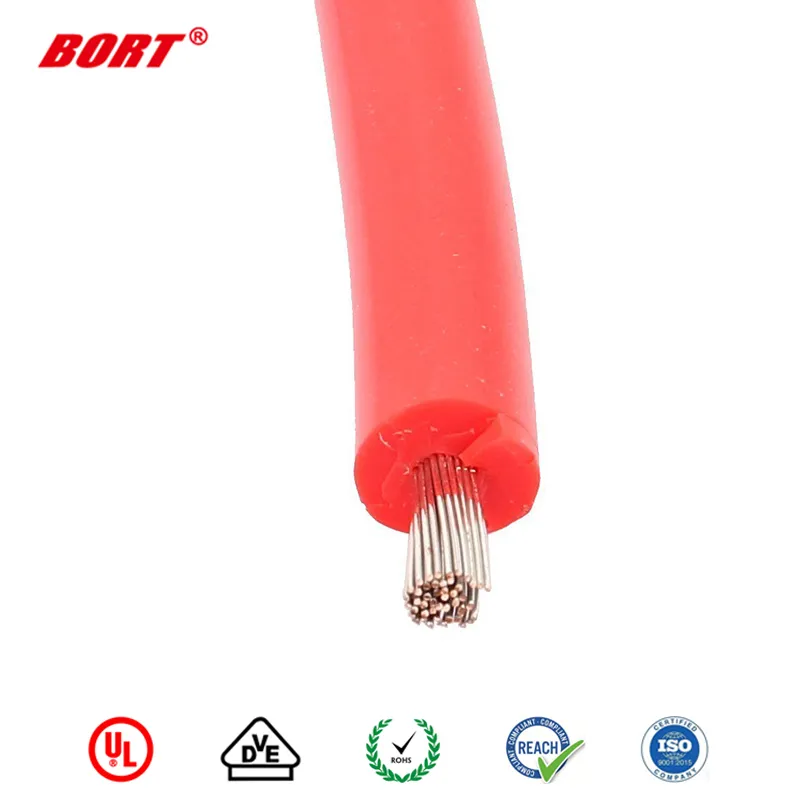

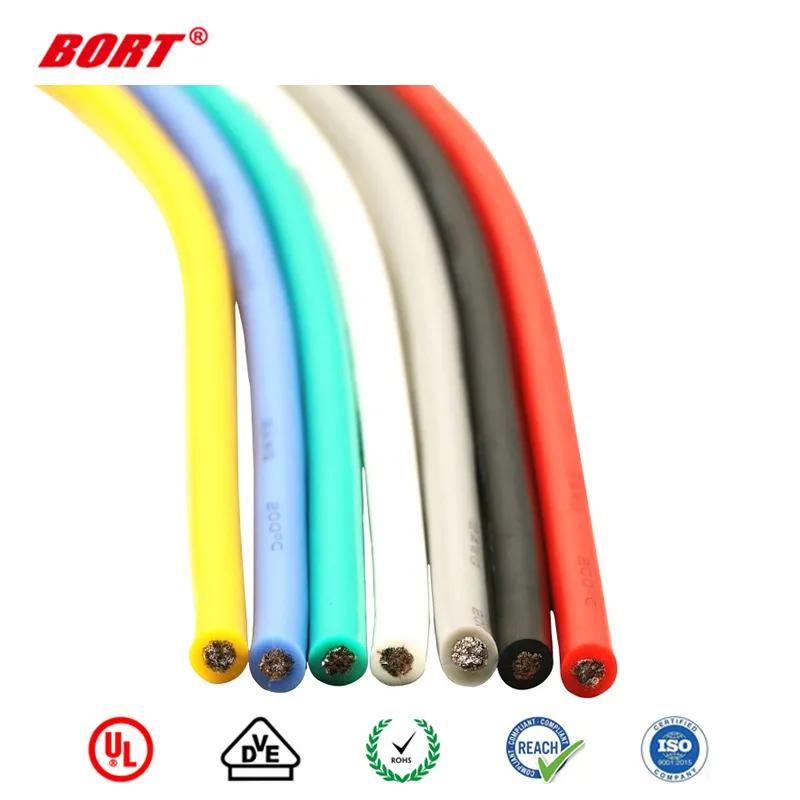

UL1095 PVC Insulated Electrical Wire Cable Wire Harness
PRODUCT DESCRIPTION★Rated temperature:80 ºC
★Rated voltage:300V
★According to:UL subject 758,UL 1581
★Solid or Stranded,tinned or bare copper conductor 30-16AWG
★PVC insulation
★Passes UL VW-1 & CSA FT1 Vertical flame test
★Uniform insulation thickness of wire to ensure easy stripping
and cutting
★Environmental testing pass RoHS
★Internal wiring of appliances or electronic equipment
| UL TYPE | Gauge | Construction | Conductor | Insulation | Wire O.D | Max Cond | Standard Package | ||
| (AWG) | (no/mm) | Outer | Thickness | (mm) | Resistance | ||||
| Diameter (mm) | (mm) | (Ω/kft,20ºC) | FT/ROLL | ROLL | |||||
| UL1095 | 26 | 7/0.16 | 0.48 | 0.3 | 1.1 | 45.8 | 2000 | 610 | |
| 24 | 11/0.16 | 0.61 | 1.25 | 28.7 | |||||
| 22 | 17/0.16 | 0.76 | 1.4 | 18.1 | |||||
| 20 | 21/0.178 | 0.94 | 1.6 | 11.2 | |||||
| 18 | 16/0.254 | 1.17 | 1.8 | 7.06 | 1000 | 305 | |||
| 16 | 26/0.254 | 1.49 | 2.1 | 4.45 | |||||
Q1: Can I get a free sample?
A1: We can provide the existing items samples free in freight collected. If there is any special samples requirement, please contact us for more details.
Q2: How could I pay?
A2: We prefer T/T or L/C at sight. If you prefer other payment terms, please contact us freely.
Q3: What is your packing way? Can I have the customized package?
A3: We have the standard export package. For more details about the customized package, please contact us.
Q4: What is the delivery lead time?
A4: It depends on the order quantities. The mass production lead time is about 7-12 days after receipt of the deposit.
Q5: Are you a factory or a trading company?
A5: We are a factory. We provide all kinds of OEM/ODM services for clients around the world.
Q6: Where is your main market?
A6: We export to the North America, Southeast Asia, Europe, Korea, Japan, and other countries.
Our Services
1. Professional QC and QA team to make sure all products qualified before shipping.
2. Competitive price
3 .Standard package to ensure the safe transportation.
4. Professional service
Why choose us
1. Production
Qualified production, competitive price, professional service.
2. Technology
Professional R& D team
3. Equipment
With completive testing equipment.
4. Quality
UL/ CE/ FCC/ RoHS/ Reach certificate
