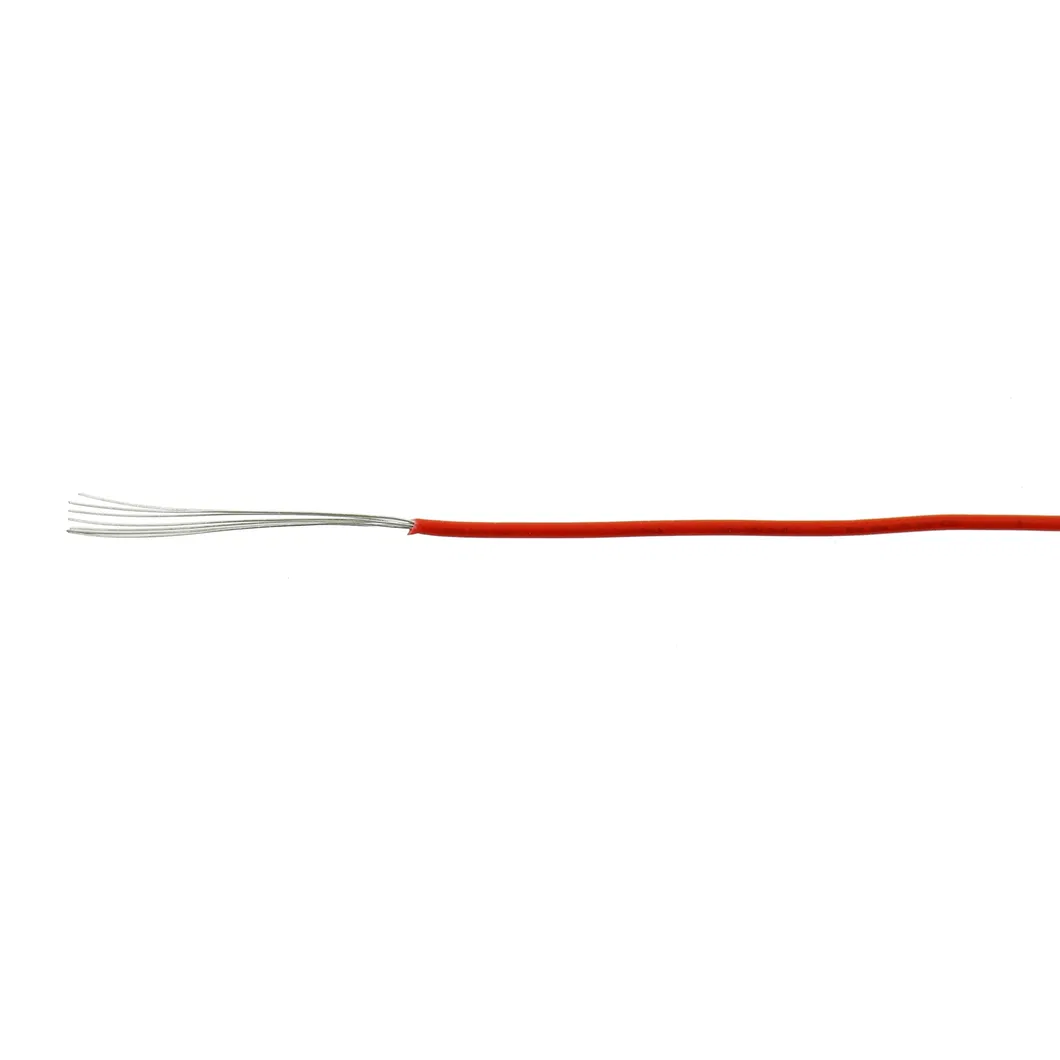

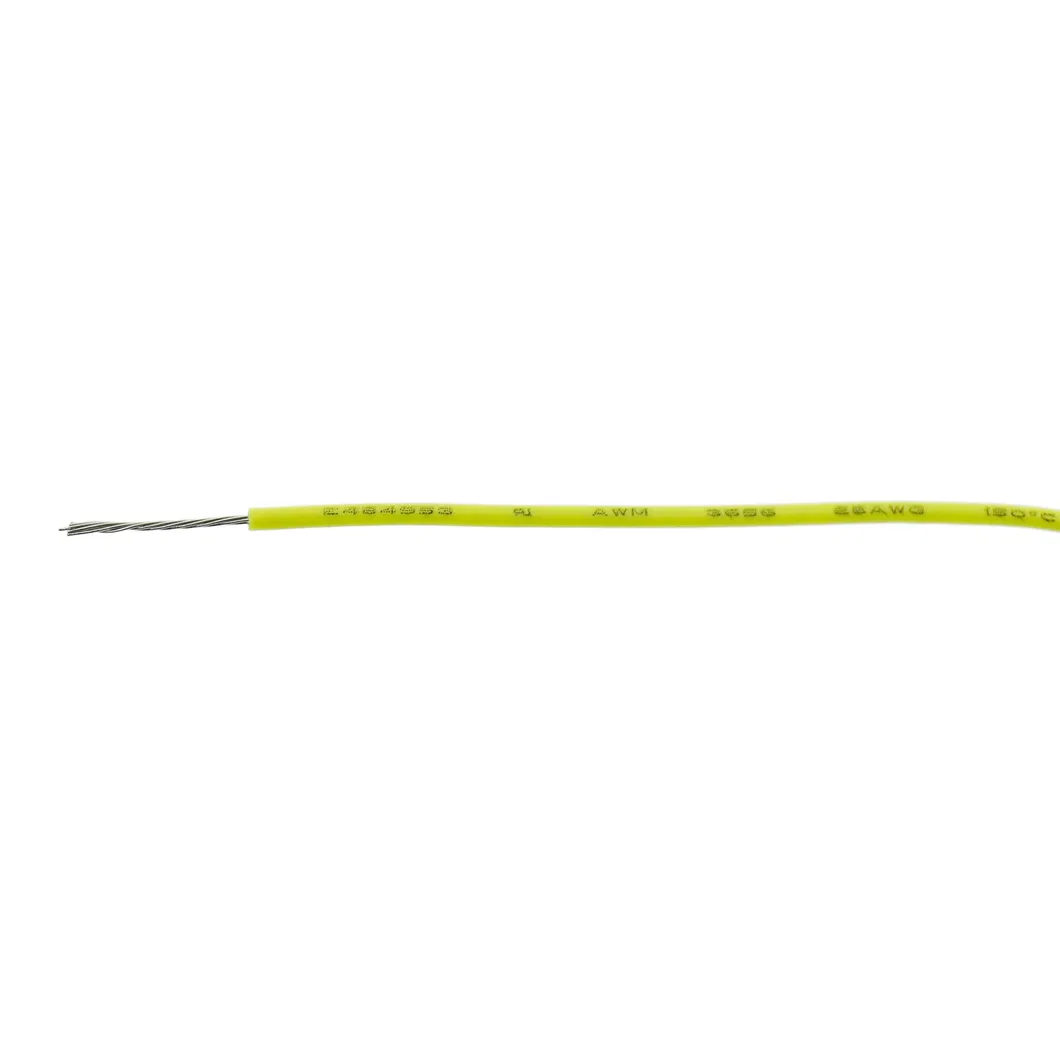

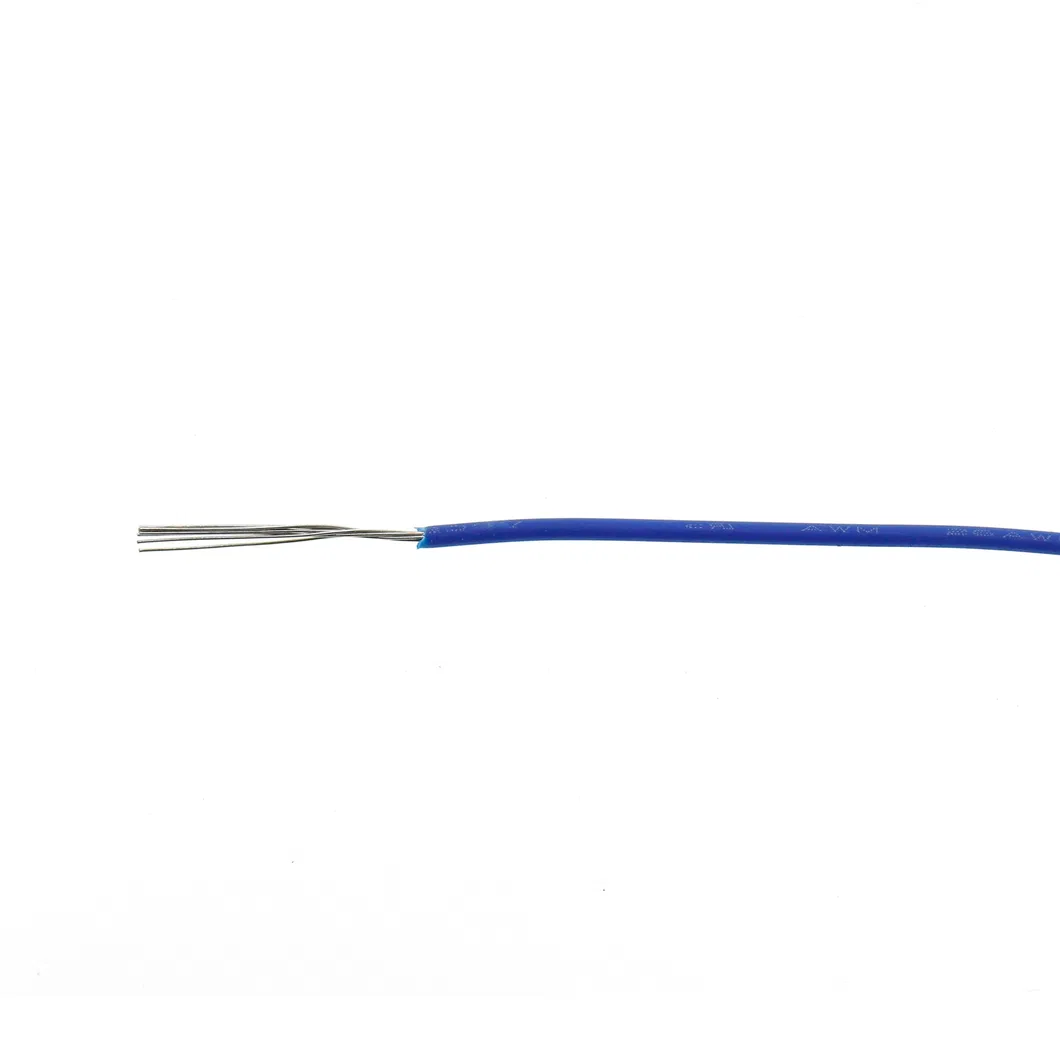

China UL1571 80o C 30V Sold or Stranded Tinned or Bare Copper Hookup Wire

Product Description

View more about products :

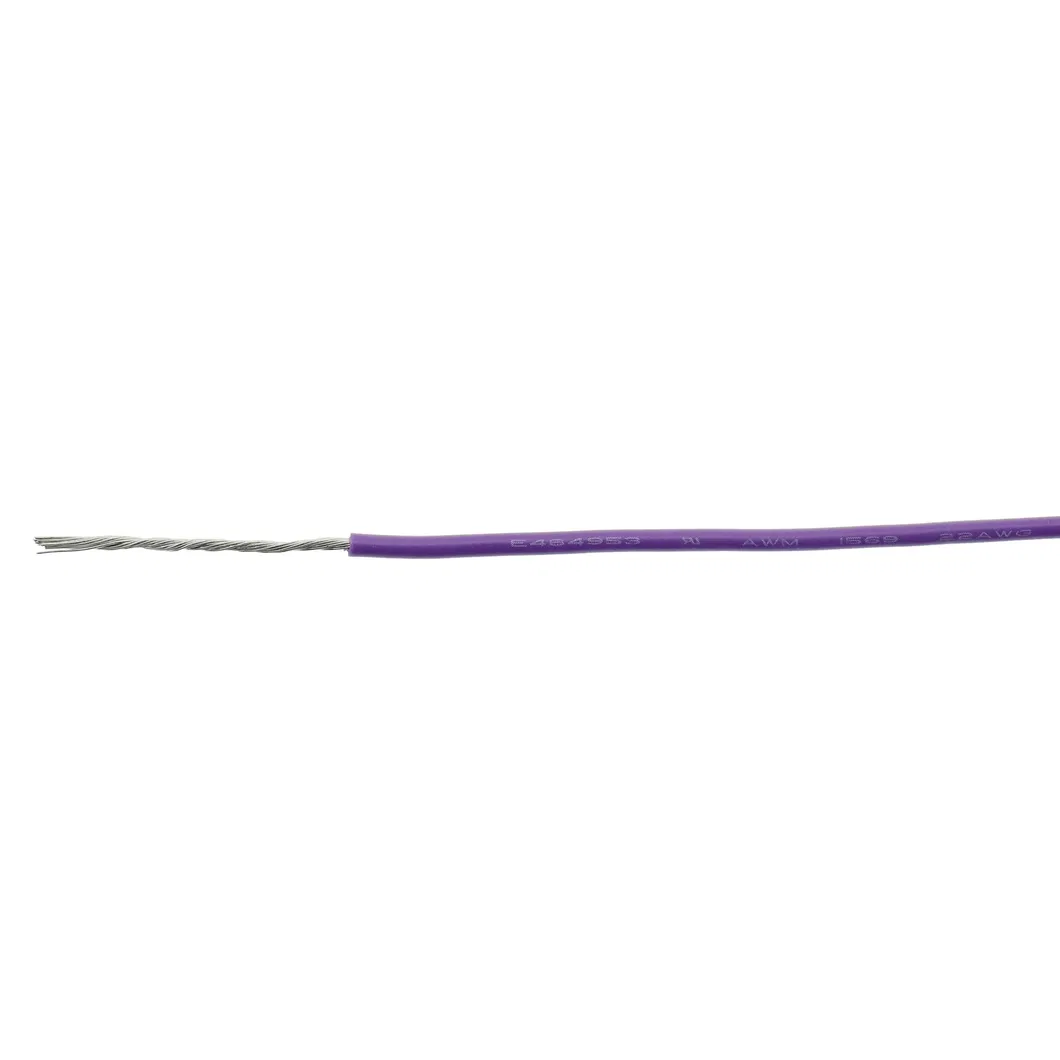

UL1571 80ºC 30V Purple Tinned or Bare Copper Hookup Wire
UL1571 Hook Up Wire SR-PVC Insulated Wire
Rated Voltage: 30V
Rated Temperature: 80ºC
Insulation Material: SR-PVC
Conductor: Tinned or Bare, Stranded or Solid Copper
Reference Standard: UL758, UL1581, C22.2 No.210
Passes UL VW-1 & CSA FT1 vertical flame test.
Uniform insulation thickness of wire to ensure easy stripping and cutting.
For internal wiring of electronic and electrical equipment and appliance, wiring circuits, control circuits, etc.

UL1571 80º C 30V Sold or Stranded Tinned or Bare Copper Hookup Wire

Conductor			Insulation		Max. Cond. Resistance at 20°C (Ω/km)
AWG	Construction (No./mm)	Diameter (mm)	Thickness (mm)	Diameter (mm)	Max. Cond. Resistance at 20°C (Ω/km)
32	7/0.08	0.24	0.18	0.60	597
30	7/0.10	0.30	0.19	0.70	381
28	7/0.127	0.38	0.21	0.80	239
26	7/0.16	0.48	0.25	1.00	150
24	11/0.16	0.61	0.25	1.10	94.2
22	17/0.16	0.76	0.27	1.30	59.4
20	26/0.16	0.94	0.28	1.50	36.7
18	41/0.16	1.18	0.31	1.80	23.2
The above datasheet is for reference only, please refer to the final specification.

SHENZHEN SINGDER INSULATION MATERIALS CO LTD (E484953)
Table of UL AWM Recognized Styles
Single-conductor, thermoplastic insulation.
1007	1061	1330	1333	1571	10269	10702
1013	1180	1331	1430	1589	10362
1015	1185	1332	1569	10070	10368
Multiple-conductor, thermoplastic insulation.
2464	2517	2648	2678	2835	20276	21370
2468	2547	2651	2725	20080	21016	21513
Single-conductor, thermoset insulation.
3173	3266	3289	3321	3386	3656
3196	3271	3302	3385	3619
Multiple-conductor, thermoset insulation.
4478

DONGGUAN XSD CABLE TECHNOLOGY CO LTD (E506386)
Table of UL AWM Recognized Styles
Single-conductor, thermoplastic insulation.
1007	1015	1061	1569	10070	10368
1013	1032	1185	1571	10269	11627
Multiple-conductor, thermoplastic insulation.
2464	2468	2517	2547	2651	2725	2835	20276
Single-conductor, thermoset insulation.
3173	3266	3289	3321	3386
3196	3271	3302	3385	3656

View more about us :

Dongguan XSD Cable Technology Co., Ltd (subsidiary of Shenzhen Singder Insulation Materials Co., Ltd) is a Chinese professional manufacturer with "ISO9001, IATF16949, UL, cUL, CCC" approved in Dongguan city next to Shenzhen and Guangzhou.

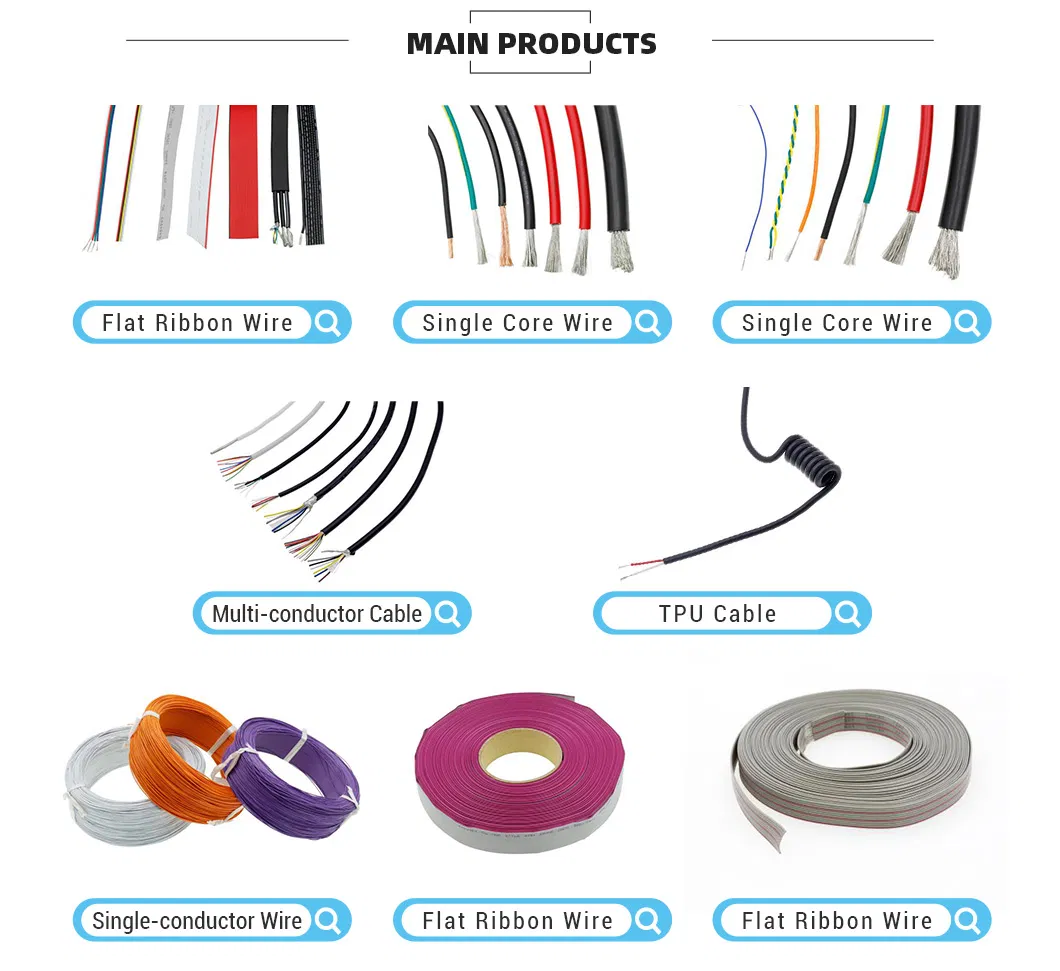

★Main Products: UL AWM Cable, Automotive Wire, Industrial Wire, Hook-up Wire, PV Wire, Robotic Cable, High Temperature Cable, LSZH Cable, Halogen-free Cable, Flat Ribbon Cable, Installation Cable, USB Cable, HDMI, DVI, VGA, Cable Assembly, Wire Harness, Cable Harness and so on.
