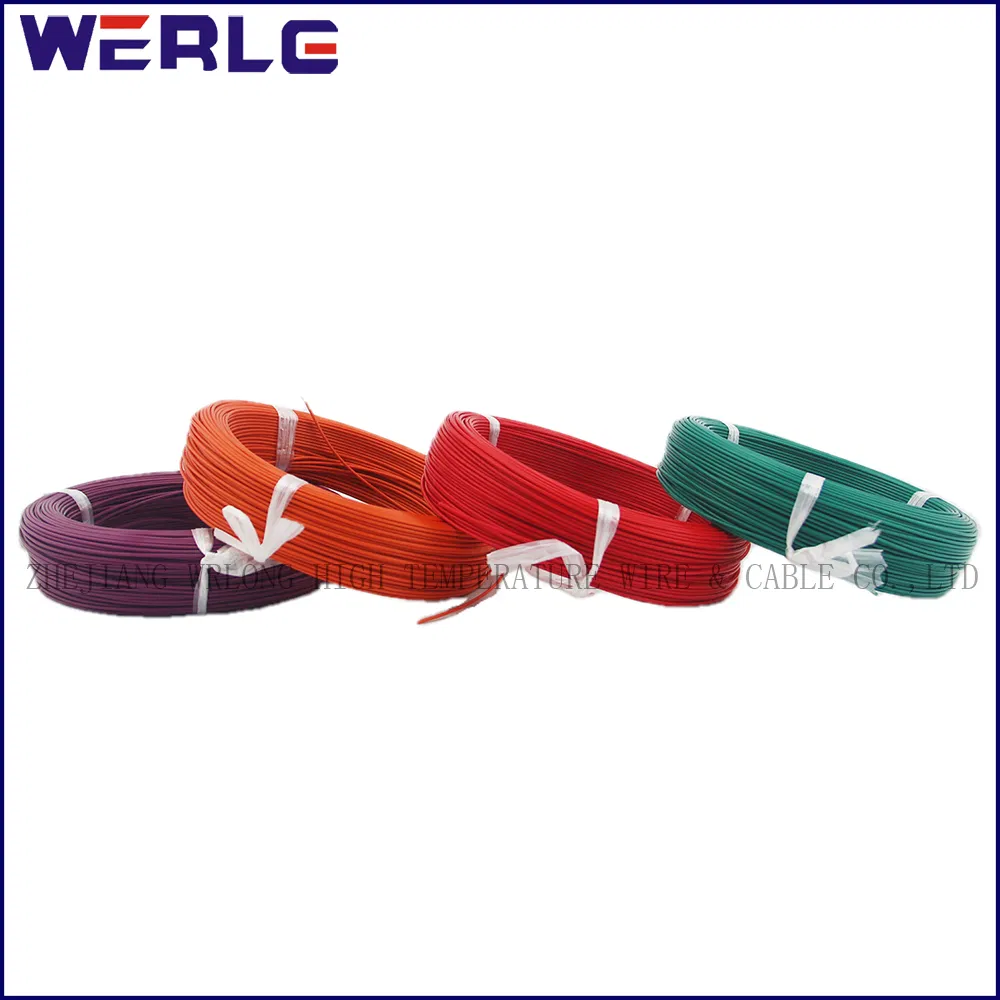

China UL1591 Approved AWG 10 FEP Teflon Insulated Tinned Copper Stranded Single Core Wire

Product Description

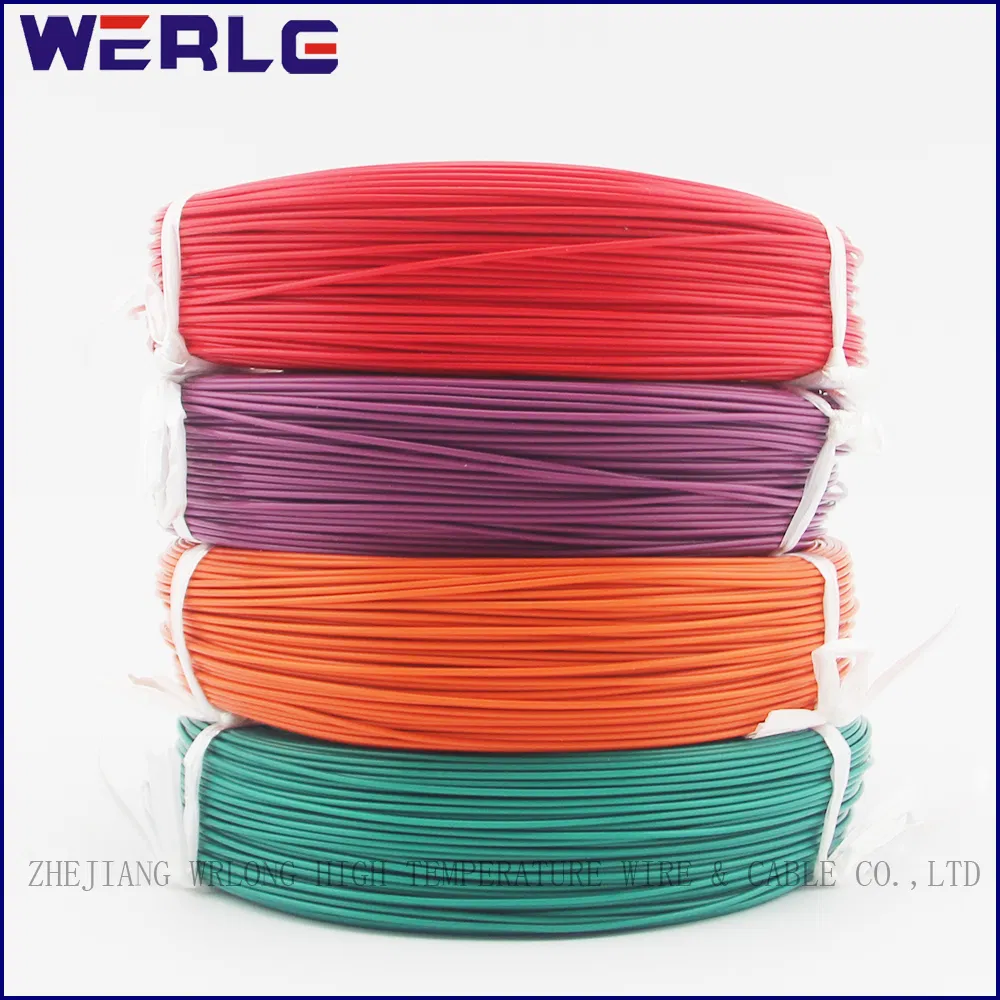

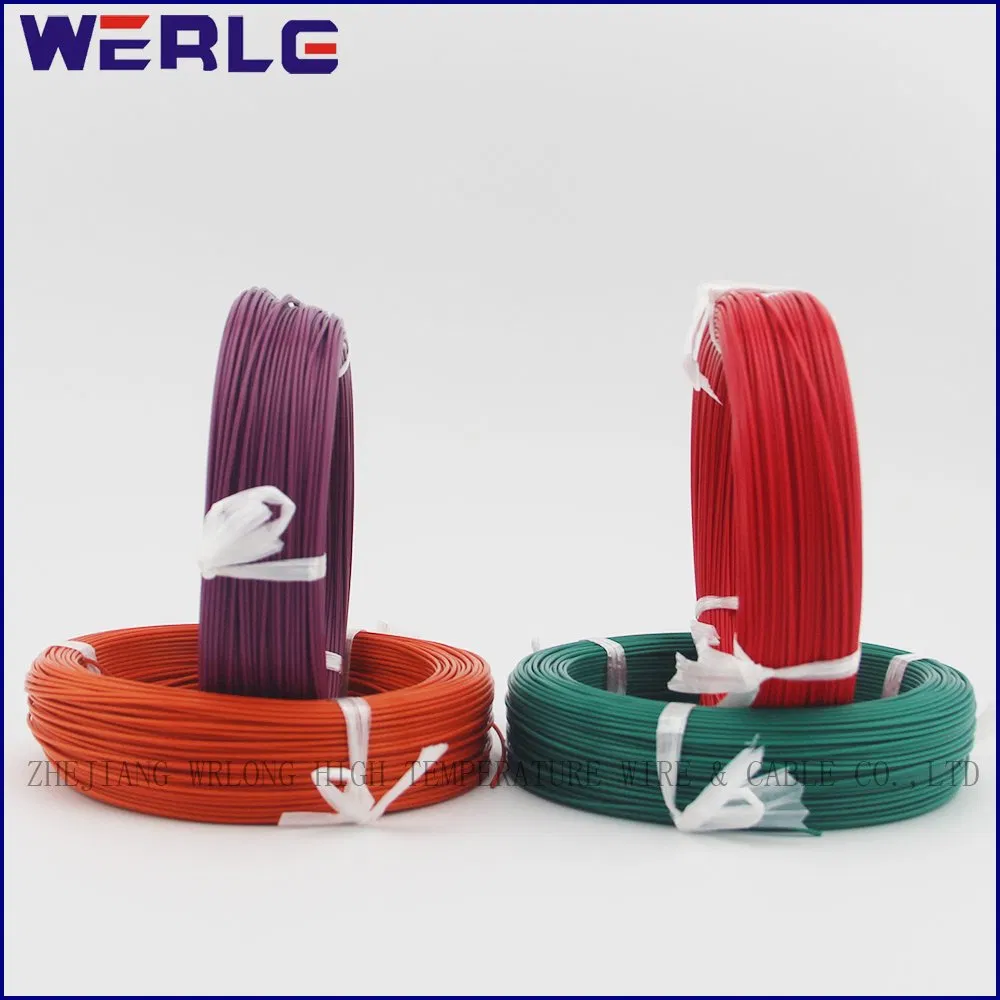

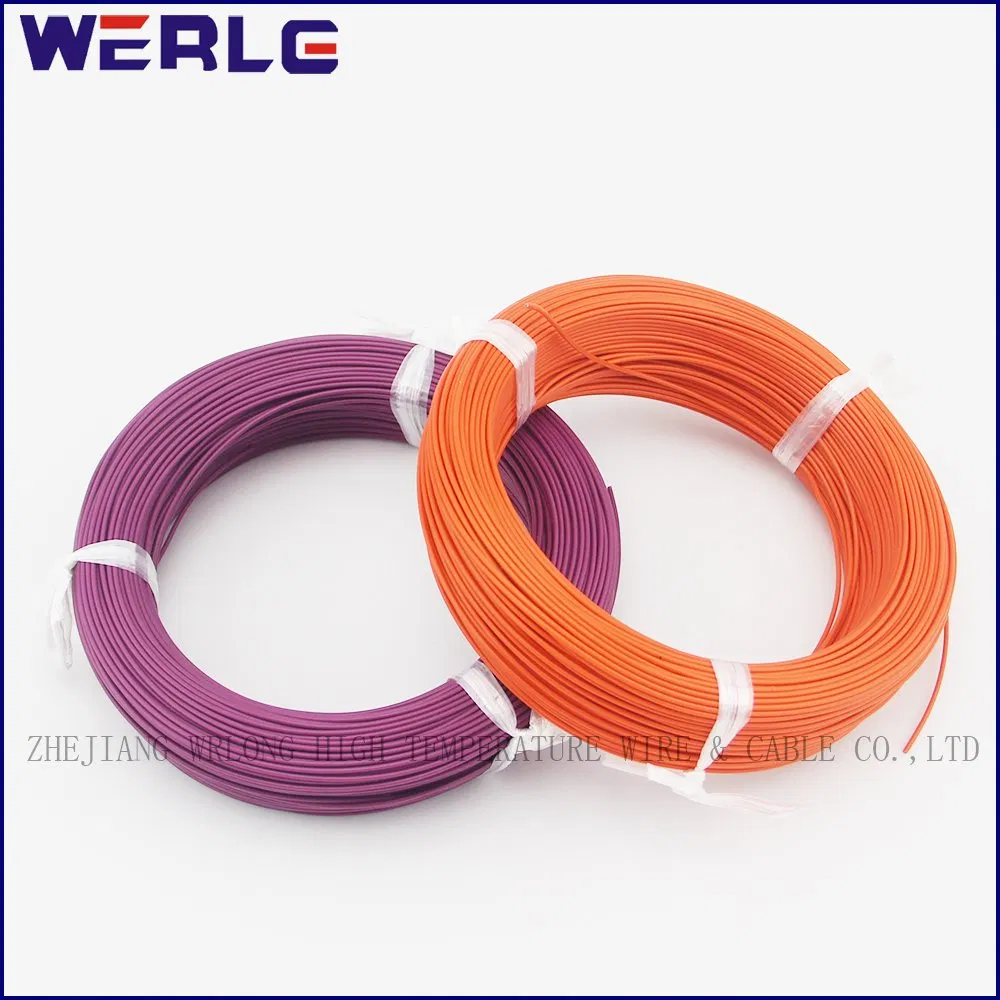

UL1591 approved AWG 10 FEP Teflon Insulated tinned copper stranded single core Wire

TECHNICAL DATA
Nominal Voltage:300V
Temperature Range:-100ºC~+150ºC
Conductor:Tinned Copper, silver-plated Copper or Nickel-plated Copper
Insulator:FEP TEFLON
O.D.Tolerance:±0.03mm
Testing Volta:2000V
Colour: white, blue, red, black, brown, orange, purple, gray, yellow, green, transparent, yellow-green, etc

CHARACTERISTIC
High temperature resistance, low temperature resistance, anti-acid, anti-oil, antisepsis and moistureproof, UL 758, RoHs compliance.

APPLICATION
Apply to household appliance, illumination & lighting & headlamp, electric machines, temperature sensor, military series, metallurgy chemical series, motor cars & ships electrical installation.

UL1591	Conductor		Over Diamter ±0.03mm	Insulator			Technical Data		Packing (m/roll)
Size	Conductor Construction No./mm	Diameter mm	Over Diamter ±0.03mm	Material	Average Thickness mm	Colour	Temperature Range(ºC)	Nominal voltage	Packing (m/roll)
30	7/0.1	0.3	1.12	FEP teflon	0.407	red,yellow, blue,green, black,white, purple,brown, orange, yellow-green, transparent	:-100ºC~+150ºC	300V	610
30	1/0.254		1.07	FEP teflon	0.408				610
28	7/0.12	0.36	1.18	FEP teflon	0.407				610
28	1/0.32		1.14	FEP teflon	0.41				610
26	7/0.16	0.48	1.3	FEP teflon	0.406				610
26	1/0.4		1.22	FEP teflon	0.41				610
24	7/0.2	0.6	1.42	FEP teflon	0.404				610
24	19/0.12	0.6	1.42	FEP teflon	0.408				610
22	7/0.25	0.75	1.57	FEP teflon	0.403				610
22	19/0.15	0.75	1.57	FEP teflon	0.407				610
20	7/0.31	0.93	1.75	FEP teflon	0.401				610
20	19/0.19	0.95	1.77	FEP teflon	0.407				610
18	7/0.39	1.17	1.99	FEP teflon	0.399				610
18	19/0.235	1.18	2	FEP teflon	0.408				610
16	7/0.5	1.5	2.32	FEP teflon	0.396				305
16	19/0.3	1.5	2.32	FEP teflon	0.405				305
14	19/0.37	1.85	2.67	FEP teflon	0.404				305
12	19/0.48	2.4	3.22	FEP teflon	0.402				305
10	37/0.43	3.01	3.83	FEP teflon	0.404				305
