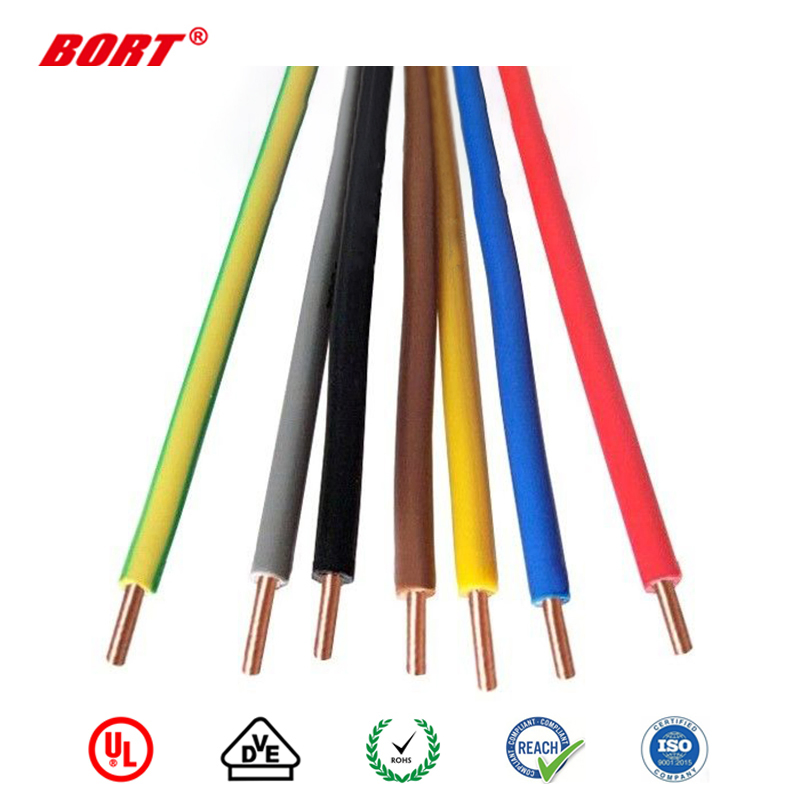

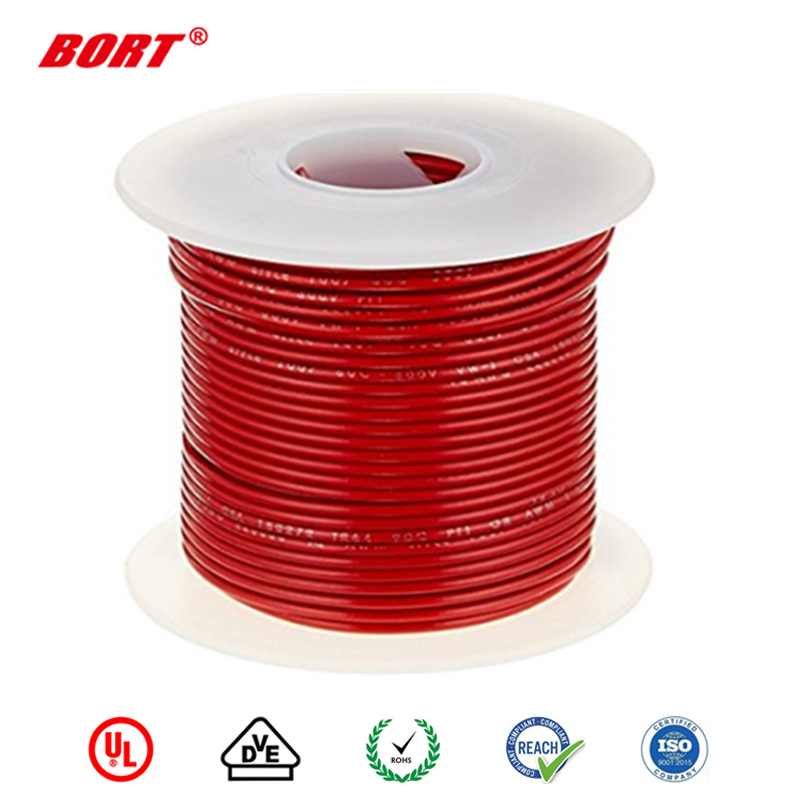

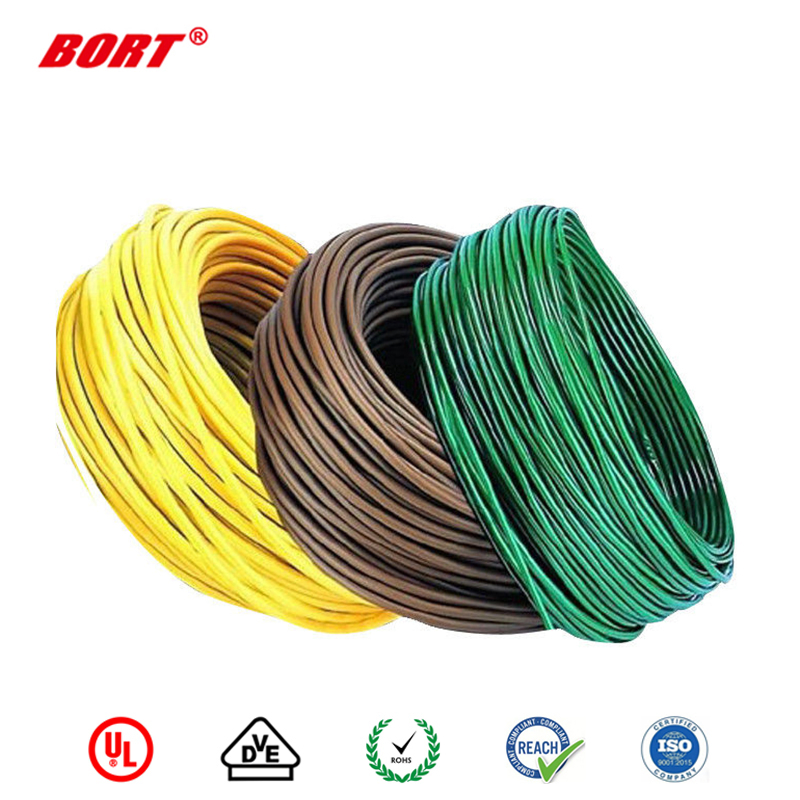

UL1672 Double Insulated Wire UL1672 22AWG Wire

Product Description

ul1672 double insulated wire ul1672 22awg wire

★ Rated temperature:105ºC
★ Rated voltage:300V
★ According to:UL Subject758,UL1581,C22.2

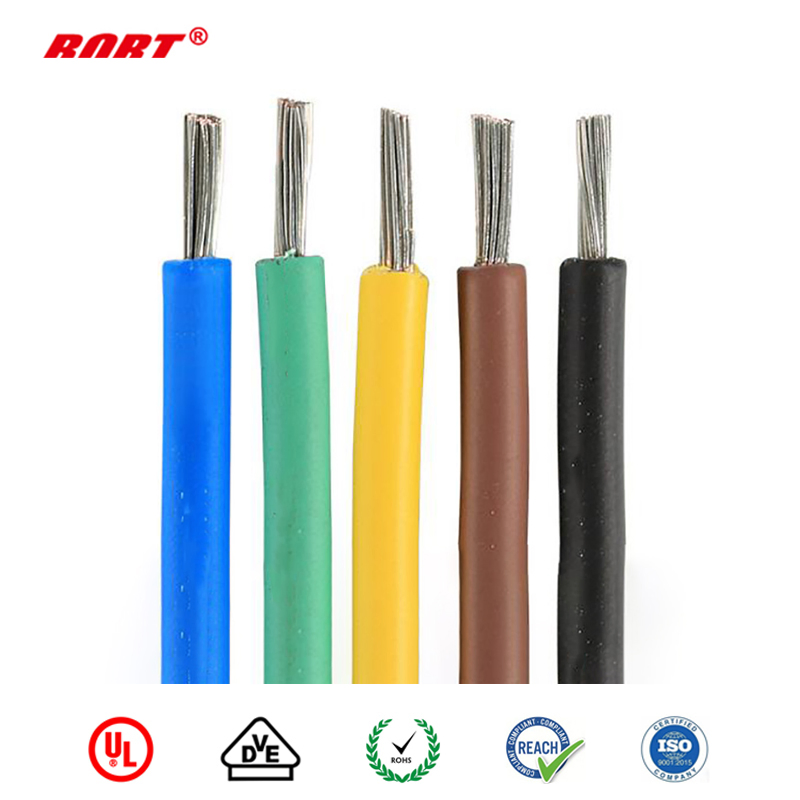

★ Solid or stranded,tinned or bare copper conductor
★ PVC insulation
★ PVC jacket
★ Passes UL VW-1&CSA FT1 vertical flame test
★ Uniform insulation thickness of wire to ensure easy stripping and cutting
★ For internal wiring of appliance

Conductor		Finished product			Maximum Resistance at 20ºC
AWG	NO.of Cond	Insulation Thick.	Outside Thick.	Packing	Maximum Resistance at 20ºC
AWG	mm	mm	mm	m/r	Ω/mm
28	7/0.127	0.45	0.45	2.20	223.75
26	7/0.16	0.45	0.45	2.30	139.76
24	11/0.16	0.45	0.45	2.40	88.36
22	17/0.16	0.45	0.45	2.60	60.16
20	21/0.178	0.45	0.45	2.80	38.58
18	34/0.178	0.45	0.45	3.00	22.98
16	26/0.254	0.45	0.45	3.30	15.06
14	41/0.254	0.45	0.45	3.70	9.65
12	65/0.254	0.45	0.45	4.20	6.07
28	1/0.320	0.45	0.45	2.12	227.39
26	1/0.404	0.45	0.45	2.20	142.79
24	1/0.511	0.45	0.45	2.31	89.39
22	1/0.643	0.45	0.45	2.44	54.30
20	1/0.813	0.45	0.45	2.61	33.90
18	1/1.024	0.45	0.45	2.82	21.40
