UL3122 Silicone Insulation Fiberglass Braided Heating Element Agrp Lead Electrical Heating Wire
UL3122 Silicone Insulation Fiberglass Braided Heating Element Agrp Lead Electrical Heating WireDescriptionRatings: 200°C-300/ 500Volts-60245Model No. UL3068, UL3069, UL3071, UL3074, UL3075, UL3122, UL3304 CONSTRUCTIONConductors: Stranded tinned copperInsulating: Silicone rubberOuter Sheath:......
Send Inquiry
Product Description
Description
Ratings: 200°C-300/ 500Volts-60245
Model No. UL3068, UL3069, UL3071, UL3074, UL3075, UL3122, UL3304

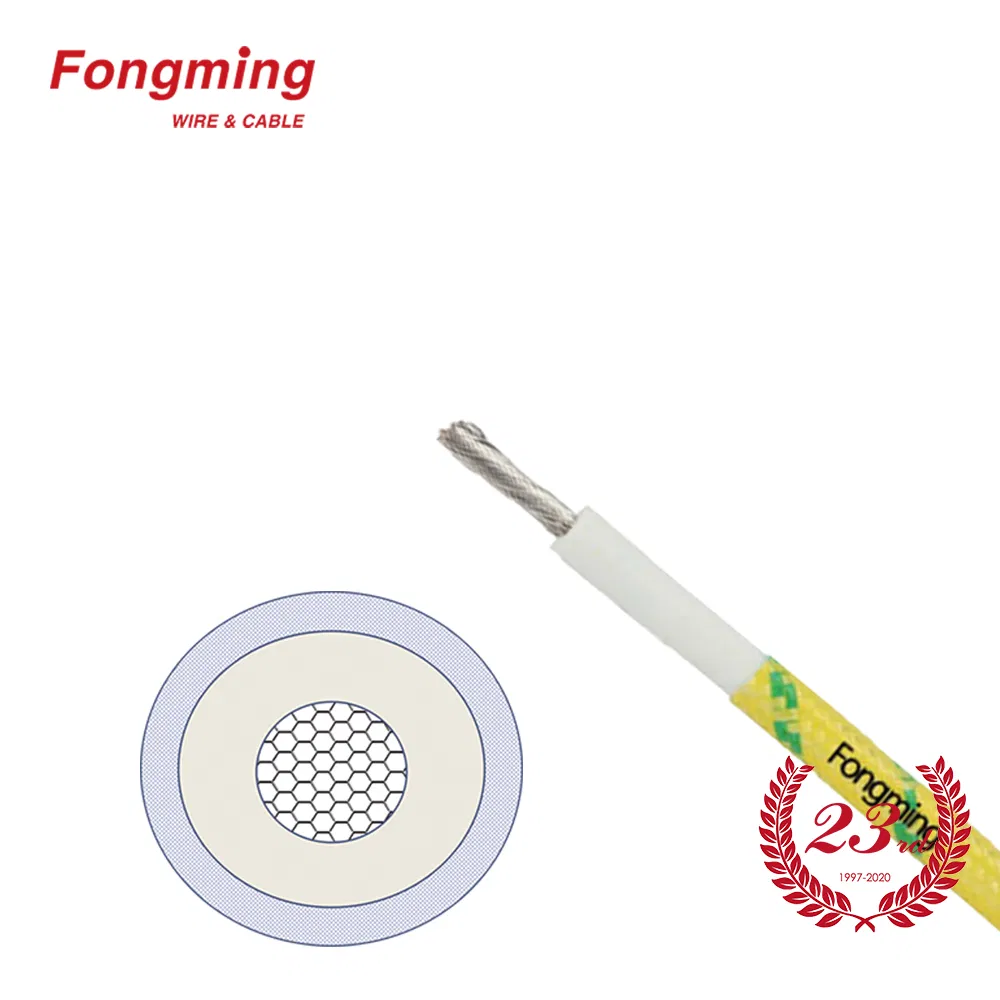

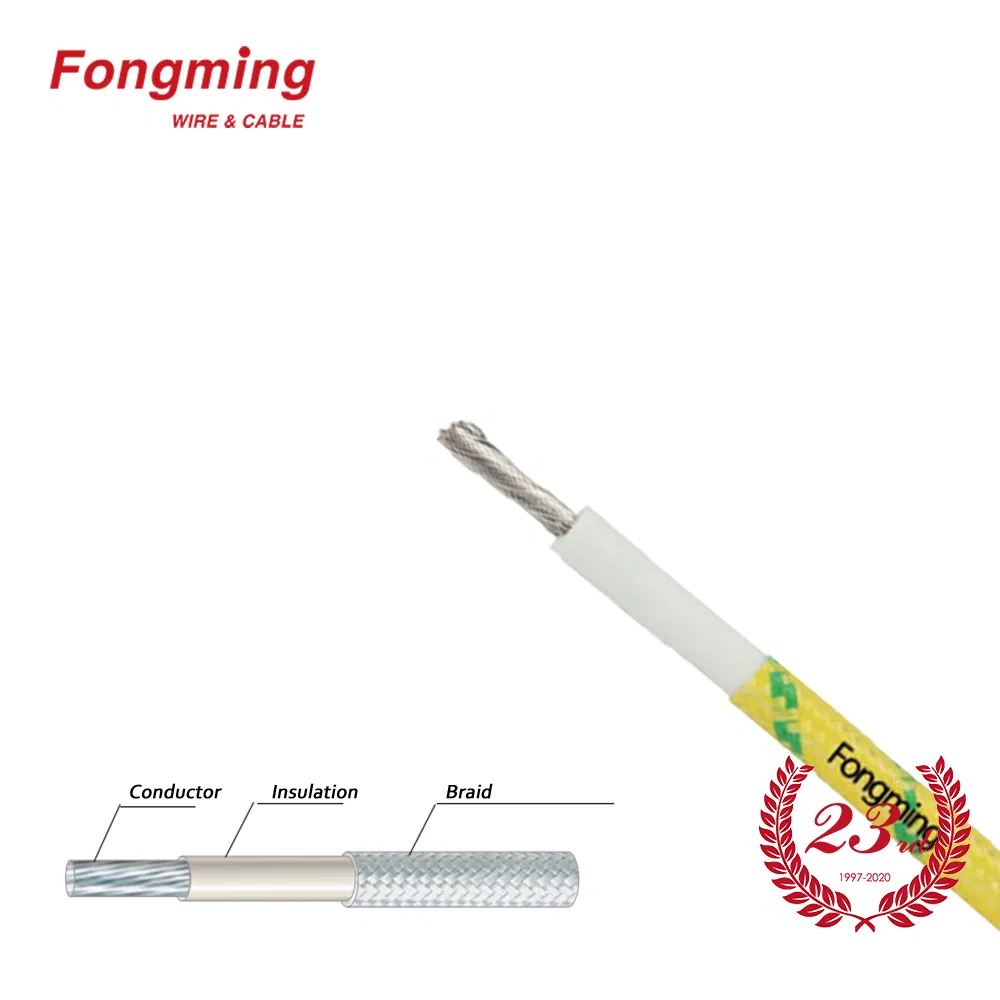

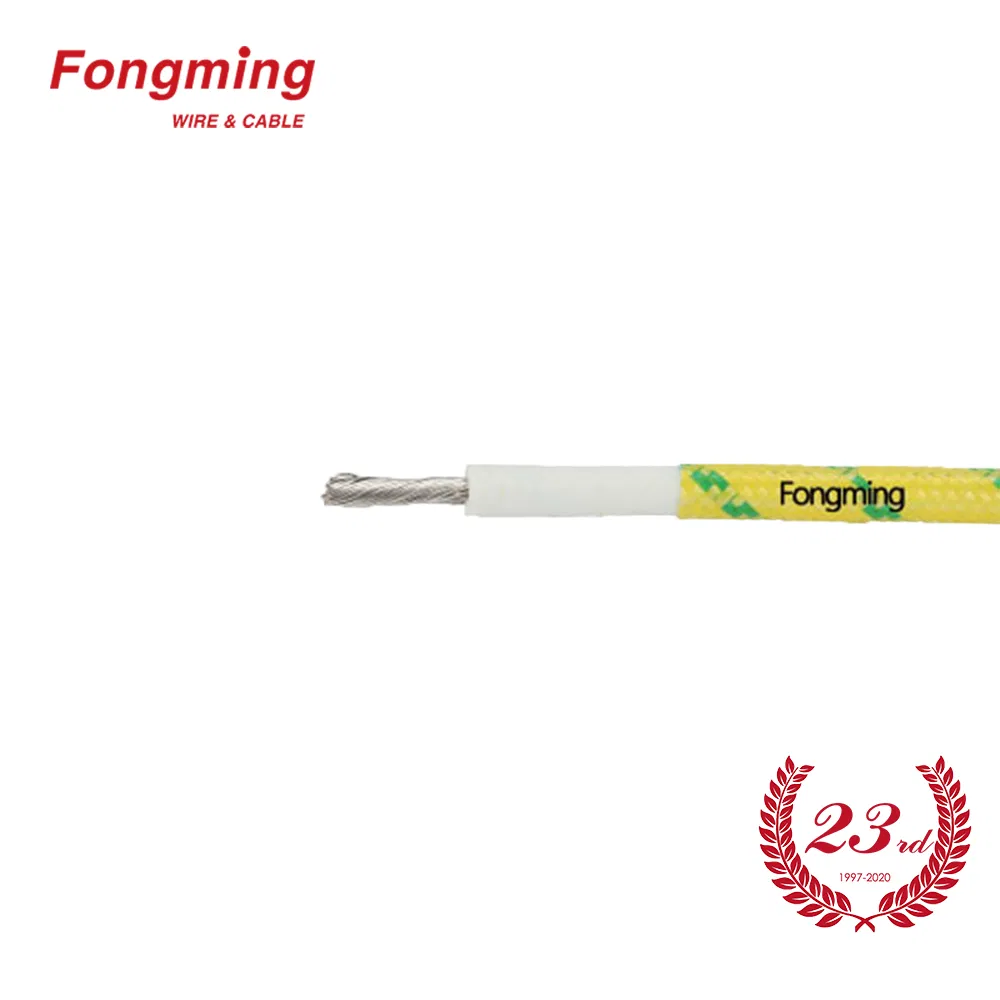

CONSTRUCTION
Conductors: Stranded tinned copper
Insulating: Silicone rubber
Outer Sheath: Fiberglass braid with high temperature finish
Color : Natural and Solid Colors, With UL standard surface marking.
CHARACTERISTICS
Suitable for applications to -60°C
Excellent and flexible cable.
APPLICATIONS
Used for internal wiring of commercial, industrial,household ovens and lighting fixture.
Ideal for use in electric heaters and for equipment wiring as high temperature lead wire.
Suitable for application to -60°C.
Specification
| Conductor | Insulation | Max. Conductor Resistance (20ºC) (Ω/km) | Reference Weight (kg/km) | |||||
Size AWG | Nominal Area (mm2 ) | Conductor Structure (No./mm) | Nominal Thickness (mm) | Braid Thickness (mm) | Nominal Diameter (mm) | Max. Diameter (mm) | ||
26 | 0.128 | 7/0.16 | 0.39 | 0.20 | 1.66 | 1.8 | 143.0 | 4.0 |
24 | 0.205 | 7/0.20 | 0.39 | 0.20 | 1.78 | 1.95 | 92.0 | 4.9 |
22 | 0.324 | 7/0.26 | 0.39 | 0.20 | 1.96 | 2.1 | 56.8 | 6.6 |
20 | 0.519 | 7/0.32 | 0.39 | 0.20 | 2.15 | 2.3 | 40.1 | 8.6 |
18 | 0.823 | 7/0.40 | 0.39 | 0.20 | 2.38 | 2.55 | 23.0 | 13.7 |
16 | 1.31 | 7/0.50 | 0.39 | 0.20 | 2.68 | 2.85 | 14.6 | 17.9 |
24 | 0.2 | 1/0.50 | 0.39 | 0.20 | 1.7 | 1.85 | 88.3 | 4.6 |
22 | 0.3 | 1/0.62 | 0.39 | 0.20 | 1.8 | 2.0 | 62.4 | 6.2 |
20 | 0.5 | 1/0.80 | 0.39 | 0.20 | 2.0 | 2.2 | 38.6 | 8.1 |
18 | 0.75 | 1/1.0 | 0.39 | 0.20 | 2.2 | 2.4 | 22.5 | 11.8 |
24 | 0.2 | 12/0.15 | 0.39 | 0.15 | 1.7 | 1.9 | 95.0 | 4.9 |
22 | 0.3 | 17/0.1512/0.18 | 0.39 | 0.15 | 1.9 | 2.1 | 71.2 | 6.0 |
20 | 0.5 | 28/0.1520/0.1816/0.20 | 0.39 | 0.20 | 2.2 | 2.4 | 40.1 | 8.6 |
18 | 0.75 | 42/0.1530/0.1824/0.20 | 0.39 | 0.20 | 2.4 | 2.6 | 26.7 | 11.6 |
17 | 1.0 | 40/0.1832/0.20 | 0.39 | 0.20 | 2.6 | 2.8 | 20.0 | 14.4 |
16 | 1.25 | 50/0.1840/0.20 | 0.39 | 0.20 | 2.7 | 2.9 | 15.9 | 16.9 |
Certificates
Transport & Payment
Packing: 305m per roll or spool, carton packing or add wooden pads.
Shipping: tansport bysea or by air.
As the customers requirements.
Port: Shanghai Port, Ningbo Port, Lianyungang Port, ShenZhen port.

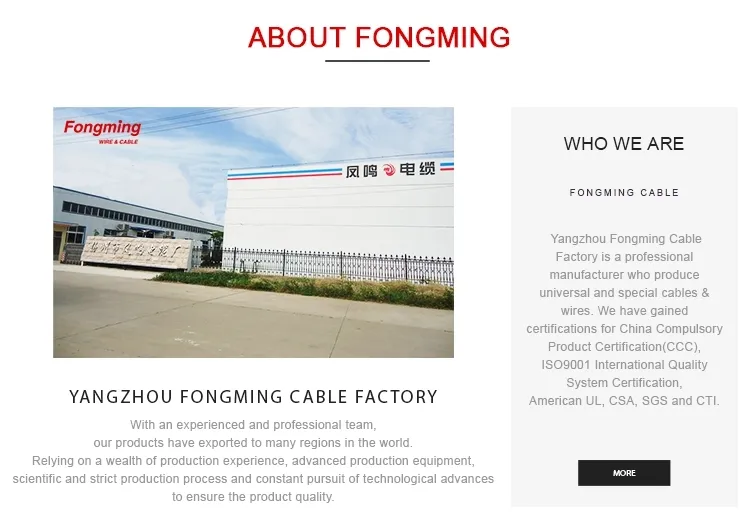

Company Information
Yangzhou Fongming Cable Factory, located in BaoYing, North of YangZhou, which is a historical, cultural and celebrated city in China, is a professional manufacturer producinguniversal and special Cables& Wires including UL High Temperature Wires, Multi-layers Fiber Glass Braided Wires, PTFE trapped Wires, Automobile Sensor Cables, HID Cables, High Voltage Wires for Auto etc.
We have gained certificates for China Compulsory Product Certification(CCC), ISO9001International Quality System Certification , American UL , SGS and CTi. With an experienced and professional team, our products have been covered to many regions in China and mainly exported to European and American Markets.
Factory Size (Sq.meters): | 45,000-50,000 square meters |
Factory Location: | Industrial Avenue,Industrial Center,Xiaji Town Baoying Country ,Yangzhou Jiangsu,China |
Number of Production Lines: | 20 |
Number of R&D Staff: | 21 - 30 People |
Number of QC Staff: | 21 - 30 People |
Contract Manufacturing: | OEM Service Offered Design Service Offered Buyer Label Offered |
