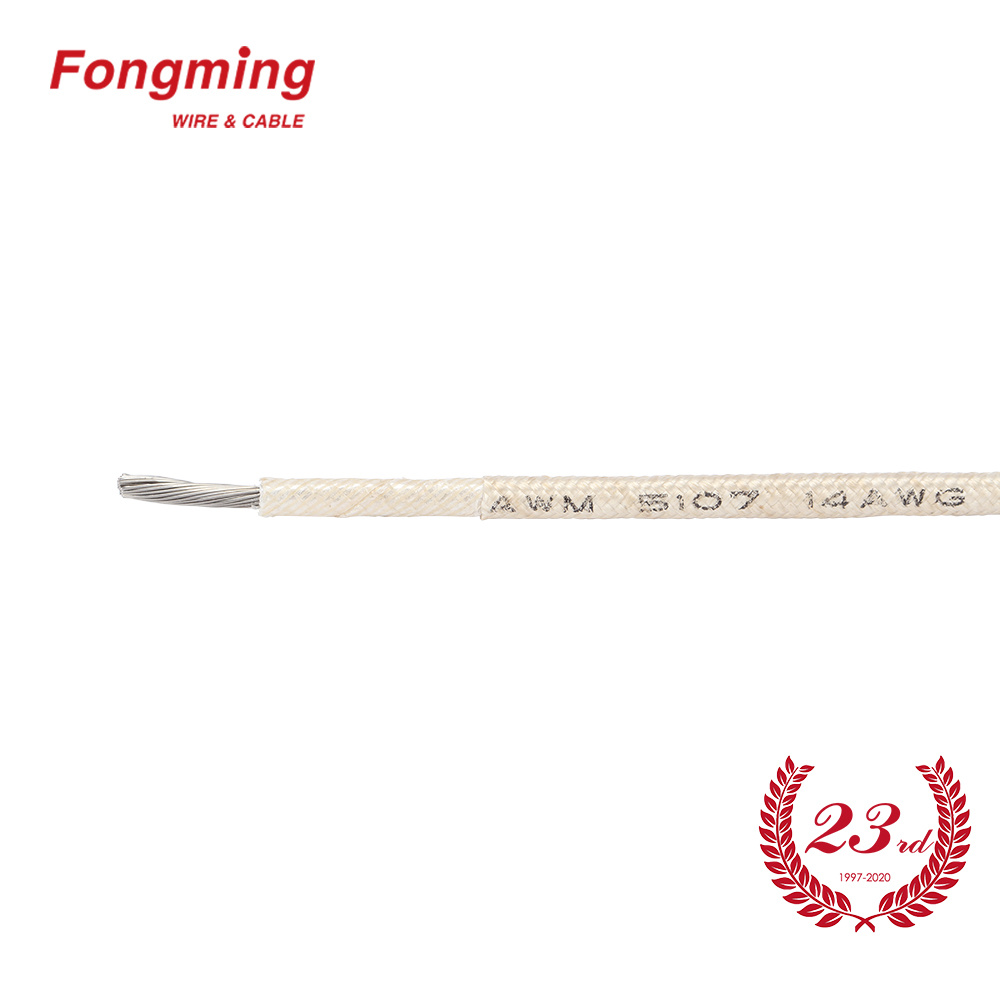

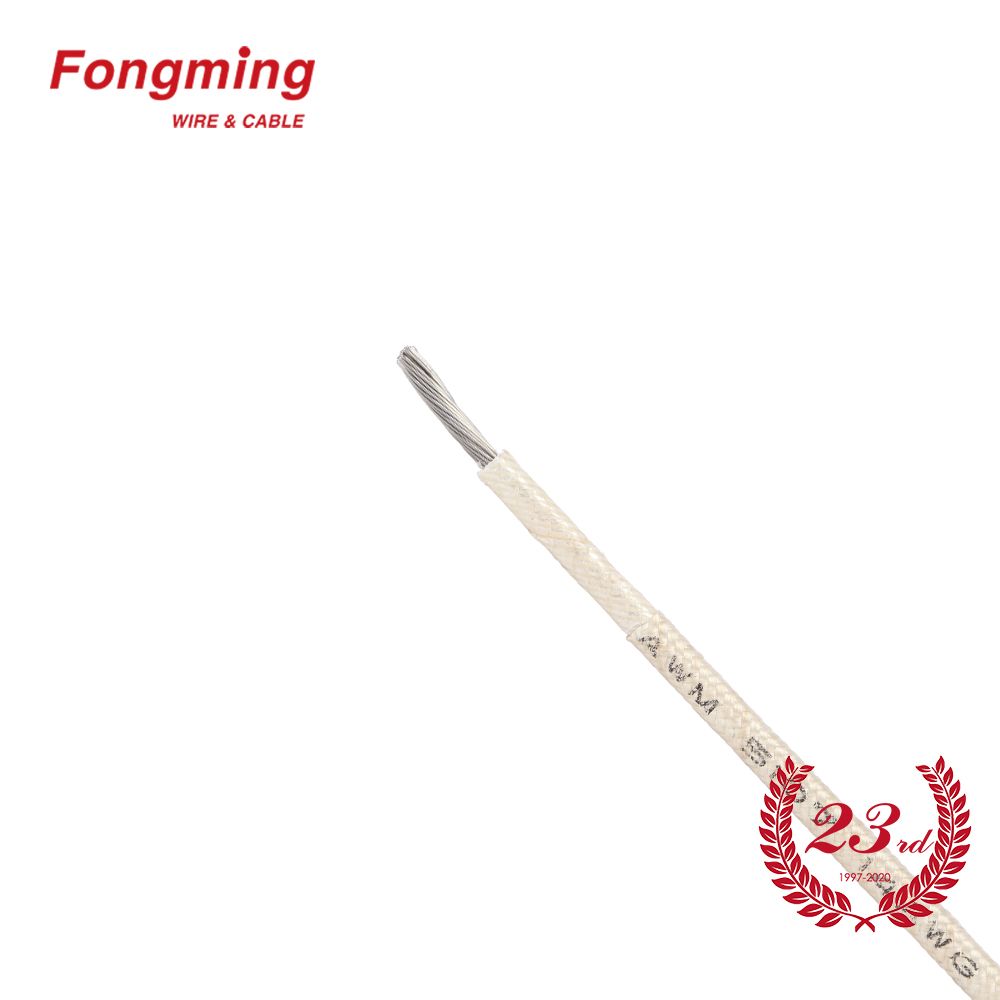

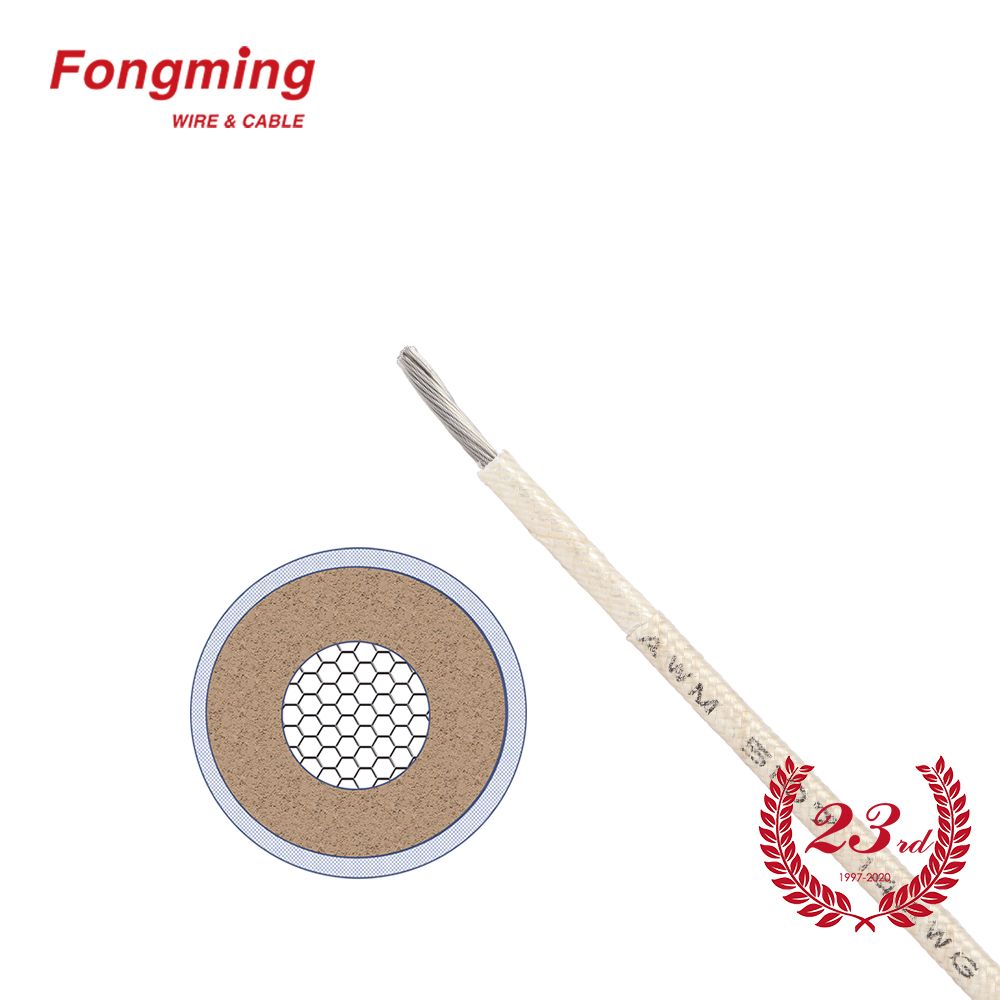

UL5107 Fiberglass Braided Insulation Electric Wire
NameFiberglass Braided Insulation WireDescriptionName: High Temp. Resistance WireModel No.: AWM5107Size: 24AWG~8AWGFeatureRatings: -60ºC~+450ºC, 600VConductor: Nickel Copper, NickelInsulation: Mica tape with braidJacket: Fiberglass braid with high temperature finishApplicationUsed ......
Send Inquiry
Product Description
Name
Fiberglass Braided Insulation Wire
Description
Name: High Temp. Resistance Wire
Model No.: AWM5107
Size: 24AWG~8AWG
Feature
Ratings: -60ºC~+450ºC, 600V

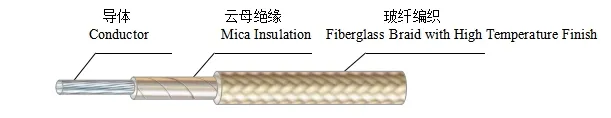

Conductor: Nickel Copper, Nickel
Insulation: Mica tape with braid
Jacket: Fiberglass braid with high temperature finish
Application
Used for internal wiring of household ovens, appliances, lighting fixtures and electronic equipment as high-temperature lead wire.
Specification
Hot Products
Certificates

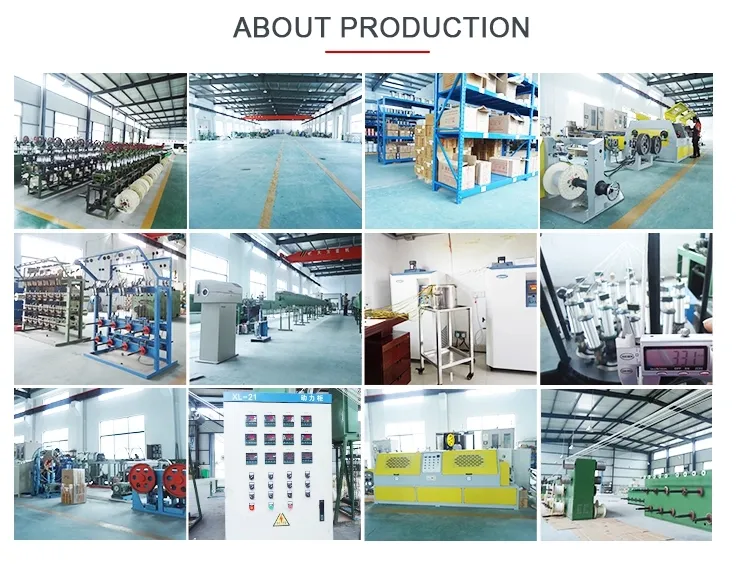

Company Information
Transport&Shipping
Our Services
1. OEM service available based on official & legal authorization.
2. Strict quality control system.
3. Timely deliverly.
4. Excellent quality with affordable price.
5. Strong technical support.
6. Mobile on 24 hours for any question.
FAQ
1. Why the price is so low?
You are ordering directly from the factory.
2.Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.
3.Can I get some samples?
Yes, we are honored to offer you samples.
4. Can you make the products with my design?
Yes. customization is welcome .
Fiberglass Braided Insulation Wire
Description
Name: High Temp. Resistance Wire
Model No.: AWM5107
Size: 24AWG~8AWG
Feature
Ratings: -60ºC~+450ºC, 600V
Conductor: Nickel Copper, Nickel
Insulation: Mica tape with braid
Jacket: Fiberglass braid with high temperature finish
Application
Used for internal wiring of household ovens, appliances, lighting fixtures and electronic equipment as high-temperature lead wire.
Specification
| Size AWG | Conductor Structure | Insulation Thickness (mm) | Braid Thickness (mm) | Diameter (mm) |
| 24 | 7/0.2 | ≥0.63 | ≥0.18 | 2.3±0.2 |
| 22 | 7/0.254 | 2.4±0.2 | ||
| 20 | 10/0.254 | 2.6±0.2 | ||
| 18 | 16/0.254 | 2.8±0.2 | ||
| 16 | 26/0.254 | 3.2±0.2 | ||
| 14 | 41/0.254 | 3.6±0.2 | ||
| 12 | 65/0.254 | 4.2±0.2 | ||
| 10 | 103/0.254 | ≥0.76 | ≥0.38 | 5.2±0.2 |
| 8 | 163/0.254 | 6.6±0.2 |
Hot Products
Certificates
Company Information
Transport&Shipping
Our Services
1. OEM service available based on official & legal authorization.
2. Strict quality control system.
3. Timely deliverly.
4. Excellent quality with affordable price.
5. Strong technical support.
6. Mobile on 24 hours for any question.
FAQ
1. Why the price is so low?
You are ordering directly from the factory.
2.Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.
3.Can I get some samples?
Yes, we are honored to offer you samples.
4. Can you make the products with my design?
Yes. customization is welcome .
