Wdz-Kyjyp Cu Core XLPE Insulation Polyolefine Sheathed Cu-Wire Braid Screening Low-Smoke Halogen-Free Flame -Retardant Control Cables

Executive Standard

It is manufactured acconding to GB/T 9330-2008,GB/T 19666-2005 Standard.

Application

The product is used in the control and protection circuits under 450/750V ,in nuclear stations, subways, theaters and other places where high security is required.

Use Frature
  1.Rted voltage U0/U=450/750V;
  2.Max.allowable working temperature :90ºC
  3.The installation temp is not less than 0ºC
  4.Recommended allows bending radius:
     No armoured layer of the cable, should not be less than 8 times of cable diameter;
     Structure of armoured or copper tape screened cable, should not be less than 12 times of cable diameter

Feature

Overcoming the drawbacks of the conventional flame-retardant cables, the product avoids the halogen acid erosion to the instrument and equipment. It has the followings advantages:

1.Low release of the HCL gas during burming
2.Low smoke during burning,and with good luminousness
3.The max working temperature is 90ºC,extending the lifetime

Product spec

Type	Rated voltage V	Conductor nominal section mm²
		0.75	1.0	1.5	2.5	4	6
WDZ-KYJY	450/750V	2~37				2~14
WDZ-KYJYP		2~37				4~14
WDZ-KYJYP2		4~37				4~14
WDZ-KYJY23		7~37		4~37		4~14
WDZ-KYJYP2-23		7~37		4~37		4~14

  Type and designation

Type	Designation
WDZA-KYJY	Cu core XLPE insulation polyolefine sheathed low-smoke halogen-free flame-retardant control cables
WDZ-KYJYP	Cu core XLPE insulation polyolefine sheathed Cu-wire braid screening low-smoke halogen-free flame-retardant control cables
WDZ-KYJYP2	Cu core XLPE insulation polyolefine sheathed Cu-tape screening low-smoke halogen-free flame-retardant control cables
WDZ-KYJY23	Cu core XLPE insulation polyolefine sheathed steel-tape armoring low-smoke halogen-free flame-retardant control cables
WDZ-KYJYP2-23	Cu core XLPE insulation polyolefine sheathed Cu-tape screening steel-tape armoring low-smoke halogen-free flame-retardant control cables

FAQ

Q1:Are you a trading company or manufacturer?

A1: Tianjin Feiya wire & Cable CO., LTD. is a professional manufacturer.

Q2: What kinds of products does Tianjin Feiya wire & Cable CO., LTD. manufacture?

A2: Our products mainly cover low, medium and high voltage (KV) crosslinked polyethylene insulated power cable,PVC insulated power cable, PVC insulated wire (construction cable), control cable, signal cable, rubber cable,coal mine cable, welding cable, ship cable and other related customized cables. These cables are used in Power metallurgy, Oil&Chemical Industry, Nation Defense Power Station, Mine, Port and Architectural Engineering, andother fields.

Q3:Which standards do you comply with when you produce the electrical wires and cables ?

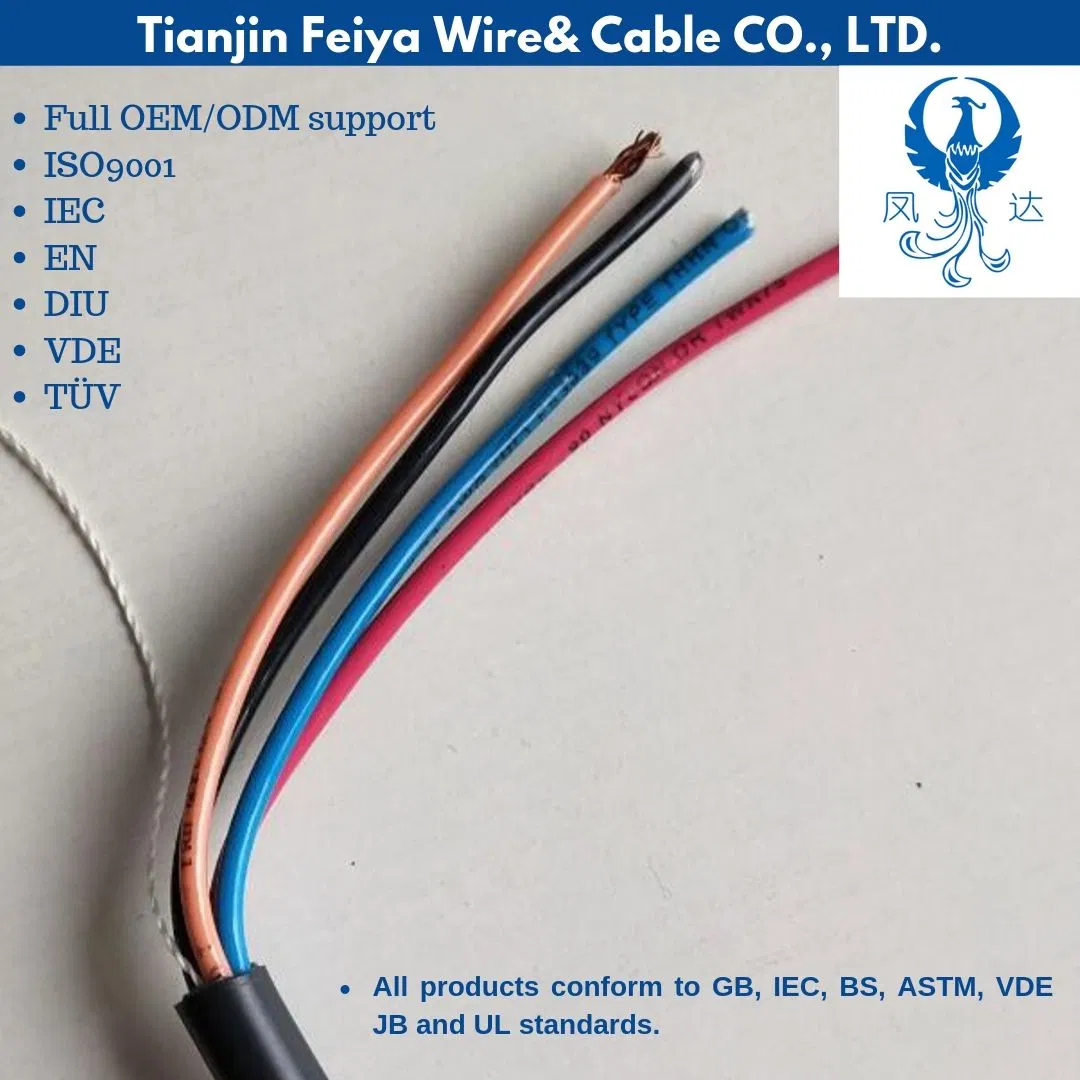

A3: We have passed ISO9001:2000 and ISO140001:2004. All products conform to GB, IEC, BS, ASTM, VDE JB and UL standards. Besides, we have the ability to design and produce various wires and cables, and customize them for you according to the special requirements of customers (providing OEM services).
