China Wire Manufacture Supply UL1672 Double PVC Insulated Electrical Wire

Product Description

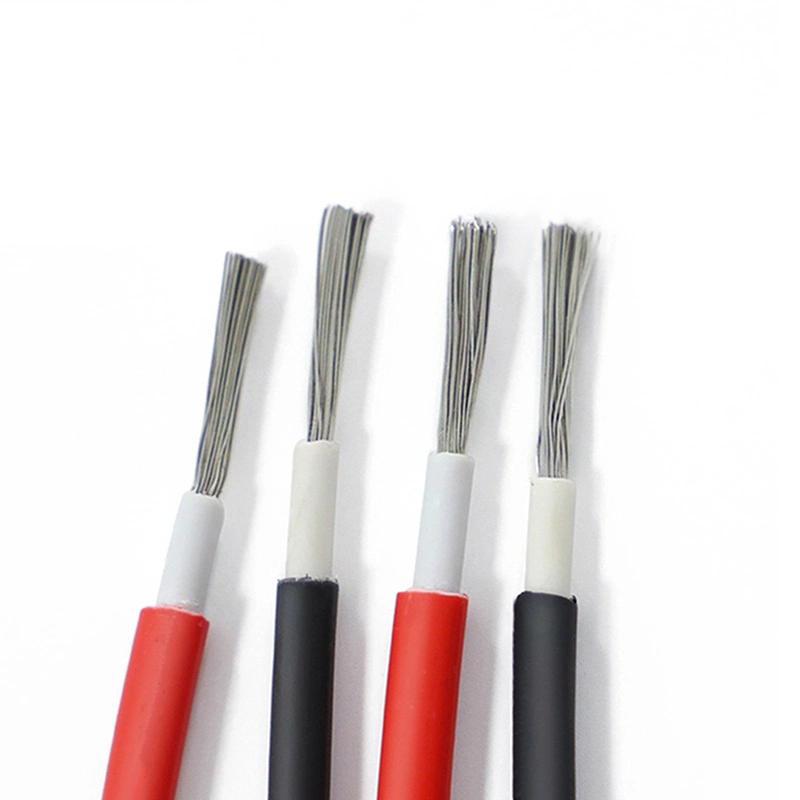

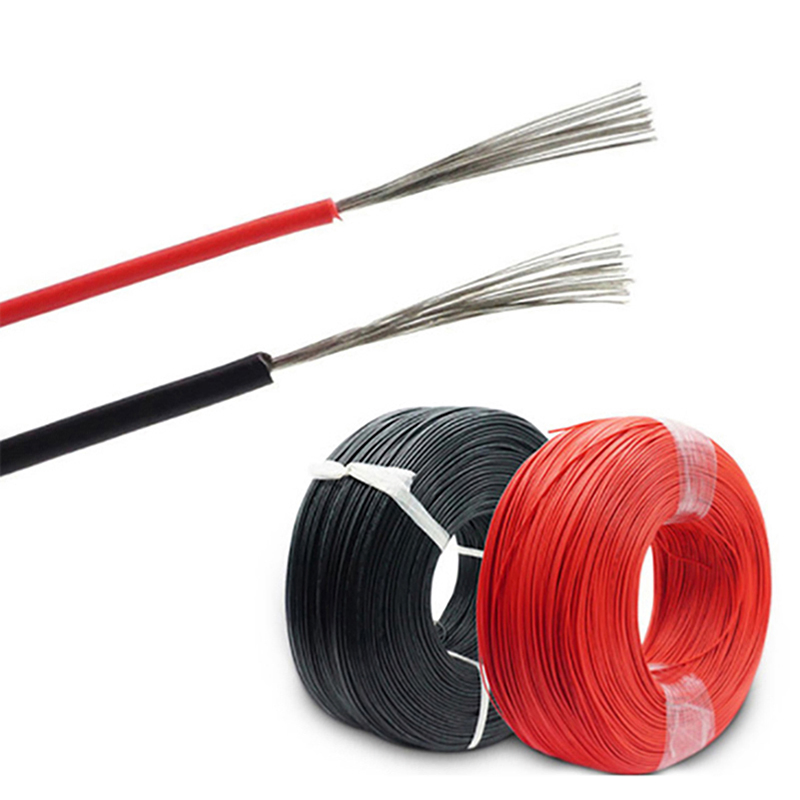

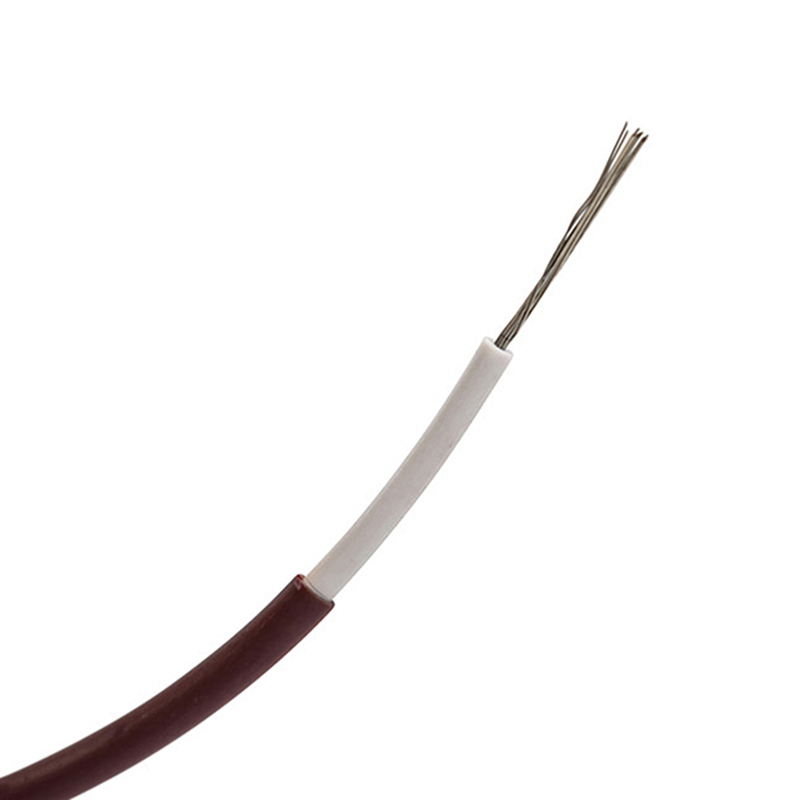

Wire manufacture supply UL1672 double insulated wire

PRODUCT DESCRIPTION:

★Rated temperature:105ºC
★Rated voltage:300V
★According to:UL Subject758,UL1581,C22.2
★Solid or stranded,tinned or bare copper conductor
★PVC insulation
★PVC jacket
★Passes UL VW-1&CSA FT1 vertical flame test
★Uniform insulation thickness of wire to ensure
easy stripping and cutting
★For internal wiring of appliance

Conductor		Finished product			Maximum Resistance at 20ºC
AWG	NO.of Cond	Insulation Thick.	Outside Thick.	Packing	Maximum Resistance at 20ºC
AWG	mm	mm	mm	m/r	Ω/mm
28	7/0.127	0.45	0.45	610.00	223.75
26	7/0.16	0.45	0.45	610.00	139.76
24	11/0.16	0.45	0.45	610.00	88.36
22	17/0.16	0.45	0.45	610.00	60.16
20	21/0.178	0.45	0.45	610.00	38.58
18	34/0.178	0.45	0.45	610.00	22.98
16	26/0.254	0.45	0.45	610.00	15.06
14	41/0.254	0.45	0.45	610.00	9.65
12	65/0.254	0.45	0.45	610.00	6.07
28	1/0.320	0.45	0.45	610.00	227.39
26	1/0.404	0.45	0.45	610.00	142.79
24	1/0.511	0.45	0.45	610.00	89.39
22	1/0.643	0.45	0.45	610.00	54.30
20	1/0.813	0.45	0.45	610.00	33.90
18	1/1.024	0.45	0.45	610.00	21.40

Wire Manufacture Supply UL1672 Double PVC Insulated Electrical Wire

FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Xiamen.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.

3. What's your Minimum Order Quantity?
Normally 100m. You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.

4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
