Product Description
1FO FTTH G657a1 Cable
We are 20 years fiber optic cable manufacturer.
Welcome to go to the factory tour!
Send message to us can get free samples.
G657A 2 core FTTH flat drop optical fiber cable for Eritrea fiber to the home cabling systems
GJYXCH
1-24 cores
Special tube filling compound ensure a critical protection of fiber;
special sesigned compact structure is good at preventing loose tubes from shrinkong;
FRP used as the central strength member;
Water-blocking tape enhancing moisture-proof.
Optical Characteristics
G.652 | G.655 | 50/125μm | 62.5/125μm | ||
Attenuation (+20°C) | @850nm |
|
| ≤3.5 dB/km | ≤3.5 dB/km |
@1300nm |
|
| ≤1.5 dB/km | ≤1.5 dB/km | |
@1310nm | ≤0.45 dB/km | ≤0.50 dB/km |
|
| |
@1550nm | ≤0.30 dB/km | ≤0.50dB/km |
|
| |
Bandwidth (Class A) | @850nm |
|
| ≥500 MHz·km | ≥200 MHz·km |
@1300nm |
|
| ≥1000 MHz·km | ≥600 MHz·km | |
Numerical Aperture |
|
| 0.200±0.015NA | 0.275±0.015NA | |
Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm |
|
| |
Technical Parameters
Fiber Count | Cable Diameter mm | Cable Weight kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100mm | Bending Radius Static /Dynamic mm |
| 1 | (2.0±0.2)×(3.0±0.2) | 8 | 30/60 | 300/1000 | 15/30 |
| 2 | (2.0±0.2)×(3.4±0.2) | 8.5 | 30/60 | 300/1000 | 15/30 |
| 1 | (2.0±0.2)×(3.8±0.2) | 9 | 30/60 | 300/1000 | 15/30 |
| 4 | (2.0±0.2)×(4.0±0.2) | 10 | 30/60 | 300/1000 | 15/30 |

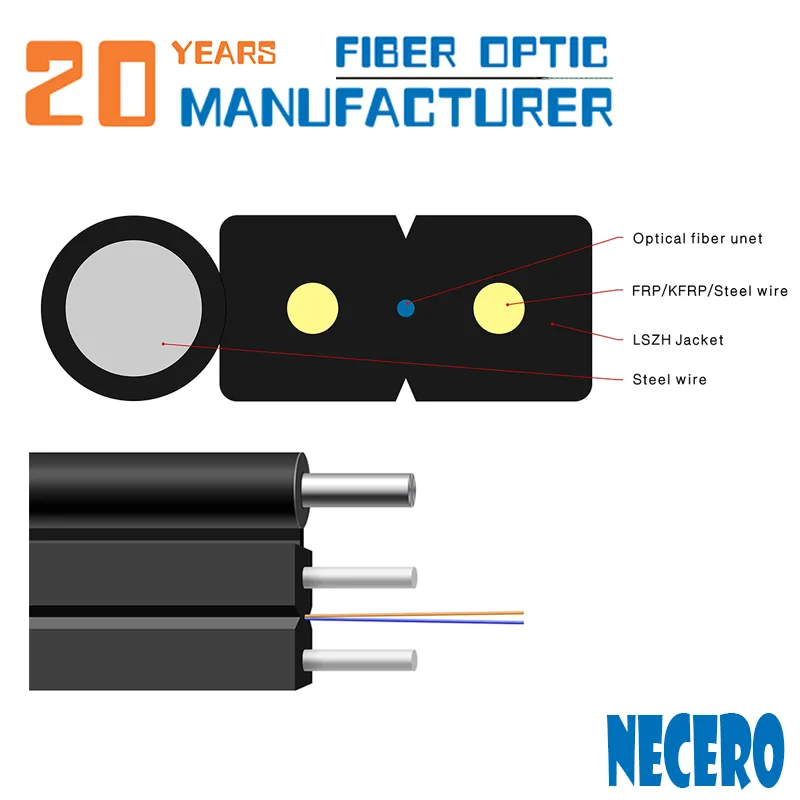

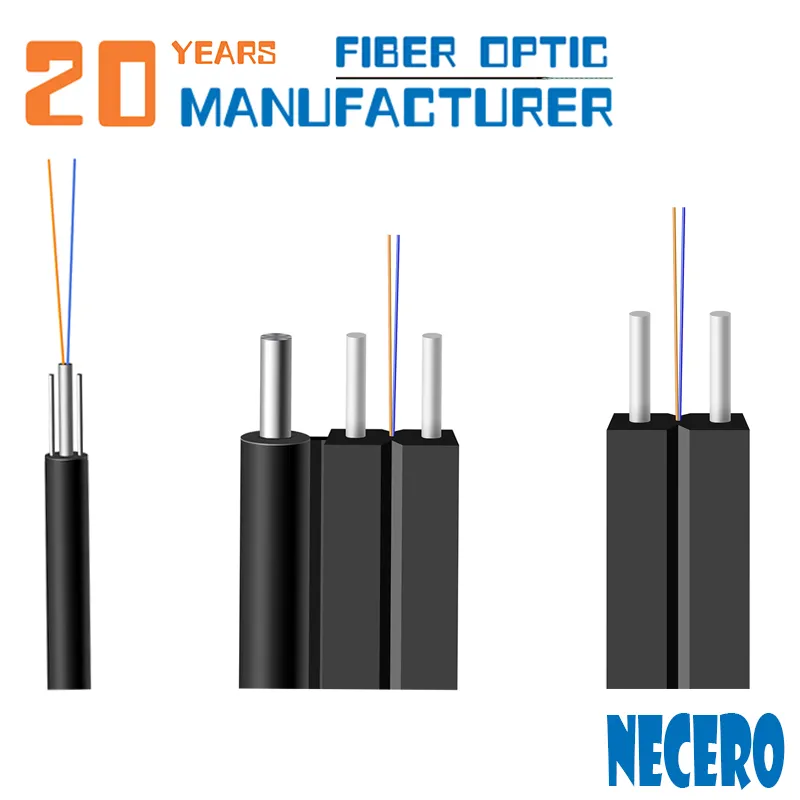

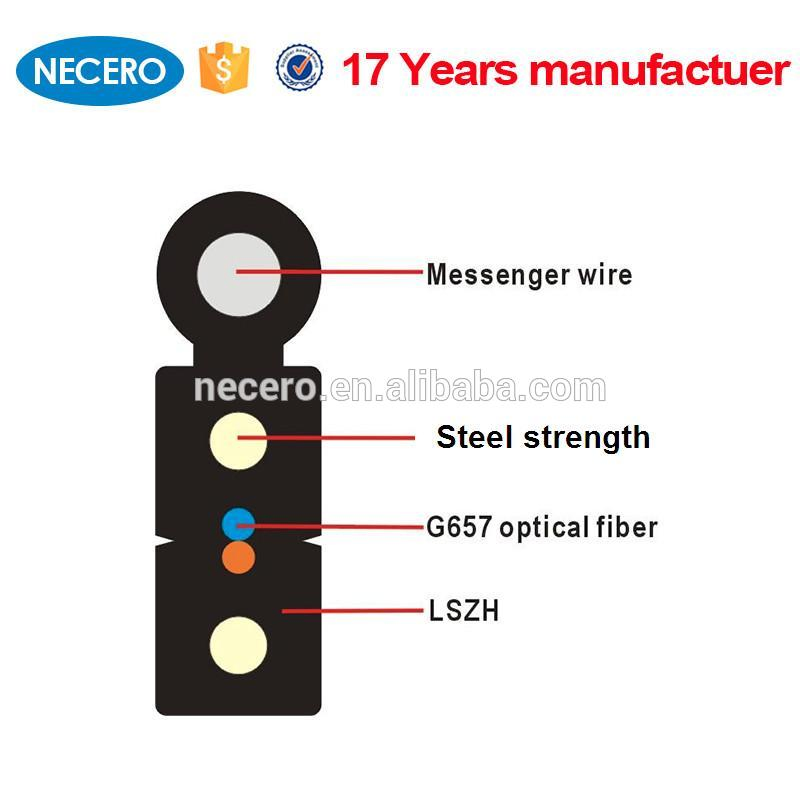

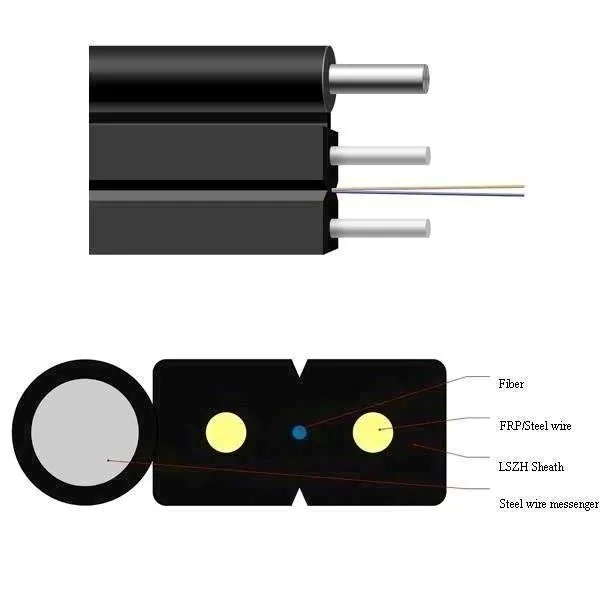

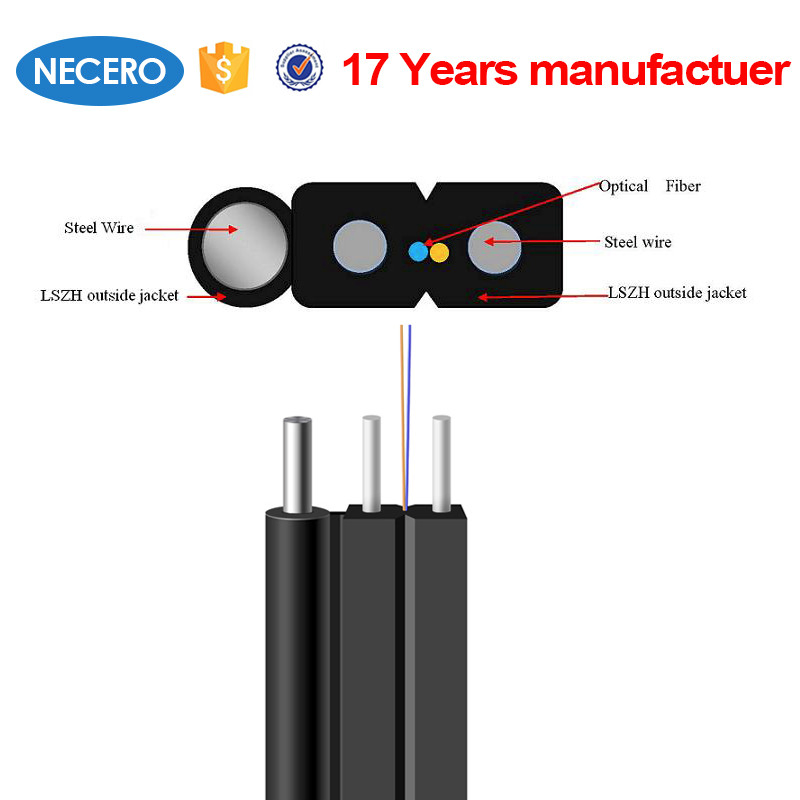

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.
FAQ
1. Are you the real factory?
Yes,we are the real factory with 20 years' history.
2. What is your fiber brand?
Fiber brands including : NECERO,HANXIN,MECABLE
3. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
4. Product quality guarantee period?
25 years' Guarantee for fiber optic cable
5. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
6. What is your delivery time?
Within 24 hours for 30KM normal kinds of fiber optic cable;
1 ~2 days for fiber optic patch cords with 10000 connectors.
7. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there's stock for normal kinds.
8. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
9. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable.
10. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services,any of which is optional.
