Product Description

1x4 PLC Fiber Splitter, Steel Tube, Bare Fiber 250μm, No Connector

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
Bare fiber splitter is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation. It is relatively fragile on fiber protection and need a complete protection design on carrying box body and device. Singlemode G.657A1 fiber, 250μm bare fiber, 1260~1650nm, mainly used for small spaces that can be easily placed in a formal joint boxes and fiber splice closure in PON system.

Product Details

Package Style	Steel Tube, Bare Fiber	Configuration Type	1x4
Fiber Type	Singlemode G.657A1	Connector Type	None
Fiber Diameter	250μm	Pigtail Length	1.5m
Insertion Loss	≤7.3dB	Return Loss	≥50dB
Loss Uniformity	≤0.8dB	Directivity	≥55dB
Polarization Dependent Loss	≤0.3dB	Temperature Dependent Loss	≤0.5dB
Wavelength Dependent Loss	≤0.3dB	Operating Bandwidth	1260~1650nm
Operating Temperature	-40~85°C	Storage Temperature	-40~85°C

Product Highlights

1X4 PLC splitter, uniform distribution of optical signal
Small size, with the splitter type of steel tube, bare fiber
Ideal for EPON, GPON, FTTH/FTTX network

High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity

Excellent Quality Chips
Loss of light is not sensitive for wavelength, and it can meet the transmission needs of different wavelengths.

Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space.

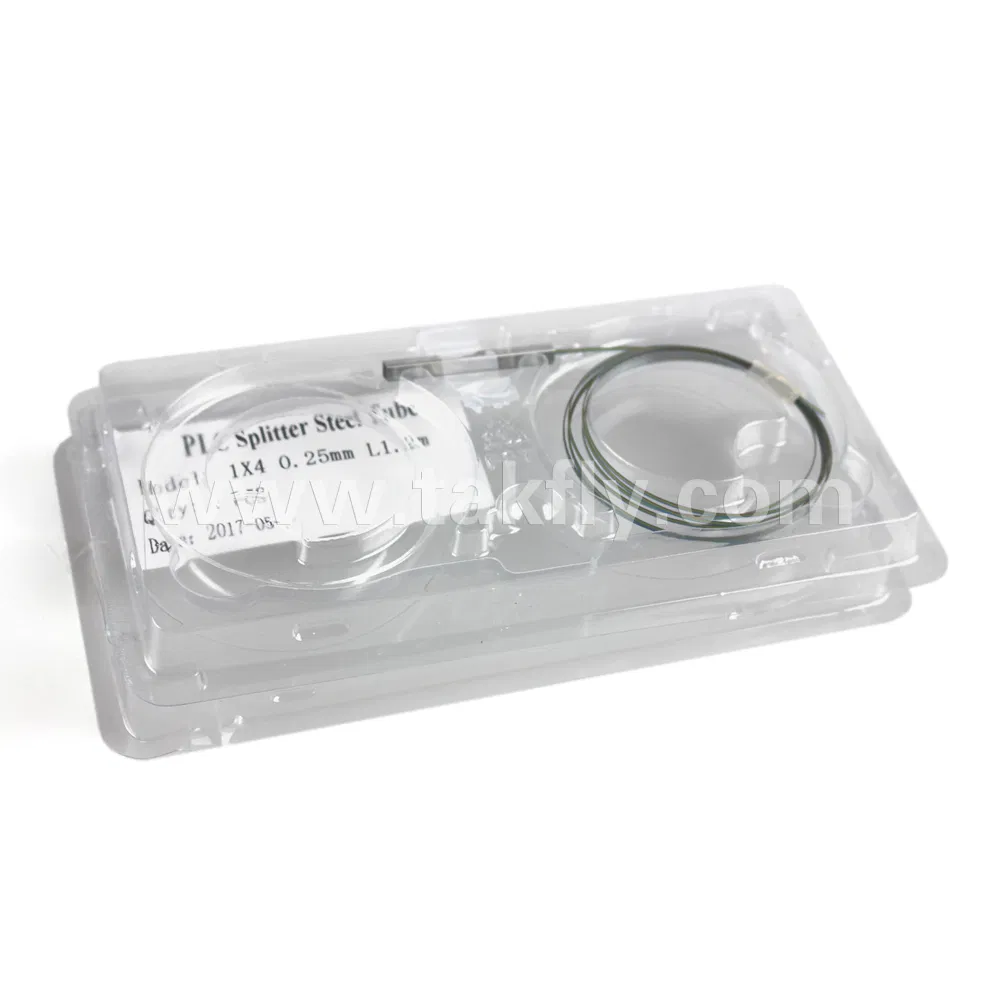

Exquisite Packaging
The design and packaging is exquisite to ensure the product in good condition.

Our Advantage
1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent survice

Contact
1.Our working time:8:30am~5:30pm
2.All the inquiries will be replied within 24hours, So please feel free to send us your inquiry.
3.When our trade manager is off line, please feel free to leave a message, and tell us the products you need, our model number, and your E-mail address, we will reply to you within 24hours too.

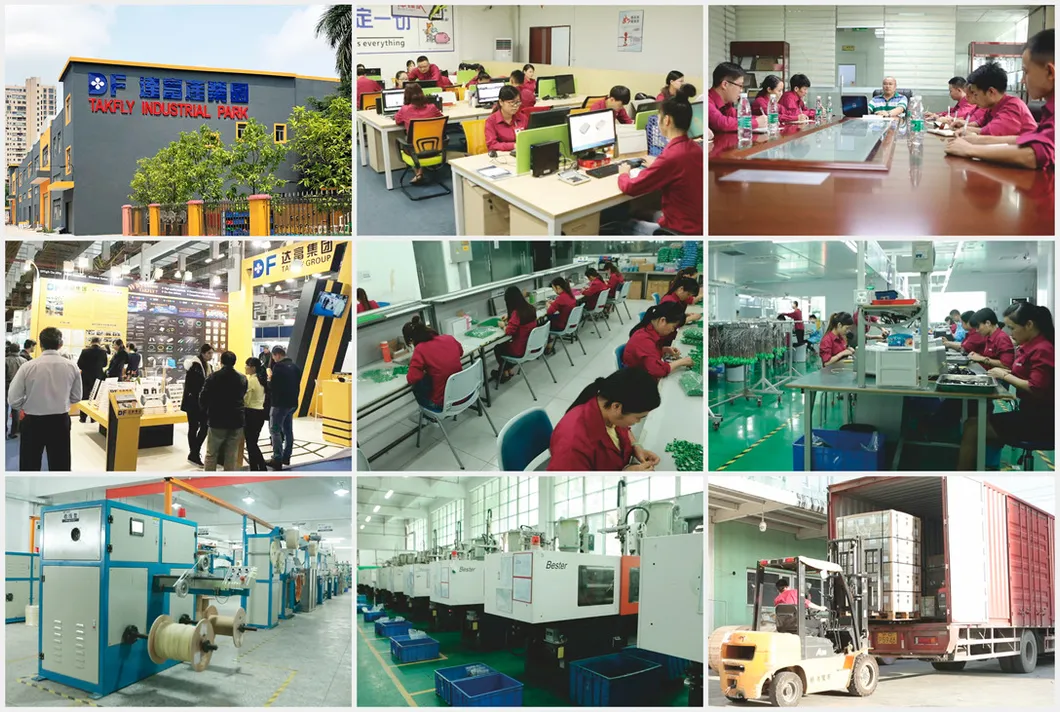

Our Company
