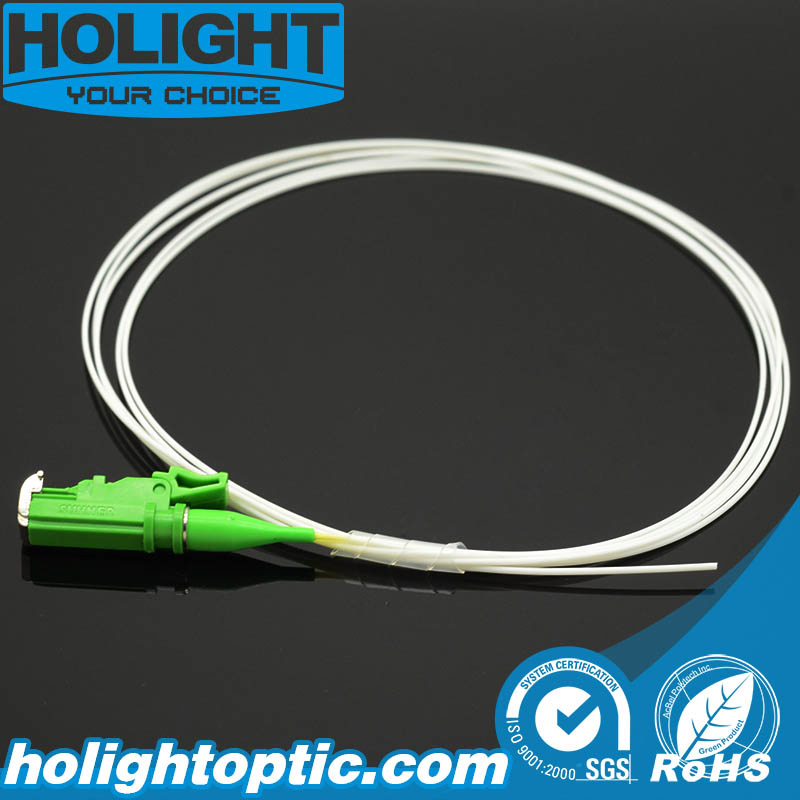

2.0mm Sm Fiber Optic E2000/APC Pigtail for Local Area Networks (LANs)
Product DescriptionPRODUCT NAME : 2.0mm SM Fiber Optic E2000/APC Pigtail for Local Area Networks (LANs)APPLICATIONS· CATV· Active device termination· Telecommunication networks· Metro· Local Area Networks (LANs)· Data processing netwo......
Send Inquiry
Product Description
Product Description
PRODUCT NAME : 2.0mm SM Fiber Optic E2000/APC Pigtail for Local Area Networks (LANs)APPLICATIONS
· CATV
· Active device termination
· Telecommunication networks
· Metro
· Local Area Networks (LANs)
· Data processing networks
· Test equipment
· Precise installations
· Wide Area Networks (WANs)
FEATURE
· E2000-E2000 connectors;
· For pigtails, one side of E2000 only;
· Simplex or Duplex version on request;
· UPC or APC polish available;
· Any other connector type at another side upon request;
· Fan-out on request;
· Superior quality standard PC/UPC/APC polishing;
· 100% factory test (Insertion Loss & Return Loss);
· 0.9mm, 2.0mm and 3.0mm cable optional.
| FOR PIGTAIL ORDERING INFORMATION | |||||||||
| Cable number | One side conectors | Polish type of conectors | Fiber Type | Boot (cable) Size | Fiber Cable Length | Fiber Cable Jacket | Fiber Cable Color (Standard) | ||
| Simplex | LC | PC | 9/125μm (SM) | 0.9mm | Customized | LSZH | White (0.9mm) | ||
| - | SC | UPC | 50/125μm (MM) | 2.0mm | - | PVC | Yellow | ||
| - | ST | APC | 62.5/125μm (MM) | 3.0mm | - | OFNP | Orange | ||
| - | FC | - | - | - | - | - | Aqua | ||
| - | E2000 | - | - | - | - | - | - | ||
| - | MTRJ | - | - | - | - | - | - | ||
| - | MPO | - | - | - | - | - | - | ||
| - | MU | - | - | - | - | - | - | ||
| For example: Pigtail-ST 50MM 0.9mm - 1.5m LSZH White | |||||||||
