China 24 Cores MPO to MPO and Sc Hybrid Connector Fanout Cable

Product Description

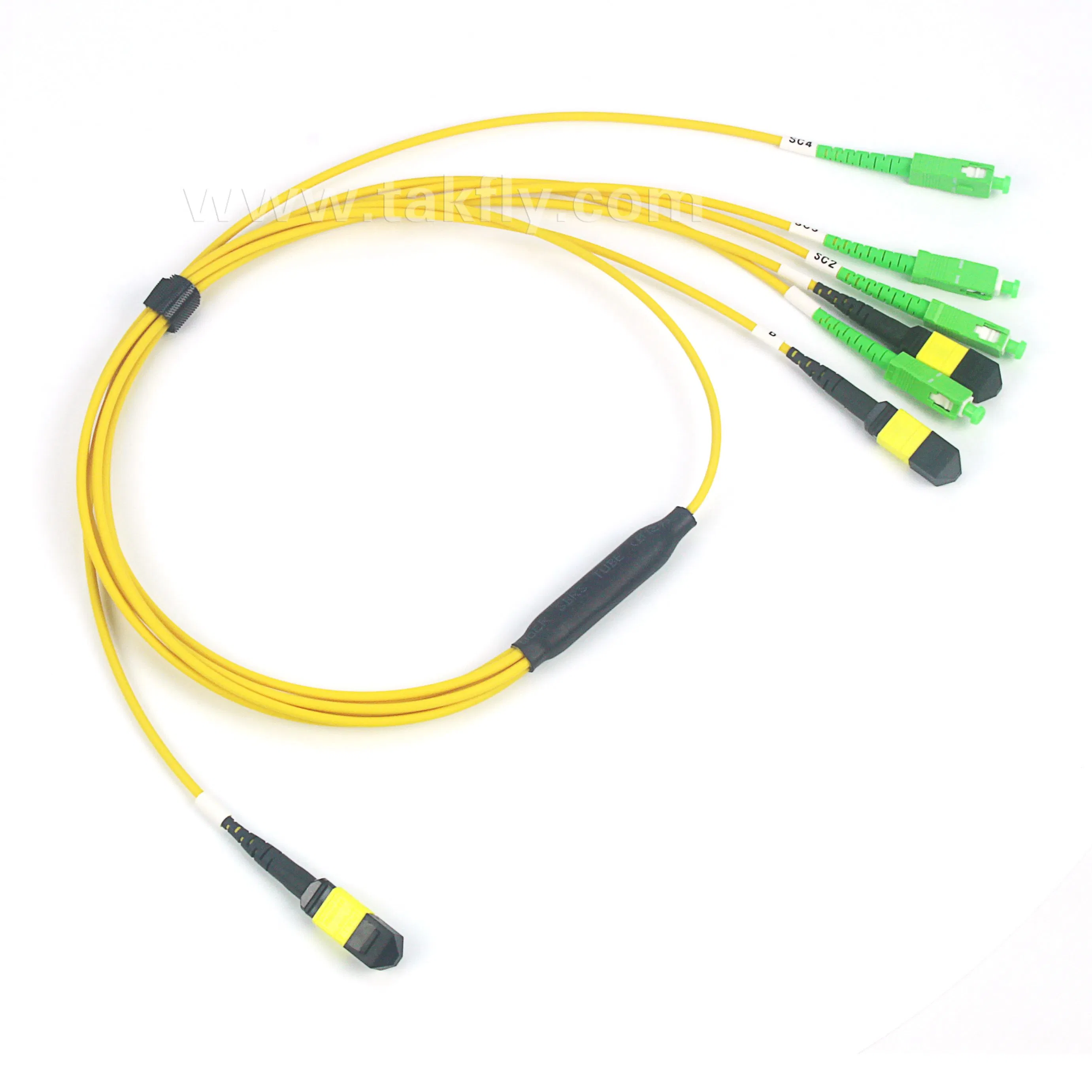

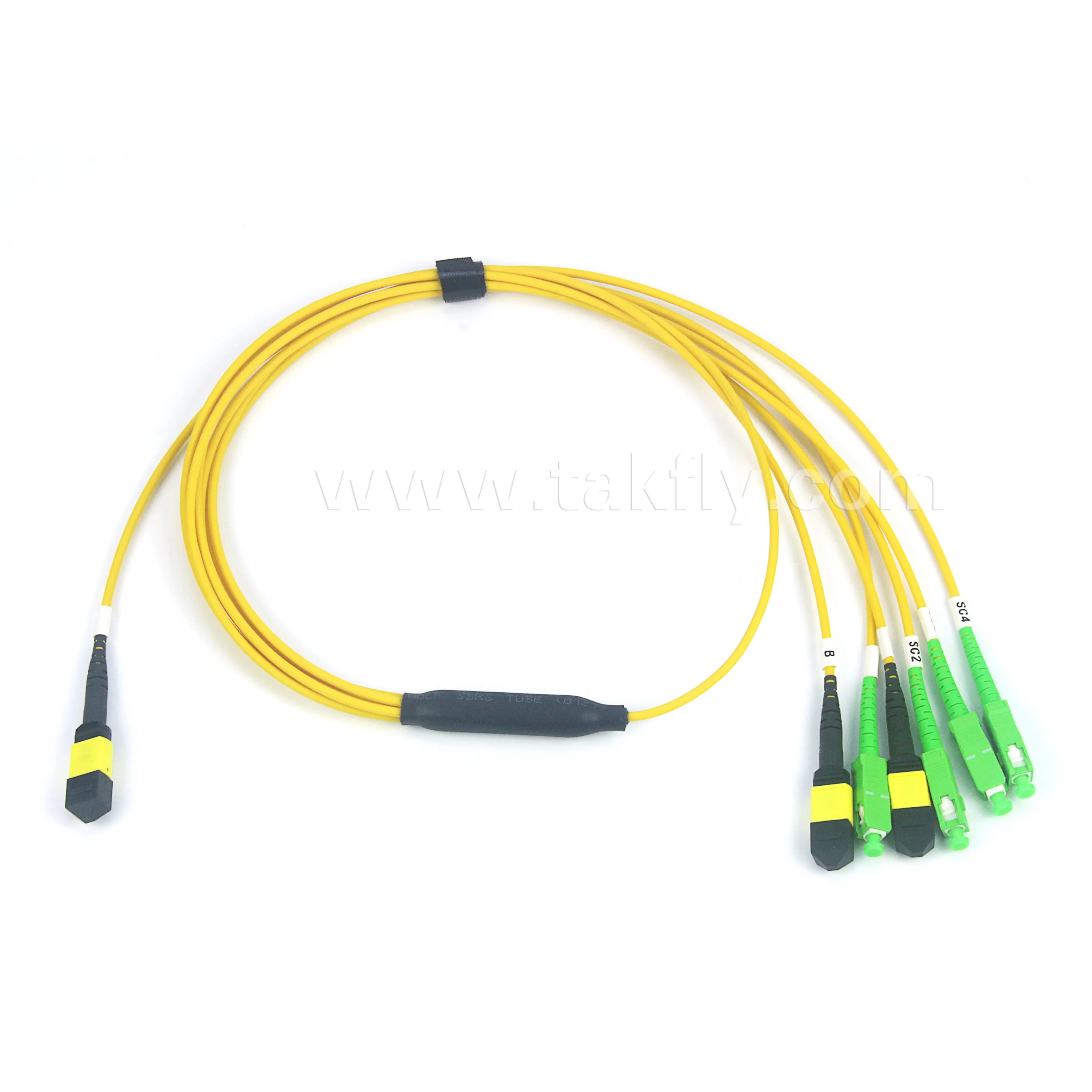

24 cores MPO to MPO and SC Hybrid Connector Fanout Cable

Model Number: MPO
Polishing type: PC, UPC, APC
Inserion Loss: <0.5db
Return Loss: >50db
Length: Customized
Jacket Colors: Aqua, Orange, Green, Red, Blue, Gray, Black, Yellow

Detail:
MPO connector produced specially for multi-fiber ribbon cable, it use precision molded MT ferrules, together with metal guide pins and precise housing dimensions ensure fiber alignment when mating, realize high density interconnection. Compact design available to 4,8,12,24 fiber ribbons, cable types include bare fiber ribbon and PVC jacket ruggedized ribbon. MPO pre-termination save time and reduce the risk of damage fragile optical connectors, the plug and play system is the perfect solution for today's optical fiber installations.

Features

1.Connector A) MPO female connector (No guide pins)
2.40Gb pin-out configuration
3.Jacket Type: LSZH Rated (OFNR)
4.Jacket Color: Aqua (blue)
5.Fiber Mode: Multimode 50 Laser Optimized OM3
6.Length: Custermized
7.Cable type: 3mm round

Specifications:

Item	SM			MM
Polishing Type	PC	UPC	APC	PC
Insertion Loss	≤0.2dB (Typical ≤0.1dB			≤0.3dB/0.5dB(MTRJ)
Custom
Return Loss	≤-45dB	≤-55dB	≤-65dB	/
Custom
Durability(500 Mating)	0.2 dB Max. Increase
Operating Temperature	-20°C~+75°C
Storage Temperature	-40°C~+75°C
Remark:	Ferrule Concentricity<1μm
	Ferrule inner diameter tolerance+1/ 0μm
	Ferrule outer diameter tolerance±0.5μm
	Insertion loss<0.1dB random mating
