293*219* 84mm OEM RoHS Communication Optical Cables Opelink Fiber Optic Terminal Box Manufacture
293*219*84Mm Oem Rohs Communication Optical Cables Opelink Fiber Optic Terminal Box ManufactureDescription:The Fiber optic cable Termination Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, spli......
Send Inquiry
Product Description
293*219*84Mm Oem Rohs Communication Optical Cables Opelink Fiber Optic Terminal Box Manufacture
Description:

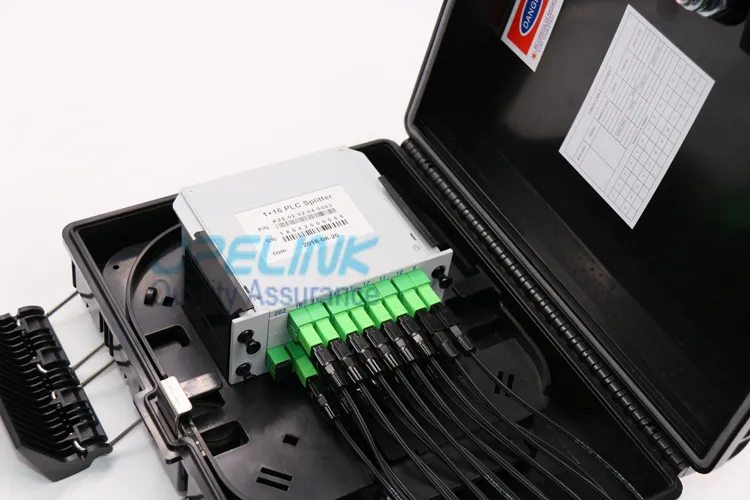

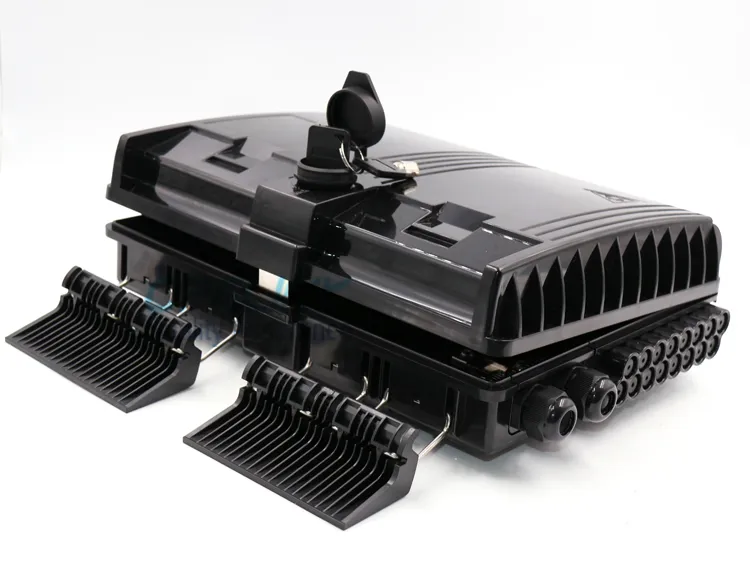

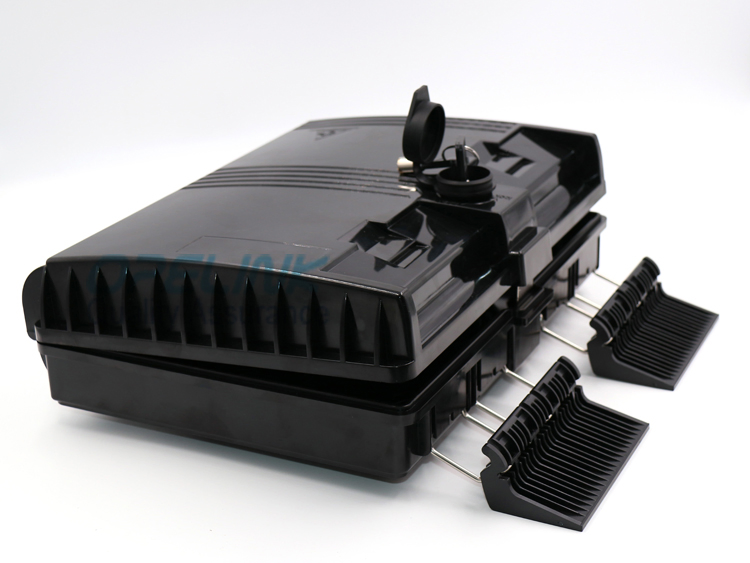

The Fiber optic cable Termination Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx Network building.
1.Features:

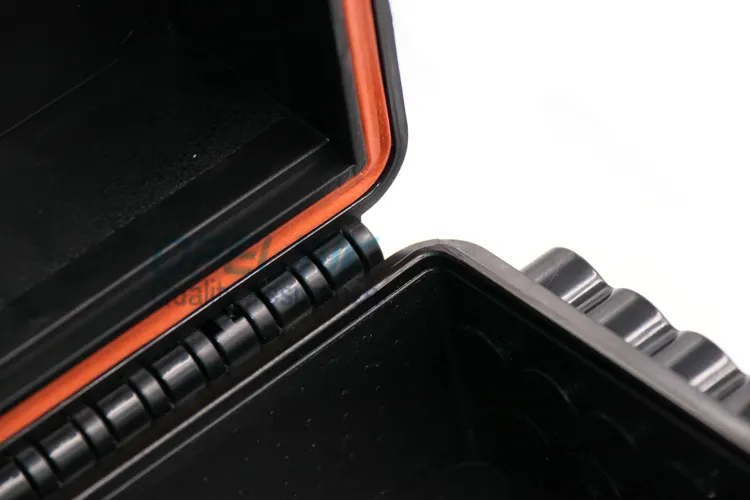

- Mechanical seal: good sealing, can repeat use. Protective level: IP65.
- Laying: outdoor wall-mounting and pole-mounting.
- Product Features:
- FTTH products, passive optical points wiring special terminal box;
- The box body to scroll type structure, it has the function of guard against theft, large capacity function complete, easy to use;
- Can meet the following Ф 12 cable into, and can meet the figure 8 or Φ 3 cable protective in splice connection;

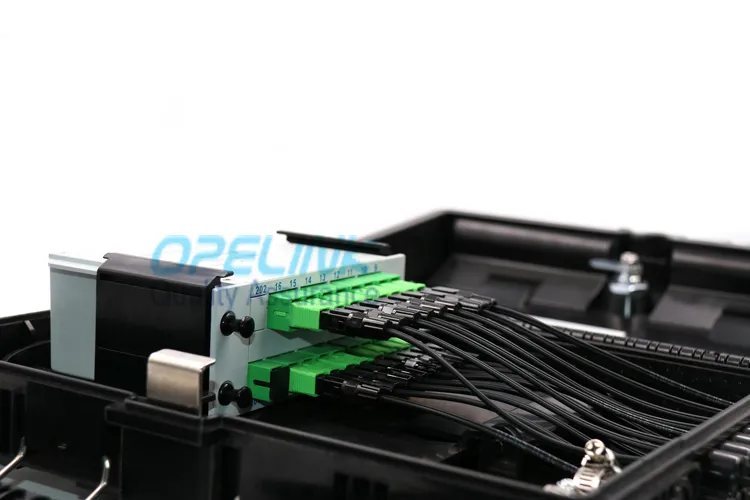

- Can be installed 1:8 1:12 1:16SC or 1:16 1:24 1:32LC Mini- splitter;
- LC biggest for 32 core, SC biggest for 16 core.
1.Environmental requirement
Working temperature. -40ºC~+85ºC
Relative humidity: ≤85% (+30ºC)
Atmospheric pressure: 70KPa~ 106Kpa
2.Thunder-proof technical datasheet
The grounding device is isolated with the cabinet, isolation resistance is less than 2x104MQ/500V (DC)
IR≥2 x 104 M Q /500V
The withstand voltage between grounding device and cabinet is no less than 3000V (DC) /min, no puncture, no flashover;U≥3000V
3. Cable fixing

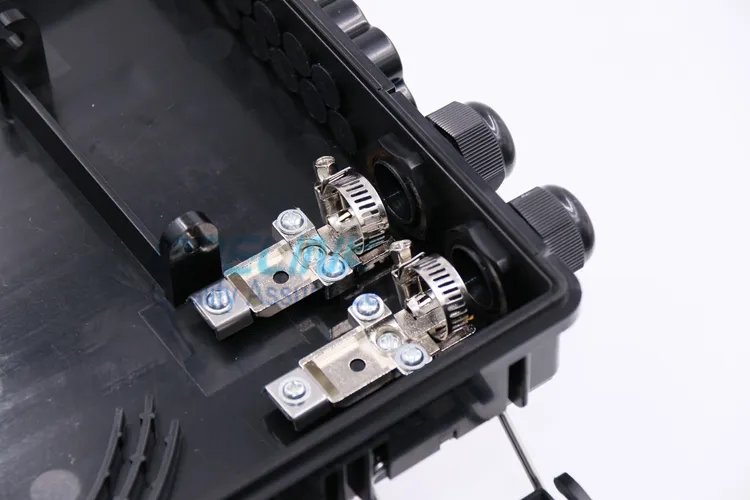

Will stripping cable inserted into the hole good fiber optic cable, through the hose hoops and cable strengthen core placed to strengthen the core press block press tightly, and then the cable fixed with stainless steel hose hoops.
4.Optical fiber connection

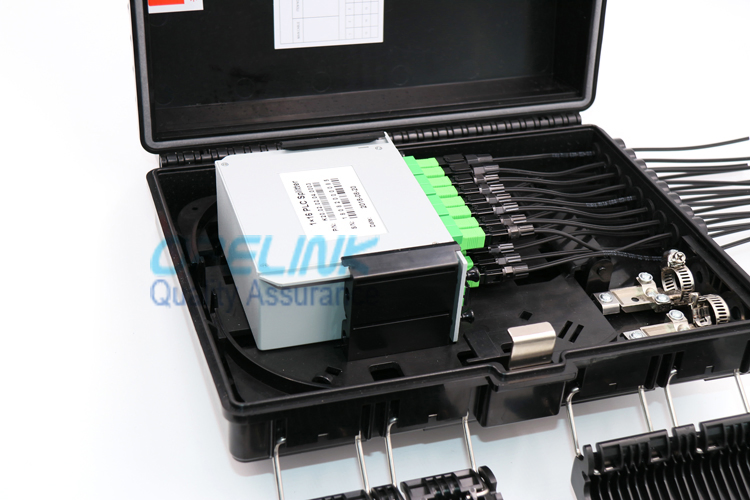

According to the picture shows to pigtail or splitter (input) welding and welding after the completion of the layout will be in accordance with pictures of optical fiber, pigtail,heat shrinkable protective sleeve and splitter is put to the corresponding position and be fixed, take fiber with protective coat and pigtail end with nylon tie fixed,the heat shrinkable protective sleeve useful rubber cover plate fixed, the splitter used double-sided tape fixed, finally cover the transparent plate.
5.Fiber outlet holes sealing
Step1. Path cord (outlet) according to insert the order of the adapter ordinal put corresponding slots;
Step2. Take out path cord (outlet) sealing ring, will do the path cord (outlet) package closely;
Step3. Will do the path cord(outlet) sealing ring from the corresponding pressed into the slots, to the bottom;
Step4. Plug of fiber outlet holes have acted the path cord (outlet ) of the part to cut off;
Step5. Cut the plug will be prepared from terminal box external to the fiber outlet holes into within;
6.Installation fixing
A.Wall-mounting installatin(standard configuration)
According to your drawings on the wall a crossed punch, and then will plastic expand into flush with metope;
By tapping screws twist into plastic expand, to tapping screws tail and metope 4 mm distance;
Will do the base of lock hole big head the most standard of screw into, and down lock.
-------------------------------------------------FAQ-------------------------------------------------
Q1. Can I have a sample order for this product? What' MOQ of it?
A: Yes welcome send sample order for test. MOQ is 1 piece.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.
Q3: What' s the payment term
A: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is negotiable.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5: What' s the freight of it?
A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost effective method for you.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty according to different products.
Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.
