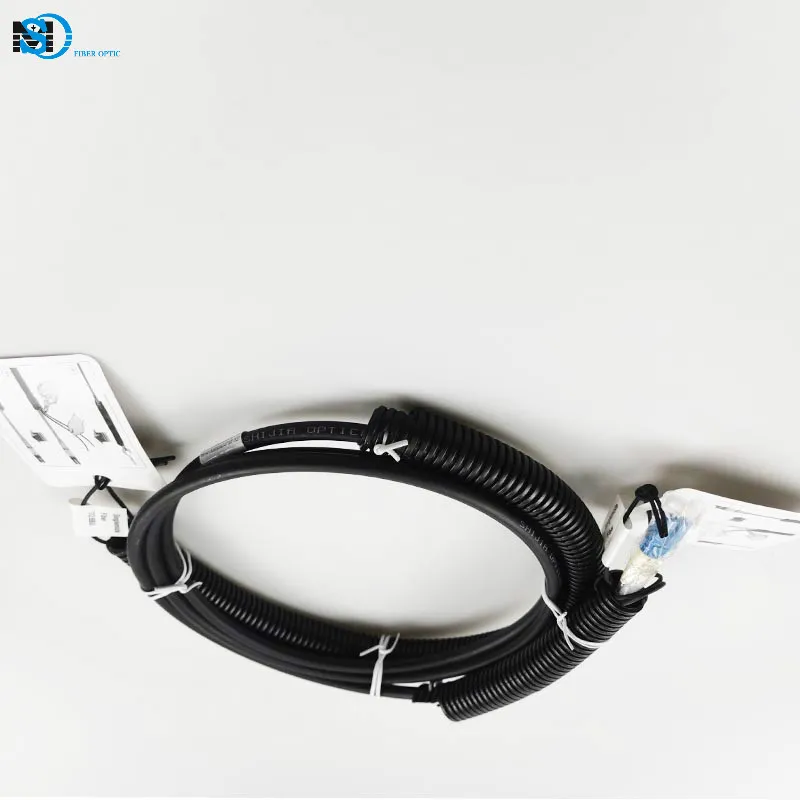

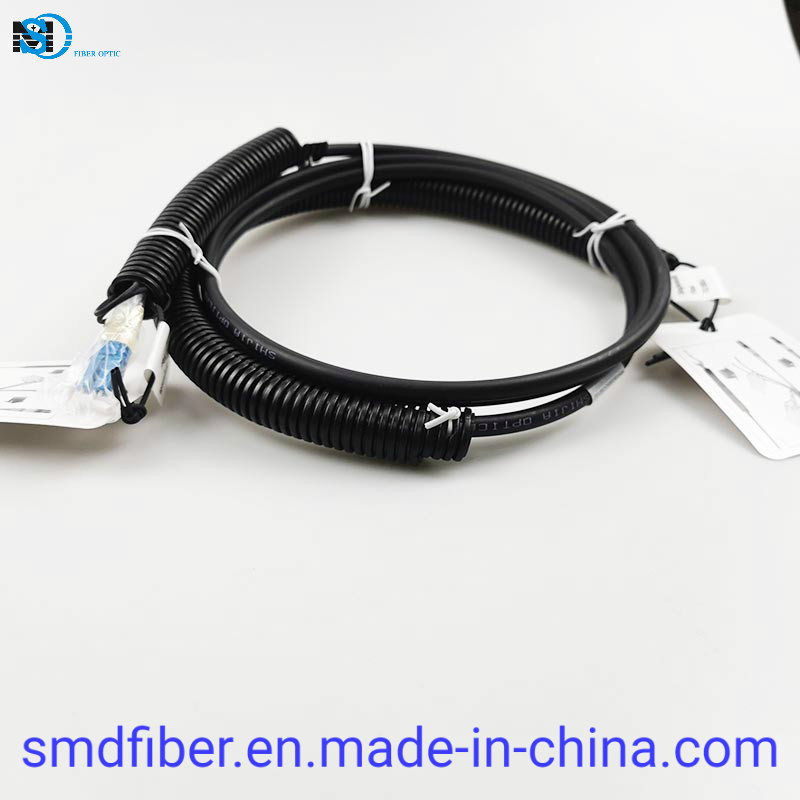

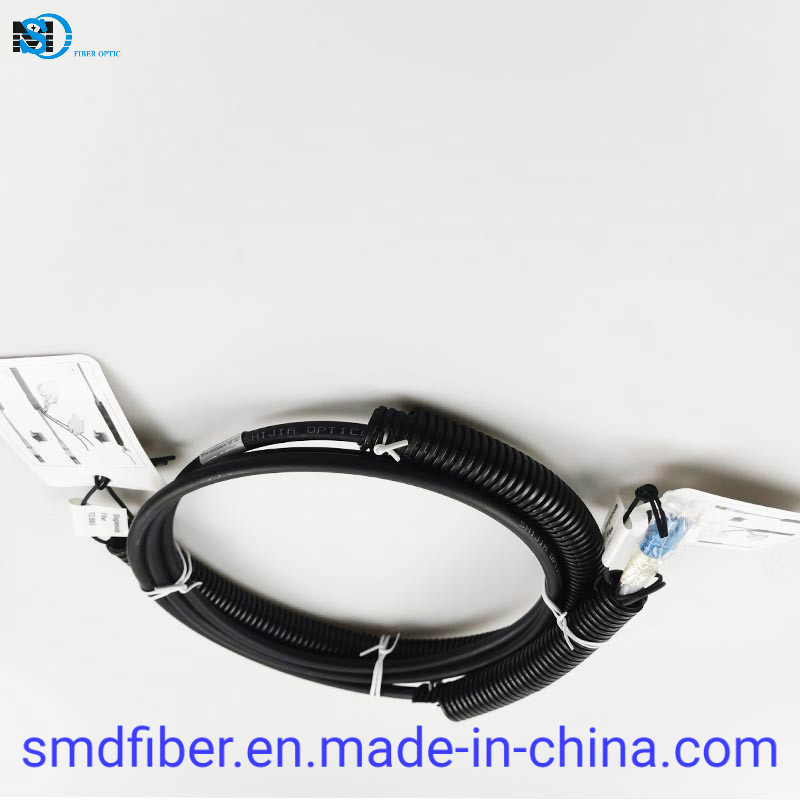

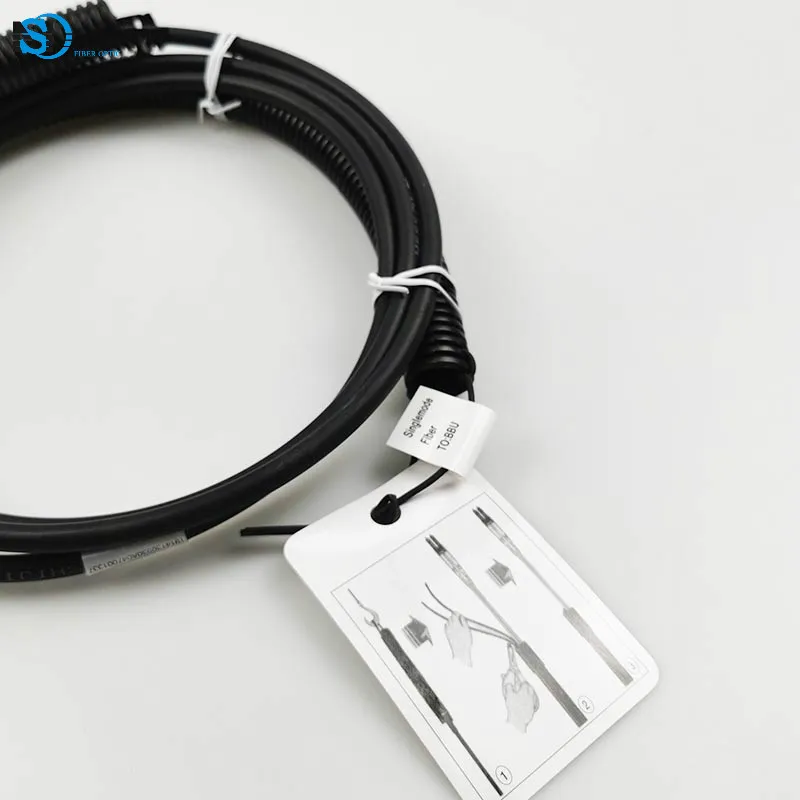

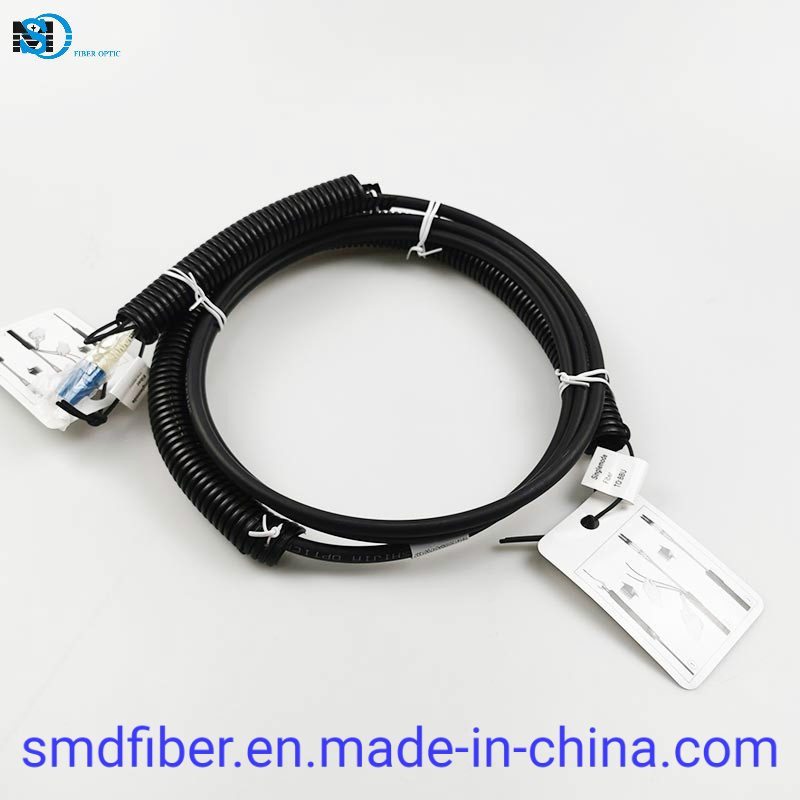

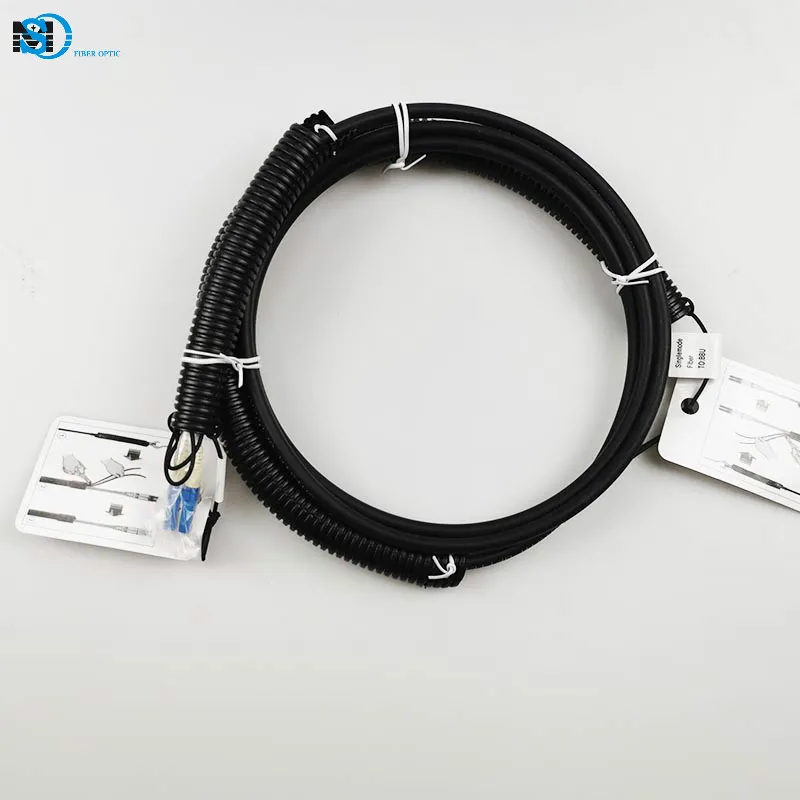

7.0mm Dlc-Dlc Armoured Patchcord Huwei Type IP67 Waterproof Connector for Ftta
7.0mm DLC-DLC Armoured Patchcord Huwei type IP67 waterproof connector for FTTA Feature* IP65 protection, salt-mist proof* Easy, reliable and cost-effective installation* The connector of side-A is duplex LC, and side-B can be LC, SC or FC* Thread structure guarantees the trusted connectionApplicat......
Send Inquiry
Product Description
* IP65 protection, salt-mist proof
* Easy, reliable and cost-effective installation
* The connector of side-A is duplex LC, and side-B can be LC, SC or FC
* Thread structure guarantees the trusted connection
* Insertion Loss (dB): <=0.2db
* Return Loss (dB): MM=>35dB; SM=>50dB
* Length (M): 1-300 meters
* Equipment diagnosis
* FO sensor
* TTA ,FTTP, FTTX,WIMAX
* BBU, RRU, RRH, LT
Item | Technology parameter |
Cable type | GYFJH-2A1a,Φ7.0mm |
The cable weight Kg/km | 43 |
The OD of sheath mm | 7.0(+0/-0.2) |
The material of sheath | LSZH |
The thick of sheath mm | 1.0±0.1 |
The color of sheath | black |
The minimum bending radius mm | 10D |
Attenuation dB/km | ≤1.5 at 1300nm,≤ 3.5 at 850nm |
Short tension N | 400 |
Short crush N/100mm | 1000 |
Using temperature ºC | -40~+85 |
Sub-unit Technology parameter | |
The color of tight layer | Nature |
The material of tight layer | LSZH |
The OD of tight fiber mm | 0.90±0.05 |
Fiber specification( multimode) | 50/125 |
Strength member in sub-unit | Aramid yarns |
The OD of sub-unit mm | 2.0 (out diameter control 1.9±0.1mm) |
The color of sub-unit | Gray,Orange |
The material of sub-unit | LSZH |
The color of filler | black |
The material of filler | LSZH |
The OD of filler | 2.0 (out diameter control 1.9±0.1mm) |
Strength member in sub-unit | Aramid yarns |
