ADSS Fiber Cable

ADSS Cable


Description:
ADSS cable is the short form for All-dielectric Self-supporting Optical Cable. ADSS fiber optic cable is loose tube stranded;

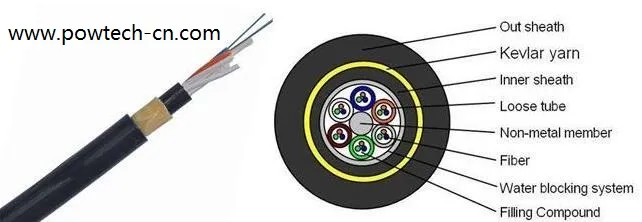

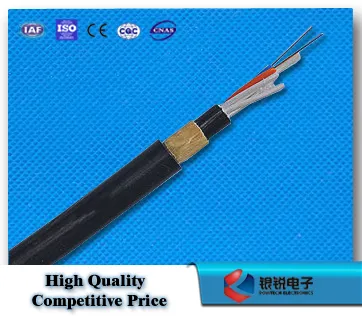

ADSS Cable Structure:
1. Optical fiber cable
2. Fiber jelly
3. PBT loose tube
4. Filling compound
5. Central strength member FRP
6. Filling rope
7. PE inner sheath
8. Aramid yarn
9. Outer sheath

Notes: The use of power corrosion resistant sheaht is depended on power of ADSS optical fiber cable
PE shealth is used when power is less than or equal to 12KV;
Power corrosion resistant sheath (AT sheath) is used when power is more than 12KV.

ADSS Cable laying mode: Self supporting overhead
ADSS Cable operation temperature: -40C~ +65 degreeC
ADSS Cable Features:
(1) Lightweight and small diameter reduces the impact of ice and wind, and their impact on tower and supporter.
(2) Large span length: Max span>1000 meters, and the optical cable can be installed without electrical outage.
(3) Project design added (sag-tension, field intensity calculation, hanging point selection, hardware fittings configuration).

Cable technical Data:
Rated tensile strength (RTS): 95 RTS
Max allowable: 40%RTS
Everyday stress(EDS): 25%RTS
Ultimate operation strength (UOS): 60%RTS
Minimum bending radius: Static 15D
(D: Cable outer diameter mm): Dynamic 25D
Allowable crush load (N/100mm): 2200

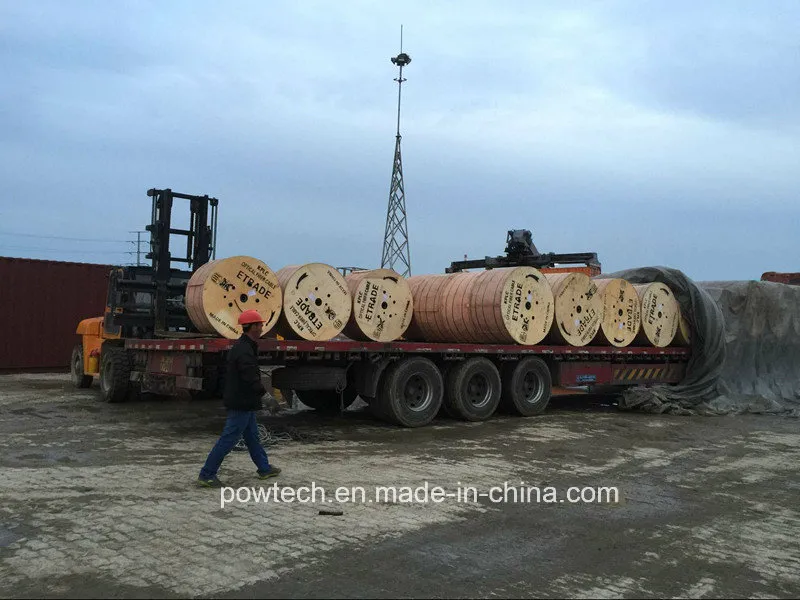

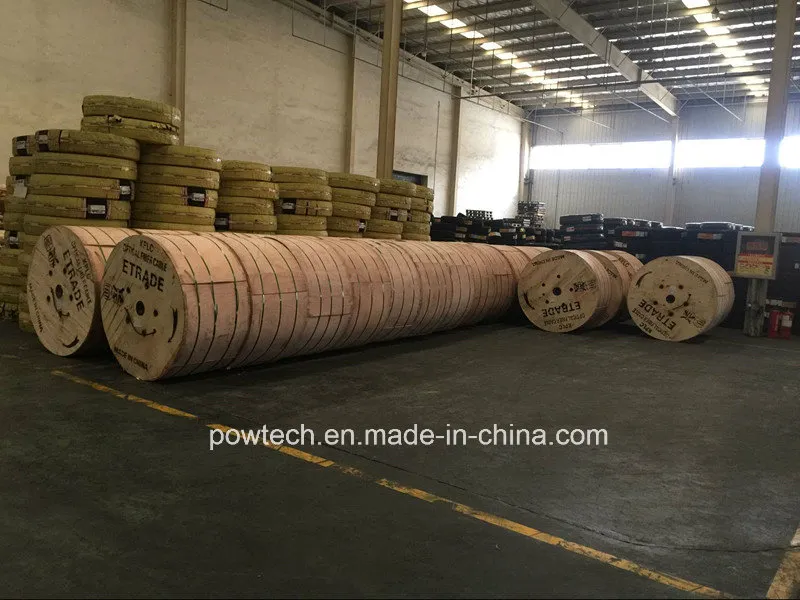

Package&Shipment:

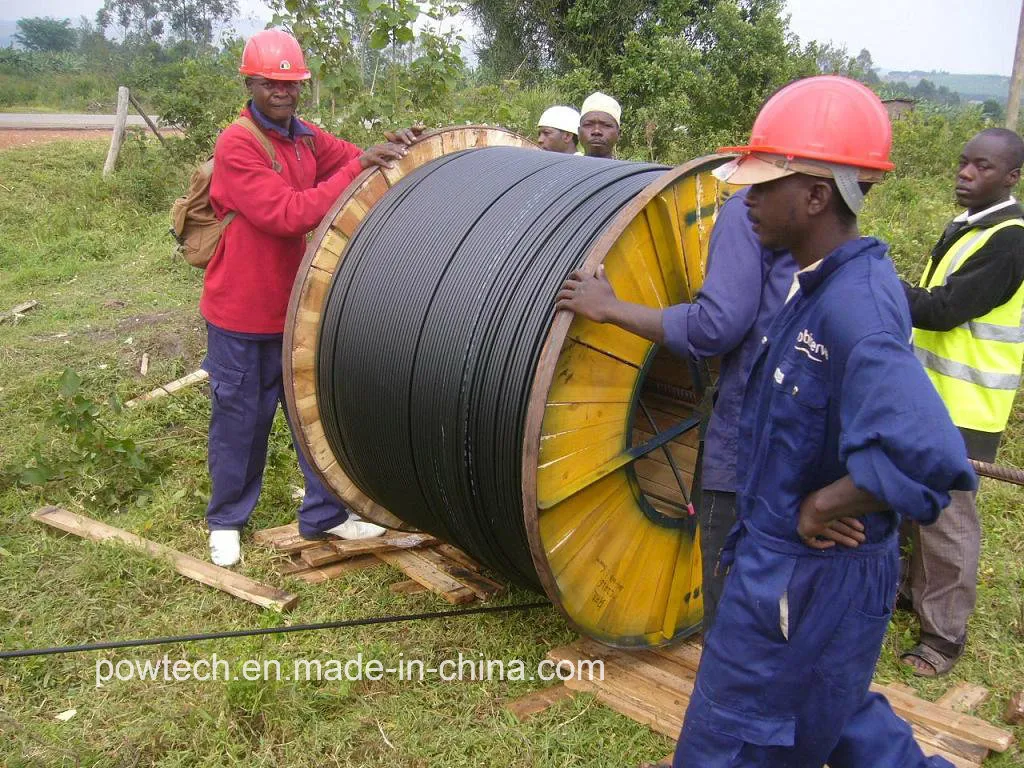

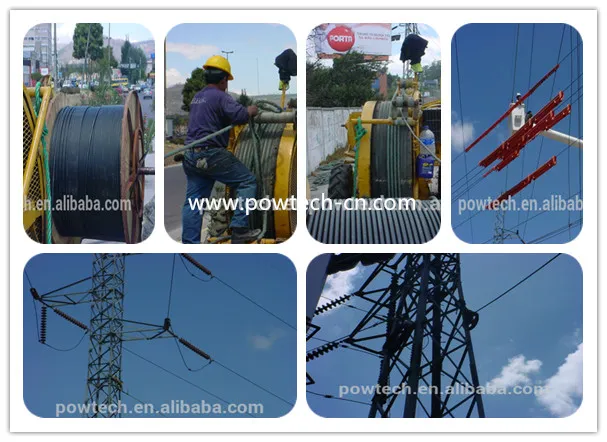

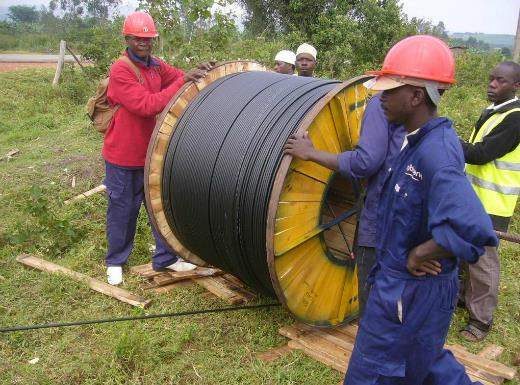

Installation Guide:
