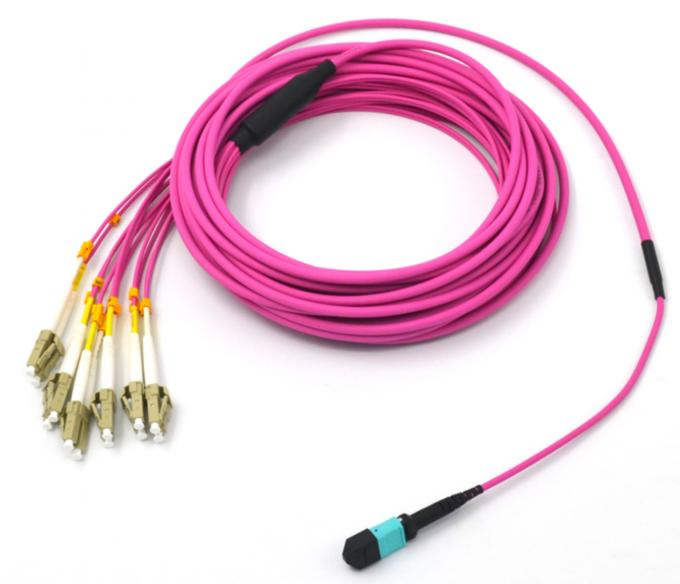

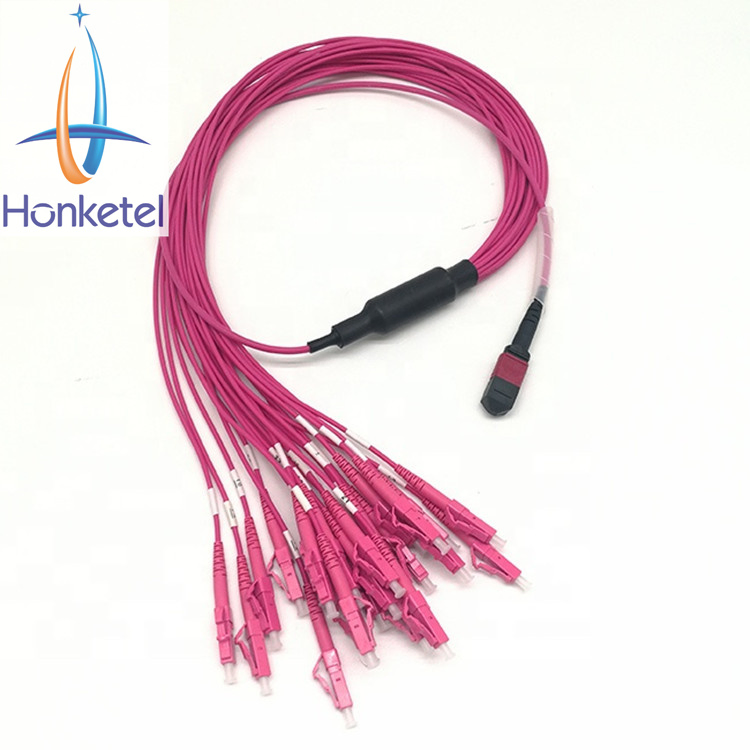

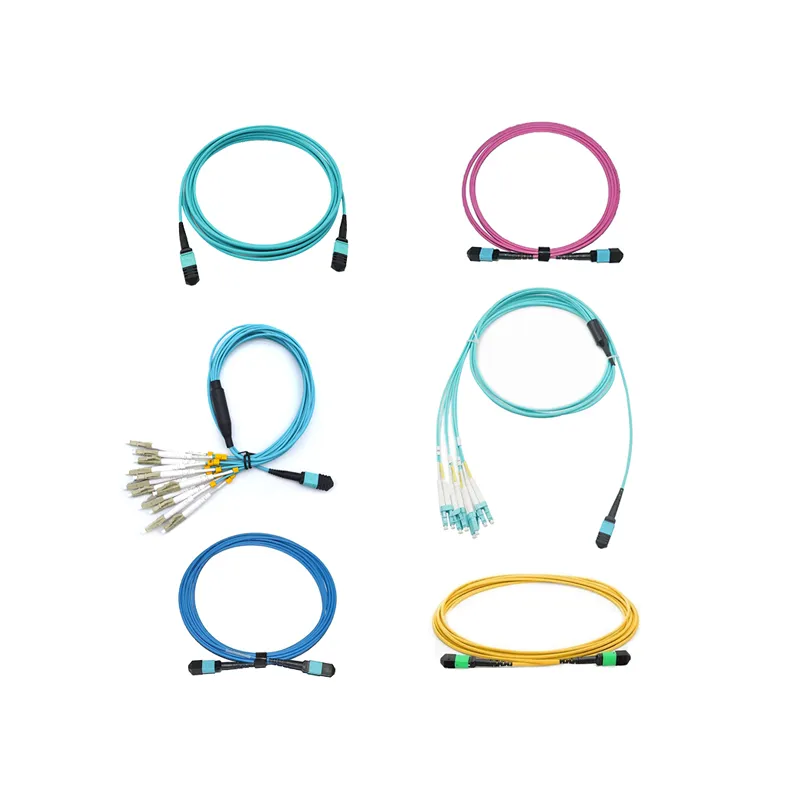

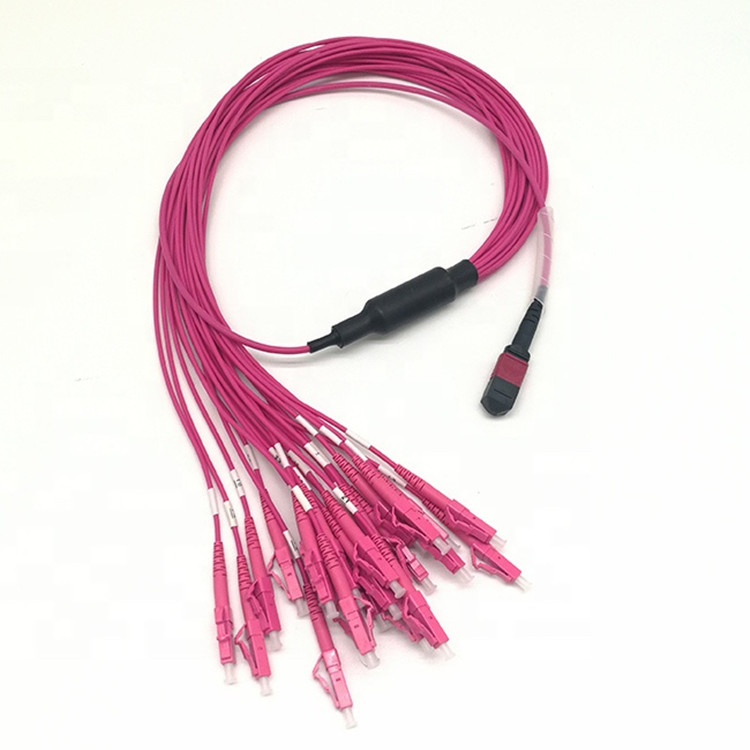

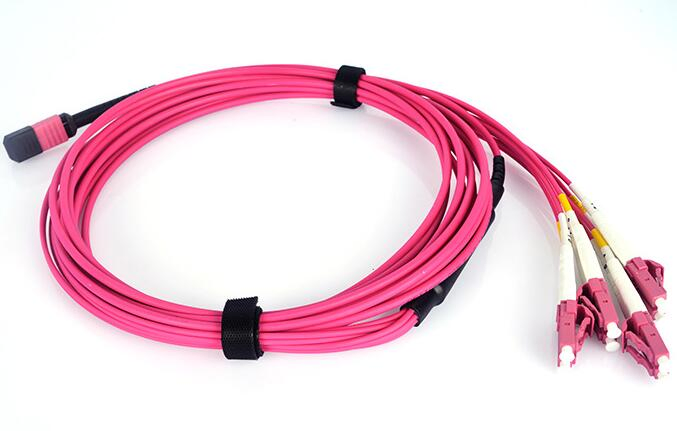

Fiber Optic Patch Cord MPO-LC MTP-LC OM4 12C 24C Trunk Cable
Description:

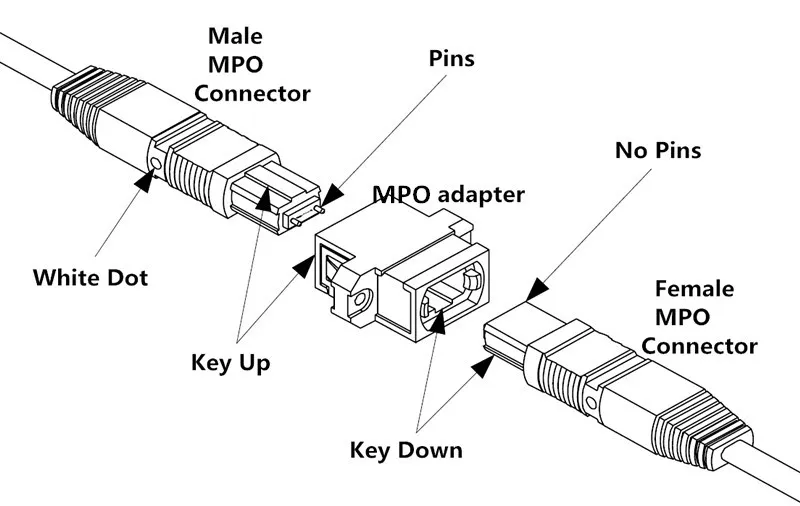

MPO/MTP patch cord are designed to high density multi fibers solutions, fit for different installation environment and easy to in-stall between the trunk line, data centers and buildings. Our patch cord are 100% factory tested and can meet your special requirements. All the MPO/MTP connects comply with Telcordia GR-1435-Core Compliant.
Features:
High performance in Insertion loss & Return Loss 100% pre-terminated tested.
Supports 40G and 100G network applications.
Jacket material: LSZH, OFNR, OFNP available.
Jacket color: Aqua, Yellow or customize.
Supports up to 4F,8F,12F, 24F, 48F, 72F, 96F, 144F, customized products are available.
Application:
Active dvice termination
Telecommunication networks
Metro
Local Area Networks (LANs)
Data Processing networks
Test Equipment
Premise installations
Wide Area Networks (WANs)
Description:
MPO/MTP patch cord are designed to high density multi fibers solutions, fit for different installation environment and easy to in-stall between the trunk line, data centers and buildings. Our patch cord are 100% factory tested and can meet your special requirements. All the MPO/MTP connects comply with Telcordia GR-1435-Core Compliant.
Features:
High performance in Insertion loss & Return Loss 100% pre-terminated tested.
Supports 40G and 100G network applications.
Jacket material: LSZH, OFNR, OFNP available.
Jacket color: Aqua, Yellow or customize.
Supports up to 4F,8F,12F, 24F, 48F, 72F, 96F, 144F, customized products are available.
Application:
Active dvice termination
Telecommunication networks
Metro
Local Area Networks (LANs)
Data Processing networks
Test Equipment
Premise installations
Wide Area Networks (WANs)
| Specification | ||
| Spec items. | Single mode (APC 8-degree polished) | Multimode (PC Flat polish) |
| Insertion loss (MPO) | Standard MPO:≤0.75dB(max), ≤0.35dB(Typical) | Standard MPO:≤0.6dB(max), ≤0.35(Typical) |
| (IEC 61300-3-34) | Elite MPO:≤0.35dB(max), ≤0.20dB(Typical) | Elite MPO:≤0.35dB(max) , ≤0.20dB(Typical) |
| Return loss(MPO) | ≥60dB(8degree polishing) | ≥25dB |
| Durability | <0.3dBtypical change, 200 matings | |
| Interchangeability | ≤0.2dB | |
| Tensile strength | >70N | |
| Operating Temperature | -40 to + 85°C | |
