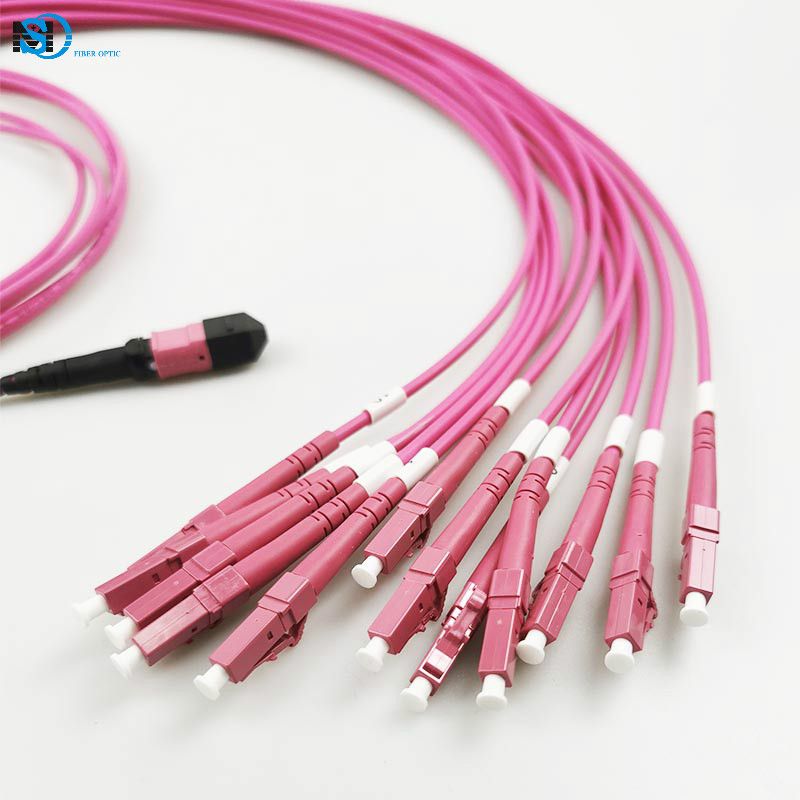

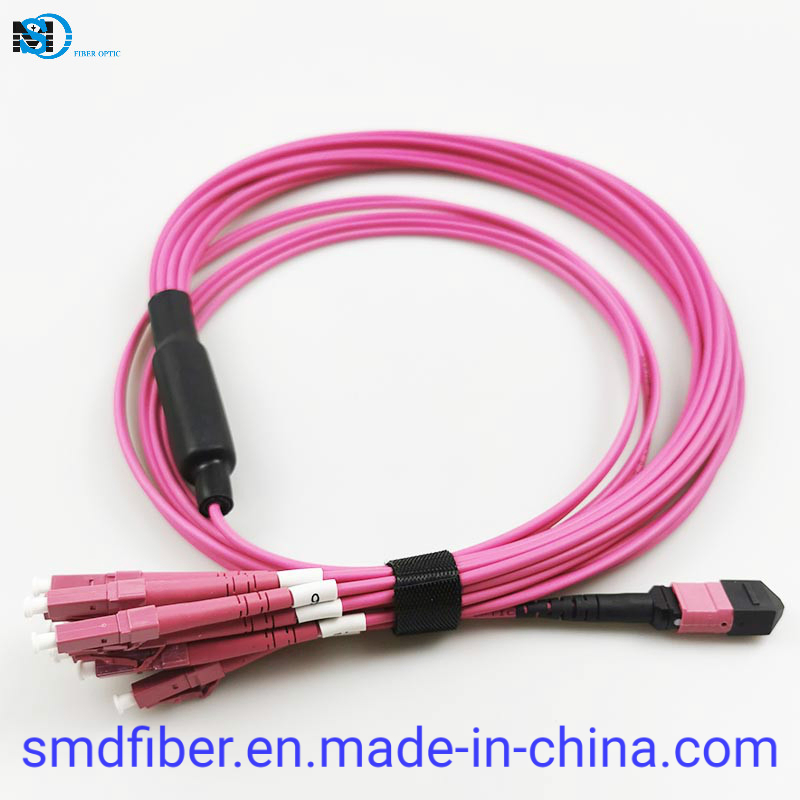

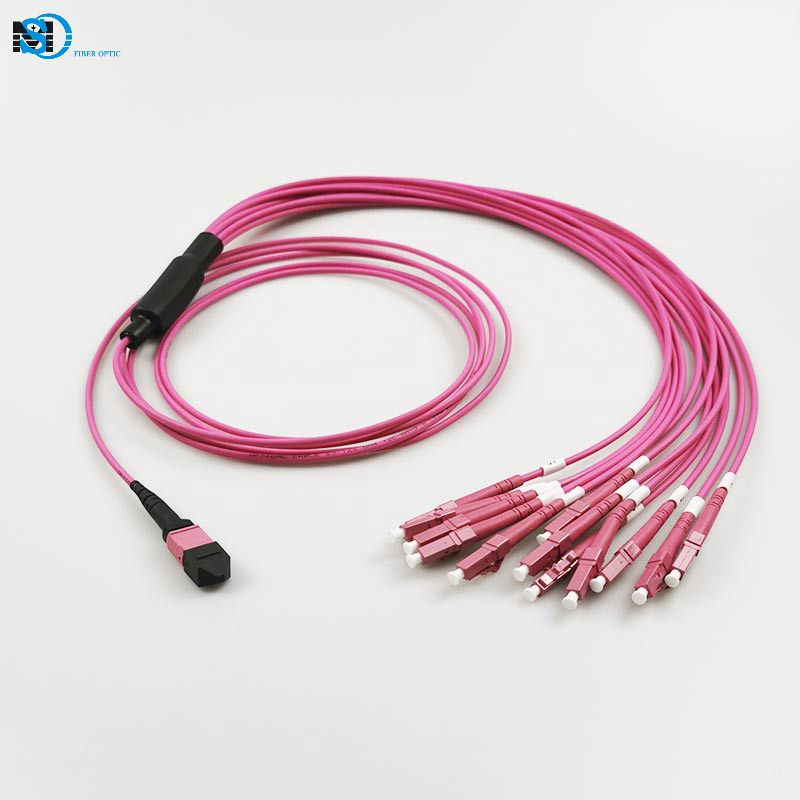

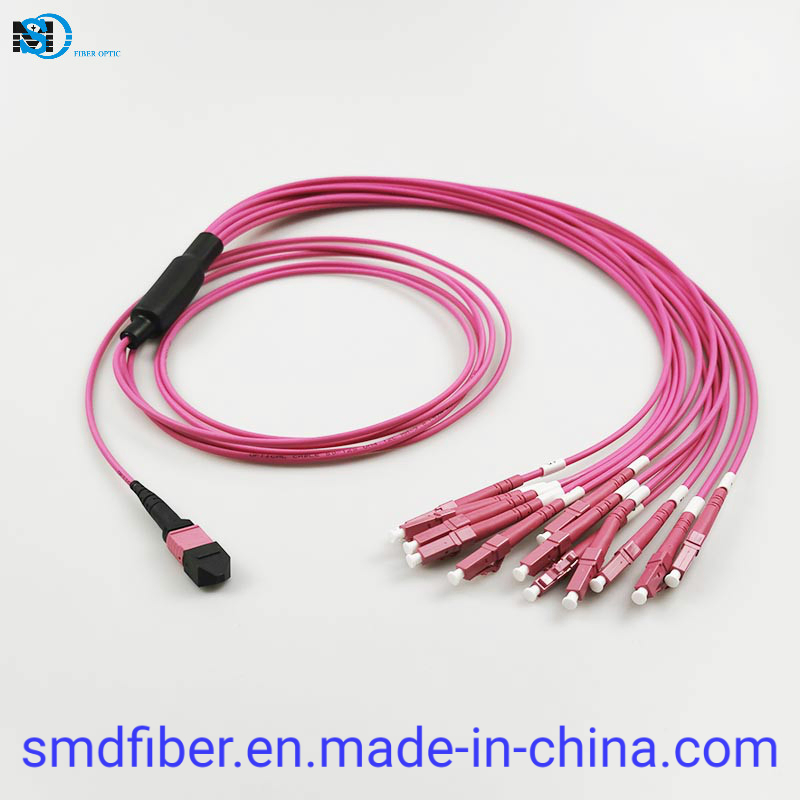

China Fiber Optic Patch Cord MPO MTP Male Female to LC Upc 12c 12 Core Om4 Single Mode Sm PVC LSZH 0.9mm 2.0mm 3.0mm

Product Description

Fiber Optic Patch Cord MPO MTP Male Female to LC UPC 12C 12 Core OM4 Single Mode SM PVC LSZH 0.9mm 2.0mm 3.0mm

· 4Fibers, 8Fibers, 12Fibers or 24Fibers version on request;
· UPC or APC polish available;
· Any other connector type at another side upon request;

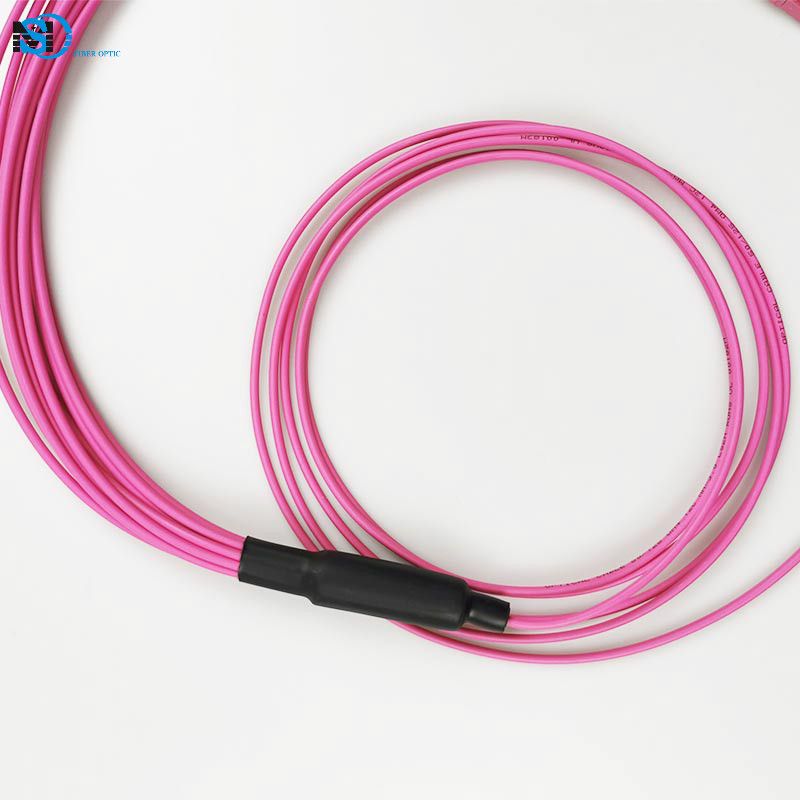

· Fan-out on request;
· Superior quality standard /UPC/APC polishing;

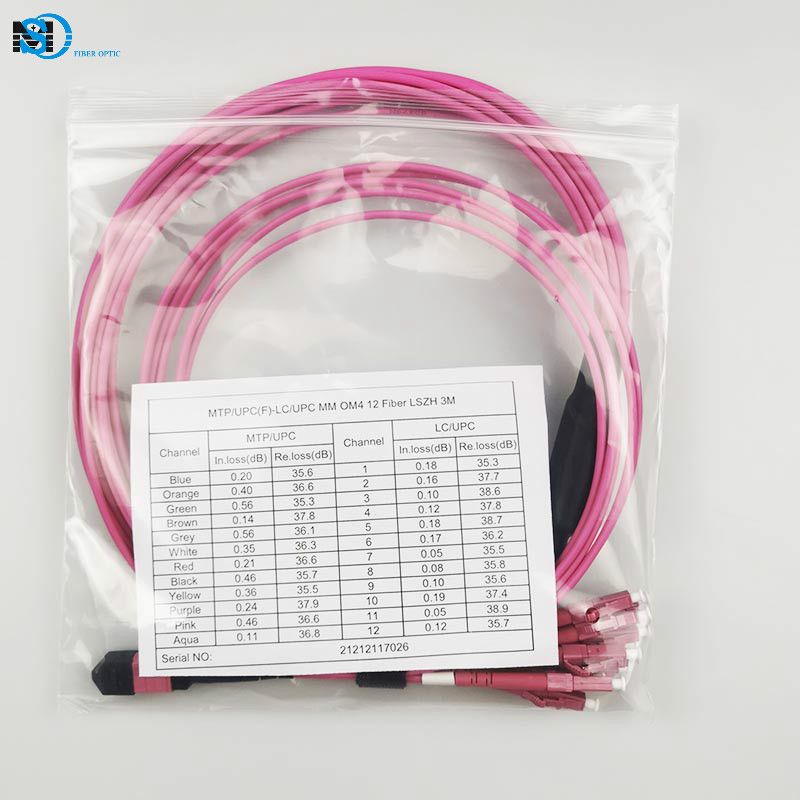

· 100% factory test (Insertion Loss & Return Loss);

· Telecommunication networks
· Metro
· Local Area Networks (LANs)
· Data processing networks
· Test equipment
· Precise installations

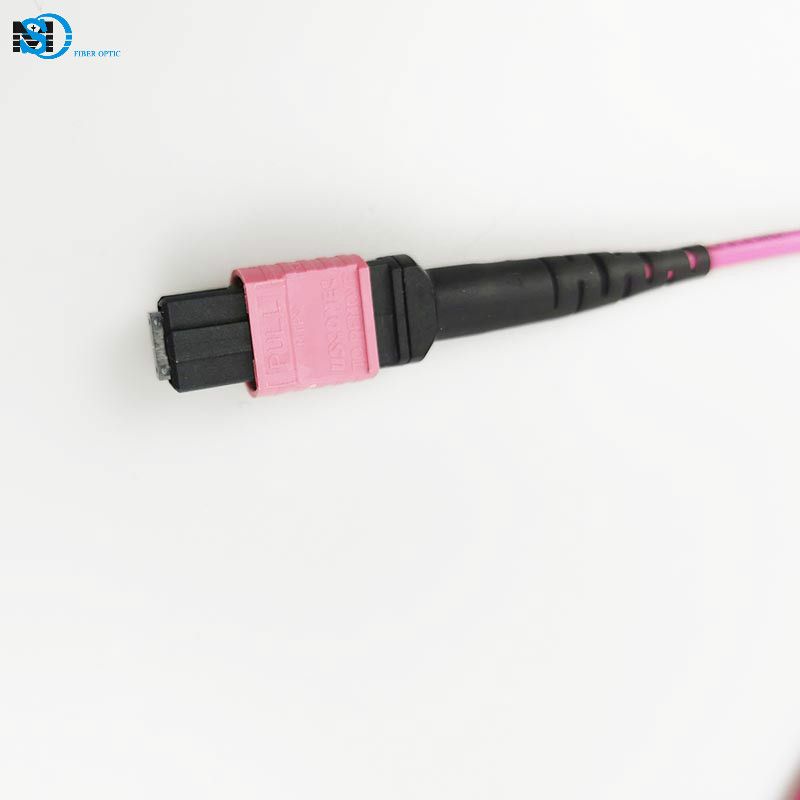

Connector Type	Fiber MPO/MTP (non-pinned)
Ferrule of end-face	UPC(MM); APC(SM)
Housing Color	MM (Beige), MM Elite (Aqua), SM (Yellow/Green)
Insertion Loss, Typical	≤ 0.10 dB
Insertion loss, max.	≤ 0.35 dB
Durability(500 Matings)	< 0.2dB

Fiber Type	OS2, OM1, OM2, OM3, OM4
Fiber Count	12, 24, 48, 72, 96, 144 cores
Cable Outer diameter	12cores:4.5±0.2mm ; 24cores:5.4±0.2mm
Outer jacket Color	OS2(Yellow),OM2(Orange),OM3(Aqua),OM4(Violet)
Outer jacket material	LSZH,OFNP,OFNR
Tensile strength	500N
Operating Temperature	-20 ~ +60°C
Storage Temperature	-40 ~ +70°C
