LC/PC Simplex Od 2mm Sm OS1 3m 9/125 Fiber Optic Patch Cord
LC/PC Simplex OD 2mm SM OS1 3m 9/125 Fiber Optic Patch Cord A patch cord is a fiber optic cable used to attach one device to another for signal routing.LC stands for Lucent Connector. It is a small form-factor fiber optic connector, half the size of the ST.The OM3 50/125 multimode fiber optic cables......
Send Inquiry
Product Description

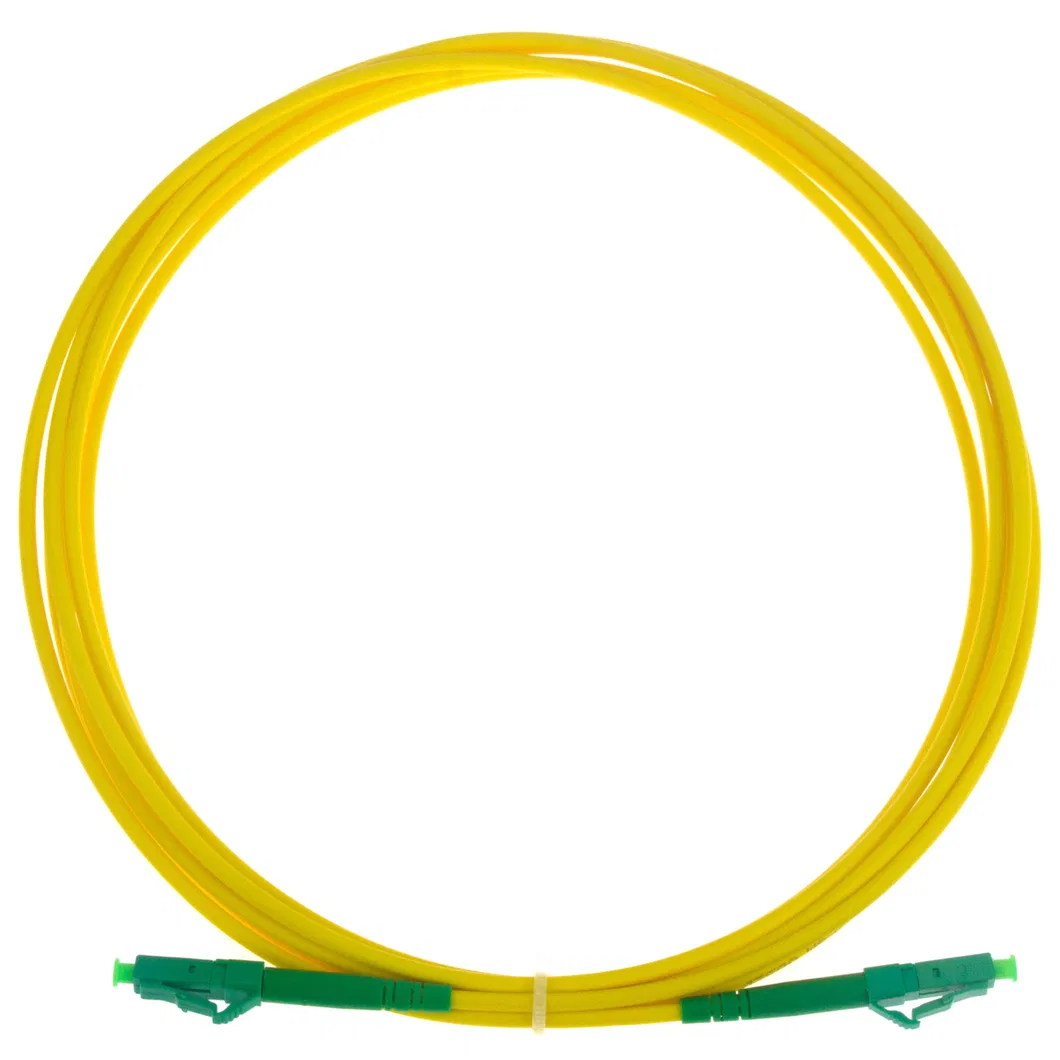

LC/PC Simplex OD 2mm SM OS1 3m 9/125 Fiber Optic Patch Cord
A patch cord is a fiber optic cable used to attach one device to another for signal routing.
LC stands for Lucent Connector. It is a small form-factor fiber optic connector, half the size of the ST.
The OM3 50/125 multimode fiber optic cables compliant to ISO/IEC 11801 standards. They are used for 10Gbps networks to meet the requirement of continuous growing of high data rates.
Features:
Low insertion loss and high return loss
Small, light, high dense connection
Good exchangeability
High credibility and stability
Support 10 Gigabit data transmitting rates
MM cables type
FC, LC, SC, MU, ST, MTRJ, E2000, MPO optional
Polishing: PC, UPC and APC
Meets IEC standard
Applications:
Telecommunication networks
Fiber optic communication networks
CATV, LAN, MAN, WAN, Test &Measurement
Military industry
Testing equipment
Optical access network
Specification:
A patch cord is a fiber optic cable used to attach one device to another for signal routing.
LC stands for Lucent Connector. It is a small form-factor fiber optic connector, half the size of the ST.
The OM3 50/125 multimode fiber optic cables compliant to ISO/IEC 11801 standards. They are used for 10Gbps networks to meet the requirement of continuous growing of high data rates.
Features:
Low insertion loss and high return loss
Small, light, high dense connection
Good exchangeability
High credibility and stability
Support 10 Gigabit data transmitting rates
MM cables type
FC, LC, SC, MU, ST, MTRJ, E2000, MPO optional
Polishing: PC, UPC and APC
Meets IEC standard
Applications:
Telecommunication networks
Fiber optic communication networks
CATV, LAN, MAN, WAN, Test &Measurement
Military industry
Testing equipment
Optical access network
Specification:
Parameter | Unit | Standard & Requirement |
Insertion loss | dB | ≤0.20 |
Changeability | dB | ≤ 0.20dB |
Radius of curvature | nm | 10 ≤ r ≥25 |
Curvature eccentricity | um | <50 |
Fiber core undercut | nm | <50 |
Insertion loss change | dB | < 0.1 |
Return loss change | dB | < 5 |
Insert & pull out (Max.) | kg | 2 |
Insert and pull frequency | Time | > 1000 |
Operating temperature | ºC | -40~+85 |
