LC SC fiber optic connector loopback
1,BRIEF INTRODUCTION
Fiber Optic Loopback connnector provides a media of return path for a signal, no matter the signal is for testing purposes or network
restoration. In the caseof testing, the loopback signal is used for diagnosing a problem. Sending a loopback test to network equipment
, one at a time, is a technique for isolating a problem. Its performance is as good as that of a general. Available type including SC,
MT-RJ, MU and LC. Bare fiber, 0.9mm cable, 2.0/3.0mm cable are all available.

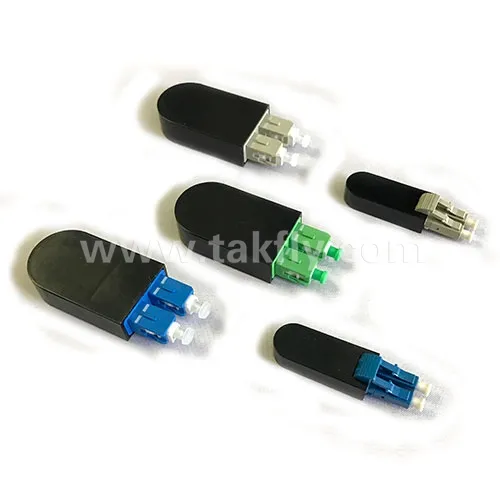

Loopback connector series

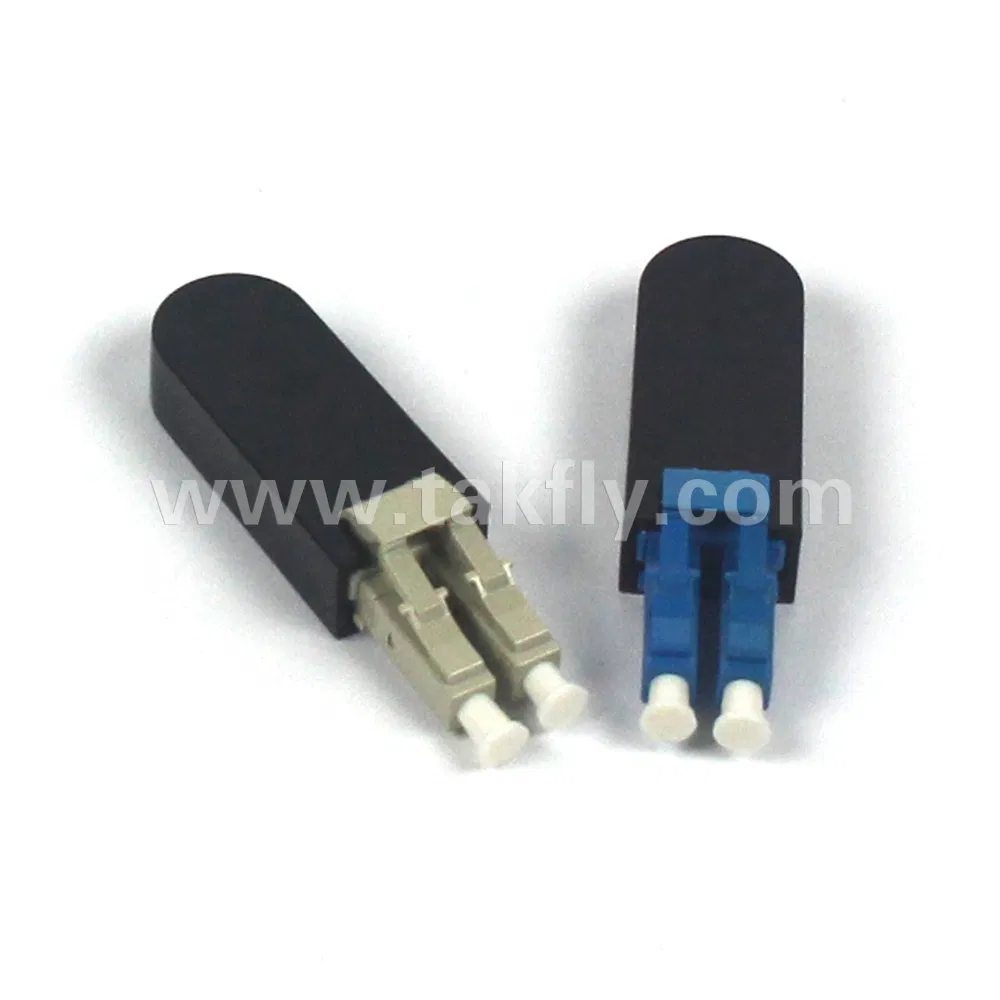

LC loopback connecter type.

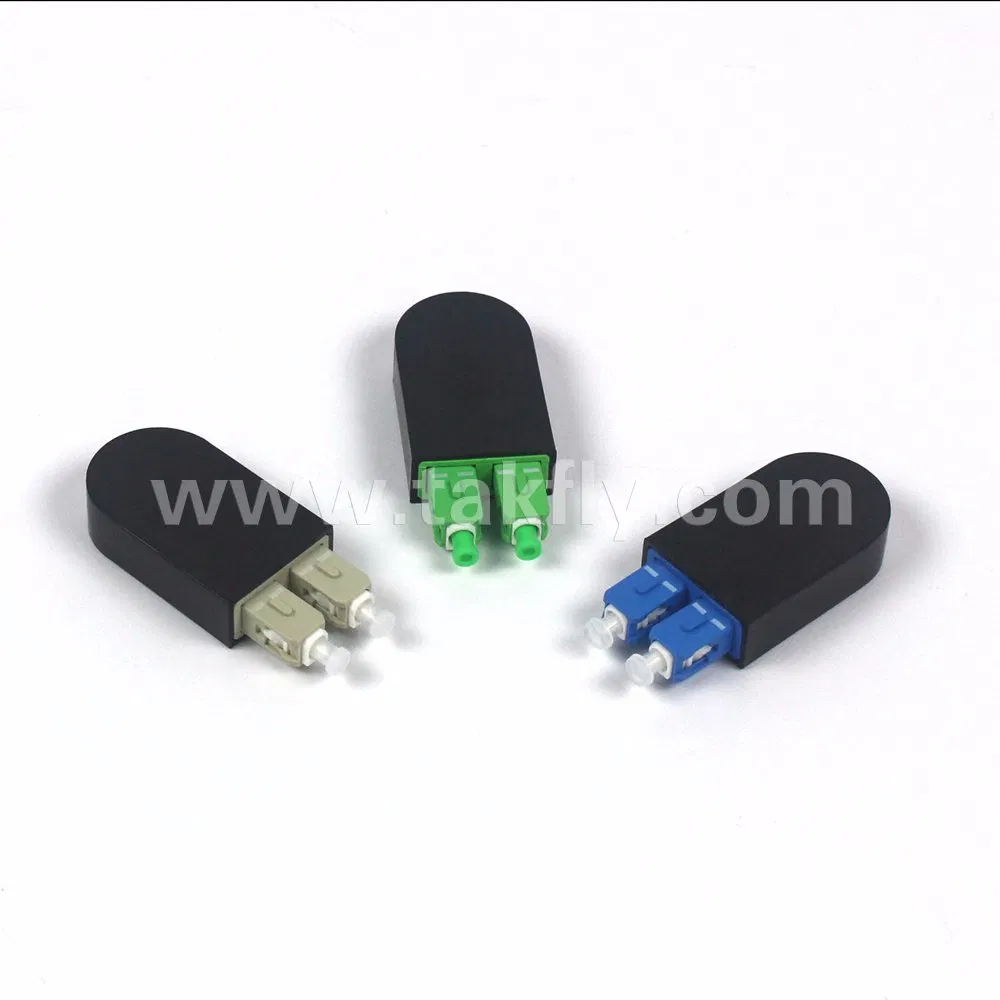

SC loopback connector type
2,FEATURES
Low insertion loss and high return loss
Good exchangeability and durability
Compact design Short wavelength devices
Compatible with Fast Ethernet
Fiber Channel, ATM, and Gigabit Ethernet
3,APPLICATIONS
Device pig-tailing
Premise networks
Patch panel applications
Communications connections
Equipment interconnection
Loopback for network components testing
4,SPECIFICATIONS
1,BRIEF INTRODUCTION
Fiber Optic Loopback connnector provides a media of return path for a signal, no matter the signal is for testing purposes or network
restoration. In the caseof testing, the loopback signal is used for diagnosing a problem. Sending a loopback test to network equipment
, one at a time, is a technique for isolating a problem. Its performance is as good as that of a general. Available type including SC,
MT-RJ, MU and LC. Bare fiber, 0.9mm cable, 2.0/3.0mm cable are all available.

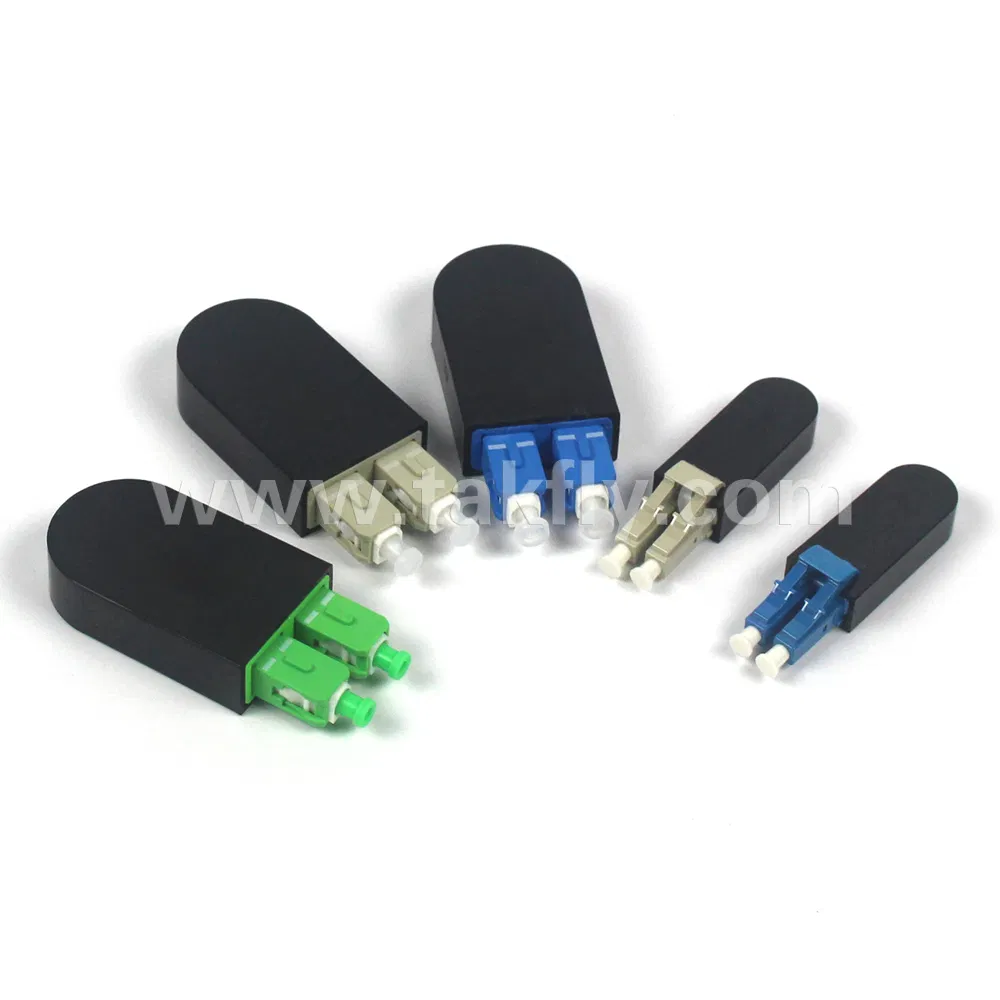

Loopback connector series
LC loopback connecter type.
SC loopback connector type
2,FEATURES
Low insertion loss and high return loss
Good exchangeability and durability
Compact design
Compatible with Fast Ethernet
Fiber Channel, ATM, and Gigabit Ethernet
3,APPLICATIONS
Device pig-tailing
Premise networks
Patch panel applications
Communications connections
Equipment interconnection
Loopback for network components testing
4,SPECIFICATIONS
| ITEM | PARAMETER | |
| Single mode | Multi-mode | |
| Test wavelength | 1310nm, 1550nm | 850nm, 1300nm |
| Insertion Loss | typical≤0.20dB,Max≤0.30dB | typical≤0.40dB,Max≤0.50dB |
| Return Loss | UPC≥50.0dB,APC≥60.0dB | ≥35.0dB |
| Repeatability | ≤0.10dB | |
| Interchangeability | ≤0.20dB | |
| Durability | ≤0.20dB typical change,1000 mating | |
| Operating Temperature | -20ºC to +70ºC | |
| Storage Temperature | -40ºC to +85ºC | |
