MPO Attenuator for Data Transmission
Description:KOC MPO Attenuator is used to reduce optical-signal electric power in all channels of 40/100G Parallel Optic Transmission, and other equipment with using MPO interconnection. Technique of this product makes network's composition more concise than those of conservative way which is th......
Send Inquiry
Product Description
Description:
KOC MPO Attenuator is used to reduce optical-signal electric power in all channels of 40/100G Parallel Optic Transmission, and other equipment with using MPO interconnection. Technique of this product makes network's composition more concise than those of conservative way which is the connection method of attenuator independently in each channel, as downsizing the volume and saving time. This MPO Attenuator meets TIA/EIA 604-5. And IEC 61754-7 with compliance for RoHS.
Features:
High Stability and High Durability
Compact Housing Dimension
QSFP Available (Option of female/mate type of MPO connector)
RoHS Compliant
Applications:
Data Center Infrastructure
Storage Area Network and Fiber Channel
Various 40G and 100Gbps Protocols
Specifications:
Pictures:
Our Sevice:
We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
About KOC
Shenzhen KOC Communication Co., Ltd. is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.
Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.
Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.
FTTH System: Gpon: OLT, ONU, PLC
Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.
Thank you for viewing!
Please feel free to contact us if you have any questions!
Welcome to visit our website:http://kocchina.en.made-in-china.com
KOC MPO Attenuator is used to reduce optical-signal electric power in all channels of 40/100G Parallel Optic Transmission, and other equipment with using MPO interconnection. Technique of this product makes network's composition more concise than those of conservative way which is the connection method of attenuator independently in each channel, as downsizing the volume and saving time. This MPO Attenuator meets TIA/EIA 604-5. And IEC 61754-7 with compliance for RoHS.
Features:
High Stability and High Durability
Compact Housing Dimension
QSFP Available (Option of female/mate type of MPO connector)
RoHS Compliant
Applications:
Data Center Infrastructure
Storage Area Network and Fiber Channel
Various 40G and 100Gbps Protocols
Specifications:
| Parameter | Conditions |
| Operation Wavelength | 1310/1550nm |
| Attenuation Tolerance | ±1dB( at 2-10dB), ±10%( at 11-20dB) |
| Return Loss | 60dB(8°Polishing, SM) |
| Operating Temperature | -25°C~75ºC |
| Attenuation | 1~20dB |

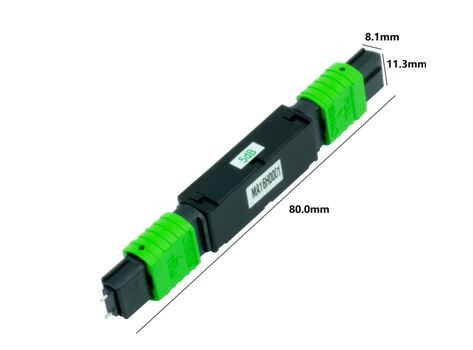

| Housing Dimension | Height 8.1 mm/Length 80.0mm/Width 11.3mm |
Pictures:
Our Sevice:
We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
About KOC
Shenzhen KOC Communication Co., Ltd. is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.
Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.
Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.
FTTH System: Gpon: OLT, ONU, PLC
Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.
Thank you for viewing!
Please feel free to contact us if you have any questions!
Welcome to visit our website:http://kocchina.en.made-in-china.com
