MPO-St/LC 0.9mm Optical Fiber Casstte Type Patchcord
Optical Fiber MPO patch cord Product NameMPO-ST/LC 0.9mm optical fiber casstte type patchcordOptical Fiber MPO patch cord Description1. MPO patchcord can be MPO-MPO, MPO-LC, MPO-FC, MPO-SC, MPO-E2000, MPO-ST, MPO fan-out cable patch cord, MPO breakout cable patch cord, etc.2. Length can be customize......
Send Inquiry
Product Description
Optical Fiber MPO patch cord Product Name
MPO-ST/LC 0.9mm optical fiber casstte type patchcord
Optical Fiber MPO patch cord Description
1. MPO patchcord can be MPO-MPO, MPO-LC, MPO-FC, MPO-SC, MPO-E2000, MPO-ST, MPO fan-out cable patch cord, MPO breakout cable patch cord, etc.
2. Length can be customized according to your requirements.
3. Fiber cable has single-mode and multi mode.
4. The MPO MTP connectors have standard insertion loss and low insertion loss.
5. cable diamter normal is 3.0mm round cable, we also have flat calbe.
6. MPO/MTP connector types have 4/8/12/16/24/32 fiber.
7. MPO/MTP patch cord has A type, B type, and C type ( fiber arrangement)
8. MPO/MTP has male and female connector.
Optical fiber MPO fanout patch cord types:
Optical Fiber MPO patch cord Specifications:
Optical Fiber MPO patch cord Features and Benefits
How to order patch cord
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
FQA :
1. Q: Are you a manufacturer?
A: yes, we are a manufacturer in Shenzhen, China
2. Q: What's your MOQ?
A: MOQ can be 1 pcs, but we do not suggest to order 1 pcs because the cost will be higher, so that the price will be higher than your budget.
3. Q: What's the price?
A: The price is according to your quantity. After you let us know your quantity, we will offer our best price for you. Big Quantities will get a very competitive price.
4. Q: Can you quote FOB price?
A: yes we can, most are delivery by air, DHL, TNT, UPC, FEDEX, etc. For big quantity we will deliver it by sea. The best way is to let us know your detailed specifications and quantity, we will offer the freight with products price for your reference.
We have a very competitive price shipping forward.
EXW price or CFR price will be better . You can contact us for more solution if you need.
5. Q: How is your quality?
A: Our production is according to IEC, Europe standard production, almost closed to the dust-free workshop. Imported production equipment and quality control equipment . Especially MTP Daisi equipment.
All the products are 100% test before delivery.
6. Q: What's your lead time?
A: For fiber optic patch cord, the lead time can be 2 -3 working days for 5000 pcs. regular products we have in stock. We can deal with urgent orders for you. For more information, you can feel free to contact us.
7. Q: What's your warranty?
A: for patch cord, we have 2 years warranty since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, but freight will be paid by your side.
8. Q: What's your packing?
A: We are using an international export package. attached some packing of different products for your reference. We also can print your logo on the packing.
9. Q: Can you do OEM/ODM?
A: yes, we can. We are a manufacturer, all products accept OEM /OD M. we can sign the Confidentiality Agreement.
10. Q: Can I have a sample?
A: It depends on which products, Free sample provide under 10 usd. Freight paid by buyer before delivery.
11. Q: How can I order?
A:
1. send mail to us or send inquiries with product name, specifications, and quantity. Provide your receive address if you need us to figure out freight for you.
2. We will offer our quotation with lead time.
3. After the quotation confirmed, we will send a PI with our bank account.
4. Production will be arranged after the payment received.
6.The tracking number will be provided after the delivery.
12. Q: What your payment term?
A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can 50% deposit in advance, 50% balance paid before delivery.

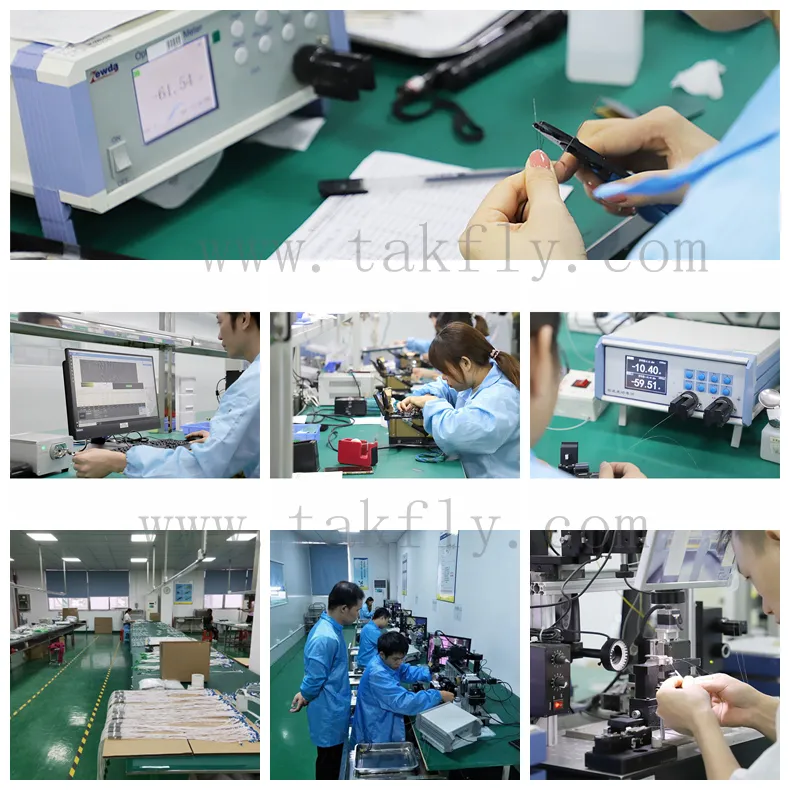

Workshop:
Certificates:
ISO9001, ISO1400, CE, RoHS, CPR, ANATEL certified
Exhibitions:
OFC, CommunicAsia, ECOC, Netcom, SVIAZ ICT, AFRICACOM, CAIRO ICT, etc.
MPO-ST/LC 0.9mm optical fiber casstte type patchcord
Optical Fiber MPO patch cord Description
1. MPO patchcord can be MPO-MPO, MPO-LC, MPO-FC, MPO-SC, MPO-E2000, MPO-ST, MPO fan-out cable patch cord, MPO breakout cable patch cord, etc.
2. Length can be customized according to your requirements.
3. Fiber cable has single-mode and multi mode.
4. The MPO MTP connectors have standard insertion loss and low insertion loss.
5. cable diamter normal is 3.0mm round cable, we also have flat calbe.
6. MPO/MTP connector types have 4/8/12/16/24/32 fiber.

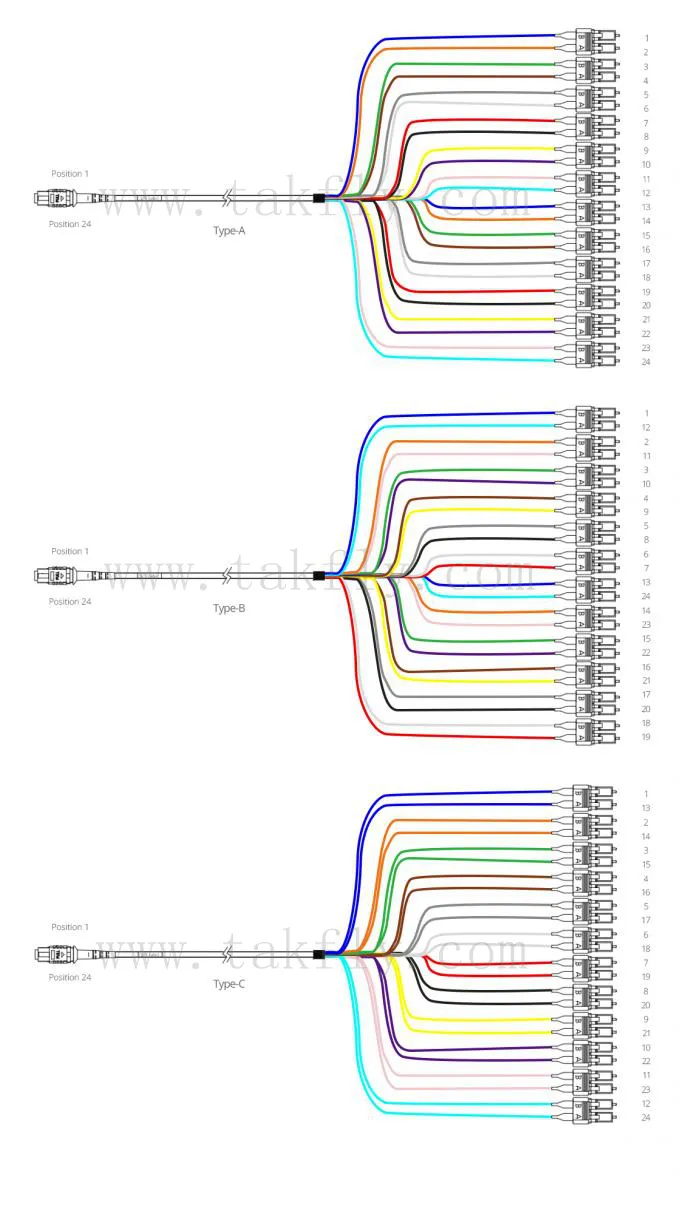

7. MPO/MTP patch cord has A type, B type, and C type ( fiber arrangement)

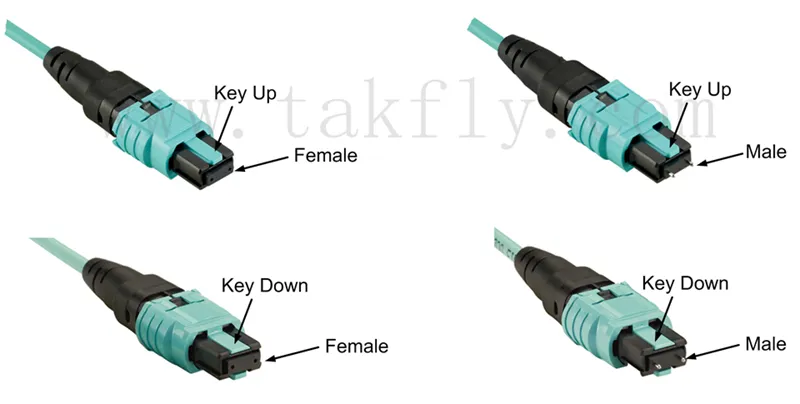

8. MPO/MTP has male and female connector.

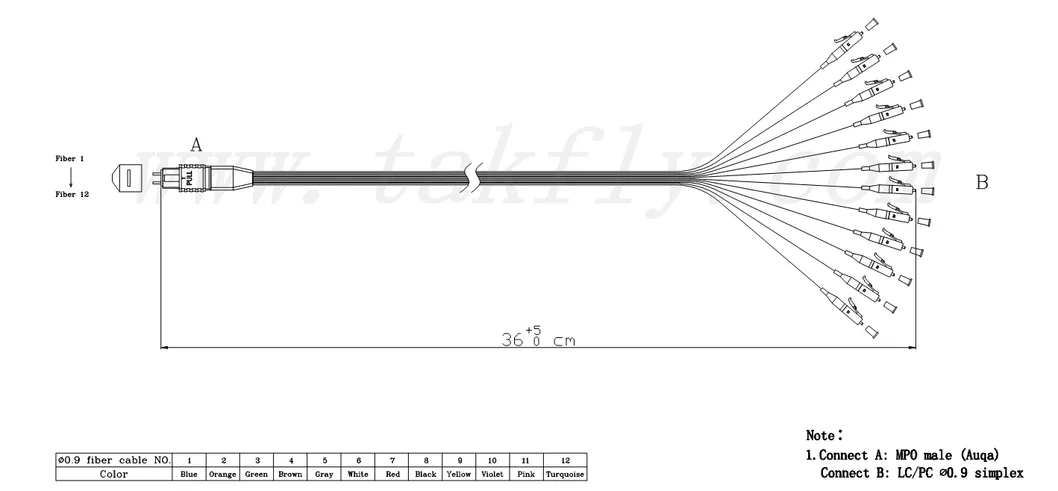

Optical fiber MPO fanout patch cord types:
Optical Fiber MPO patch cord Specifications:
| products name | MPO-ST/LC 0.9mm optical fiber casstte type patchcord |
| mode type | multi mode |
| cable count | 12 core ( can be 4/8/12/16/24/32 core ) |
| core type | 50/125um |
| cable color | 12 colors ( customized ) |
| cable diameter | 0.9mm ( customized ) |
| patch cord length | 0.5 meter ( customized ) |
| out jacket material | PVC ( can be PVC or LSZH ) |
| insertion loss | ≤ 0.35dB |
| return loss | ≥25 dB |
| wave length | 850/1300nm |
| connector type | male |
| connector color | Aqua |
| ferrule material | plastic |
| operater temperature | -40~ +85ºC |
| cable print | standard print ( can customized ) |
| OEM/ODM | acceptable |
| warranty | 3 years after delivery |
| Delivery time | 2-15 working days ( according to your quantity ) |
Optical Fiber MPO patch cord Features and Benefits
| Eliminate termination errors, Min installation timeEach cable is 100% tested for low insertion loss and back reflectionOptimized performance - Elite MTP and discrete premium connectorSupport 40GBASE-SR4 in applicable parallel optics networksCompliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard |
| Designation | Fiber Dia.(μm) | Type | 10Gbps Ethernet 10GBASE SR/LR | 40Gbps Ethernet 40GBASE SR4/PLRL4 | 100Gbps Ethernet 100GBASE SR10/IR4 |
| OM1 | 62.5/125 | Multimode | 33 Meters (SR) | Not supported | Not supported |
| OM2 | 50/125 | Multimode | 82 Meters (SR) | Not supported | Not supported |
| OM3 (Laser Optimized) | 50/125 | Multimode | 300 Meters (SR) | 100 Meters (SR4) | 100 Meters (SR10) |
| OM4 (Laser Optimized) | 50/125 | Multimode | 400 Meters (SR) | 150 Meters (SR4) | 150 Meters (SR10) |
| Singlemode | 9/125 | Singlemode | 10KM at 1310nm (LR) | 1KM (PLRL4) | 2KM (IR4 PSM) |
How to order patch cord
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
FQA :
1. Q: Are you a manufacturer?
A: yes, we are a manufacturer in Shenzhen, China
2. Q: What's your MOQ?
A: MOQ can be 1 pcs, but we do not suggest to order 1 pcs because the cost will be higher, so that the price will be higher than your budget.
3. Q: What's the price?
A: The price is according to your quantity. After you let us know your quantity, we will offer our best price for you. Big Quantities will get a very competitive price.
4. Q: Can you quote FOB price?
A: yes we can, most are delivery by air, DHL, TNT, UPC, FEDEX, etc. For big quantity we will deliver it by sea. The best way is to let us know your detailed specifications and quantity, we will offer the freight with products price for your reference.
We have a very competitive price shipping forward.
EXW price or CFR price will be better . You can contact us for more solution if you need.
5. Q: How is your quality?
A: Our production is according to IEC, Europe standard production, almost closed to the dust-free workshop. Imported production equipment and quality control equipment . Especially MTP Daisi equipment.
All the products are 100% test before delivery.
6. Q: What's your lead time?
A: For fiber optic patch cord, the lead time can be 2 -3 working days for 5000 pcs. regular products we have in stock. We can deal with urgent orders for you. For more information, you can feel free to contact us.
7. Q: What's your warranty?
A: for patch cord, we have 2 years warranty since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, but freight will be paid by your side.
8. Q: What's your packing?
A: We are using an international export package. attached some packing of different products for your reference. We also can print your logo on the packing.
9. Q: Can you do OEM/ODM?
A: yes, we can. We are a manufacturer, all products accept OEM /OD M. we can sign the Confidentiality Agreement.
10. Q: Can I have a sample?
A: It depends on which products, Free sample provide under 10 usd. Freight paid by buyer before delivery.
11. Q: How can I order?
A:
1. send mail to us or send inquiries with product name, specifications, and quantity. Provide your receive address if you need us to figure out freight for you.
2. We will offer our quotation with lead time.
3. After the quotation confirmed, we will send a PI with our bank account.
4. Production will be arranged after the payment received.
5.Confirm the consignee with you before we deliver it.
6.The tracking number will be provided after the delivery.
12. Q: What your payment term?
A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can 50% deposit in advance, 50% balance paid before delivery.
Workshop:
Certificates:
ISO9001, ISO1400, CE, RoHS, CPR, ANATEL certified
Exhibitions:
OFC, CommunicAsia, ECOC, Netcom, SVIAZ ICT, AFRICACOM, CAIRO ICT, etc.
