Odva to LC Outdoor IP67 Waterproof Fiber Optic Patch Cable
ODVA to LC Outdoor IP67 Waterproof Fiber Optic Patch CableApplications*CATV*Telecommunication networks*Active device termination*Local area networks(LANS)*Data processing networks*Test equipment*Wide area networks(WANS)Features*standard duplexlc connector, well connected with standard lc adaptor*ava......
Send Inquiry
Product Description

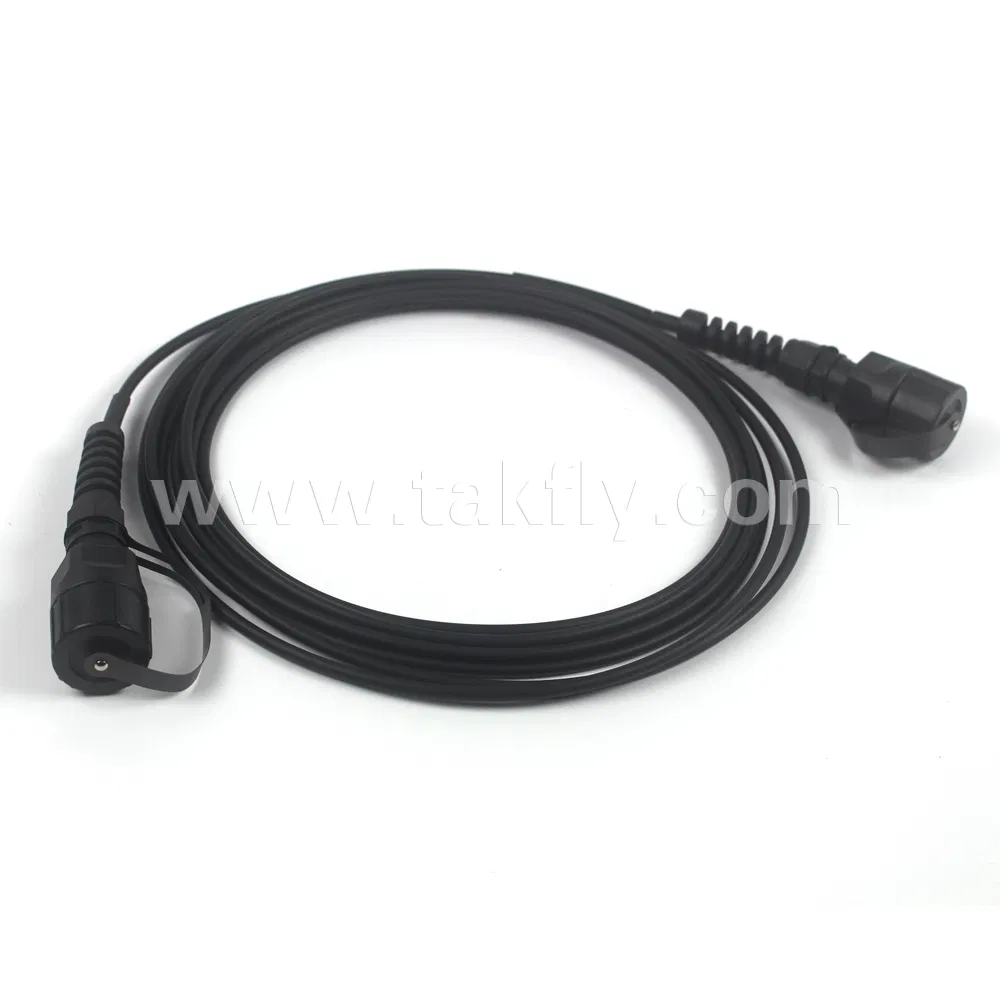

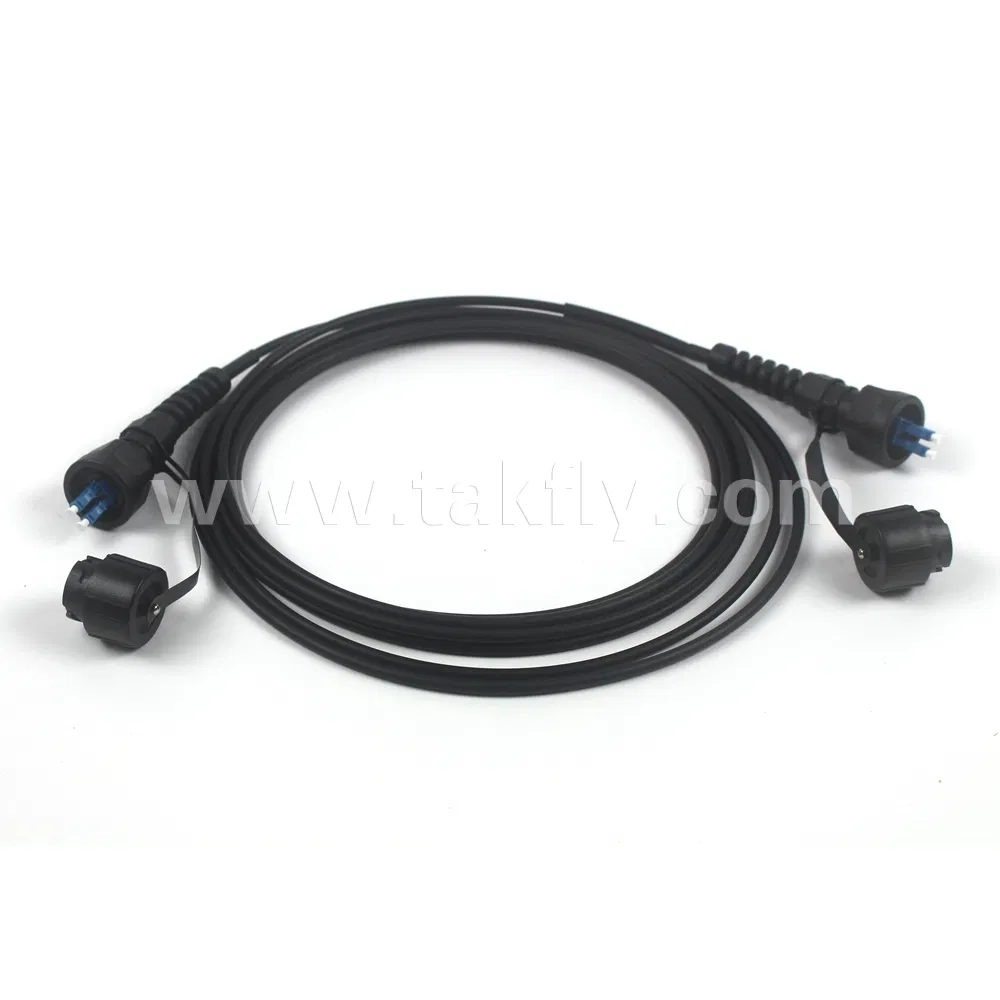

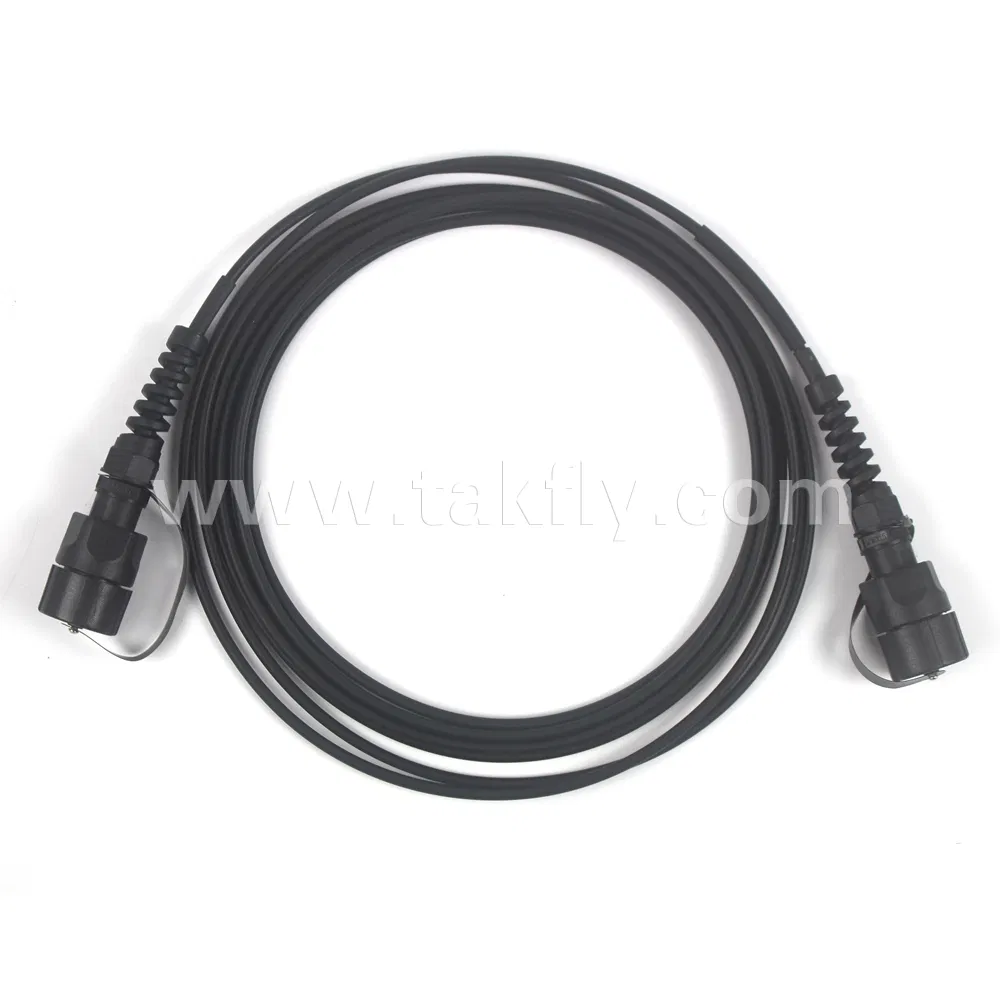

ODVA to LC Outdoor IP67 Waterproof Fiber Optic Patch Cable
Applications
*CATV
*Telecommunication networks
*Active device termination
*Local area networks(LANS)
*Data processing networks
*Test equipment
*Wide area networks(WANS)
Features
*standard duplexlc connector, well connected with standard lc adaptor
*available single mode and multimode
*IP67 protection, salt-mist proof, humidity proof, dust proof
*aluminum housing, compact design
*broad temperature range and wide range of indoor and outdoor cables
*easy operation, reliable and cost-effective installation specifications
Specifications :
| End face type | PC, UPC and APC |
| Fiber type | SM( G652, G655, G657) ; MM( OM1-OM5) |
| Cable Diameter | 4.5~8.0mm |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB , APC SM≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | >70N |
| Operating Temperature | -20ºC~70ºC |
| Storage Temperature | -40ºC~80ºC |
| Outer Sheath Material | PVC, LSZH, PU |
| Bending radius ( Static/Dynamic) | 10D/20D |
| Length | Customized |

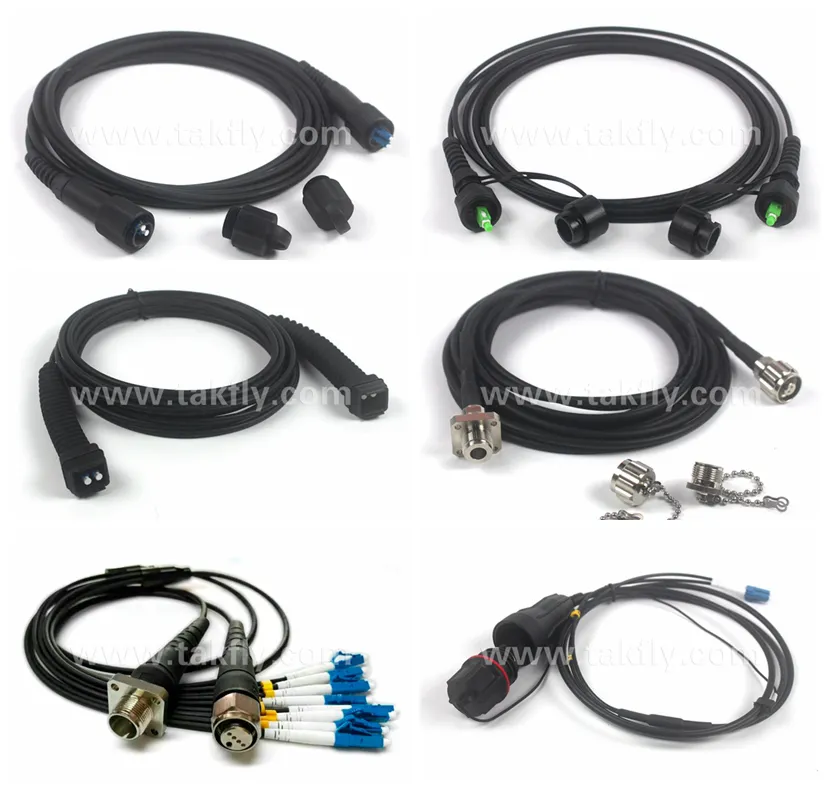

More Outdoor Waterproof Patchcord From Takfly
***Any interest in Waterproof fiber Patch cord ,please dont' hesitate to leave me a message below!!!
