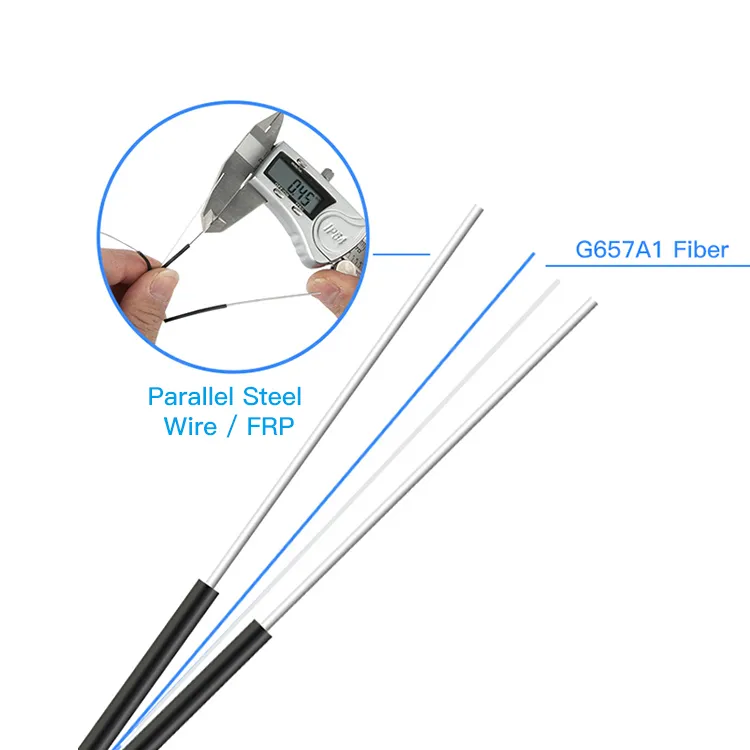

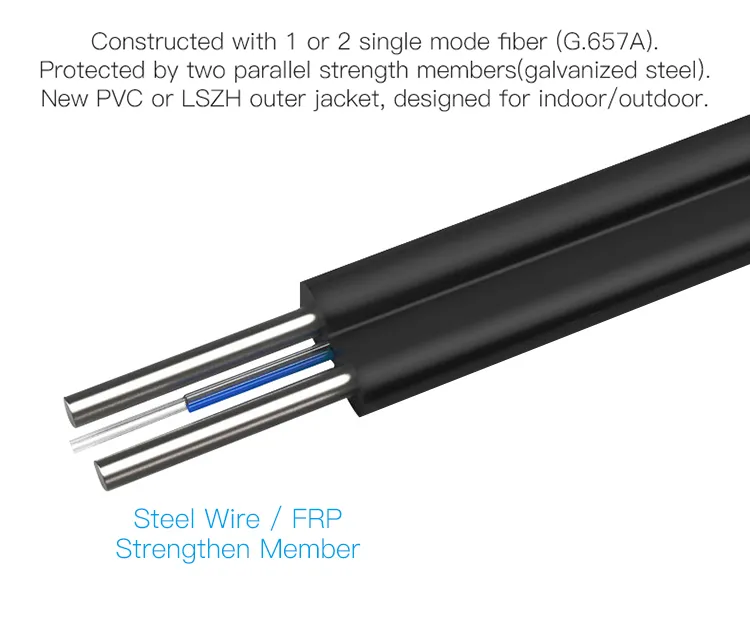

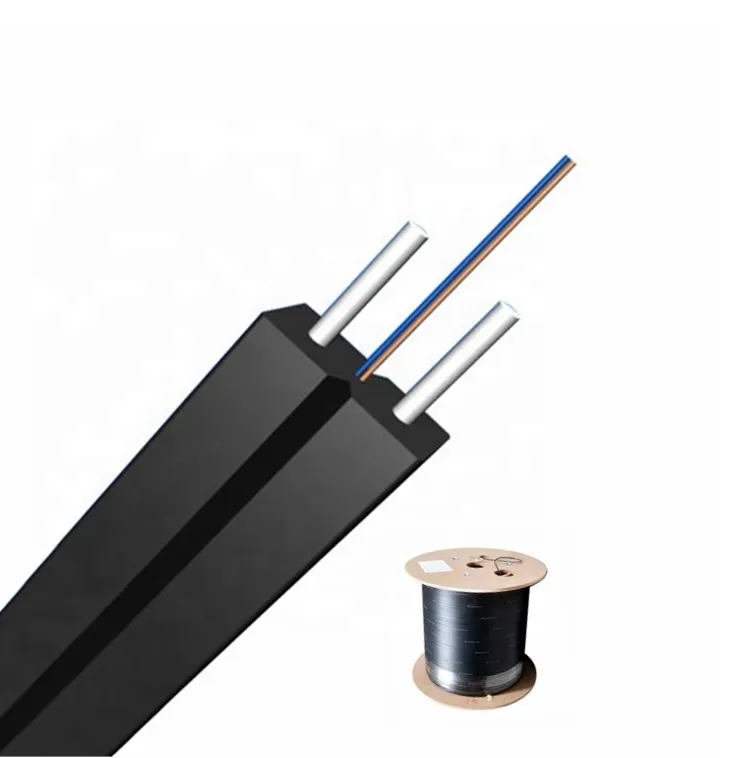

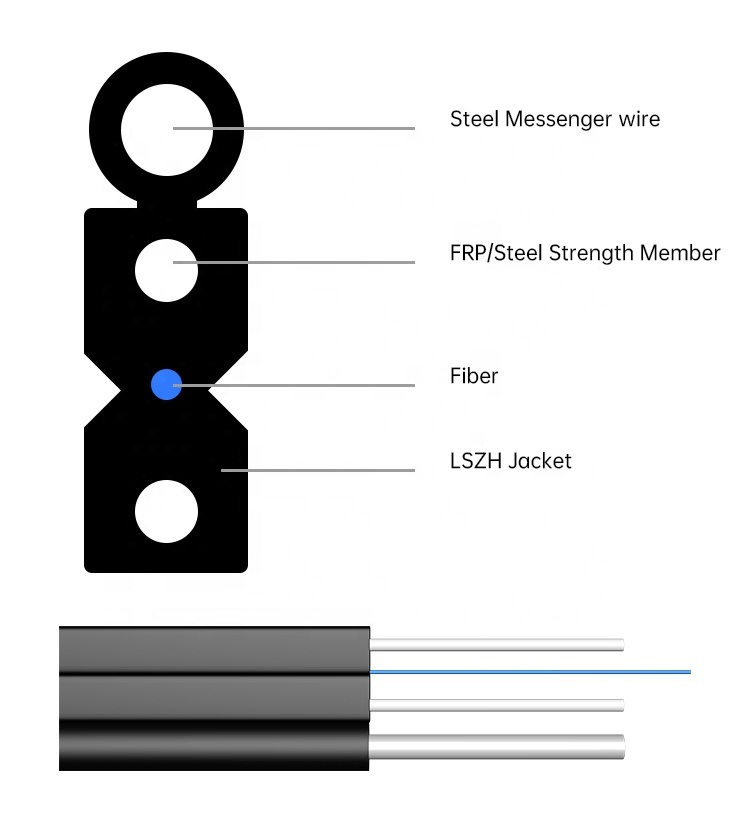

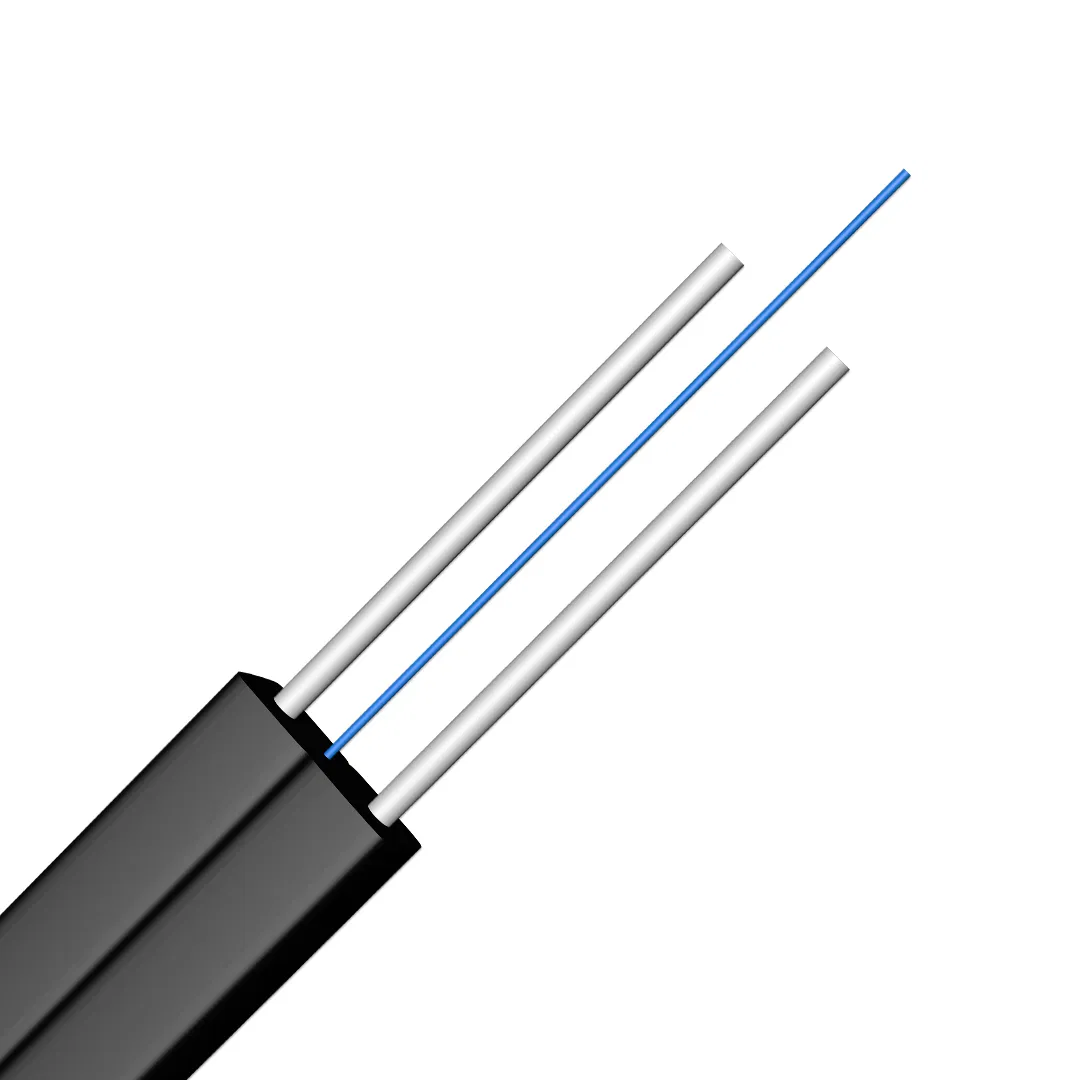

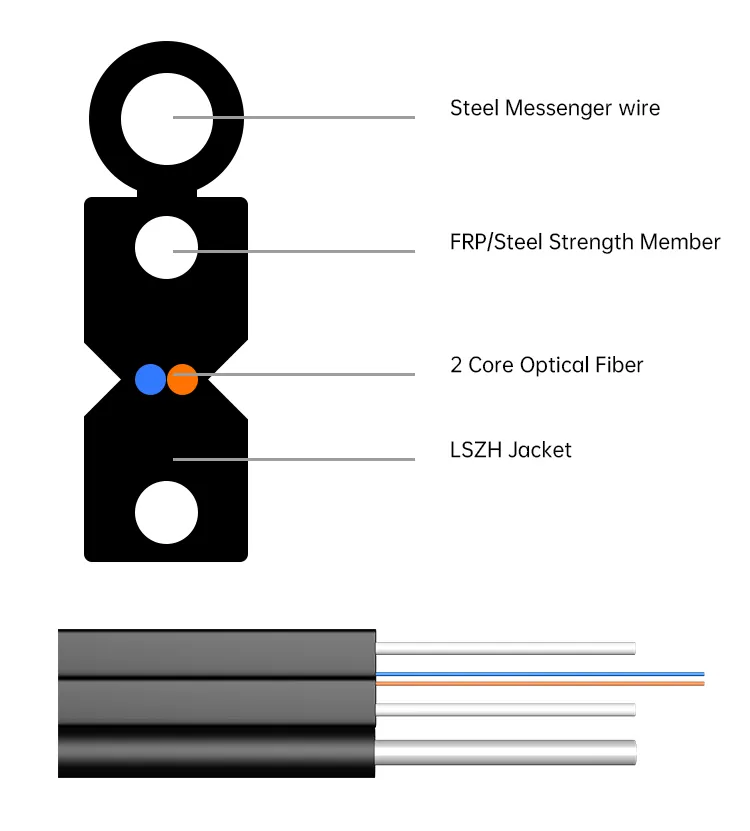

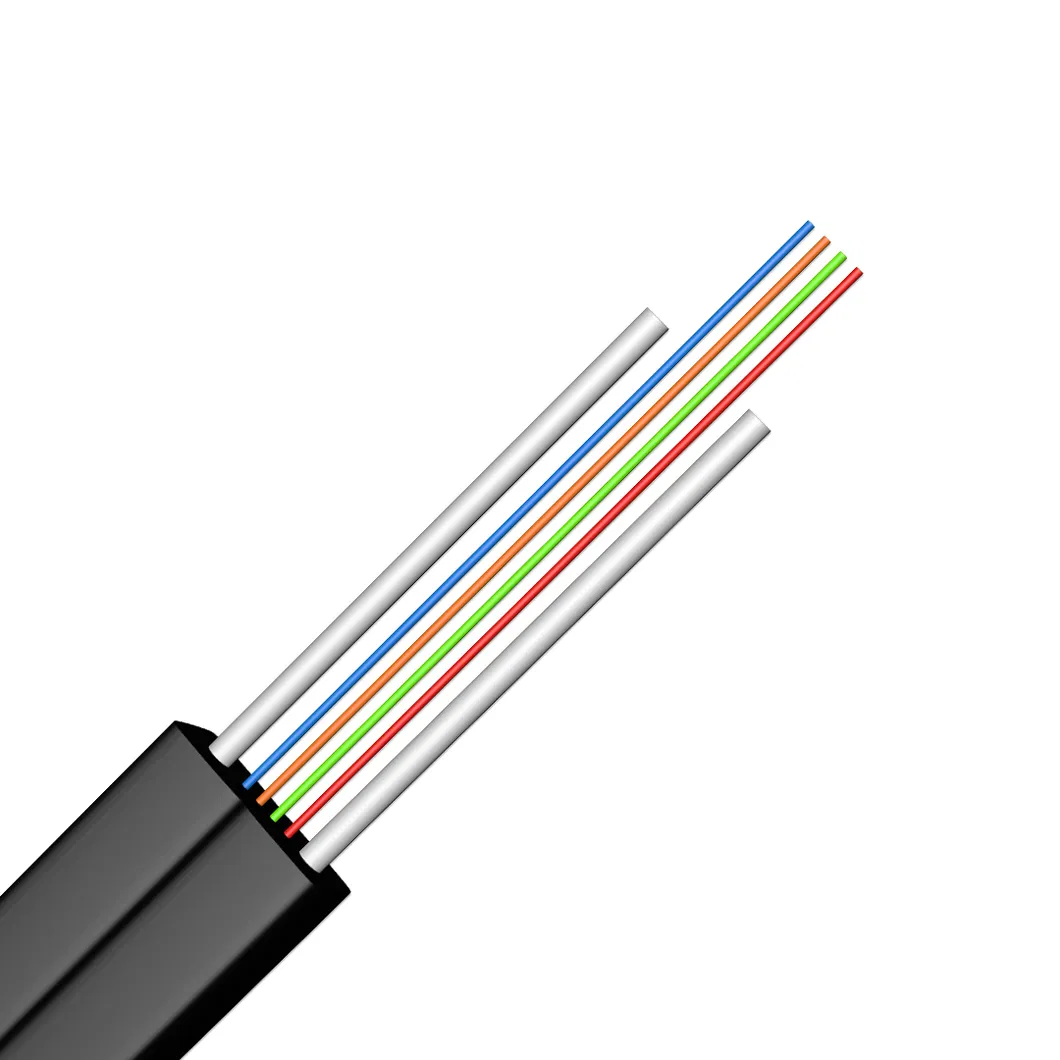

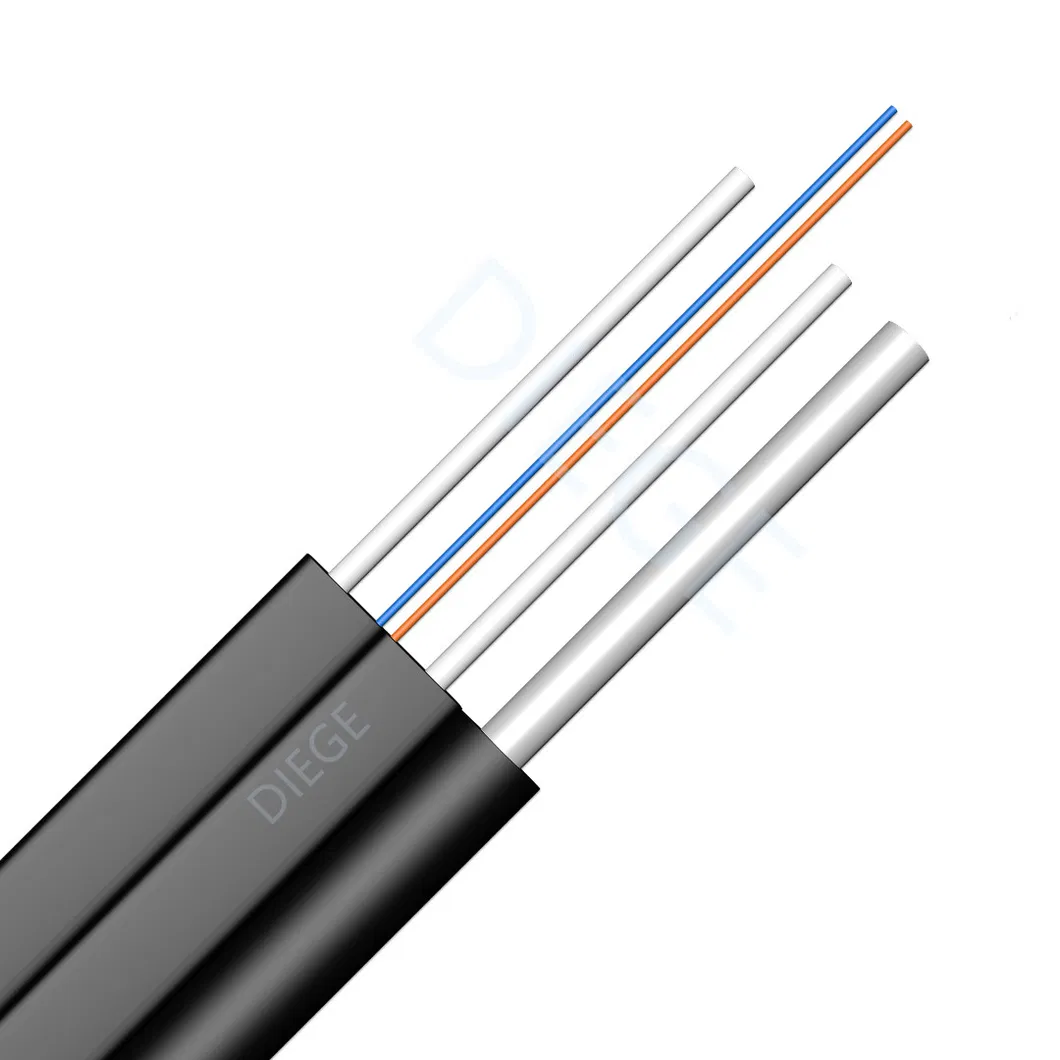

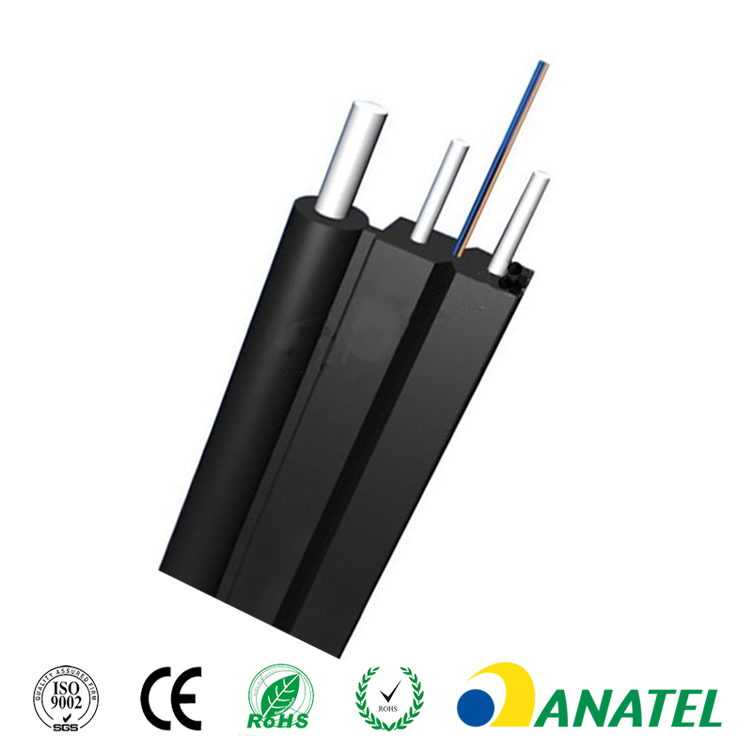

Outdoor Waterproof Armoured FTTH Drop Cable 2fo F657A LSZH Jacket Drop Cable FTTH
Product DescriptionItemTechnology parameterCable typeDrop CableCable Count1 2 4 6 8 12Fiber colorGreen, YellowFiber type9/125 (G657A2)Sheath colorBlack and whiteSheath materialLSZHCable dimension (mm)3.0(±0.1)*2.0(±0.1); 5.2(±0.1)*2.0(±0.1)Cable weight (Kg......
Send Inquiry
Product Description
Item | Technology parameter |
Cable type | Drop Cable |
Cable Count | 1 2 4 6 8 12 |
Fiber color | Green, Yellow |
Fiber type | 9/125 (G657A2) |
Sheath color | Black and white |
Sheath material | LSZH |
Cable dimension (mm) | 3.0(±0.1)*2.0(±0.1); 5.2(±0.1)*2.0(±0.1) |
Cable weight (Kg/km) | 15 |
Min. bending radius (mm) | 10 (Static) 25 (Static) 30 (Static) 60 (Static) |
Attenuation (dB/km) | 0.4 at 1310nm, 0.3 at 1550nm |
Short term tensile ( N) | 200; 600 |
Crush resistance (N/100mm) | 1000; 2200 |
Operation temperature (ºC) | -20~+70ºC |
1. Can I have a sample order?
Yes, we welcome sample order to test and check quality.
2. What about the lead time?
Sample needs 7-10days, bulk production time need 20-25 days.
3. Do you have any MOQ limit for order?
Normally, 10kms per one specification and one color.
4. How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT for samples. It usually takes 3-5days to arrive. Airline and sea shipping also optional.
5. Is it OK to print my logo on cables?
Yes. Please inform us formally before our production.
