Sc Upc with Clip Duplex Optical Fiber Patchcord
Optical Fiber patch cord Product NameSC UPC with clip duplex optical fiber patchcordOptical Fiber patch cord Description:1. patch cord has single mode and multimode type, single mode has UPC and APC polishing, multimode is PC polishing.2. single mode cable has G625D,G657A1,G657A2,G655. multimod......
Send Inquiry
Product Description
Optical Fiber patch cord Product Name

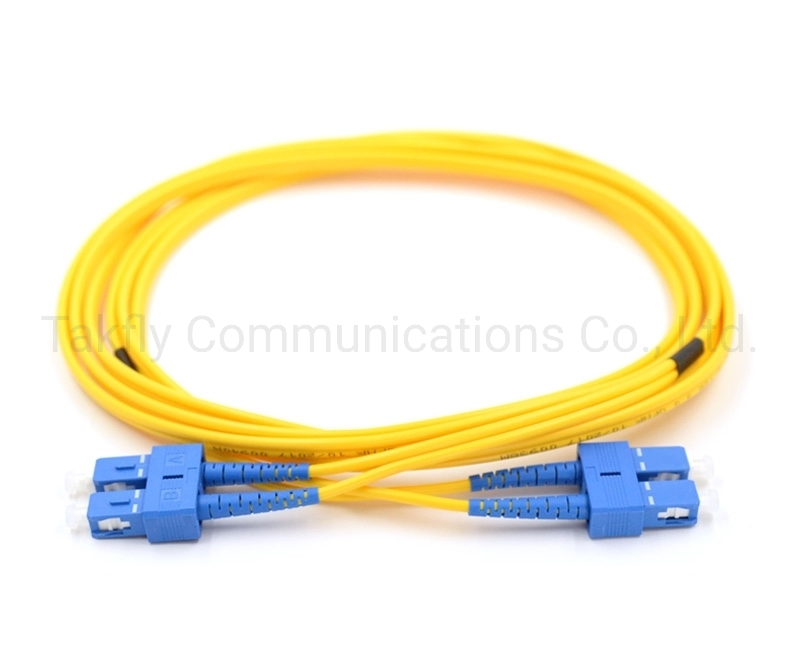

SC UPC with clip duplex optical fiber patchcord
Optical Fiber patch cord Description:
1. patch cord has single mode and multimode type, single mode has UPC and APC polishing, multimode is PC polishing.
2. single mode cable has G625D,G657A1,G657A2,G655.
multimode cable has OM1(62.5/125um), OM2(50/125um), OM3-150(50/125um), OM3-300(50/125um), OM4, OM5.
3. patch cord can be simplex, duplex, 4 fibers, 6 fibers, 8 fibers, 12 fibers, 24 fibers, 48 fiber, 96 fibers, 144 fibers, 288 fibers,etc.
4. fiber cable has fan-out type and distribution cable type for multiplex cable.
5. cable has indoor and outdoor type
6. indoor cable outjacket material has PVC and LSZH. outjacket can be PE and LSZH.
Optical Fiber patch cord Specifications:
Optical Fiber patch cord Features and Benefits
How to order Optical fiber patch cord
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
FQA :
1. Q: Are you a manufacturer?
A: yes, we are a manufacturer , FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
2. Q: What's your MOQ?
A: MOQ can be 1 pcs, but the price is not competitive.More quantity,the price will be more competitive.
3. Q: Can you quote FOB price?
A: yes. We can delivery by air, DHL, TNT, UPC, FEDEX, etc. For big quantity we will deliver it by sea.
We can quote price with freight and lead time for you, after you let us know detailed requirements with quantity.
We have competitive shipping forwarders. For more solutions, you can feel free to contact us.
4. Q: How is your quality?
A: Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified.
All the products are 100% test before delivery.
5. Q: What's your lead time?
A: It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2 -3 working days within 5000 pcs. We keep the regular products in stock. Also, we can deal with urgent orders.
6. Q: What's your warranty?
A: Depends one different product, we have1 years warranty for patch cord since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, freight will be paid by your side.
7. Q: What's your packing?
A: International export standard package.If you need to print your logo on the packing, please let us know before we quote.
8. Q: Can you offer OEM/ODM?
A: yes, we can. all products accept OEM /ODM. we can sign the Confidentiality Agreement.
9. Q: Can I have a sample?
A: It depends on which products, Free sample provide under 10 usd. Freight will be paid by buyer before delivery.
10. Q: How can I order?
A:1.send mail or inquiries with product name, specification, and quantity to us . Provide your receive address if you need FOB,CIF,CFR price.
2.We will offer our quotation with lead time.
3.After the quotation confirmed, we will send a PI with our bank account.
4.Production will be arranged after the payment received.
5.Confirm the consignee with you before we deliver it.
6.The tracking number will be provided after the delivery.
11. Q: What your payment term?
A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can be 50% deposit in advance, 50% balance paid before delivery.

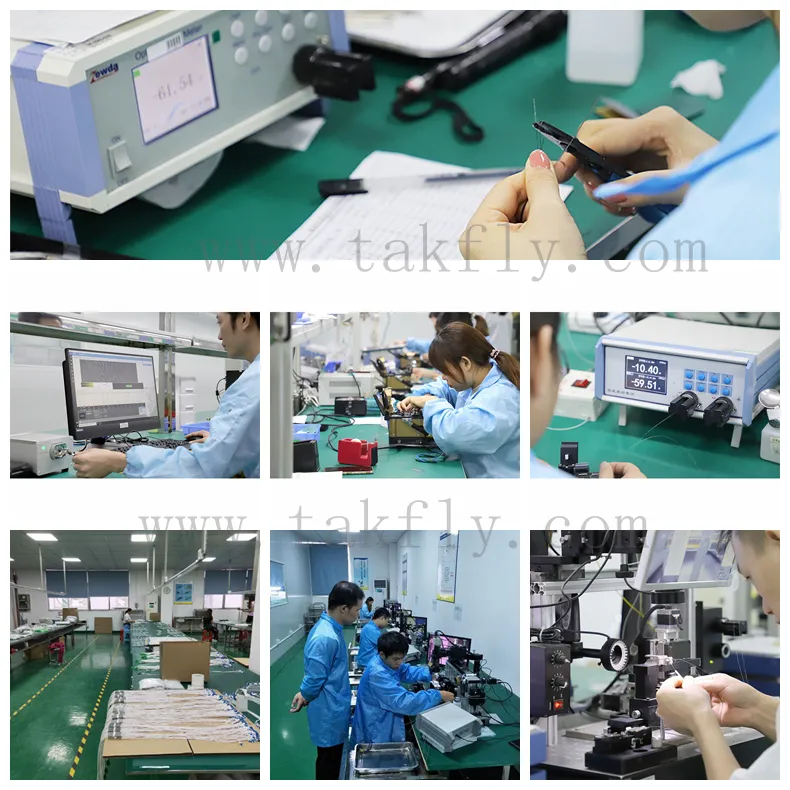

Workshop:

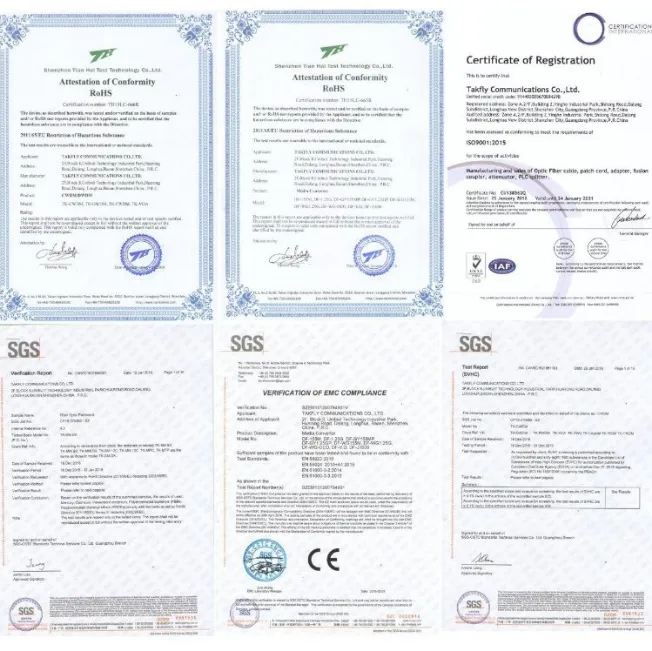

Certificates:
ISO9001, ISO1400, CE, RoHS, CPR, ANATEL certified
Exhibitions:
OFC, CommunicAsia, ECOC, Netcom, SVIAZ ICT, AFRICACOM, CAIRO ICT, etc.

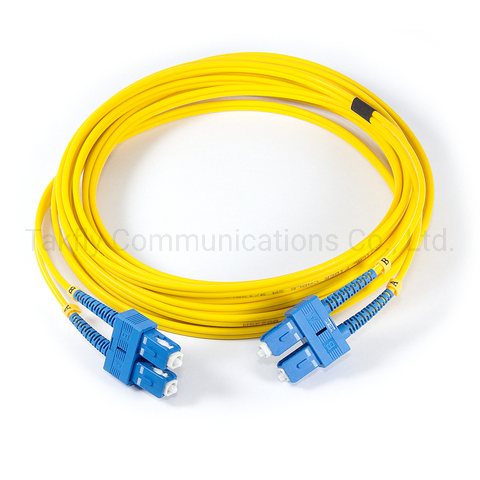

SC UPC with clip duplex optical fiber patchcord
Optical Fiber patch cord Description:
1. patch cord has single mode and multimode type, single mode has UPC and APC polishing, multimode is PC polishing.
2. single mode cable has G625D,G657A1,G657A2,G655.
multimode cable has OM1(62.5/125um), OM2(50/125um), OM3-150(50/125um), OM3-300(50/125um), OM4, OM5.
3. patch cord can be simplex, duplex, 4 fibers, 6 fibers, 8 fibers, 12 fibers, 24 fibers, 48 fiber, 96 fibers, 144 fibers, 288 fibers,etc.
4. fiber cable has fan-out type and distribution cable type for multiplex cable.
5. cable has indoor and outdoor type
6. indoor cable outjacket material has PVC and LSZH. outjacket can be PE and LSZH.

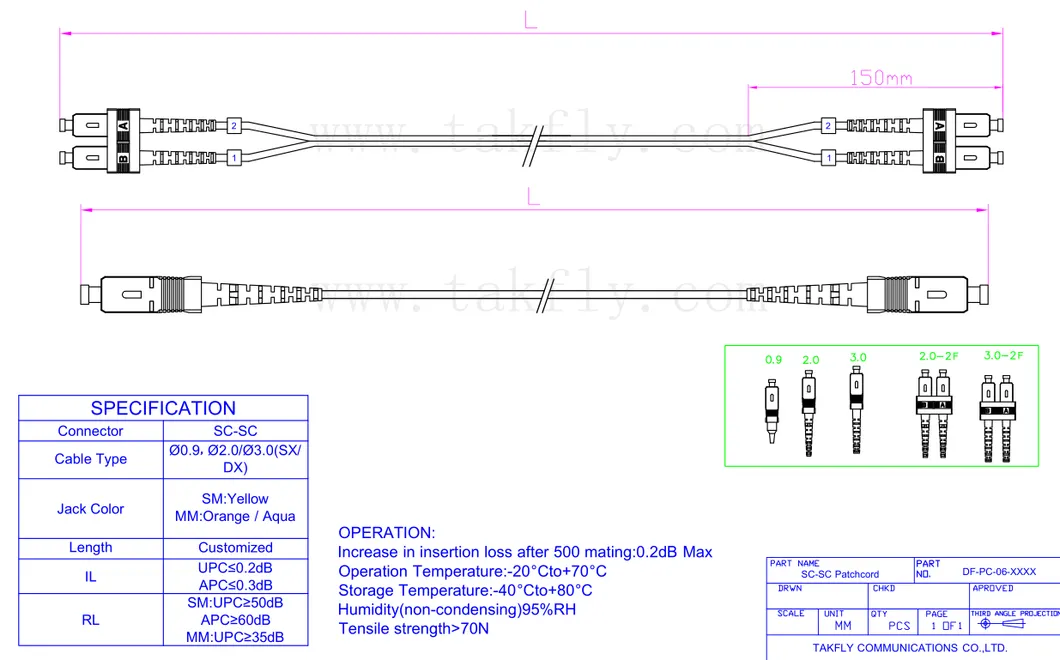

Optical Fiber patch cord Specifications:
| products name | SC UPC with clip duplex optical fiber patchcord |
| mode type | single mode |
| cable count | duplex |
| core type | 9/125um |
| cable color | yellow |
| cable diameter | 3.0mm ( customized ) |
| patch cord length | 15 meters ( customized ) |
| out jacket material | LSZH ( can be PVC or LSZH ) |
| insertion loss | ≤ 0.3dB |
| return loss | PC>40dB,UPC>50dB, APC>60dB |
| wave length | MM: 850/1500nm, SM:1310/1550nm |
| ferrule material | Ceramic |
| operater temperature | -40~ +85ºC |
| cable print | standard print ( can customized ) |
| OEM/ODM | acceptable |
| warranty | 3 years after delivery |
| Delivery time | 2-15 working days ( according to your quantity ) |
Optical Fiber patch cord Features and Benefits
| Eliminate termination errors, Min installation timeEach cable is 100% tested for low insertion loss and back reflectionOptimized performance - Elite MTP and discrete premium connectorSupport 40GBASE-SR4 in applicable parallel optics networksCompliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard |
| Designation | Fiber Dia.(μm) | Type | 10Gbps Ethernet 10GBASE SR/LR | 40Gbps Ethernet 40GBASE SR4/PLRL4 | 100Gbps Ethernet 100GBASE SR10/IR4 |
| OM1 | 62.5/125 | Multimode | 33 Meters (SR) | Not supported | Not supported |
| OM2 | 50/125 | Multimode | 82 Meters (SR) | Not supported | Not supported |
| OM3 (Laser Optimized) | 50/125 | Multimode | 300 Meters (SR) | 100 Meters (SR4) | 100 Meters (SR10) |
| OM4 (Laser Optimized) | 50/125 | Multimode | 400 Meters (SR) | 150 Meters (SR4) | 150 Meters (SR10) |
| Singlemode | 9/125 | Singlemode | 10KM at 1310nm (LR) | 1KM (PLRL4) | 2KM (IR4 PSM) |
How to order Optical fiber patch cord
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
FQA :
1. Q: Are you a manufacturer?
A: yes, we are a manufacturer , FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
2. Q: What's your MOQ?
A: MOQ can be 1 pcs, but the price is not competitive.More quantity,the price will be more competitive.
3. Q: Can you quote FOB price?
A: yes. We can delivery by air, DHL, TNT, UPC, FEDEX, etc. For big quantity we will deliver it by sea.
We can quote price with freight and lead time for you, after you let us know detailed requirements with quantity.
We have competitive shipping forwarders. For more solutions, you can feel free to contact us.
4. Q: How is your quality?
A: Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified.
All the products are 100% test before delivery.
5. Q: What's your lead time?
A: It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2 -3 working days within 5000 pcs. We keep the regular products in stock. Also, we can deal with urgent orders.
6. Q: What's your warranty?
A: Depends one different product, we have1 years warranty for patch cord since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, freight will be paid by your side.
7. Q: What's your packing?
A: International export standard package.If you need to print your logo on the packing, please let us know before we quote.
8. Q: Can you offer OEM/ODM?
A: yes, we can. all products accept OEM /ODM. we can sign the Confidentiality Agreement.
9. Q: Can I have a sample?
A: It depends on which products, Free sample provide under 10 usd. Freight will be paid by buyer before delivery.
10. Q: How can I order?
A:1.send mail or inquiries with product name, specification, and quantity to us . Provide your receive address if you need FOB,CIF,CFR price.
2.We will offer our quotation with lead time.
3.After the quotation confirmed, we will send a PI with our bank account.
4.Production will be arranged after the payment received.
5.Confirm the consignee with you before we deliver it.
6.The tracking number will be provided after the delivery.
11. Q: What your payment term?
A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can be 50% deposit in advance, 50% balance paid before delivery.
Workshop:
Certificates:
ISO9001, ISO1400, CE, RoHS, CPR, ANATEL certified
Exhibitions:
OFC, CommunicAsia, ECOC, Netcom, SVIAZ ICT, AFRICACOM, CAIRO ICT, etc.
