Product Description

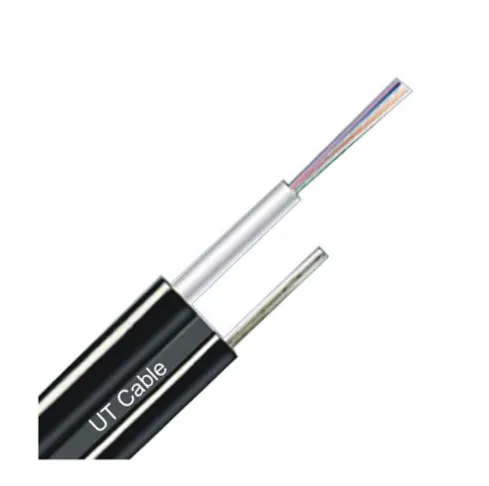

UT-King ftth drop cable GYXTC8Y Outdoor Cable high quality Fiber Optic Cable with anatel certificate

Overview

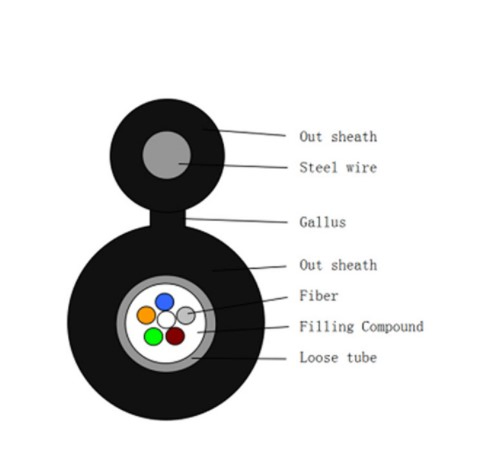

The GYXTC8Y cable is constructed by inserting a 250μm fiber into a loose tube made of a high-modulus material filled with a water-repellent compound. After longitudinally wrapping the outer layer of the loose tube with a water blocking strip, the steel wire is integrated into an 8-shaped polyethylene sheath to form a cable.

Main Features

Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
PE sheath enhancing moisture-proof
Small diameter, light weight and easy to lay.
Long delivery length and low price

Parameter

Fiber Type		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20ºC)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500MHz·km	≥200MHz·km
Bandwidth (Class A)	@1300nm			≥1000MHz·km	≥600MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λ cc		≤1260nm	≤1480nm
