              3m Firewire 800 Cable 1394 B for Camera
              • 3m Firewire 800 Cable 1394 B for Camera3m Firewire 800 Cable 1394 B for Camera
              • 3m Firewire 800 Cable 1394 B for Camera3m Firewire 800 Cable 1394 B for Camera

              3m Firewire 800 Cable 1394 B for Camera

              IEEE 1394 firewire 800 to 800 1394 B 9 pin To 9 pin 3m cable 1394 Port Camera Machine Vision Description:1394 is High speed universal serial interface. By using the chrysanthemum chain, star type and hybrid type connected by bus, it can drive multiple cameras and form an image processing system at t......

              Send Inquiry

              Product Description

              IEEE 1394 firewire 800 to 800 1394 B 9 pin To 9 pin 3m cable 1394 Port Camera Machine Vision



              Description:

              1394 is High speed universal serial interface. By using the chrysanthemum chain, star type and hybrid type connected by bus, it can drive multiple cameras and form an image processing system at the same time.

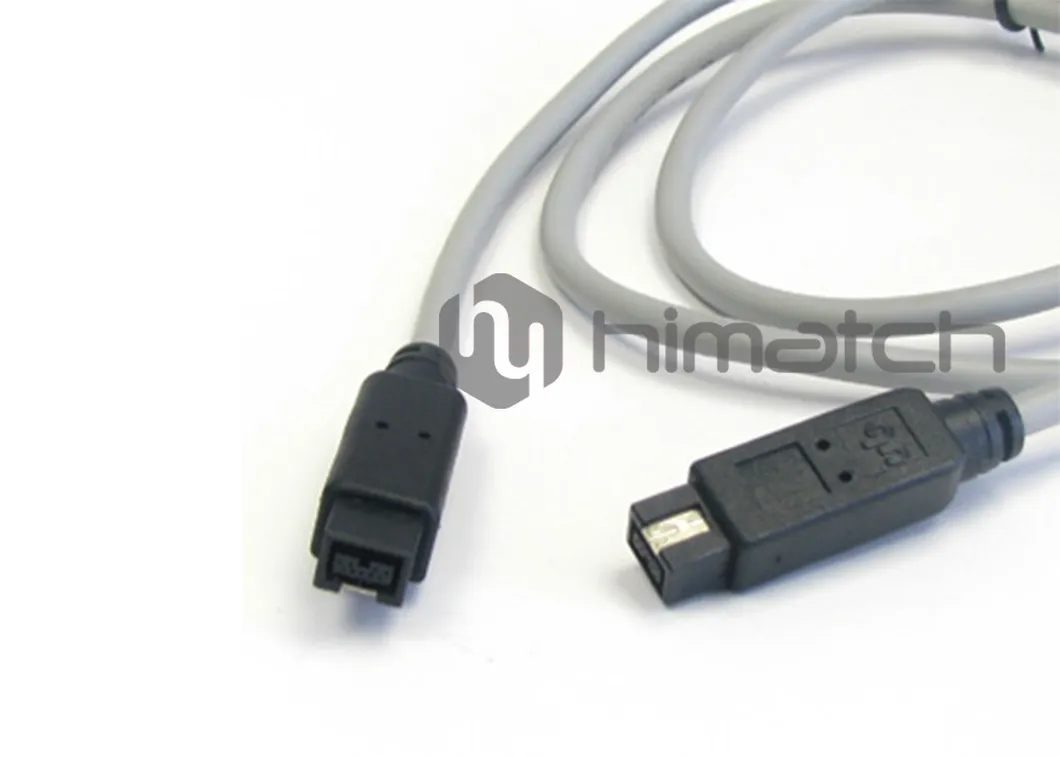

              IEEE Firewire 400 to 800 cable are very high performance cables, built with high flexible full shielding cable, with verified IEEE 1394 6pin, and 9pin connector at each end, overmold with thumbscrew locking, they are used primarily for data transfer IEEE 1394 at speed up to 800Mbps between multimedia devices, industrial 1394 cameras.



              Specification:

              BrandHimatchModel No. Conductor:Tinned copper
              Cable:5P flex cableWire:26AWGInsulation:HDPE
              Jacket:PVC/PURCable OD:6.0mmColor:Black
              Cable shapeRoundUsing forCameraUL Verified:Yes
              Voltage:30VBending:8 MillionsOEM/ODM:Available









              Connector
              TypeShapeLockingDirectionCode
              1394 4posStraightNo-4M

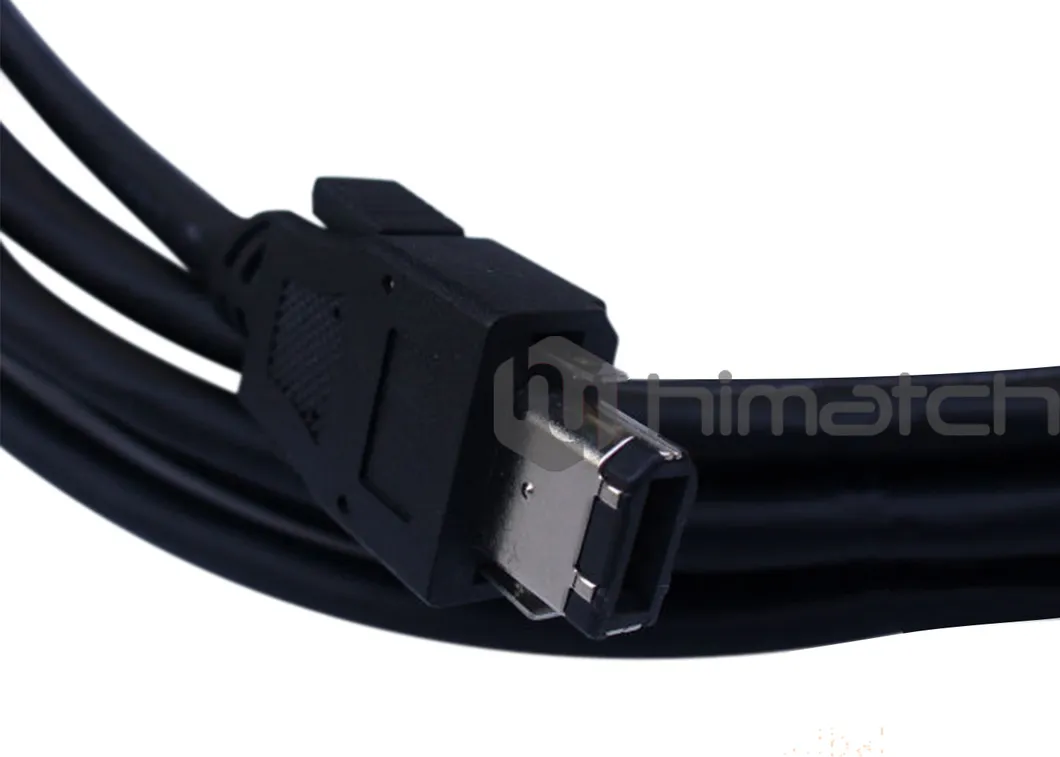

              1394 6posStraightNo-6M
              Latch-6MK
              1394 9posStraightNo-9M

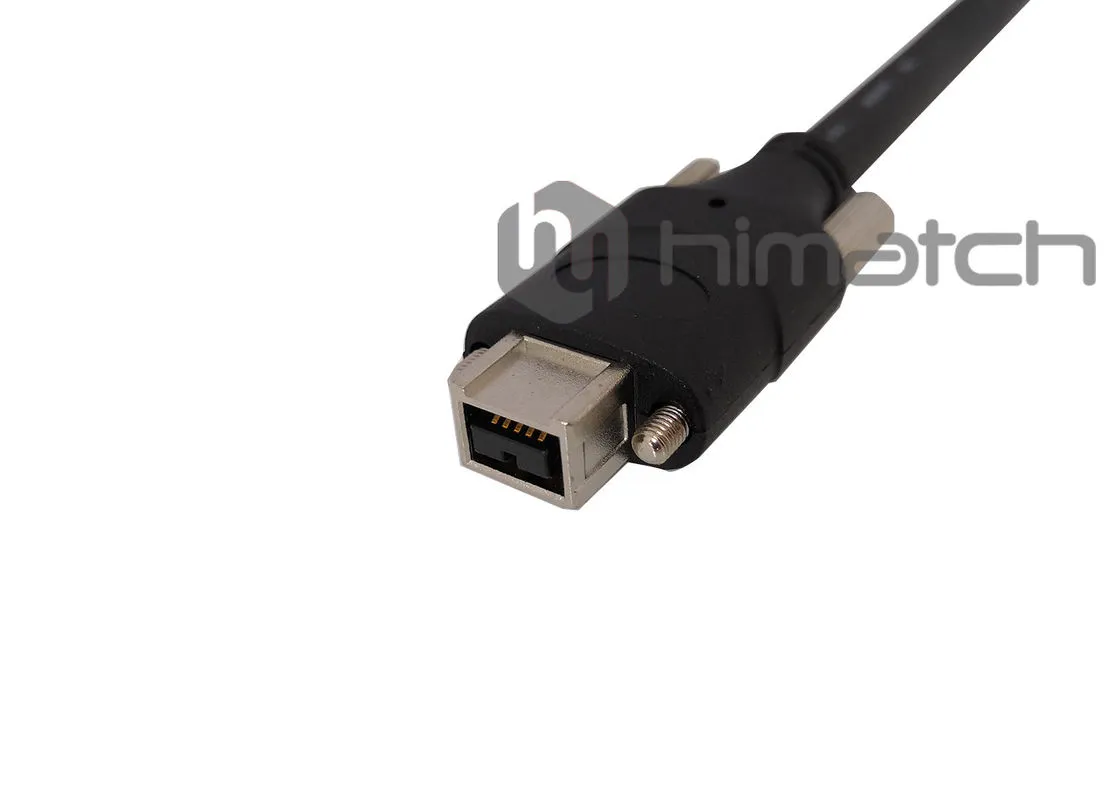

              Screw-9MS
              AngledScrewAngle Up9MSU
              ScrewAngle Down9MSD
              ScrewAngle Left9MSL
              ScrewAngle Right9MSR

              Features



              Support for high speed industrial camera image transmission.

              Full speed transmit 800Mbps

              Special braiding improves anti-jamming performance.

              Oil-resistant sheathing suitable for workshop

              High flexibility high bending and mobility resistance

              100% electronically tested for functionality
              PUR jacket resists oil and other contaminants
              CE, RoHS and REACH compliant



              Application



              IEEE 1394 Cameras,

              Digital cameras,

              Hard disks

              Scanners

              Graphic cards



              Towed Cable wiring

              In order to keep the good bending performance of the robot cable, improve the cable's life time, and let the data transmission more stable, and prevent the accidental occurrence of the broken wire, it is very important obey the towing points



              Bending radius.



              The bending radius of the towed cable should be as big as possible. Recommended that the cable should be set ≥ 8D (D is the outer diameter of the cable)



              Tow chain installation.



              In the placement of towed cables, cables need to be tiled, cables can not be crossed or overlapped;

              Select the tow chain with enough space to ensure that the cable occupies less than 30% space;

              Install as many partitions as possible to avoid interference between cables.
