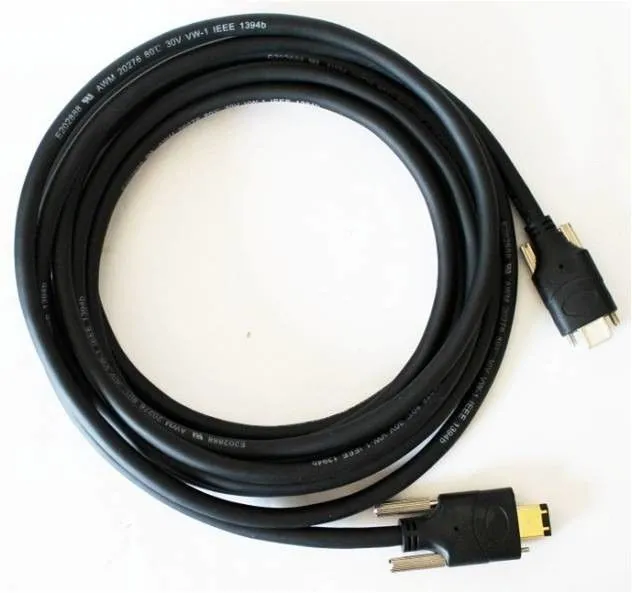

High Flexible IEEE 1394 Firewire Cable for Sliding Towing Chain
High Flexible IEEE 1394 Firewire Cable X-IE-9M-9M-0500K For Sliding In Towing Chain High speed universal serial interface. By using the chrysanthemum chain, star type and hybrid type connected by bus, it can drive multiple cameras and form an image processing system at the same time. Specification:......
Send Inquiry
Product Description
High Flexible IEEE 1394 Firewire Cable X-IE-9M-9M-0500K For Sliding In Towing Chain
High speed universal serial interface. By using the chrysanthemum chain, star type and hybrid type connected by bus, it can drive multiple cameras and form an image processing system at the same time.
Specification:
| UL | UL758 Style:20276 | |
| Cable | Temperature | 80°C |
| Voltage | 30V | |
| Jacket | Heat resistance PVC | |
| Color | Black | |
| OD | 7.4mm | |
| Finished Cable | Connector | 1394 4pos,6pos,9pos |
| Color | Black |
Features & using Environment
| Using site | Fixing/ Moving |
| Using Temp. | -5~60°C |
| Install Radius | 30mm |
| Transmit Length | 4m |
| Transmit Speed | 400Mbps |
| Moving Features | Slide moving 3 Millions Slide radius R=30mm Speed: 70 cycles/Min Moving Distance:300mm |
