Flexible IEEE 1394b Cable Firewire Cable
Firewire Cable 1394a to 1394b Flexible PVC Cable for Factory Automation Camera 1394 Description:IEEE 1394 is high speed universal serial interface. By using the chrysanthemum chain, star type and hybrid type connected by bus, it can drive multiple cameras and form an image processing system at the s......
Send Inquiry
Product Description

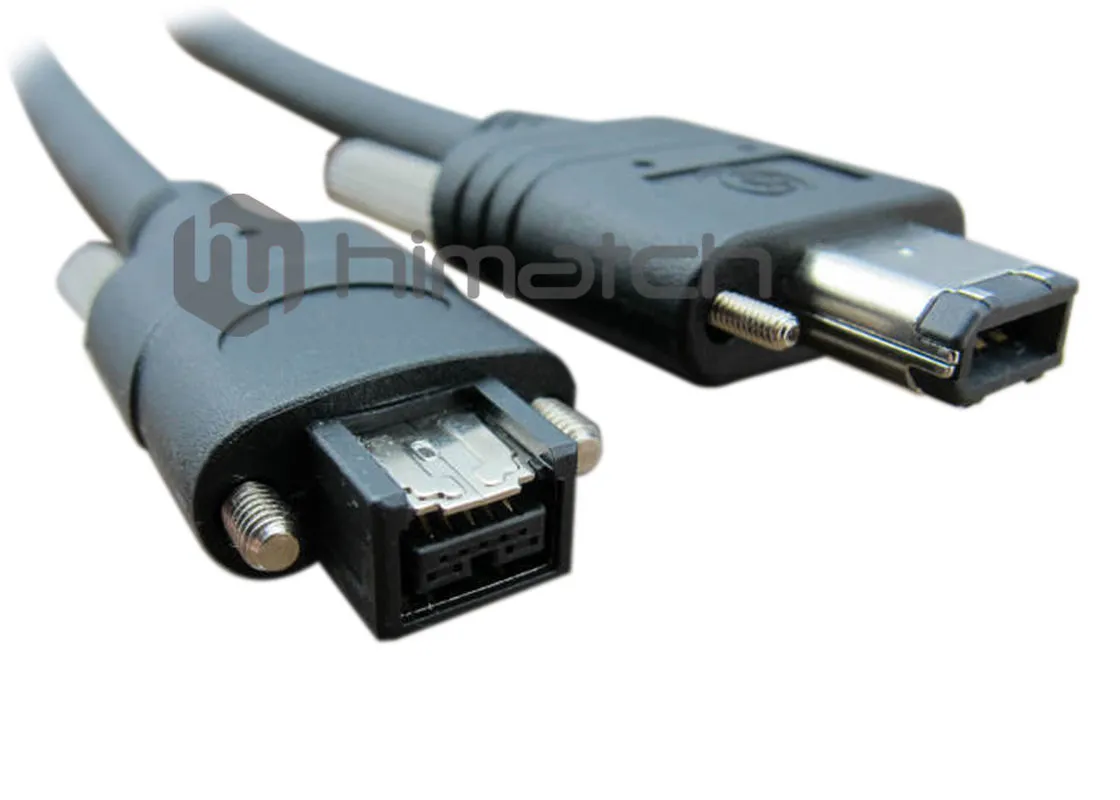

Firewire Cable 1394a to 1394b Flexible PVC Cable for Factory Automation Camera 1394
Description:
IEEE 1394 is high speed universal serial interface. By using the chrysanthemum chain, star type and hybrid type connected by bus, it can drive multiple cameras and form an image processing system at the same time

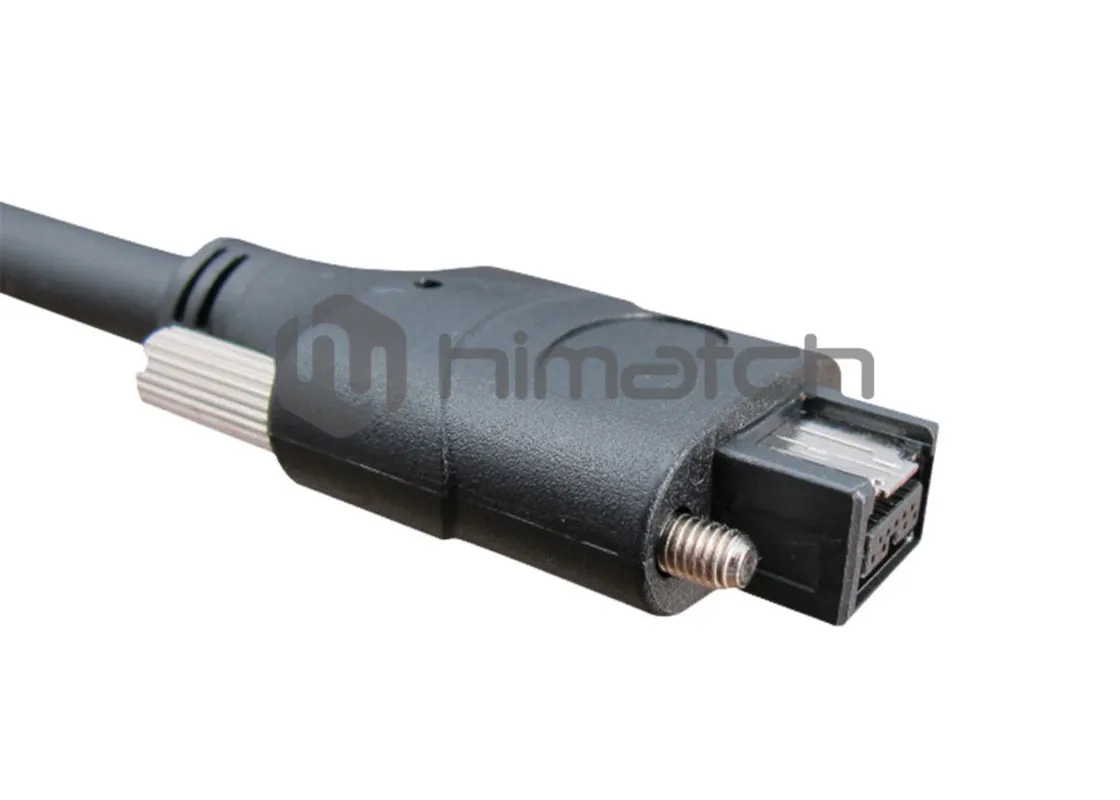

Himatch's 1394b 800 camera cable are very high performance cables, built with high flexible full shielding cable, with 1394b 9pin at both ends, molding with or without screw locking, they are used primarily for data transfer IEEE 1394 at speed up to 800Mbps between multimedia devices, industrial 1394 cameras.
Specification:
| Brand | Himatch | Model No. | Conductor: | Tinned copper | |
| Cable: | 5P flex cable | Wire: | 26AWG | Insulation: | HDPE |
| Jacket: | PVC/PUR | Cable OD: | 6.0mm | Color: | Black |
| Cable shape | Round | Using for | Camera | UL Verified: | Yes |
| Voltage: | 30V | Bending: | 8 Millions | OEM/ODM: | Available |
| Length: | 8M | Conductor: | Tinned Copper |
|---|---|---|---|
| Cores: | 5 Pairs | Volatage: | 30V |
| Interface: | 1394a 6 Pin, ,IEEE 1394b 9 Pin | Jacket: | TPU |
| Entry: | Straight | Temperature: | 80 Degree |
Features
Support for high speed industrial camera image transmission.
Special braiding improves anti-jamming performance.
Full speed transmit 400Mbps,800Mbps
100% electronically tested for functionality
Double shielded braid + foil design protect EMI/RFI
RoHS and REACH compliant
Application
IEEE 1394 Cameras
Digital cameras,
Hard disks
Scanners
Graphic cards
Bending radius.
The bending radius of the towed cable should be as big as possible. Recommended that the cable should be set ≥ 8D (D is the outer diameter of the cable)
Tow chain installation.
In the placement of towed cables, cables need to be tiled, cables can not be crossed or overlapped;
Select the tow chain with enough space to ensure that the cable occupies less than 30% space;
Install as many partitions as possible to avoid interference between cables.
Cable length
If the cable is too short and the cable is always tight in the drag chain, the cable jacket will be worn out because of the friction between the cable and the drag chain;
If the cable is too long, then the cable will be slack in the drag chain, also because of the friction between the cables, the jacket also will be wear and tear.
Both of the above will shorten the service life of the cable, please select the most appropriate cable length.
